GX61-DTPGF (1983)
Toyota Chaser

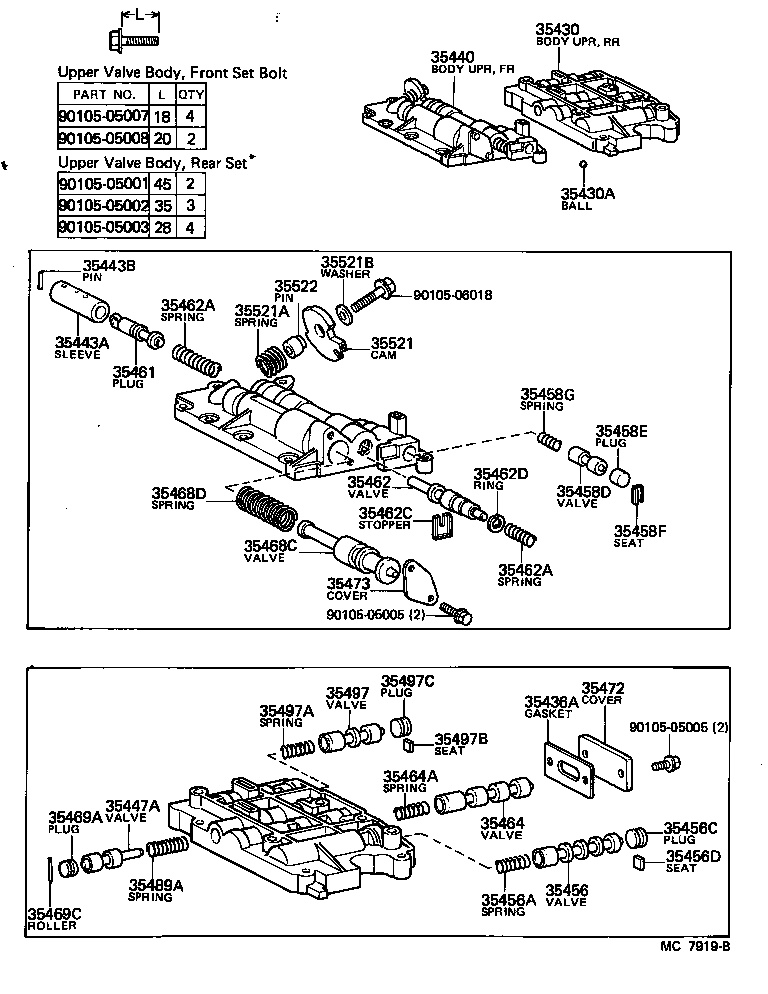

ILLUST NO. 1 OF 3(8302- )4FC..TWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35430 - BODY ASSY, REAR UPPER VALVE | ||||
| 35430-22130 |
GX6#..4FC A40D |
1 | ||
| 35430-30120 |
GX61..4FC..TWC |
1 | ||
| 35430A - BALL (FOR REAR UPPER VALVE BODY) | ||||
| 90360-06023 |
GX61..4FC..TWC 外径=5.56,STEEL |
6 | ||
| 35436A - GASKET, VALVE BODY PLATE, NO.4 | ||||
| 35436-30020 |
GX6#,RX60..4FC A40D |
1 | ||
| 35436-30050 |
GX61..4FC..TWC |
1 | ||
| 35440 - BODY ASSY, FRONT UPPER VALVE | ||||
| 35440-30020 |
GX6#..4FC |
1 | ||
| 35440-30070 |
GX61..4FC..TWC |
1 | ||
| 35443A - SLEEVE, DOWN SHIFT PLUG | ||||
| 35443-30010 |
GX61..4FC..TWC |
1 | ||
| 35443B - PIN (FOR DOWN SHIFT PLUG SLEEVE) | ||||
| 90250-03034 |
GX61..4FC..TWC |
1 | ||
| 35447A - VALVE, REVERSE CLUTCH SEQUENCE | ||||
| 35447-30010 |
GX61..4FC..TWC |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-30050 |
GX61..4FC..TWC |
1 | ||
| 35456-30040 |
GX6#,RX60..4FC A40D |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-08013 |
GX6#,RX60..4FC A40D |
1 | ||
| 90501-09028 |
GX61..4FC..TWC |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 35452-30020 |
GX6#,RX60..4FC A40D |
1 | ||
| 35452-30010 |
GX61..4FC..TWC |
1 | ||
| 35456D - SEAT (FOR 2-3 SHIFT VALVE) | ||||
| 35493-30030 |
GX61..4FC..TWC |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-30020 |
GX61..4FC..TWC |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 35459-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35458F - SEAT (FOR CUT BACK VALVE) | ||||
| 35493-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) | ||||
| 90501-06022 |
GX61..4FC..TWC |
1 | ||
| 35461 - PLUG, DOWN SHIFT | ||||
| 35408-30020 |
GX61..4FC..TWC |
1 | ||
| 35408-22020 |
GX6#,RX60,TX60..ATM A40,A40D |
1 | ||
| 35462 - VALVE, THROTTLE | ||||
| 35462-22011 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-07680 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM 長さ=19.24,SECONDARY |
1 | ||
| 90501-11011 |
GX61..4FC..TWC PRIMARY |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-07680 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM 長さ=19.24,SECONDARY |
1 | ||
| 90501-11011 |
GX61..4FC..TWC PRIMARY |
1 | ||
| 35462C - STOPPER, VALVE VIBRATING | ||||
| 35422-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35462D - RING, E (FOR THROTTLE VALVE) | ||||
| 90523-06023 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-30030 |
GX61..4FC..TWC |
1 | ||
| 35464-22010 |
GX6#,LX60,MX61,RX60,TX60..ATM |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-09028 |
GX61..4FC..TWC |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM A40,A40D,A42D,A43D |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-19001 |
GX6#,LX6#,MX61,RX60,SX60..4FC |
1 | ||
| 35469A - PLUG, 3-2 KICK DOWN ORIFICE CONTROL VALVE | ||||
| 35469-30020 |
GX6#,RX60..4FC |
1 | ||
| 35469C - ROLLER, SHIFT VALVE PLUG | ||||
| 90361-02051 |
GX61..4FC..TWC |
1 | ||
| 35472 - COVER, VALVE BODY, NO.2 | ||||
| 35472-30010 |
GX61..4FC..TWC |
1 | ||
| 35473 - COVER, TRANSMISSION VALVE BODY | ||||
| 35473-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35489A - SPRING (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE) | ||||
| 90501-09015 |
GX6#,RX60..4FC |
1 | ||
| 90501-12726 |
GX61..4FC..TWC |
1 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-30030 |
GX61..4FC..TWC |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-09028 |
GX61..4FC..TWC |
1 | ||
| 35497B - SEAT, SHIFT VALVE PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 35493-30030 |
GX61..4FC..TWC |
1 | ||
| 35493-30010 |
GX6#,RX60..4FC |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 35452-30010 |
GX61..4FC..TWC |
1 | ||
| 90334-11001 |
GX6#,RX60..4FC A40D |
1 | ||
| 35521 - CAM, THROTTLE VALVE | ||||
| 35521-30030 |
GX61..4FC..TWC |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90508-12331 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35522 - PIN, THROTTLE VALVE CAM | ||||
| 35522-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| Common parts | ||||
| 90105-05001 | ||||
| 90105-05002 | ||||
| 90105-05003 | ||||
| 90105-05005 | ||||
| 90105-05007 | ||||
| 90105-05008 | ||||
| 90105-06018 | ||||

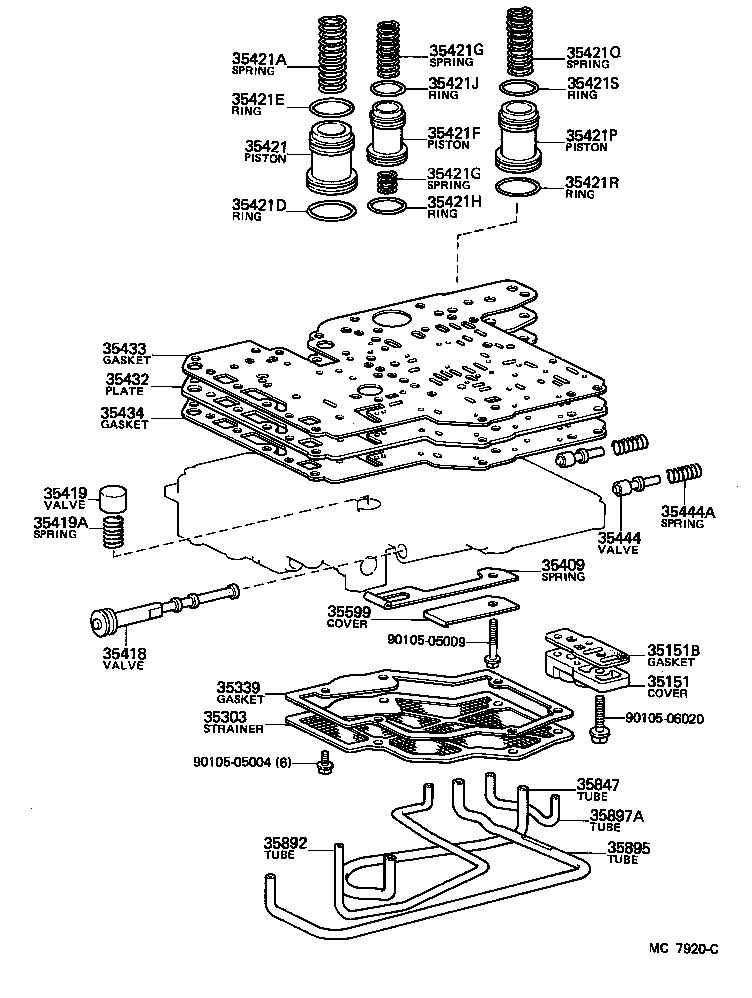

ILLUST NO. 2 OF 3(8302- )4FC..TWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35151 - COVER, TRANSMISSION CASE, LOWER | ||||
| 35151-30020 |
GX61..4FC..TWC |
1 | ||
| 35151B - GASKET, TRANSMISSION CASE LOWER COVER | ||||
| 35153-30010 |
GX61..4FC..TWC |
1 | ||
| 35303 - STRAINER SUB-ASSY, OIL | ||||
| 35303-30060 |
GX61..4FC..TWC |
1 | ||
| 35303-30031 |
GX6#,RX60,SX60..4FC A40D |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-30030 |
GX6#,RX60,SX60..4FC A40D |
1 | ||
| 35339-30060 |
GX61..4FC..TWC |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-30010 |
GX6#,LX6#,MX61,RX60,SX60..4FC |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-30060 |
GX61..4FC..TWC |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-13003 |
GX6#,LX6#,MX61,RX60,SX60..4FC |
1 | ||
| 35421 - PISTON, ACCUMULATOR, NO.1 | ||||
| 35421-30020 |
GX6#,MX61..4FC |
1 | ||
| 35421-24010 |
GX61..4FC..TWC |
1 | ||
| 35421A - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90501-13012 |
GX61..4FC..TWC LWR |
1 | ||
| 90501-25006 |
GX61..4FC..TWC UPR |
1 | ||
| 90501-32005 |
GX6#..4FC A40D |
1 | ||
| 35421D - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-29187 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35421E - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-23194 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35421F - PISTON, ACCUMULATOR, NO.2 | ||||
| 35441-30010 |
GX6#,RX60..4FC |
1 | ||
| 35423-30010 |
GX61..4FC..TWC |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-13009 |
GX61..4FC..TWC LWR |
1 | ||
| 90501-18041 |
GX61..4FC..TWC UPR |
1 | ||
| 90501-25002 |
GX6#..4FC |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-13009 |
GX61..4FC..TWC LWR |
1 | ||
| 90501-18041 |
GX61..4FC..TWC UPR |
1 | ||
| 90501-25002 |
GX6#..4FC |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-26190 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35421J - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-18186 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35421P - PISTON, ACCUMULATOR, NO.3 | ||||
| 35421-22030 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35421Q - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90501-20675 |
GX6#,LX60,RX60,SX60,TX60..ATM A40,A40D,A42D |
1 | ||
| 90501-20675 |
GX61..4FC..TWC |
1 | ||
| 35421R - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-26190 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35421S - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-22185 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-22061 |
GX6#..4FC A40D |
1 | ||
| 35432-24020 |
GX61..4FC..TWC |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-30030 |
GX6#,RX60..4FC A40D |
1 | ||
| 35433-30071 |
GX61..4FC..TWC |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-30030 |
GX6#,RX60..4FC A40D |
1 | ||
| 35434-30061 |
GX61..4FC..TWC |
1 | ||
| 35444A - SPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE) | ||||
| 90501-08725 |
GX61..4FC..TWC LWR |
1 | ||
| 90501-09686 |
GX61..4FC..TWC INTERMEDIATE |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-30010 |
GX6#,RX60..4FC |
1 | ||
| 35847 - TUBE, TRANSMISSION LUBE APPLY | ||||
| 35847-30010 |
GX61..4FC..TWC |
1 | ||
| 35892 - TUBE, OVERDRIVE BRAKE | ||||
| 35892-30010 |
GX6#,RX60..4FC A40D |
1 | ||
| 35892-30030 |
GX61..4FC..TWC |
1 | ||
| 35895 - TUBE, FRONT CLUTCH APPLY | ||||
| 35895-30030 |
GX61..4FC..TWC |
1 | ||
| 35895-30010 |
GX6#,RX60..4FC A40D |
1 | ||
| 35897A - TUBE, 1ST & REVERSE BRAKE, NO.1 | ||||
| 35897-30010 |
GX61..4FC..TWC |
1 | ||
| Common parts | ||||
| 90105-05004 | ||||
| 90105-05009 | ||||
| 90105-06020 | ||||

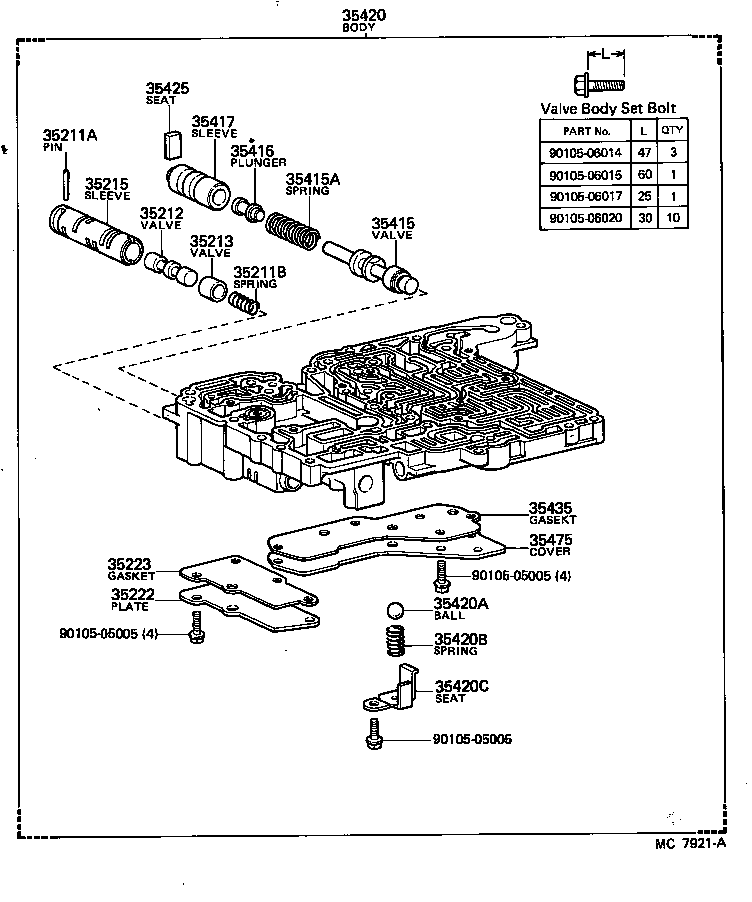

ILLUST NO. 3 OF 3(8302- )4FC..TWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35211A - PIN, STRAIGHT (FOR LOCK UP SIGNAL VALVE) | ||||
| 90250-04027 |
GX61..4FC..TWC |
1 | ||
| 35211B - SPRING, COMPRESSION (FOR LOCK UP SIGNAL VALVE) | ||||
| 90501-09029 |
GX61..4FC..TWC |
1 | ||
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35212-30010 |
GX61..4FC..TWC |
1 | ||
| 35213 - VALVE, LOCK UP RELAY CONTROL | ||||
| 35213-30010 |
GX61..4FC..TWC |
1 | ||
| 35215 - SLEEVE, LOCK UP RELAY VALVE | ||||
| 35215-30011 |
GX61..4FC..TWC |
1 | ||
| 35215-30012 |
GX61..4FC..TWC |
1 | ||
| 35222 - PLATE, LOCK UP RELAY VALVE BODY | ||||
| 35222-30010 |
GX61..4FC..TWC |
1 | ||
| 35223 - GASKET, LOCK UP RELAY VALVE BODY | ||||
| 35223-30010 |
GX61..4FC..TWC |
1 | ||
| 35415 - VALVE, PRESSURE REGULATOR | ||||
| 35415-22020 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35415A - SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE) | ||||
| 90501-16682 |
GX6#,LX60,RX60,TX60..ATM |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-14010 |
GX61..4FC..TWC |
1 | ||
| 35417 - SLEEVE, PRESSURE REGULATOR VALVE | ||||
| 35417-22020 |
GX6#,RX60,TX60..ATM |
1 | ||
| 35417-14010 |
GX61..4FC..TWC |
1 | ||
| 35420 - BODY ASSY, LOWER VALVE | ||||
| 35420-14030 |
GX6#,RX60..4FC A40D |
1 | ||
| 35420-30101 |
GX61..4FC..TWC |
1 | ||
| 35420A - BALL (FOR PRESSURE RELIEF) | ||||
| 90360-13024 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35420B - SPRING (FOR PRESSURE RELIEF) | ||||
| 90501-18677 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35420C - SEAT (FOR PRESSURE RELIEF) | ||||
| 35427-30020 |
GX61..4FC..TWC |
1 | ||
| 35425 - SEAT, PRESSURE REGULATOR VALVE SLEEVE | ||||
| 35425-22010 |
GX6#,LX60,RX60,TX60..ATM |
1 | ||
| 35435 - GASKET, VALVE BODY PLATE, NO.3 | ||||
| 35435-30010 |
GX6#,RX60..4FC A40D |
1 | ||
| 35435-30040 |
GX61..4FC..TWC |
1 | ||
| 35475 - COVER, VALVE BODY, NO.5 | ||||
| 35475-30040 |
GX61..4FC..TWC |
1 | ||
| 35475-30010 |
GX6#,RX60..4FC A40D |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90105-06014 | ||||
| 90105-06015 | ||||
| 90105-06017 | ||||
| 90105-06020 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
