GX61-DTPGE (1980)

Toyota Chaser

Production Sep 1980 - Jul 1984
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8105)HT..SGT ; (8009- )HT..AVT,GT

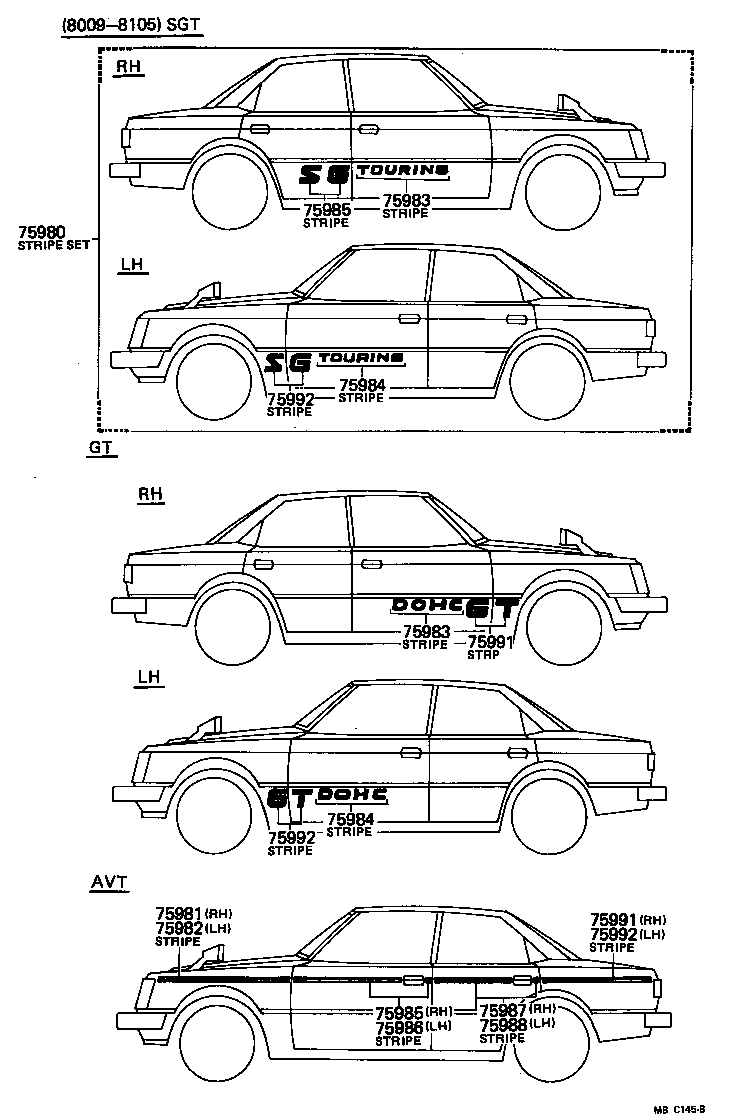

Click highlighted areas on diagram

diagram 75980 75981 75982 75983 75983 75984 75984 75985 75985 75986 75987 75988 75991 75991 75992 75992 75992
Part # Description Qty Price
75981 - STRIPE, FRONT FENDER, RH NO.1
75981-95801

GX61,MX61..HT..AVT

 1
75982 - STRIPE, FRONT FENDER, LH NO.1
75982-95801

GX61,MX61..HT..AVT

 1
75985 - STRIPE, FRONT DOOR, RH
75985-95807

GX61,MX61..HT..AVT

 1
75985 - STRIPE, FRONT DOOR, RH
75985-95807

GX61,MX61..HT..AVT

 1
75986 - STRIPE, FRONT DOOR, LH
75986-95807

GX61,MX61..HT..AVT

 1
75987 - STRIPE, REAR DOOR, RH
75987-95802

GX61,MX61..HT..AVT

 1
75988 - STRIPE, REAR DOOR, LH
75988-95801

GX61,MX61..HT..AVT

 1
75991 - STRIPE, QUARTER, RH NO.1
75993-95802

GX61,MX61..HT..AVT

 1
75991 - STRIPE, QUARTER, RH NO.1
75993-95802

GX61,MX61..HT..AVT

 1
75992 - STRIPE, QUARTER, LH NO.1
75993-95802

GX61,MX61..HT..AVT

 1
75992 - STRIPE, QUARTER, LH NO.1
75993-95802

GX61,MX61..HT..AVT

 1
75992 - STRIPE, QUARTER, LH NO.1
75993-95802

GX61,MX61..HT..AVT

 1
