GX61-DTPGE (1980)

Toyota Chaser

Production Sep 1980 - Jul 1984
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )GX6#..EFI

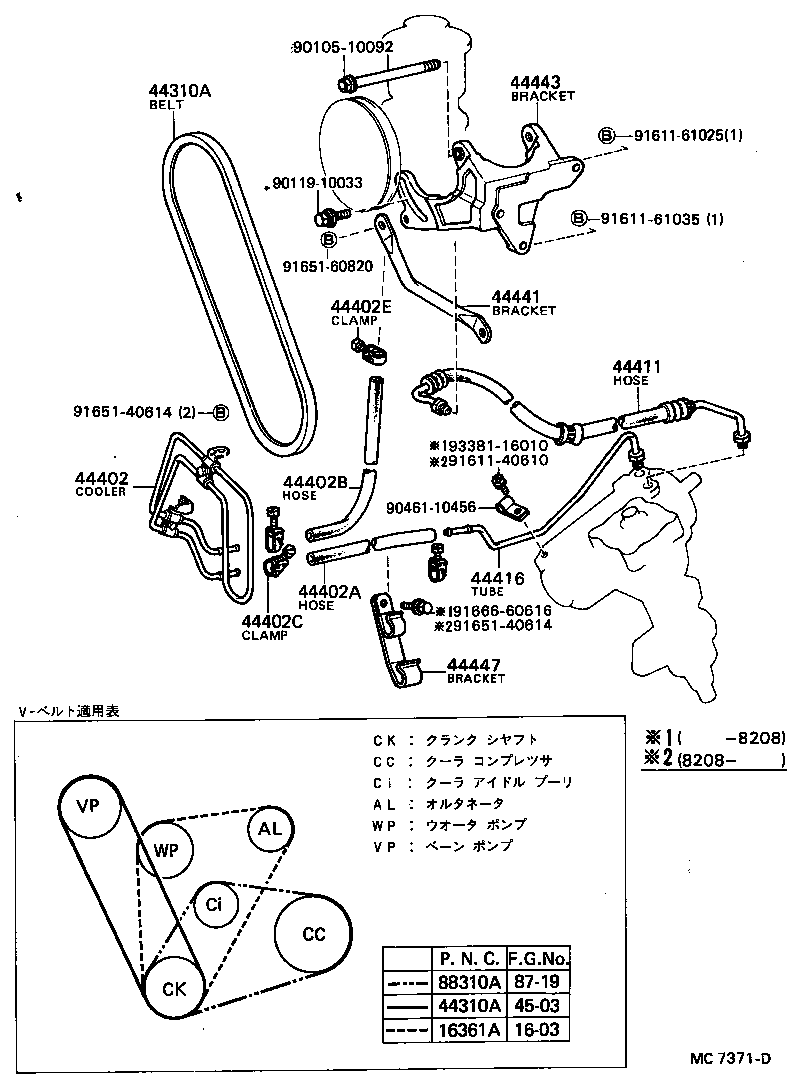

Click highlighted areas on diagram

diagram 1603 16361A 44310A 44310A 44402 44402A 44402B 44402C 44402E 44411 44416 44441 44443 44447 4503 8719 88310A 9010510092 9011910033 9046110456 9161140610 9161161025 9161161035 9165140614 9165140614 9165160820 9166660616 9338116010
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99332-51130

1GEU..GX6#

 1
99364-01100

1GEU..GX61

 1
44310A - BELT, V(FOR VANE PUMP)
90916-02092

GX6#..EFI

 1
44310A - BELT, V(FOR VANE PUMP)
90916-02092

GX6#..EFI

 1
44402 - COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402-22060

GX6#,MX61

 1
44402-22090

GX61,MX61

 1
44402A - HOSE, POWER STEERING OIL COOLER INLET
44412-22020

GX61

 1
90445-18095

GX6#

 1
44402B - HOSE, POWER STEERING OIL COOLER OUTLET
44412-22030

GX6#,MX61

 1
44412-22030

GX6#..EFI

 1
44402C - CLAMP, POWER STEERING OIL COOLER INLET HOSE
90460-01001

GX6#,MX61

 2
44402E - CLAMP, POWER STEERING OIL COOLER OUTLET HOSE
90460-01001

GX6#,MX61

 2
44411 - HOSE, PRESSURE FEED
44411-22160

GX6#..EFI

 1
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-22090

GX6#,MX61

 1
44441 - BRACKET, PUMP, FRONT
44441-22010

GX6#..EFI

 1
44443 - BRACKET, PUMP
44443-22030

GX6#..EFI

 1
44447 - BRACKET, POWER STEERING OIL COOLER TUBE SUPPORT
44447-22030

GX61,MX61..EFI,TBO

 1
44447-22010

GX6#,MX61

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-00890

GX61..AVT

 1
99322-00910

GX61..EFI

 1
99322-00920

GX6#

 1
99364-00850

GX61..EFI

長さ=850

 1
Common parts
90105-10092
90119-10033
90461-10456
91611-40610
91611-61025
91611-61035
91651-40614
91651-60820
91666-60616
93381-16010
Linked diagrams
1603
4503
8719
