GX61-DTPFE (1982)
Toyota Chaser

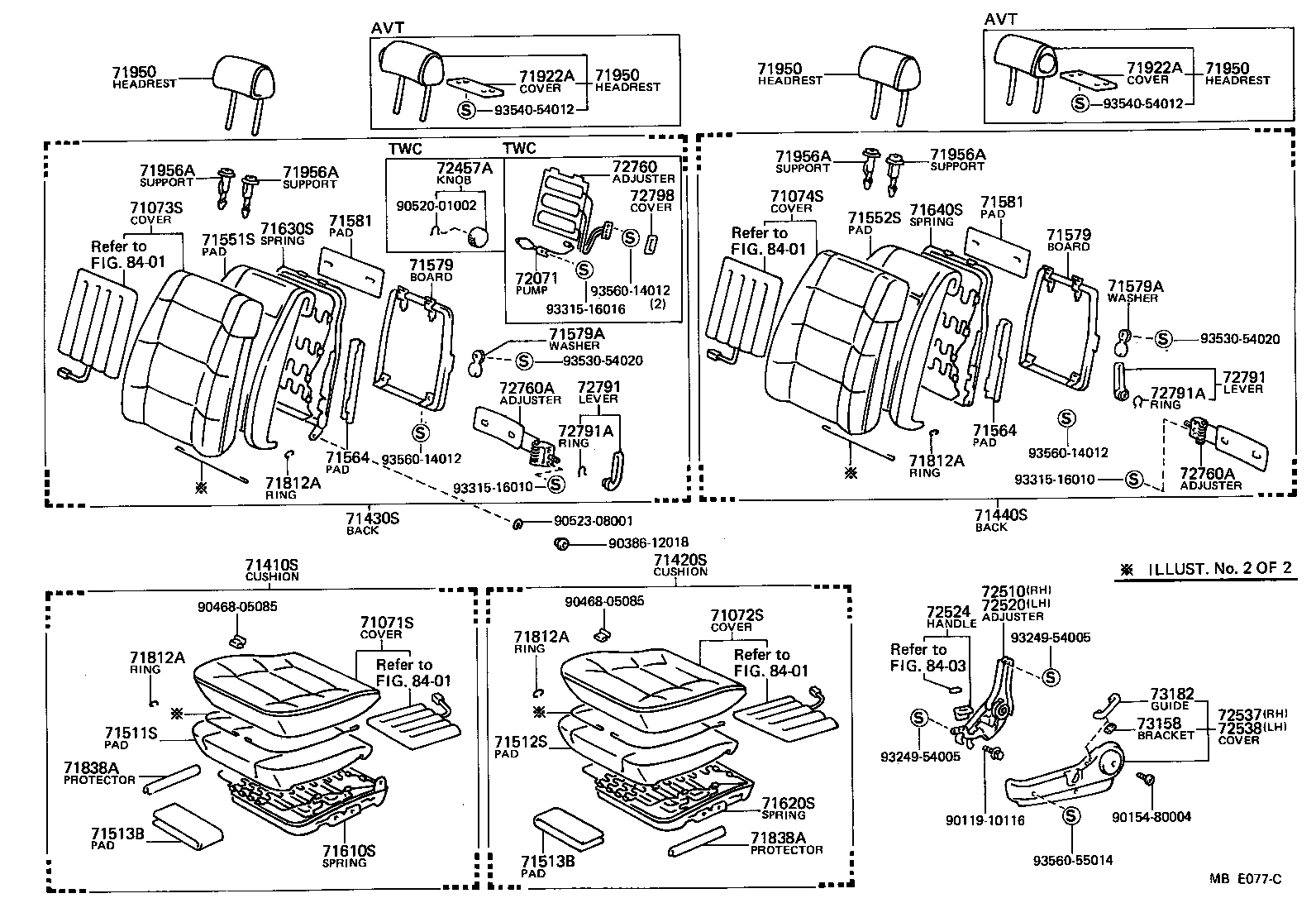

ILLUST NO. 1 OF 2(8208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-2264102 |
GX61,LX65,SX60..SXL,XG FB,ROSE BEIGE,RED/MAROON,TRIM4# |
1 | ||
| 71071-2264106 |
GX61,LX65,SX60..SXL,XG FB,L-BROWN,BROWN,TRIM4# |
1 | ||
| 71071-2264104 |
GX61,LX65,SX60..SXL,XG FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-2234102 |
GX61,LX65,SX60..SXL,XG FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71072-2234104 |
GX61,LX65,SX60..SXL,XG FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71072-2234106 |
GX61,LX65,SX60..SXL,XG FB,L-BROWN,BROWN,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-2A04106 |
GX61,LX65,SX60..SXL,XG FB,L-BROWN,BROWN,TRIM4# |
1 | ||
| 71073-2A04104 |
GX61,LX65,SX60..SXL,XG FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2A04102 |
GX61,LX65,SX60..SXL,XG FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-2A04102 |
GX61,LX65,SX60..SXL,XG FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71073-2A04104 |
GX61,LX65,SX60..SXL,XG FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71073-2A04106 |
GX61,LX65,SX60..SXL,XG FB,L-BROWN,BROWN,TRIM4# |
1 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-2258204 |
GX61,LX65,SX60..SXL,XG FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71410-2258202 |
GX61,LX65,SX60..SXL,XG FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71410-2258206 |
GX61,LX65,SX60..SXL,XG FB,L-BROWN,BROWN,TRIM4# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-2235202 |
GX61,LX65,SX60..SXL,XG FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71420-2235204 |
GX61,LX65,SX60..SXL,XG FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71420-2235206 |
GX61,LX65,SX60..SXL,XG FB,L-BROWN,BROWN,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-2284202 |
GX61,LX65,SX60..SXL,XG FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71430-2284206 |
GX61,LX65,SX60..SXL,XG FB,L-BROWN,BROWN,TRIM4# |
1 | ||
| 71430-2284204 |
GX61,LX65,SX60..SXL,XG FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-2273204 |
GX61,LX65,SX60..SXL,XG FB,BLUE,BLUE,TRIM8# |
1 | ||
| 71440-2273202 |
GX61,LX65,SX60..SXL,XG FB,ROSE BEIGE,RED/MAROON,TRIM3# |
1 | ||
| 71440-2273206 |
GX61,LX65,SX60..SXL,XG FB,L-BROWN,BROWN,TRIM4# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-22150 |
GX6#,LX6#,RX60,SX60,TX60..DLX,STD,SXL,XG,XL |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71511-22150 |
GX6#,LX6#,RX60,SX60,TX60..DLX,STD,SXL,XG,XL |
1 | ||
| 71513B - PAD, FRONT SEAT CUSHION, B | ||||
| 71522-22090 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 100X400 |
2 | ||
| 71522-22100 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 100X750 |
2 | ||
| 71513B - PAD, FRONT SEAT CUSHION, B | ||||
| 71522-22090 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 100X400 |
2 | ||
| 71522-22100 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 100X750 |
2 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-22150 |
GX6#,LX6#,RX60,SX60,TX60..DLX,STD,SXL,XG,XL |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71551-22150 |
GX6#,LX6#,RX60,SX60,TX60..DLX,STD,SXL,XG,XL |
1 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71564-22060 |
GX6#,LX65,MX61,RX60,SX60..AVT,SGT,SXL,XG LH |
2 | ||
| 71563-22050 |
GX6#,LX65,MX61,RX60,SX60..AVT,SGT,SXL,XG RH |
2 | ||
| 71564 - PAD, FRONT SEAT BACK, SIDE | ||||
| 71564-22060 |
GX6#,LX65,MX61,RX60,SX60..AVT,SGT,SXL,XG LH |
2 | ||
| 71563-22050 |
GX6#,LX65,MX61,RX60,SX60..AVT,SGT,SXL,XG RH |
2 | ||
| 71579 - BOARD, FRONT SEAT BACK | ||||
| 71705-2201004 |
GX6#,MX61,RX60..AVT,SXL,XG BLUE,BLUE,TRIM8# |
2 | ||
| 71705-2005014 |
GX61,LX65,MX61,SX60..SGT,SXL,XG BLUE,BLUE,TRIM8# |
2 | ||
| 71705-2201006 |
GX6#,MX61,RX60..AVT,SXL,XG DARK BROWN,BROWN,TRIM4# |
2 | ||
| 71705-2005012 |
GX61,LX65,MX61,SX60..SGT,SXL,XG DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 71705-2005016 |
GX61,LX65,MX61,SX60..SGT,SXL,XG DARK BROWN,BROWN,TRIM4# |
2 | ||
| 71705-2201001 |
GX6#,MX61,RX60..AVT,SXL,XG BLACK,BLACK,TRIM2# |
2 | ||
| 71579 - BOARD, FRONT SEAT BACK | ||||
| 71705-2201004 |
GX6#,MX61,RX60..AVT,SXL,XG BLUE,BLUE,TRIM8# |
2 | ||
| 71705-2005014 |
GX61,LX65,MX61,SX60..SGT,SXL,XG BLUE,BLUE,TRIM8# |
2 | ||
| 71705-2201006 |
GX6#,MX61,RX60..AVT,SXL,XG DARK BROWN,BROWN,TRIM4# |
2 | ||
| 71705-2005012 |
GX61,LX65,MX61,SX60..SGT,SXL,XG DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 71705-2005016 |
GX61,LX65,MX61,SX60..SGT,SXL,XG DARK BROWN,BROWN,TRIM4# |
2 | ||
| 71705-2201001 |
GX6#,MX61,RX60..AVT,SXL,XG BLACK,BLACK,TRIM2# |
2 | ||
| 71579A - WASHER, FRONT SEAT BACK BOARD SETTING | ||||
| 71788-2201001 |
GX6#,MX61,RX60..AVT,SGT,SXL,XG BLACK,BLACK,TRIM2# |
4 | ||
| 71788-2201022 |
GX61,LX65,MX61,SX60..AVT,SGT,SXL,XG DEEP MAROON,RED/MAROON,TRIM3# |
4 | ||
| 71788-2201004 |
GX6#,MX61,RX60..AVT,SGT,SXL,XG BLUE,BLUE,TRIM8# |
4 | ||
| 71788-2201006 |
GX6#,LX65,MX61,RX60,SX60..AVT,SGT,SXL,XG DARK BROWN,BROWN,TRIM4# |
4 | ||
| 71788-2201024 |
GX61,LX65,MX61,SX60..AVT,SGT,SXL,XG BLUE,BLUE,TRIM8# |
4 | ||
| 71579A - WASHER, FRONT SEAT BACK BOARD SETTING | ||||
| 71788-2201001 |
GX6#,MX61,RX60..AVT,SGT,SXL,XG BLACK,BLACK,TRIM2# |
4 | ||
| 71788-2201022 |
GX61,LX65,MX61,SX60..AVT,SGT,SXL,XG DEEP MAROON,RED/MAROON,TRIM3# |
4 | ||
| 71788-2201004 |
GX6#,MX61,RX60..AVT,SGT,SXL,XG BLUE,BLUE,TRIM8# |
4 | ||
| 71788-2201006 |
GX6#,LX65,MX61,RX60,SX60..AVT,SGT,SXL,XG DARK BROWN,BROWN,TRIM4# |
4 | ||
| 71788-2201024 |
GX61,LX65,MX61,SX60..AVT,SGT,SXL,XG BLUE,BLUE,TRIM8# |
4 | ||
| 71581 - PAD, FRONT SEAT BACK SILENCER | ||||
| 71571-22150 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
2 | ||
| 71581 - PAD, FRONT SEAT BACK SILENCER | ||||
| 71571-22150 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
2 | ||
| 71610S - SPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71610-20241 |
GX61,LX6#,MX61,SX60..(AVT,DLX,SGT,SXL,XG,XL)..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 71610-22150 |
GX6#,LX60,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL |
1 | ||
| 71620S - SPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71620-20121 |
GX61,LX6#,MX61,SX60..(AVT,DLX,SGT,SXL,XG,XL)..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 71620-22070 |
GX6#,LX60,RX6#,TX60 |
1 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-22200 |
GX6#,MX61,RX60..AVT,SXL,XG |
1 | ||
| 71630-22200 |
GX61,LX65,MX61,SX60..(AVT,SGT,SXL,XG)..(CBR,EFI,TBO,TDE) |
1 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-22160 |
GX61,LX6#,MX61,SX60..AVT,SGT,SXL,XG,XL |
1 | ||
| 71640-22160 |
GX6#,MX61,RX60..AVT,SXL,XG |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18071 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 71838A - PROTECTOR, FRONT SEAT CUSHION EDGE | ||||
| 71838-22011 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
2 | ||
| 71838A - PROTECTOR, FRONT SEAT CUSHION EDGE | ||||
| 71838-22011 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
2 | ||
| 71922A - COVER, FRONT SEAT HEADREST UNDER | ||||
| 71922-2201002 |
GX61,LX65,MX61,SX60..AVT,SGT,SXL,XG DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 71922-2201026 |
GX61,LX65,MX61,SX60..AVT,SGT,SXL,XG DARK BROWN,BROWN,TRIM4# |
2 | ||
| 71922-2201004 |
GX61,LX65,MX61,SX60..AVT,SGT,SXL,XG BLUE,BLUE,TRIM8# |
2 | ||
| 71922A - COVER, FRONT SEAT HEADREST UNDER | ||||
| 71922-2201002 |
GX61,LX65,MX61,SX60..AVT,SGT,SXL,XG DEEP MAROON,RED/MAROON,TRIM3# |
2 | ||
| 71922-2201026 |
GX61,LX65,MX61,SX60..AVT,SGT,SXL,XG DARK BROWN,BROWN,TRIM4# |
2 | ||
| 71922-2201004 |
GX61,LX65,MX61,SX60..AVT,SGT,SXL,XG BLUE,BLUE,TRIM8# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2240002 |
GX61,LX65,SX60..SXL,XG ROSE BEIGE,RED/MAROON,TRIM3# |
2 | ||
| 71910-2240006 |
GX61,LX65,SX60..SXL,XG L-BROWN,BROWN,TRIM4# |
2 | ||
| 71910-2240004 |
GX61,LX65,SX60..SXL,XG BLUE,BLUE,TRIM8# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2240002 |
GX61,LX65,SX60..SXL,XG ROSE BEIGE,RED/MAROON,TRIM3# |
2 | ||
| 71910-2240006 |
GX61,LX65,SX60..SXL,XG L-BROWN,BROWN,TRIM4# |
2 | ||
| 71910-2240004 |
GX61,LX65,SX60..SXL,XG BLUE,BLUE,TRIM8# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2240002 |
GX61,LX65,SX60..SXL,XG ROSE BEIGE,RED/MAROON,TRIM3# |
2 | ||
| 71910-2240006 |
GX61,LX65,SX60..SXL,XG L-BROWN,BROWN,TRIM4# |
2 | ||
| 71910-2240004 |
GX61,LX65,SX60..SXL,XG BLUE,BLUE,TRIM8# |
2 | ||
| 71950 - HEADREST ASSY, FRONT SEAT | ||||
| 71910-2240002 |
GX61,LX65,SX60..SXL,XG ROSE BEIGE,RED/MAROON,TRIM3# |
2 | ||
| 71910-2240006 |
GX61,LX65,SX60..SXL,XG L-BROWN,BROWN,TRIM4# |
2 | ||
| 71910-2240004 |
GX61,LX65,SX60..SXL,XG BLUE,BLUE,TRIM8# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006001 |
GX6#,LX60,MX61,RX6#,TX60 ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001001 |
GX6#,LX60,MX61,RX6#,TX60 ﾛｯｸ無,BLACK,BLACK,TRIM2# |
2 | ||
| 71930-1006016 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL ﾛｯｸ付,W/LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001016 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL ﾛｯｸ無,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001004 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 ﾛｯｸ無,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006002 |
GX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL ﾛｯｸ付,W/LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71930-1006004 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001002 |
GX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL ﾛｯｸ無,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006001 |
GX6#,LX60,MX61,RX6#,TX60 ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001001 |
GX6#,LX60,MX61,RX6#,TX60 ﾛｯｸ無,BLACK,BLACK,TRIM2# |
2 | ||
| 71930-1006016 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL ﾛｯｸ付,W/LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001016 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL ﾛｯｸ無,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001004 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 ﾛｯｸ無,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006002 |
GX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL ﾛｯｸ付,W/LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71930-1006004 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001002 |
GX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL ﾛｯｸ無,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006001 |
GX6#,LX60,MX61,RX6#,TX60 ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001001 |
GX6#,LX60,MX61,RX6#,TX60 ﾛｯｸ無,BLACK,BLACK,TRIM2# |
2 | ||
| 71930-1006016 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL ﾛｯｸ付,W/LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001016 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL ﾛｯｸ無,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001004 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 ﾛｯｸ無,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006002 |
GX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL ﾛｯｸ付,W/LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71930-1006004 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001002 |
GX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL ﾛｯｸ無,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71956A - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-1006001 |
GX6#,LX60,MX61,RX6#,TX60 ﾛｯｸ付,W/LOCK,BLACK,BLACK,TRIM2# |
2 | ||
| 71931-1001001 |
GX6#,LX60,MX61,RX6#,TX60 ﾛｯｸ無,BLACK,BLACK,TRIM2# |
2 | ||
| 71930-1006016 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL ﾛｯｸ付,W/LOCK,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001016 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL ﾛｯｸ無,DARK BROWN,SABLE,TRIM4# |
2 | ||
| 71931-1001004 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 ﾛｯｸ無,BLUE,BLUE,TRIM8# |
2 | ||
| 71930-1006002 |
GX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL ﾛｯｸ付,W/LOCK,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 71930-1006004 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 ﾛｯｸ付,W/LOCK,BLUE,BLUE,TRIM8# |
2 | ||
| 71931-1001002 |
GX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL ﾛｯｸ無,DEEP MAROON,DARK WINE,TRIM3# |
2 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-22080 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-22080 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 72524 - HANDLE, RECLINING ADJUSTER RELEASE | ||||
| 72526-2004001 |
GX6#,LX60,MX61,RX6#,TX60 LH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-2005001 |
GX6#,LX60,MX61,RX6#,TX60 RH,BLACK,BLACK,TRIM2# |
1 | ||
| 72525-2005006 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL RH,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 72525-2005024 |
GX61,LX6#,MX61,SX60 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004006 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..AVT,DLX,GT,SGT,SXL,XG,XL LH,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 72526-2004024 |
GX61,LX6#,MX61,SX60 LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72525-2005004 |
GX6#,LX60,MX61,RX6#,TX60 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004004 |
GX6#,LX60,MX61,RX6#,TX60 LH,BLUE,BLUE,TRIM8# |
1 | ||
| 72526-2004012 |
GX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL LH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72525-2005012 |
GX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL RH,DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 72760A - ADJUSTER ASSY, LUMBAR SUPPORT | ||||
| 72750-22020 |
GX6#,MX61,RX6#..AVT,GT,SGT,SXL,XG |
1 | ||
| 72750-24020 |
GX61,LX6#,MX61,SX60..(AVT,SGT,SXL,XG,XL)..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 72760A - ADJUSTER ASSY, LUMBAR SUPPORT | ||||
| 72750-22020 |
GX6#,MX61,RX6#..AVT,GT,SGT,SXL,XG |
1 | ||
| 72750-24020 |
GX61,LX6#,MX61,SX60..(AVT,SGT,SXL,XG,XL)..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-3001001 |
GX6#,MX61,RX6#..AVT,GT,SGT,SXL,XG BLACK,BLACK,TRIM2# |
1 | ||
| 72791-3001004 |
GX6#,MX61,RX6#..AVT,GT,SGT,SXL,XG BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3001012 |
GX61,LX6#,MX61,SX60..(AVT,SGT,SXL,XG,XL)..(CBR,DSL,EFI,TBO,TDE) DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 72791-3001006 |
GX61,LX6#,MX61,SX60..(AVT,SGT,SXL,XG,XL)..(CBR,DSL,EFI,TBO,TDE) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 72791-3001024 |
GX61,LX6#,MX61,SX60..(AVT,SGT,SXL,XG,XL)..(CBR,DSL,EFI,TBO,TDE) BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3001006 |
GX6#,MX61,RX6#..AVT,GT,SGT,SXL,XG DARK BROWN,BROWN,TRIM4# |
1 | ||
| 72791 - LEVER, LUMBAR SUPPORT | ||||
| 72791-3001001 |
GX6#,MX61,RX6#..AVT,GT,SGT,SXL,XG BLACK,BLACK,TRIM2# |
1 | ||
| 72791-3001004 |
GX6#,MX61,RX6#..AVT,GT,SGT,SXL,XG BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3001012 |
GX61,LX6#,MX61,SX60..(AVT,SGT,SXL,XG,XL)..(CBR,DSL,EFI,TBO,TDE) DEEP MAROON,DEEP MAROON,TRIM3# |
1 | ||
| 72791-3001006 |
GX61,LX6#,MX61,SX60..(AVT,SGT,SXL,XG,XL)..(CBR,DSL,EFI,TBO,TDE) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 72791-3001024 |
GX61,LX6#,MX61,SX60..(AVT,SGT,SXL,XG,XL)..(CBR,DSL,EFI,TBO,TDE) BLUE,BLUE,TRIM8# |
1 | ||
| 72791-3001006 |
GX6#,MX61,RX6#..AVT,GT,SGT,SXL,XG DARK BROWN,BROWN,TRIM4# |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01002 |
GX6#,MX61,RX6#..AVT,GT,SGT,SXL,XG |
1 | ||
| 90520-01002 |
GX61,LX6#,MX61,SX60..(AVT,SGT,SXL,XG,XL)..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 72791A - RING, SHAFT SNAP(FOR LUMBER SUPPORT LEVER) | ||||
| 90520-01002 |
GX6#,MX61,RX6#..AVT,GT,SGT,SXL,XG |
1 | ||
| 90520-01002 |
GX61,LX6#,MX61,SX60..(AVT,SGT,SXL,XG,XL)..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 73158 - BRACKET, SEAT BELT GUIDE SET | ||||
| 73158-20010 |
GX6#,LX60,MX61,RX6#,TX60 |
2 | ||
| 73182 - GUIDE, FRONT SEAT LAP BELT, OUTER | ||||
| 73182-2001006 |
GX6#,LX60,MX61,RX6#,TX60 LH,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 73182-2001004 |
GX6#,LX60,MX61,RX6#,TX60 LH,BLUE,BLUE,TRIM8# |
1 | ||
| 73181-2002004 |
GX6#,LX60,MX61,RX6#,TX60 RH,BLUE,BLUE,TRIM8# |
1 | ||
| 73181-2002006 |
GX6#,LX60,MX61,RX6#,TX60 RH,DARK BROWN,BROWN,TRIM4# |
1 | ||
| 73182-2001001 |
GX6#,LX60,MX61,RX6#,TX60 LH,BLACK,BLACK,TRIM2# |
1 | ||
| 73181-2002001 |
GX6#,LX60,MX61,RX6#,TX60 RH,BLACK,BLACK,TRIM2# |
1 | ||
| Common parts | ||||
| 90119-10116 | ||||
| 90154-80004 | ||||
| 90386-12018 | ||||
| 90468-05085 | ||||
| 90520-01002 | ||||
| 90523-08001 | ||||
| 93249-54005 | ||||
| 93315-16010 | ||||
| 93315-16016 | ||||
| 93530-54020 | ||||
| 93540-54012 | ||||
| 93560-14012 | ||||
| 93560-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8403 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
