GX61-DTMGF (1982)

Toyota Chaser

Production Aug 1982 - Jul 1984
Engine 1GGEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

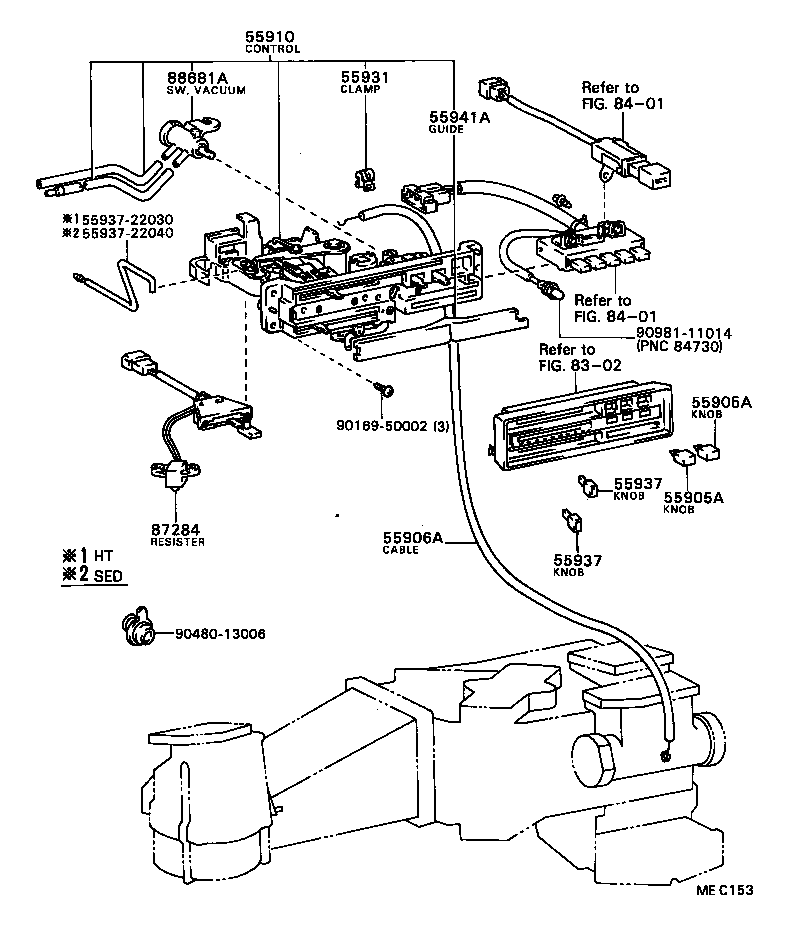

ILLUST NO. 1 OF 2(8208- )AVT

Click highlighted areas on diagram

diagram 55905A 55905A 55906A 55910 55931 55937 55937 5593722030 5593722040 55941A 8302 8401 8401 87284 88681A 9016950002 9048013006 9098111014
Part # Description Qty Price
55905A - KNOB, HEATER CONTROL
55905-22080

GX61,MX61..AVT

 2
55905A - KNOB, HEATER CONTROL
55905-22080

GX61,MX61..AVT

 2
55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
55906-22050

GX6#,MX61,RX6#,SX60,TX60..HT

L=380

 1
55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR
55910-22180

GX61,MX61..HT..AVT

W/AUTOMATIC AIR CONDITIONER

 1
55910-22260

GX61,MX61..HT..AVT

W/AUTOMATIC AIR CONDITIONER

 1
55931 - CLAMP, HEATER CONTROL WIRE
55933-24010

GX61,MX61..AVT

 1
55937 - KNOB, HEATER CONTROL LEVER
55905-22070

GX6#,LX6#,MX61,RX6#,SX60,TX60

 4
55937 - KNOB, HEATER CONTROL LEVER
55905-22070

GX6#,LX6#,MX61,RX6#,SX60,TX60

 4
55941A - GUIDE, HEATER CONTROL
55941-22040

GX61,MX61..HT..AVT

 1
55941-22020

GX6#,MX61,RX6#,TX60..HT

 1
87284 - RESISTOR SUB-ASSY, VARIABLE
88032-22030

GX6#,LX65,MX61

 1
88681A - SWITCH, HEATER CONTROL VACUUM, NO.1
88681-22010

GX61,MX61..AVT

 1
Common parts
55937-22030
55937-22040
90169-50002
90480-13006
90981-11014
Linked diagrams
8302
8401
