GX61-DTMGE (1980)

Toyota Chaser

Production Sep 1980 - Jul 1984
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

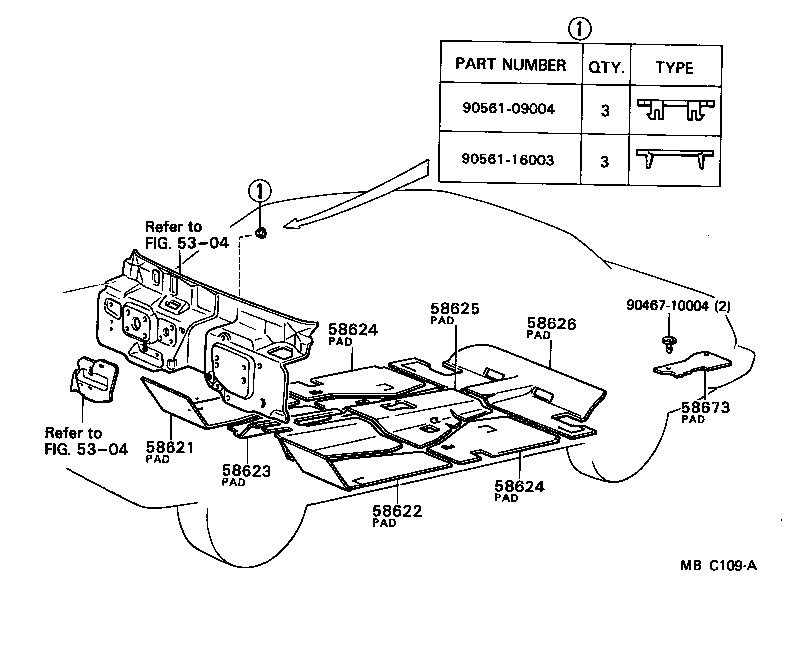

Click highlighted areas on diagram

diagram 5304 5304 58621 58622 58623 58624 58624 58625 58626 58673 9046710004 9056109004 9056116003
Part # Description Qty Price
58623 - PAD, FLOOR SILENCER, FRONT CENTER
58623-22100

GX61,MX61,SX60

 1
58623-22100

GX6#,MX61,RX6#,TX60

 1
58626 - PAD, FLOOR SILENCER, REAR
58624-22060

GX6#,LX6#,MX61,RX6#,SX60,TX60

 1
58673 - PAD, REAR FLOOR SILENCER, NO.1
58676-22010

GX6#,LX6#,MX61,RX6#,SX60,TX60

 1
Common parts
90467-10004
90561-09004
90561-16003
Linked diagrams
5304
