GX61-DTMGE (1980)
Toyota Chaser

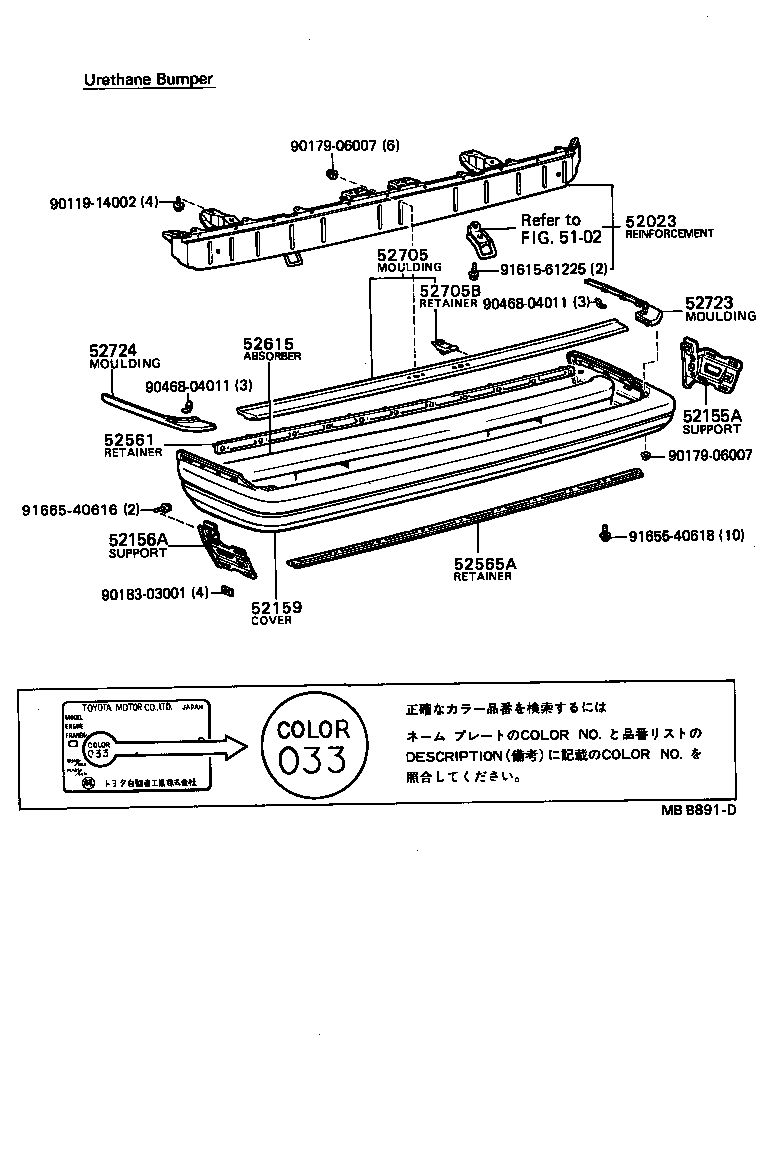

(8009-8208)TX60..XL ; (8009-8208)GX6#,LX60,MX61,RX6#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-22051 |
TX60..XL;GX6#,LX60,MX61,RX6# |
1 | ||
| 52023-95801 |
GX61,MX61,SX60..HT |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-95801 |
GX6#,RX6#,TX60..HT |
1 | ||
| 52067-95800 |
GX61,MX61,SX60..HT |
1 | ||
| 52155-95802 |
GX6#,MX61,RX6#,TX60..HT |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-95801 |
GX6#,RX6#,TX60..HT |
1 | ||
| 52156-95802 |
GX6#,MX61,RX6#,TX60..HT |
1 | ||
| 52068-95800 |
GX61,MX61,SX60..HT |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-95800 |
GX6#,RX6#,TX60..HT BLACK |
1 | ||
| 52159-95805 |
GX61..HT..AVT BLUE-M,(2A2) |
1 | ||
| 52159-9580408 |
GX61..HT..AVT WHITE,IVORY,033 |
1 | ||
| 52159-9580404 |
GX61..HT..AVT BLUE-M,BLUE,865 ,2A2 |
1 | ||
| 52159-9580418 |
GX61..HT..AVT AVANTE SUPER WHITE,IVORY |
1 | ||
| 52159-9580405 |
GX61..HT..AVT BEIGE-M,BEIGE,4A6 |
1 | ||
| 52159-95803 |
GX6#,MX61,RX6#,TX60..HT BLACK |
1 | ||
| 52159-9580405 |
GX6#,MX61..HT BEIGE-M,BEIGE,4A6 |
1 | ||
| 52159-9580406 |
GX61,MX61..HT..AVT BROWN-M,BROWN,2B2 |
1 | ||
| 52159-9580404 |
GX6#,MX61..HT BLUE-M,BLUE,865 ,2A2 |
1 | ||
| 52159-9580408 |
GX6#,MX61..HT WHITE,IVORY,033 |
1 | ||
| 52159-9580708 |
GX61,MX61..HT..AVT SUPER WHITE,IVORY,035 |
1 | ||
| 52159-95806 |
GX61,MX61,SX60..HT BLACK |
1 | ||
| 52159-9580703 |
GX61,MX61..HT..AVT SILVER,GRAY,2K4 |
1 | ||
| 52159-9580704 |
GX61,MX61..HT..AVT DARK BLUE,BLUE,8A4 |
1 | ||
| 52159-9580705 |
GX61,MX61..HT..AVT L-BEIGE,BEIGE,4D2 ,037 |
1 | ||
| 52561 - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52521-22040 |
TX60..XL;GX6#,LX60,MX61,RX6# |
1 | ||
| 52561-95800 |
GX61,MX61,SX60..HT |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-22010 |
TX60..XL;GX6#,LX60,MX61,RX6# |
1 | ||
| 52565-22020 |
GX61,LX6#,MX61,SX60 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-95801 |
GX61,MX61,SX60..HT |
1 | ||
| 52615-95800 |
TX60..XL;GX6#,LX60,MX61,RX6# |
1 | ||
| 52705 - MOULDING SUB-ASSY, REAR BUMPER | ||||
| 52705-22010 |
TX60..XL;GX6#,LX60,MX61,RX6# |
1 | ||
| 52751-95800 |
GX61,MX61,SX60..HT |
1 | ||
| 52705B - RETAINER, REAR BUMPER MOULDING | ||||
| 52717-22010 |
TX60..XL;GX6#,LX60,MX61,RX6# |
8 | ||
| 52723 - MOULDING, REAR BUMPER EXTENSION, RH | ||||
| 52723-95800 |
GX6#,MX61,RX6#,TX60..HT |
1 | ||
| 52724 - MOULDING, REAR BUMPER EXTENSION, LH | ||||
| 52724-95800 |
GX6#,MX61,RX6#,TX60..HT |
1 | ||
| Common parts | ||||
| 90119-14002 | ||||
| 90179-06007 | ||||
| 90183-03001 | ||||
| 90468-04011 | ||||
| 91615-61225 | ||||
| 91655-40618 | ||||
| 91665-40616 | ||||
| Linked diagrams | ||||
| 5102 | ||||

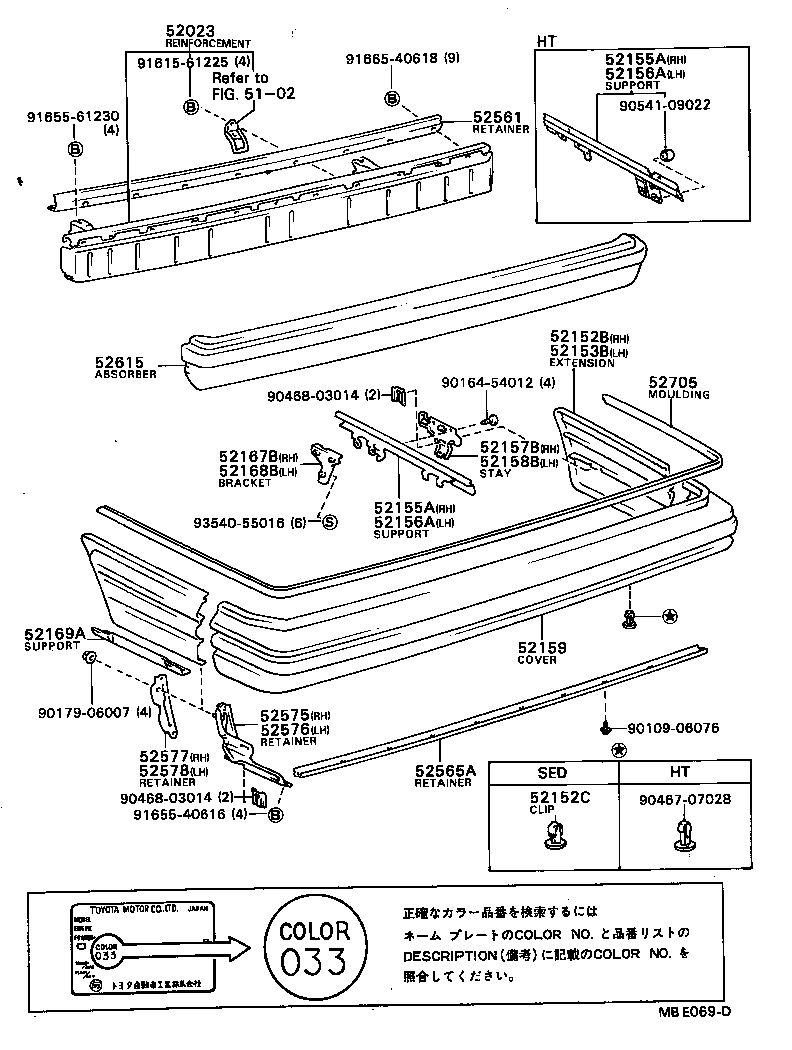

(8208- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-22051 |
TX60..XL;GX6#,LX60,MX61,RX6# |
1 | ||
| 52023-95801 |
GX61,MX61,SX60..HT |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52152-95801 |
GX61,MX61,SX60..HT |
1 | ||
| 52152-9580203 |
GX61,MX61..HT..AVT SILVER,GRAY,2K4 |
1 | ||
| 52152-9580205 |
GX61,MX61..HT..AVT L-BEIGE,BEIGE,4D2 ,037 |
1 | ||
| 52152-9580208 |
GX61,MX61..HT..AVT SUPER WHITE,IVORY,035 |
1 | ||
| 52152-9580204 |
GX61,MX61..HT..AVT D-BLUE,BLUE,8A4 |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52153-95801 |
GX61,MX61,SX60..HT |
1 | ||
| 52153-9580204 |
GX61,MX61..HT..AVT D-BLUE,BLUE,8A4 |
1 | ||
| 52153-9580205 |
GX61,MX61..HT..AVT L-BEIGE,BEIGE,4D2 ,037 |
1 | ||
| 52153-9580203 |
GX61,MX61..HT..AVT SILVER,GRAY,2K4 |
1 | ||
| 52153-9580208 |
GX61,MX61..HT..AVT SUPER WHITE,IVORY,035 |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-95801 |
GX6#,RX6#,TX60..HT |
1 | ||
| 52067-95800 |
GX61,MX61,SX60..HT |
1 | ||
| 52155-95802 |
GX6#,MX61,RX6#,TX60..HT |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-95801 |
GX6#,RX6#,TX60..HT |
1 | ||
| 52067-95800 |
GX61,MX61,SX60..HT |
1 | ||
| 52155-95802 |
GX6#,MX61,RX6#,TX60..HT |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-95801 |
GX6#,RX6#,TX60..HT |
1 | ||
| 52156-95802 |
GX6#,MX61,RX6#,TX60..HT |
1 | ||
| 52068-95800 |
GX61,MX61,SX60..HT |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-95801 |
GX6#,RX6#,TX60..HT |
1 | ||
| 52156-95802 |
GX6#,MX61,RX6#,TX60..HT |
1 | ||
| 52068-95800 |
GX61,MX61,SX60..HT |
1 | ||
| 52157B - STAY, REAR BUMPER SIDE, NO.2 RH | ||||
| 52157-95801 |
GX61,MX61,SX60..HT |
1 | ||
| 52158B - STAY, REAR BUMPER SIDE, NO.2 LH | ||||
| 52158-95801 |
GX61,MX61,SX60..HT |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-95800 |
GX6#,RX6#,TX60..HT BLACK |
1 | ||
| 52159-95805 |
GX61..HT..AVT BLUE-M,(2A2) |
1 | ||
| 52159-9580408 |
GX61..HT..AVT WHITE,IVORY,033 |
1 | ||
| 52159-9580404 |
GX61..HT..AVT BLUE-M,BLUE,865 ,2A2 |
1 | ||
| 52159-9580418 |
GX61..HT..AVT AVANTE SUPER WHITE,IVORY |
1 | ||
| 52159-9580405 |
GX61..HT..AVT BEIGE-M,BEIGE,4A6 |
1 | ||
| 52159-95803 |
GX6#,MX61,RX6#,TX60..HT BLACK |
1 | ||
| 52159-9580405 |
GX6#,MX61..HT BEIGE-M,BEIGE,4A6 |
1 | ||
| 52159-9580406 |
GX61,MX61..HT..AVT BROWN-M,BROWN,2B2 |
1 | ||
| 52159-9580404 |
GX6#,MX61..HT BLUE-M,BLUE,865 ,2A2 |
1 | ||
| 52159-9580408 |
GX6#,MX61..HT WHITE,IVORY,033 |
1 | ||
| 52159-9580708 |
GX61,MX61..HT..AVT SUPER WHITE,IVORY,035 |
1 | ||
| 52159-95806 |
GX61,MX61,SX60..HT BLACK |
1 | ||
| 52159-9580703 |
GX61,MX61..HT..AVT SILVER,GRAY,2K4 |
1 | ||
| 52159-9580704 |
GX61,MX61..HT..AVT DARK BLUE,BLUE,8A4 |
1 | ||
| 52159-9580705 |
GX61,MX61..HT..AVT L-BEIGE,BEIGE,4D2 ,037 |
1 | ||
| 52167B - BRACKET, REAR BUMPER EXTENSION MOUNTING, RH | ||||
| 52167-22020 |
GX61,LX6#,MX61,SX60 |
1 | ||
| 52168B - BRACKET, REAR BUMPER EXTENSION MOUNTING, LH | ||||
| 52168-22020 |
GX61,LX6#,MX61,SX60 |
1 | ||
| 52169A - SUPPORT, REAR BUMPER SIDE, NO.3 | ||||
| 52686-95800 |
GX61,MX61,SX60..HT LH |
1 | ||
| 52685-95800 |
GX61,MX61,SX60..HT RH |
1 | ||
| 52561 - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52521-22040 |
TX60..XL;GX6#,LX60,MX61,RX6# |
1 | ||
| 52561-95800 |
GX61,MX61,SX60..HT |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-22010 |
TX60..XL;GX6#,LX60,MX61,RX6# |
1 | ||
| 52565-22020 |
GX61,LX6#,MX61,SX60 |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-95800 |
GX61,MX61,SX60..HT |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52576-95800 |
GX61,MX61,SX60..HT |
1 | ||
| 52577 - RETAINER, REAR BUMPER SIDE, NO.2 RH | ||||
| 52577-95800 |
GX61,MX61,SX60..HT |
1 | ||
| 52578 - RETAINER, REAR BUMPER SIDE, NO.2 LH | ||||
| 52578-95800 |
GX61,MX61,SX60..HT |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-95801 |
GX61,MX61,SX60..HT |
1 | ||
| 52615-95800 |
TX60..XL;GX6#,LX60,MX61,RX6# |
1 | ||
| 52705 - MOULDING SUB-ASSY, REAR BUMPER | ||||
| 52705-22010 |
TX60..XL;GX6#,LX60,MX61,RX6# |
1 | ||
| 52751-95800 |
GX61,MX61,SX60..HT |
1 | ||
| Common parts | ||||
| 90109-06076 | ||||
| 90164-54012 | ||||
| 90179-06007 | ||||
| 90467-07028 | ||||
| 90468-03014 | ||||
| 90541-09022 | ||||
| 91615-61225 | ||||
| 91655-40616 | ||||
| 91655-61230 | ||||
| 91665-40618 | ||||
| 93540-55016 | ||||
| Linked diagrams | ||||
| 5102 | ||||
