GX61-DEPSE (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

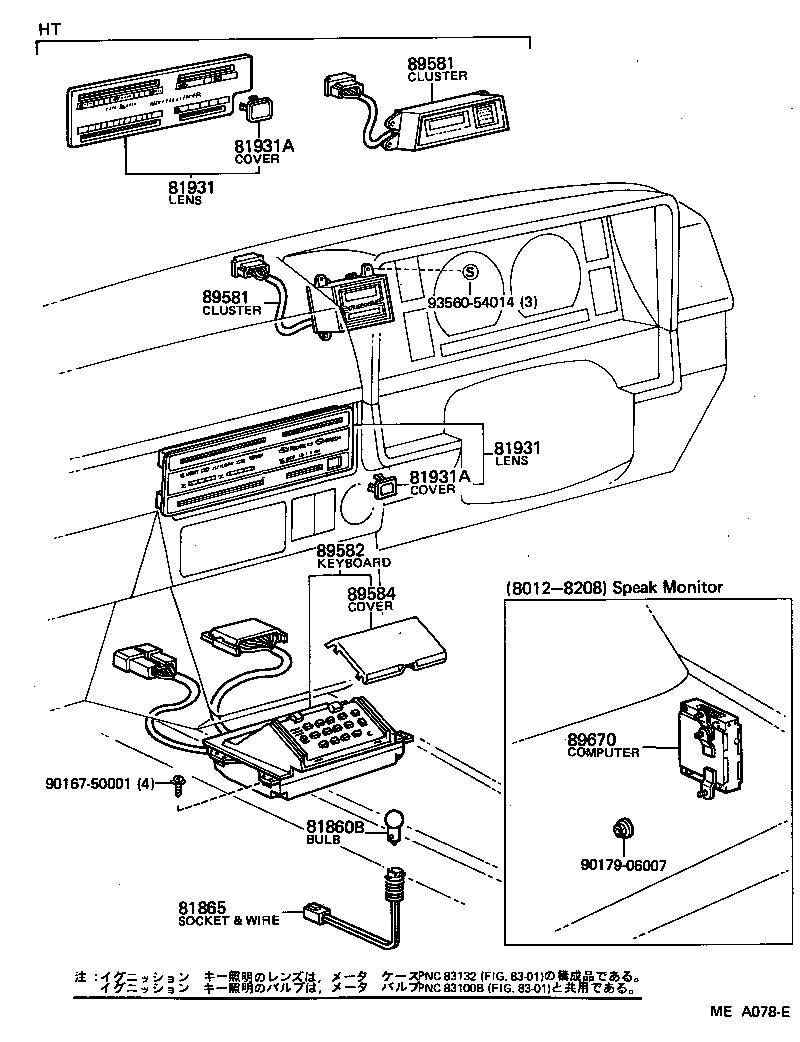

Click highlighted areas on diagram

diagram 81860B 81865 81931 81931 81931A 81931A 89581 89581 89582 89584 89670 9016750001 9017906007 9356054014
Part # Description Qty Price
81860B - BULB, TRANSMISSION INDICATOR LAMP
99132-11034

GX6#,LX60,MX61,RX60,TX60..ATM

12V 3.4W,12V 3.4W

 1
81865 - SOCKET AND WIRE, TRANSMISSION INDICATOR LAMP
35906-14010

GX6#,LX60,MX61,RX60,TX60..ATM

 1
81931 - LENS, HEATER CONTROL INDICATOR
55519-22060

GX6#..SED

W/AUTOMATIC AIR CONDITIONER

 1
55519-22040

GX6#,LX60,MX61,RX6#,TX60..SED..(DLX,GT,SGT,SXL,XG,XL)

 1
81931 - LENS, HEATER CONTROL INDICATOR
55519-22060

GX6#..SED

W/AUTOMATIC AIR CONDITIONER

 1
55519-22040

GX6#,LX60,MX61,RX6#,TX60..SED..(DLX,GT,SGT,SXL,XG,XL)

 1
81931A - COVER, COOLER SWITCH HOLE
55538-22030

GX6#,LX6#,MX61,RX60,SX60,TX60..SED..(DLX,SGT,STD,SXL,XG,XL)

 1
81931A - COVER, COOLER SWITCH HOLE
55538-22030

GX6#,LX6#,MX61,RX60,SX60,TX60..SED..(DLX,SGT,STD,SXL,XG,XL)

 1
Common parts
90167-50001
90179-06007
93560-54014
