GX61-DEPSE (1980)
Toyota Chaser

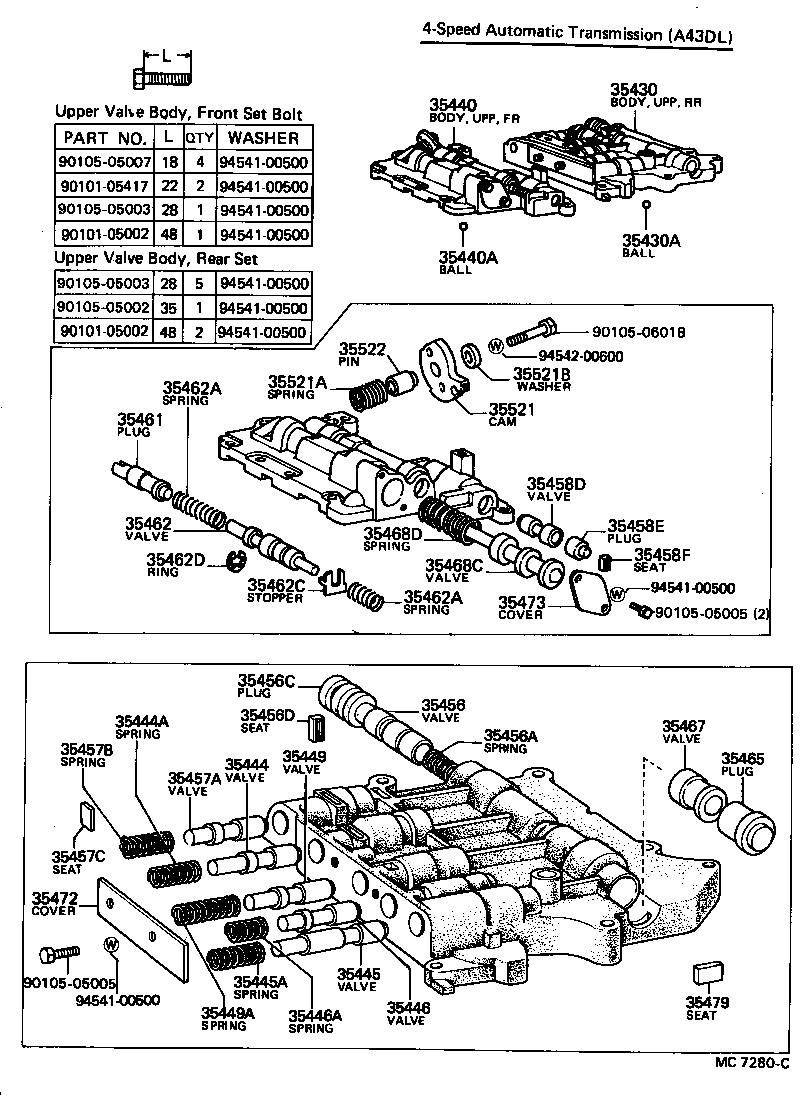

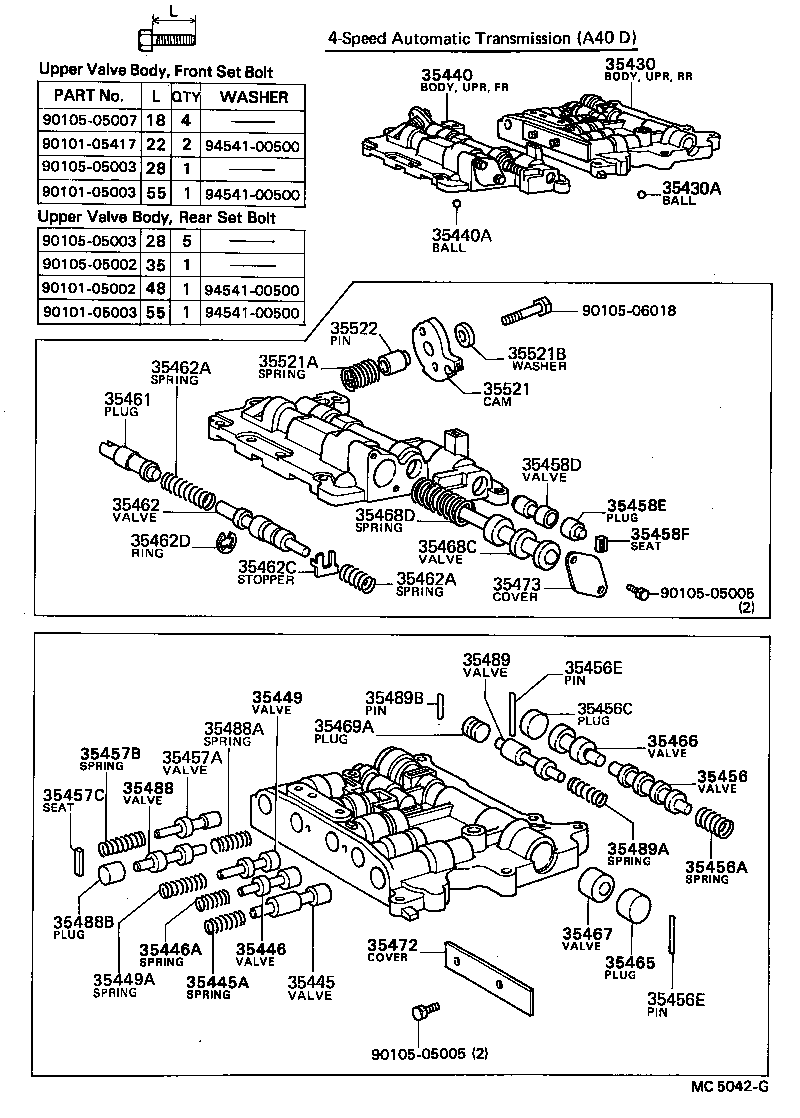

ILLUST NO. 1 OF 3(8009-8208)GX6#,RX60..4FC ; (8208- )SX60..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35430 - BODY ASSY, REAR UPPER VALVE | ||||
| 35430-22130 |
GX6#..4FC A40D |
1 | ||
| 35430A - BALL (FOR REAR UPPER VALVE BODY) | ||||
| 35495-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) 外径=5.535,ﾗﾊﾞｰ,OD=5.56,GUM |
5 | ||
| 90360-06023 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) 外径=5.56,STEEL,OD=5.56,STEEL |
1 | ||
| 35440 - BODY ASSY, FRONT UPPER VALVE | ||||
| 35440-30020 |
GX6#..4FC |
1 | ||
| 35440-30021 |
GX6#..4FC A40D |
1 | ||
| 35440A - BALL (FOR FRONT UPPER VALVE BODY) | ||||
| 35495-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) 外径=5.535,ﾗﾊﾞｰ |
1 | ||
| 35445 - VALVE, LOW MODULATOR | ||||
| 35445-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35445A - SPRING, COMPRESSION (FOR LOW MODULATOR VALVE) | ||||
| 90501-08725 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35446 - VALVE, GOVERNOR MODULATOR | ||||
| 35446-22010 |
GX6#,LX60,MX61,RX60,TX60..ATM |
1 | ||
| 35446A - SPRING, COMPRESSION (FOR GOVERNOR MODULATOR VALVE) | ||||
| 90501-07688 |
GX6#,LX60,MX61,RX60,TX60..ATM |
1 | ||
| 35449 - VALVE, SEQUENCE | ||||
| 35447-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) UPR VALVE |
1 | ||
| 35449-22010 |
GX6#,RX60,SX60,TX60..ATM..(CBR,EFI) LWR VALVE |
1 | ||
| 35449A - SPRING, COMPRESSION (FOR SEQUENCE VALVE) | ||||
| 90501-12726 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
2 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-30040 |
GX6#,RX60..4FC A40D |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-08013 |
GX6#,RX60..4FC A40D |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 35452-30020 |
GX6#,RX60..4FC A40D |
1 | ||
| 35456E - PIN, STRAIGHT (FOR 2-3 SHIFT VALVE) | ||||
| 90250-02004 |
GX6#,RX60..4FC |
2 | ||
| 35456E - PIN, STRAIGHT (FOR 2-3 SHIFT VALVE) | ||||
| 90250-02004 |
GX6#,RX60..4FC |
2 | ||
| 35457A - VALVE, DETENT REGULATOR | ||||
| 35457-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35457B - SPRING, COMPRESSION (FOR DETENT REGULATOR VALVE) | ||||
| 90501-09006 |
GX6#,RX60,TX60..ATM A40,A40D |
1 | ||
| 35457C - SEAT (FOR DETENT REGULATOR VALVE) | ||||
| 35438-22020 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 35459-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35458F - SEAT (FOR CUT BACK VALVE) | ||||
| 35493-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35461 - PLUG, DOWN SHIFT | ||||
| 35408-30010 |
GX61,MX61..4FC A42DL,A43D |
1 | ||
| 35408-22020 |
GX6#,RX60,TX60..ATM A40,A40D |
1 | ||
| 35462 - VALVE, THROTTLE | ||||
| 35462-22011 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-07680 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM 長さ=19.24,SECONDARY |
1 | ||
| 90501-12011 |
GX6#,MX61,RX60,SX60,TX60..ATM..(CBR,EFI,TBO) 長さ=39.71,PRIMARY |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-07680 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM 長さ=19.24,SECONDARY |
1 | ||
| 90501-12011 |
GX6#,MX61,RX60,SX60,TX60..ATM..(CBR,EFI,TBO) 長さ=39.71,PRIMARY |
1 | ||
| 35462C - STOPPER, VALVE VIBRATING | ||||
| 35422-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35462D - RING, E (FOR THROTTLE VALVE) | ||||
| 90523-06023 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35465 - PLUG, INTERMEDIATE SHIFT VALVE | ||||
| 35465-30010 |
GX6#,RX60..4FC A40D |
1 | ||
| 35466 - VALVE, 2-3 SHIFT LOWER | ||||
| 35466-30011 |
GX6#,RX60..4FC |
1 | ||
| 35467 - VALVE, INTERMEDIATE SHIFT | ||||
| 35467-30020 |
GX6#,RX60,SX60..4FC A40D |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM A40,A40D,A42D,A43D |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-19001 |
GX6#,LX6#,MX61,RX60,SX60..4FC |
1 | ||
| 35469A - PLUG, 3-2 KICK DOWN ORIFICE CONTROL VALVE | ||||
| 35469-30020 |
GX6#,RX60..4FC |
1 | ||
| 35472 - COVER, VALVE BODY, NO.2 | ||||
| 35472-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35473 - COVER, TRANSMISSION VALVE BODY | ||||
| 35473-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35488 - VALVE, 2-3 SHIFT TIMING | ||||
| 35488-30010 |
GX6#,RX60..4FC |
1 | ||
| 35488A - SPRING, COMPRESSION (FOR 2-3 SHIFT TIMING VALVE) | ||||
| 90501-09013 |
GX6#,RX60..4FC |
1 | ||
| 35488B - PLUG, STRAIGHT (FOR 2-3 SHIFT TIMING VALVE) | ||||
| 90334-10001 |
GX6#,RX60..4FC |
1 | ||
| 35489 - VALVE, 3-2 KICK DOWN ORIFICE CONTROL | ||||
| 35489-22020 |
GX6#..4FC |
1 | ||
| 35489A - SPRING (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE) | ||||
| 90501-09015 |
GX6#,RX60..4FC |
1 | ||
| 35489B - PIN, STRAIGHT (FOR 3-2 KICK DOWN ORIFICE CONTROL VALVE) | ||||
| 90250-02007 |
GX6#,RX60..4FC |
1 | ||
| 35521 - CAM, THROTTLE VALVE | ||||
| 35521-30010 |
GX6#,MX61..4FC..(EFI,TBO) |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90508-12331 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35522 - PIN, THROTTLE VALVE CAM | ||||
| 35522-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| Common parts | ||||
| 90101-05002 | ||||
| 90101-05003 | ||||
| 90101-05417 | ||||
| 90105-05002 | ||||
| 90105-05003 | ||||
| 90105-05005 | ||||
| 90105-05007 | ||||
| 90105-06018 | ||||
| 94541-00500 | ||||

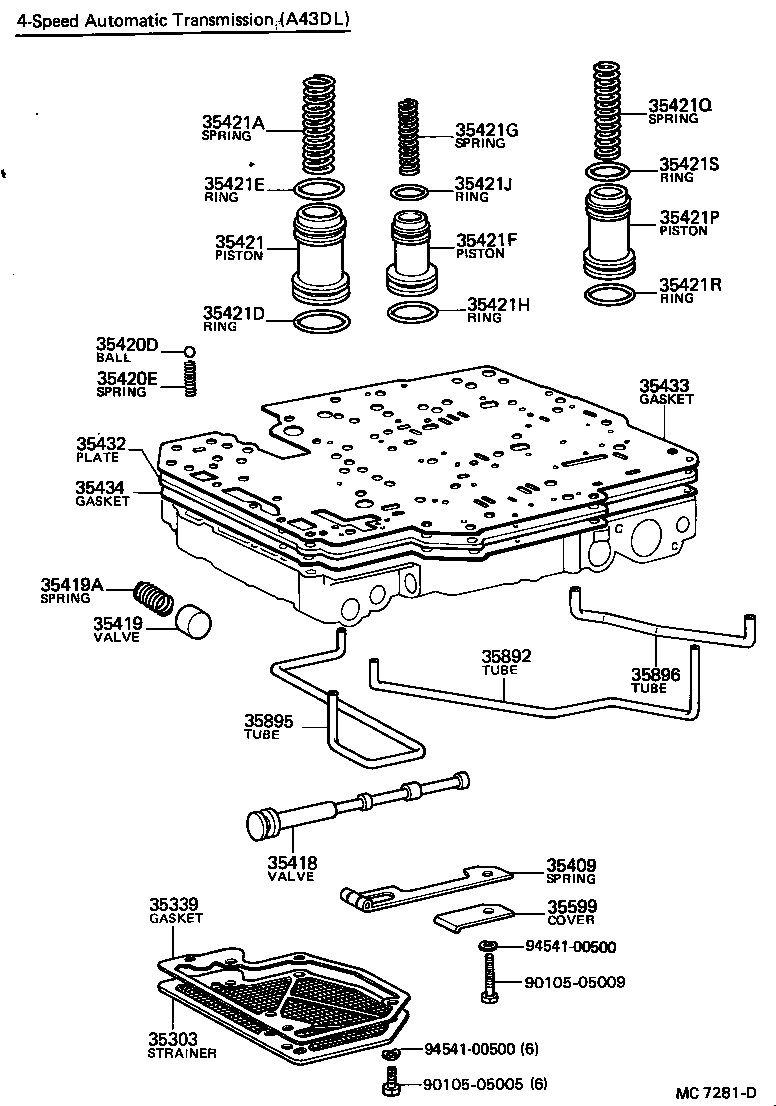

ILLUST NO. 2 OF 3(8009-8208)GX6#,RX60..4FC ; (8208- )SX60..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35303 - STRAINER SUB-ASSY, OIL | ||||
| 35303-30031 |
GX6#,RX60,SX60..4FC A40D |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-30030 |
GX6#,RX60,SX60..4FC A40D |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-30010 |
GX6#,LX6#,MX61,RX60,SX60..4FC |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-30050 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-13003 |
GX6#,LX6#,MX61,RX60,SX60..4FC |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 35496-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) 外径=6.35,ﾗﾊﾞｰ,OD=6.35,GUM |
2 | ||
| 35495-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) 外径=5.535,ﾗﾊﾞｰ,OD=5.56,GUM |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 35496-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) 外径=6.35,ﾗﾊﾞｰ,OD=6.35,GUM |
2 | ||
| 35495-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) 外径=5.535,ﾗﾊﾞｰ,OD=5.56,GUM |
1 | ||
| 35420E - SPRING (FOR LOWER VALVE BODY) | ||||
| 90501-04727 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35421 - PISTON, ACCUMULATOR, NO.1 | ||||
| 35421-30020 |
GX6#,MX61..4FC |
1 | ||
| 35421A - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90501-32005 |
GX6#..4FC A40D |
1 | ||
| 35421D - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-29187 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35421E - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-23194 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35421F - PISTON, ACCUMULATOR, NO.2 | ||||
| 35441-30010 |
GX6#,RX60..4FC |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-25002 |
GX6#..4FC |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-26190 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35421J - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-18186 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35421P - PISTON, ACCUMULATOR, NO.3 | ||||
| 35421-22030 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35421Q - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90501-20675 |
GX6#,LX60,RX60,SX60,TX60..ATM A40,A40D,A42D |
1 | ||
| 35421R - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-26190 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35421S - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-22185 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-22061 |
GX6#..4FC A40D |
1 | ||
| 35432-22062 |
GX6#..4FC A40D |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-30030 |
GX6#,RX60..4FC A40D |
1 | ||
| 35433-14020 |
GX6#,RX60..4FC A40D |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-14020 |
GX6#,RX60..4FC A40D |
1 | ||
| 35434-30030 |
GX6#,RX60..4FC A40D |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-30010 |
GX6#,RX60..4FC |
1 | ||
| 35892 - TUBE, OVERDRIVE BRAKE | ||||
| 35892-30010 |
GX6#,RX60..4FC A40D |
1 | ||
| 35893 - GASKET, CENTER SUPPORT APPLY | ||||
| 35893-30010 |
GX6#,RX60..4FC |
3 | ||
| 35895 - TUBE, FRONT CLUTCH APPLY | ||||
| 35895-30010 |
GX6#,RX60..4FC A40D |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90105-05009 | ||||

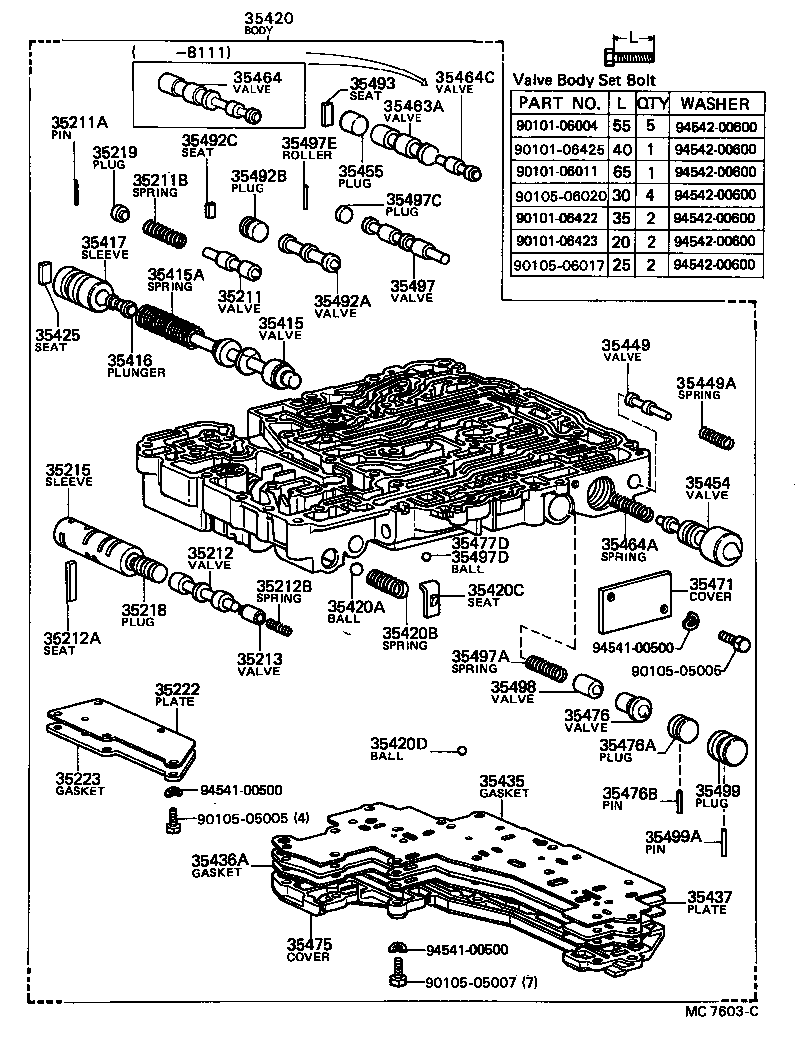

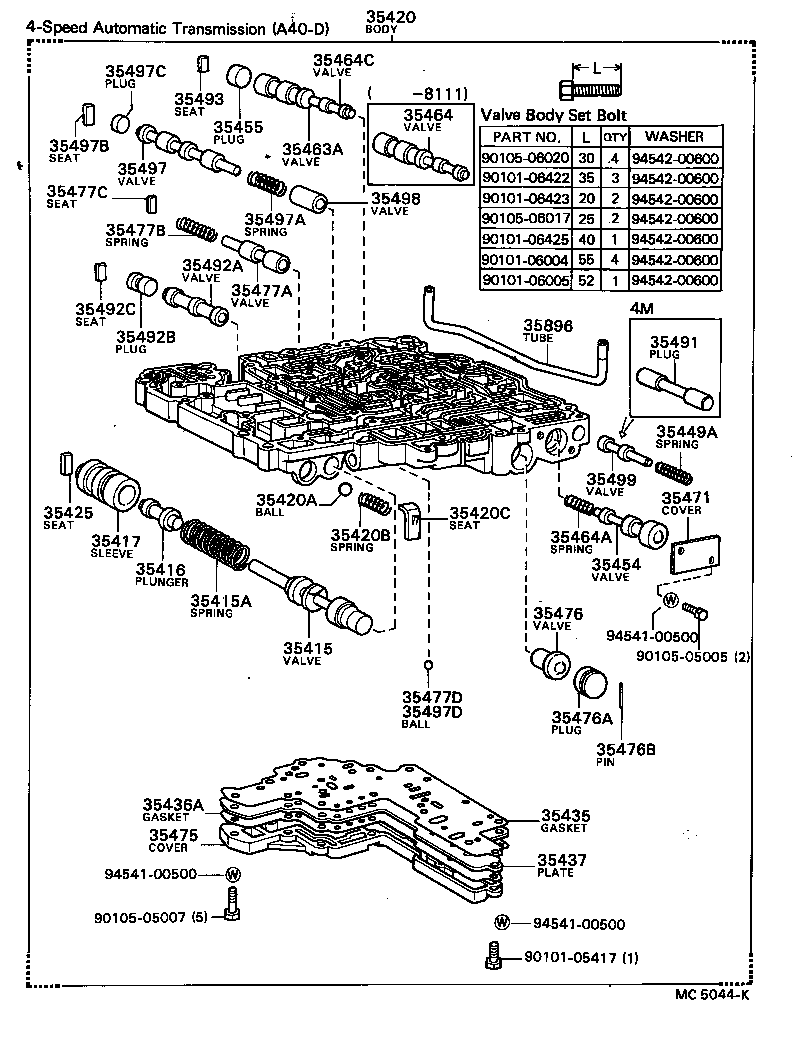

ILLUST NO. 3 OF 3(8009-8208)GX6#,RX60..4FC ; (8208- )SX60..4FC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35415 - VALVE, PRESSURE REGULATOR | ||||
| 35415-22020 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35415A - SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE) | ||||
| 90501-18039 |
GX6#,RX60..4FC A40D |
1 | ||
| 90501-16682 |
GX6#,LX60,MX61,TX60..ATM A40,A42D,A42DL,A43D |
1 | ||
| 90501-16682 |
GX6#,LX60,RX60,TX60..ATM |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-22010 |
GX6#,MX61,RX60,TX60..ATM..(CBR,EFI,TBO) |
1 | ||
| 35417 - SLEEVE, PRESSURE REGULATOR VALVE | ||||
| 35417-22020 |
GX6#,RX60,TX60..ATM |
1 | ||
| 35417-22020 |
GX6#,MX61,TX60..ATM A40,A42DL,A43D |
1 | ||
| 35417-22040 |
GX6#,RX60..4FC A40D |
1 | ||
| 35420 - BODY ASSY, LOWER VALVE | ||||
| 35420-14030 |
GX6#,RX60..4FC A40D |
1 | ||
| 35420A - BALL (FOR PRESSURE RELIEF) | ||||
| 90360-13024 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35420B - SPRING (FOR PRESSURE RELIEF) | ||||
| 90501-18677 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35420C - SEAT (FOR PRESSURE RELIEF) | ||||
| 35427-22011 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35425 - SEAT, PRESSURE REGULATOR VALVE SLEEVE | ||||
| 35425-14010 |
GX6#,RX60..4FC A40D |
1 | ||
| 35425-22010 |
GX6#,LX60,RX60,TX60..ATM |
1 | ||
| 35425-22010 |
GX6#,LX60,MX61,TX60..ATM A40,A42D,A42DL,A43D |
1 | ||
| 35435 - GASKET, VALVE BODY PLATE, NO.3 | ||||
| 35435-30010 |
GX6#,RX60..4FC A40D |
1 | ||
| 35435-14020 |
GX6#,RX60..4FC A40D |
1 | ||
| 35436A - GASKET, VALVE BODY PLATE, NO.4 | ||||
| 35436-30020 |
GX6#,RX60..4FC A40D |
1 | ||
| 35436-14020 |
GX6#,RX60..4FC A40D |
1 | ||
| 35437 - PLATE, 3-4 SHIFT VALVE SEPARATOR | ||||
| 35437-14010 |
GX61..4FC A42DL |
1 | ||
| 35437-30011 |
GX6#,RX60..4FC A40D |
1 | ||
| 35437-30010 |
GX6#,RX60..4FC A40D |
1 | ||
| 35449A - SPRING, COMPRESSION (FOR SEQUENCE VALVE) | ||||
| 90501-12726 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
2 | ||
| 35454 - VALVE, LOW COAST SHIFT | ||||
| 35454-30010 |
GX61,LX60..4FC A42D,A42DL |
1 | ||
| 35454-22010 |
GX6#,RX60,TX60..ATM A40,A40D |
1 | ||
| 35454-22010 |
GX6#,LX60,RX60,TX60..ATM |
1 | ||
| 35455 - PLUG, 1-2 SHIFT VALVE LOW | ||||
| 35455-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-22010 |
GX6#,LX60,MX61,RX60,TX60..ATM |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-06684 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35471 - COVER, VALVE BODY, NO.1 | ||||
| 35471-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35475 - COVER, VALVE BODY, NO.5 | ||||
| 35475-14020 |
GX6#,RX60 A40D |
1 | ||
| 35475-30010 |
GX6#,RX60..4FC A40D |
1 | ||
| 35476 - VALVE, 3RD COAST SHIFT | ||||
| 35476-30010 |
GX6#,LX6#,MX61,RX60,SX60..4FC..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35476A - PLUG, STRAIGHT (FOR 3RD COAST SHIFT) | ||||
| 90334-12001 |
GX6#,LX6#,MX61,RX60,SX60..4FC..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35476B - PIN, LOCATING (FOR 3RD COAST SHIFT) | ||||
| 90250-02012 |
GX6#,LX6#,MX61,RX60,SX60..4FC..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35477A - VALVE, OVERDRIVE CLUTCH EXHAUST | ||||
| 35477-30030 |
GX6#,RX60..4FC |
1 | ||
| 35477B - SPRING, COMPRESSION (FOR OVERDRIVE CLUTCH EXHAUST VALVE | ||||
| 90501-08020 |
GX6#,RX60..4FC |
1 | ||
| 35477C - SEAT, VALVE (FOR OVERDRIVE CLUTCH EXHAUST VALVE) | ||||
| 35493-30020 |
GX6#,RX60..4FC |
1 | ||
| 35477D - BALL, CHECK (FOR OVERDRIVE CLUTCH EXHAUST VALVE) | ||||
| 35495-22010 |
GX6#,LX6#,MX61,RX60,SX60..4FC..(CBR,DSL,EFI,TBO,TDE) |
2 | ||
| 35492A - VALVE, MANUAL DOWN TIMING | ||||
| 35492-30010 |
GX6#,LX6#,MX61,RX60,SX60..4FC..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35492B - PLUG (FOR MANUAL DOWN TIMING VALVE) | ||||
| 35494-30010 |
GX6#,LX6#,MX61,RX60,SX60..4FC..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35492C - SEAT, VALVE (FOR MANUAL DOWN TIMING VALVE) | ||||
| 35493-30040 |
GX6#,LX6#,MX61,RX60,SX60..4FC..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35493 - SEAT, SHIFT VALVE SPRING | ||||
| 35493-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-30020 |
GX6#,LX6#,MX61,RX60,SX60..4FC..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-11005 |
GX6#,RX60..4FC..(CBR,EFI) |
1 | ||
| 35497B - SEAT, SHIFT VALVE PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 35493-30010 |
GX6#,RX60..4FC |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90334-11001 |
GX6#,RX60..4FC A40D |
1 | ||
| 35497D - BALL, CHECK (FOR 3-4 SHIFT VALVE) | ||||
| 35495-22010 |
GX6#,LX6#,MX61,RX60,SX60..4FC..(CBR,DSL,EFI,TBO,TDE) |
2 | ||
| 35498 - VALVE, 3-4 COAST SHIFT | ||||
| 35498-30010 |
GX6#,LX6#,MX61,RX60,SX60..4FC..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35896 - TUBE, OVERDRIVE SWITCH APPLY | ||||
| 35896-30010 |
GX6#,RX60..4FC |
1 | ||
| Common parts | ||||
| 90101-05417 | ||||
| 90101-06004 | ||||
| 90101-06005 | ||||
| 90101-06422 | ||||
| 90101-06423 | ||||
| 90101-06425 | ||||
| 90105-05005 | ||||
| 90105-05007 | ||||
| 90105-06017 | ||||
| 90105-06020 | ||||
| 94541-00500 | ||||
| 94542-00600 | ||||
ILLUST NO. 1 OF 3(8104- )GX61..4FC..EFI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35430 - BODY ASSY, REAR UPPER VALVE | ||||
| 35430-22130 |
GX6#..4FC A40D |
1 | ||
| 35430A - BALL (FOR REAR UPPER VALVE BODY) | ||||
| 35495-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) 外径=5.535,ﾗﾊﾞｰ,OD=5.56,GUM |
5 | ||
| 90360-06023 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) 外径=5.56,STEEL,OD=5.56,STEEL |
1 | ||
| 35440 - BODY ASSY, FRONT UPPER VALVE | ||||
| 35440-30020 |
GX6#..4FC |
1 | ||
| 35440-30021 |
GX6#..4FC A40D |
1 | ||
| 35440A - BALL (FOR FRONT UPPER VALVE BODY) | ||||
| 35495-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) 外径=5.535,ﾗﾊﾞｰ |
1 | ||
| 35444A - SPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE) | ||||
| 90501-11009 |
GX61,MX61..4FC |
1 | ||
| 35445 - VALVE, LOW MODULATOR | ||||
| 35445-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35445A - SPRING, COMPRESSION (FOR LOW MODULATOR VALVE) | ||||
| 90501-08725 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35446 - VALVE, GOVERNOR MODULATOR | ||||
| 35446-22010 |
GX6#,LX60,MX61,RX60,TX60..ATM |
1 | ||
| 35446A - SPRING, COMPRESSION (FOR GOVERNOR MODULATOR VALVE) | ||||
| 90501-07688 |
GX6#,LX60,MX61,RX60,TX60..ATM |
1 | ||
| 35449 - VALVE, SEQUENCE | ||||
| 35447-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) UPR VALVE |
1 | ||
| 35449-22010 |
GX6#,RX60,SX60,TX60..ATM..(CBR,EFI) LWR VALVE |
1 | ||
| 35449A - SPRING, COMPRESSION (FOR SEQUENCE VALVE) | ||||
| 90501-12726 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
2 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-30040 |
GX6#,RX60..4FC A40D |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-08013 |
GX6#,RX60..4FC A40D |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 35452-30020 |
GX6#,RX60..4FC A40D |
1 | ||
| 35457A - VALVE, DETENT REGULATOR | ||||
| 35457-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35457B - SPRING, COMPRESSION (FOR DETENT REGULATOR VALVE) | ||||
| 90501-09006 |
GX6#,RX60,TX60..ATM A40,A40D |
1 | ||
| 35457C - SEAT (FOR DETENT REGULATOR VALVE) | ||||
| 35438-22020 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 35459-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35458F - SEAT (FOR CUT BACK VALVE) | ||||
| 35493-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35461 - PLUG, DOWN SHIFT | ||||
| 35408-30010 |
GX61,MX61..4FC A42DL,A43D |
1 | ||
| 35408-22020 |
GX6#,RX60,TX60..ATM A40,A40D |
1 | ||
| 35462 - VALVE, THROTTLE | ||||
| 35462-22011 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-07680 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM 長さ=19.24,SECONDARY |
1 | ||
| 90501-12011 |
GX6#,MX61,RX60,SX60,TX60..ATM..(CBR,EFI,TBO) 長さ=39.71,PRIMARY |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-07680 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM 長さ=19.24,SECONDARY |
1 | ||
| 90501-12011 |
GX6#,MX61,RX60,SX60,TX60..ATM..(CBR,EFI,TBO) 長さ=39.71,PRIMARY |
1 | ||
| 35462C - STOPPER, VALVE VIBRATING | ||||
| 35422-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35462D - RING, E (FOR THROTTLE VALVE) | ||||
| 90523-06023 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35465 - PLUG, INTERMEDIATE SHIFT VALVE | ||||
| 35465-30010 |
GX6#,RX60..4FC A40D |
1 | ||
| 35467 - VALVE, INTERMEDIATE SHIFT | ||||
| 35467-30020 |
GX6#,RX60,SX60..4FC A40D |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35468-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM A40,A40D,A42D,A43D |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-19001 |
GX6#,LX6#,MX61,RX60,SX60..4FC |
1 | ||
| 35472 - COVER, VALVE BODY, NO.2 | ||||
| 35472-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35473 - COVER, TRANSMISSION VALVE BODY | ||||
| 35473-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35521 - CAM, THROTTLE VALVE | ||||
| 35521-30010 |
GX6#,MX61..4FC..(EFI,TBO) |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90508-12331 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35522 - PIN, THROTTLE VALVE CAM | ||||
| 35522-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| Common parts | ||||
| 90101-05002 | ||||
| 90101-05417 | ||||
| 90105-05002 | ||||
| 90105-05003 | ||||
| 90105-05005 | ||||
| 90105-05007 | ||||
| 90105-06018 | ||||
| 94541-00500 | ||||
| 94542-00600 | ||||
ILLUST NO. 2 OF 3(8104- )GX61..4FC..EFI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35303 - STRAINER SUB-ASSY, OIL | ||||
| 35303-30031 |
GX6#,RX60,SX60..4FC A40D |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-30030 |
GX6#,RX60,SX60..4FC A40D |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-30010 |
GX6#,LX6#,MX61,RX60,SX60..4FC |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-30050 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-13003 |
GX6#,LX6#,MX61,RX60,SX60..4FC |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 35496-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) 外径=6.35,ﾗﾊﾞｰ,OD=6.35,GUM |
2 | ||
| 35495-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) 外径=5.535,ﾗﾊﾞｰ,OD=5.56,GUM |
1 | ||
| 35420E - SPRING (FOR LOWER VALVE BODY) | ||||
| 90501-04727 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35421 - PISTON, ACCUMULATOR, NO.1 | ||||
| 35421-30020 |
GX6#,MX61..4FC |
1 | ||
| 35421A - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90501-32005 |
GX6#..4FC A40D |
1 | ||
| 35421D - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-29187 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35421E - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-23194 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35421F - PISTON, ACCUMULATOR, NO.2 | ||||
| 35441-30010 |
GX6#,RX60..4FC |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-25002 |
GX6#..4FC |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-26190 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35421J - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-18186 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35421P - PISTON, ACCUMULATOR, NO.3 | ||||
| 35421-22030 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35421Q - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90501-20675 |
GX6#,LX60,RX60,SX60,TX60..ATM A40,A40D,A42D |
1 | ||
| 35421R - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-26190 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35421S - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-22185 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-22061 |
GX6#..4FC A40D |
1 | ||
| 35432-22062 |
GX6#..4FC A40D |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-30030 |
GX6#,RX60..4FC A40D |
1 | ||
| 35433-14020 |
GX6#,RX60..4FC A40D |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-14020 |
GX6#,RX60..4FC A40D |
1 | ||
| 35434-30030 |
GX6#,RX60..4FC A40D |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-30010 |
GX6#,RX60..4FC |
1 | ||
| 35892 - TUBE, OVERDRIVE BRAKE | ||||
| 35892-30010 |
GX6#,RX60..4FC A40D |
1 | ||
| 35895 - TUBE, FRONT CLUTCH APPLY | ||||
| 35895-30010 |
GX6#,RX60..4FC A40D |
1 | ||
| 35896 - TUBE, OVERDRIVE SWITCH APPLY | ||||
| 35896-30010 |
GX6#,RX60..4FC |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90105-05009 | ||||
| 94541-00500 | ||||
ILLUST NO. 3 OF 3(8104- )GX61..4FC..EFI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35415 - VALVE, PRESSURE REGULATOR | ||||
| 35415-22020 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35415A - SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE) | ||||
| 90501-18039 |
GX6#,RX60..4FC A40D |
1 | ||
| 90501-16682 |
GX6#,LX60,MX61,TX60..ATM A40,A42D,A42DL,A43D |
1 | ||
| 90501-16682 |
GX6#,LX60,RX60,TX60..ATM |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-22010 |
GX6#,MX61,RX60,TX60..ATM..(CBR,EFI,TBO) |
1 | ||
| 35417 - SLEEVE, PRESSURE REGULATOR VALVE | ||||
| 35417-22020 |
GX6#,RX60,TX60..ATM |
1 | ||
| 35417-22020 |
GX6#,MX61,TX60..ATM A40,A42DL,A43D |
1 | ||
| 35417-22040 |
GX6#,RX60..4FC A40D |
1 | ||
| 35420 - BODY ASSY, LOWER VALVE | ||||
| 35420-14030 |
GX6#,RX60..4FC A40D |
1 | ||
| 35420A - BALL (FOR PRESSURE RELIEF) | ||||
| 90360-13024 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35420B - SPRING (FOR PRESSURE RELIEF) | ||||
| 90501-18677 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM |
1 | ||
| 35420C - SEAT (FOR PRESSURE RELIEF) | ||||
| 35427-22011 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 35496-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) 外径=6.35,ﾗﾊﾞｰ,OD=6.35,GUM |
2 | ||
| 35495-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) 外径=5.535,ﾗﾊﾞｰ,OD=5.56,GUM |
1 | ||
| 35425 - SEAT, PRESSURE REGULATOR VALVE SLEEVE | ||||
| 35425-14010 |
GX6#,RX60..4FC A40D |
1 | ||
| 35425-22010 |
GX6#,LX60,RX60,TX60..ATM |
1 | ||
| 35425-22010 |
GX6#,LX60,MX61,TX60..ATM A40,A42D,A42DL,A43D |
1 | ||
| 35435 - GASKET, VALVE BODY PLATE, NO.3 | ||||
| 35435-30010 |
GX6#,RX60..4FC A40D |
1 | ||
| 35435-14020 |
GX6#,RX60..4FC A40D |
1 | ||
| 35436A - GASKET, VALVE BODY PLATE, NO.4 | ||||
| 35436-30020 |
GX6#,RX60..4FC A40D |
1 | ||
| 35436-14020 |
GX6#,RX60..4FC A40D |
1 | ||
| 35437 - PLATE, 3-4 SHIFT VALVE SEPARATOR | ||||
| 35437-14010 |
GX61..4FC A42DL |
1 | ||
| 35437-30011 |
GX6#,RX60..4FC A40D |
1 | ||
| 35437-30010 |
GX6#,RX60..4FC A40D |
1 | ||
| 35449 - VALVE, SEQUENCE | ||||
| 35447-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) UPR VALVE |
1 | ||
| 35449-22010 |
GX6#,RX60,SX60,TX60..ATM..(CBR,EFI) LWR VALVE |
1 | ||
| 35449A - SPRING, COMPRESSION (FOR SEQUENCE VALVE) | ||||
| 90501-12726 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
2 | ||
| 35454 - VALVE, LOW COAST SHIFT | ||||
| 35454-30010 |
GX61,LX60..4FC A42D,A42DL |
1 | ||
| 35454-22010 |
GX6#,RX60,TX60..ATM A40,A40D |
1 | ||
| 35454-22010 |
GX6#,LX60,RX60,TX60..ATM |
1 | ||
| 35455 - PLUG, 1-2 SHIFT VALVE LOW | ||||
| 35455-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-22010 |
GX6#,LX60,MX61,RX60,TX60..ATM |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-06684 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35471 - COVER, VALVE BODY, NO.1 | ||||
| 35471-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35475 - COVER, VALVE BODY, NO.5 | ||||
| 35475-14020 |
GX6#,RX60 A40D |
1 | ||
| 35475-30010 |
GX6#,RX60..4FC A40D |
1 | ||
| 35476 - VALVE, 3RD COAST SHIFT | ||||
| 35476-30010 |
GX6#,LX6#,MX61,RX60,SX60..4FC..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35476A - PLUG, STRAIGHT (FOR 3RD COAST SHIFT) | ||||
| 90334-12001 |
GX6#,LX6#,MX61,RX60,SX60..4FC..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35476B - PIN, LOCATING (FOR 3RD COAST SHIFT) | ||||
| 90250-02012 |
GX6#,LX6#,MX61,RX60,SX60..4FC..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35477D - BALL, CHECK (FOR OVERDRIVE CLUTCH EXHAUST VALVE) | ||||
| 35495-22010 |
GX6#,LX6#,MX61,RX60,SX60..4FC..(CBR,DSL,EFI,TBO,TDE) |
2 | ||
| 35492A - VALVE, MANUAL DOWN TIMING | ||||
| 35492-30010 |
GX6#,LX6#,MX61,RX60,SX60..4FC..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35492B - PLUG (FOR MANUAL DOWN TIMING VALVE) | ||||
| 35494-30010 |
GX6#,LX6#,MX61,RX60,SX60..4FC..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35492C - SEAT, VALVE (FOR MANUAL DOWN TIMING VALVE) | ||||
| 35493-30040 |
GX6#,LX6#,MX61,RX60,SX60..4FC..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35493 - SEAT, SHIFT VALVE SPRING | ||||
| 35493-22010 |
GX6#,LX6#,MX61,RX60,SX60,TX60..ATM..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-30020 |
GX6#,LX6#,MX61,RX60,SX60..4FC..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-11005 |
GX6#,RX60..4FC..(CBR,EFI) |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90334-11001 |
GX6#,RX60..4FC A40D |
1 | ||
| 35497D - BALL, CHECK (FOR 3-4 SHIFT VALVE) | ||||
| 35495-22010 |
GX6#,LX6#,MX61,RX60,SX60..4FC..(CBR,DSL,EFI,TBO,TDE) |
2 | ||
| 35498 - VALVE, 3-4 COAST SHIFT | ||||
| 35498-30010 |
GX6#,LX6#,MX61,RX60,SX60..4FC..(CBR,DSL,EFI,TBO,TDE) |
1 | ||
| Common parts | ||||
| 90101-06004 | ||||
| 90101-06011 | ||||
| 90101-06422 | ||||
| 90101-06423 | ||||
| 90101-06425 | ||||
| 90105-05005 | ||||
| 90105-05007 | ||||
| 90105-06017 | ||||
| 90105-06020 | ||||
| 94541-00500 | ||||
| 94542-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
