GX61-DEPSE (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )1GEU

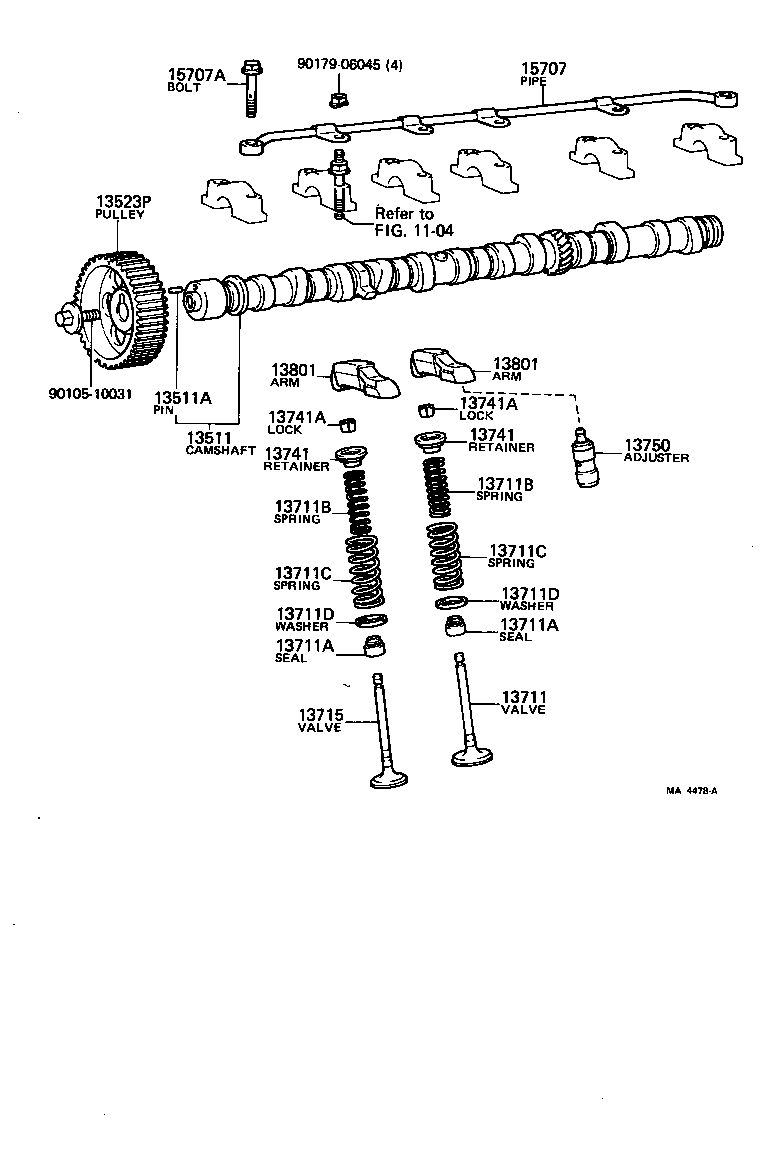

Click highlighted areas on diagram

diagram 1104 13511 13511A 13523P 13711 13711A 13711A 13711B 13711B 13711C 13711C 13711D 13711D 13715 13741 13741 13741A 13741A 13750 13801 13801 15707 15707A 9010510031 9017906045
Part # Description Qty Price
13511 - CAMSHAFT
13501-70010

1GEU..GX6#

 1
13511A - PIN, STRAIGHT(FOR CAMSHAFT KNOCK)
90250-05121

1GEU..GX6#

長さ=15,外径=5

 2
13523P - PULLEY, CAMSHAFT TIMING
13523-70010

1GEU..GX6#

 1
13711 - VALVE, INTAKE
13711-70010

1GEU..GX6#

 6
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02038

1GEU..GX6#

 12
13711A - SEAL OR RING, O(FOR VALVE STEM OIL)
90913-02038

1GEU..GX6#

 12
13711B - SPRING, COMPRESSION(FOR INNER)
90501-26016

1GEU..GX6#

 12
13711B - SPRING, COMPRESSION(FOR INNER)
90501-26016

1GEU..GX6#

 12
13711C - SPRING, COMPRESSION(FOR OUTER)
90501-40006

1GEU..GX6#

 12
13711C - SPRING, COMPRESSION(FOR OUTER)
90501-40006

1GEU..GX6#

 12
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-16005

1GEU..GX6#

 12
13711D - WASHER, PLATE(FOR VALVE SPRING SEAT)
90201-16005

1GEU..GX6#

 12
13715 - VALVE, EXHAUST
13715-70010

1GEU..GX6#

 6
13741 - RETAINER, VALVE SPRING
13741-70010

1GEU..GX6#

 12
13741 - RETAINER, VALVE SPRING
13741-70010

1GEU..GX6#

 12
13741A - LOCK, VALVE SPRING RETAINER
90913-03017

1GEU..GX6#

 24
13741A - LOCK, VALVE SPRING RETAINER
90913-03017

1GEU..GX6#

 24
13750 - ADJUSTER ASSY, VALVE LASH
13750-70010

1GEU..GX6#

 12
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-70011

1GEU..GX6#

 12
13801 - ARM SUB-ASSY, VALVE ROCKER, NO.1
13811-70011

1GEU..GX6#

 12
15707 - PIPE SUB-ASSY, OIL
15043-70010

1GEU..GX6#

 1
15707A - BOLT, UNION(FOR OIL PIPE)
90401-08002

1GEU..GX6#

 2
Common parts
90105-10031
90179-06045
Linked diagrams
1104
