GX61-DEPGE (1980)

Toyota Chaser

Production Sep 1980 - Jul 1984
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)GX61 ; (8208- )GX61..AVT

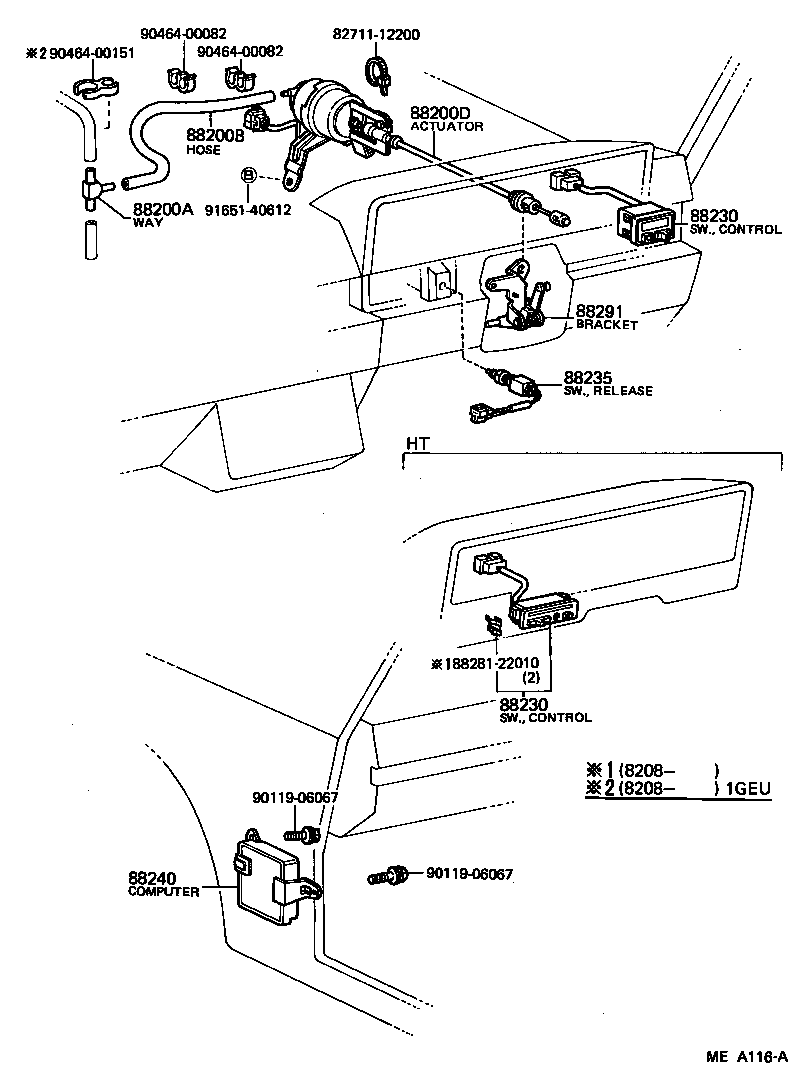

Click highlighted areas on diagram

diagram 8271112200 88200A 88200B 88200D 88230 88230 88235 88240 8828122010 88291 9011906067 9011906067 9046400082 9046400082 9046400151 9165140612
Part # Description Qty Price
88200A - UNION OR WAY, CRUISE CONTROL VACUUM
90413-04005

GX61..AVT

 1
90413-04005

GX61

 1
88200B - HOSE, CRUISE CONTROL VACUUM
95411-19960

GX61

*H,L=360,ﾏｰｸ=#*

 1
95411-19960

GX61..AVT..EFI

*H,L=360,ﾏｰｸ=#*

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-22080

GX61

 1
88200-22081

GX61..AVT

 1
88230 - SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL
88230-22040

GX61..SED

 1
88230-22061

GX61..SED..AVT

 1
88230 - SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) CONTROL
88230-22040

GX61..SED

 1
88230-22061

GX61..SED..AVT

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-22070

GX61

 1
88240-22072

GX61..AVT

 1
88240-22071

GX61..AVT

 1
88240-22050

GX61

 1
88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1
88290-22011

GX61

 1
88290-22012

GX61..AVT

 1
88290-22011

GX61..AVT

 1
Common parts
82711-12200
88281-22010
90119-06067
90464-00082
90464-00151
91651-40612
