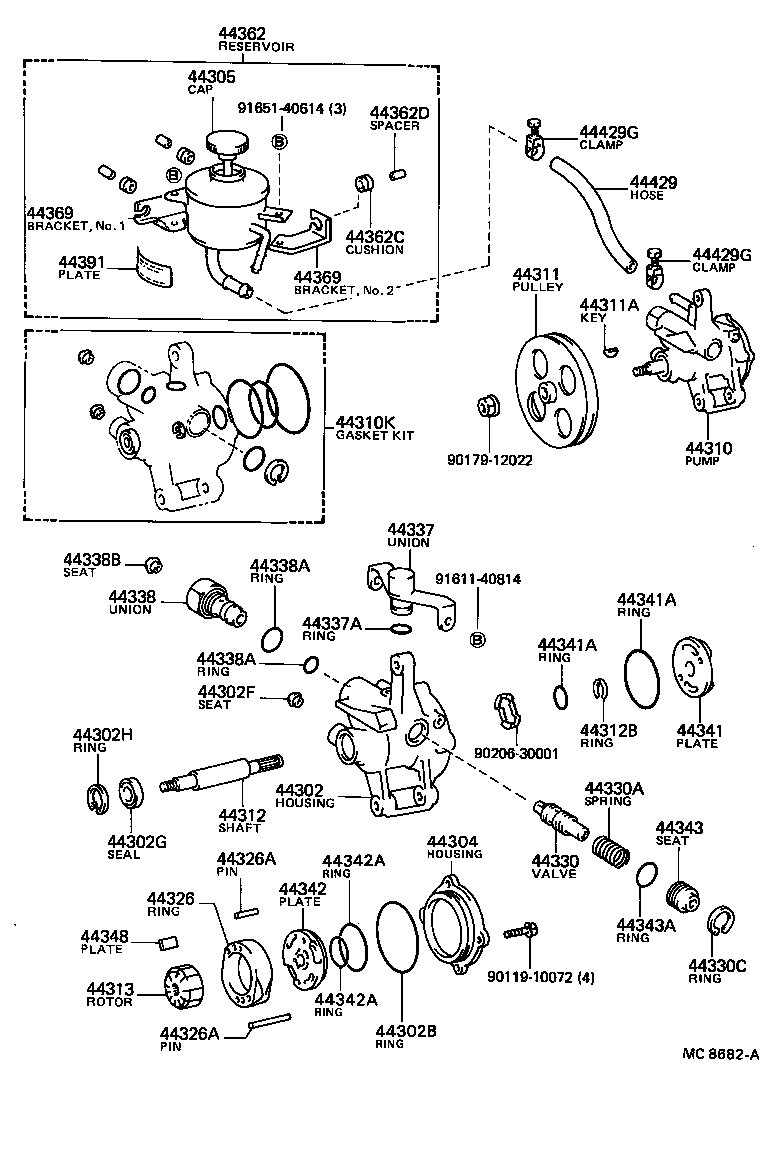

GX61-DEMGF (1982)
Toyota Chaser
(8208- )TWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT | ||||
| 44302-22030 |
GX61..TWC |
1 | ||
| 44302B - RING, O, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90301-63002 |
GX61..TWC |
1 | ||
| 90301-60001 |
GX6#,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL |
1 | ||
| 44302F - SEAT, UNION(FOR VANE PUMP HOUSING) | ||||
| 90410-05035 |
GX6# |
1 | ||
| 44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING) | ||||
| 90311-24001 |
GX6#,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL |
1 | ||
| 90311-18008 |
GX61..TWC |
1 | ||
| 90311-18003 |
GX61..TWC |
1 | ||
| 44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING) | ||||
| 90521-44002 |
GX6#,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL |
1 | ||
| 90521-32001 |
GX61..TWC |
1 | ||
| 44304 - HOUSING SUB-ASSY, VANE PUMP, REAR | ||||
| 44324-32010 |
GX61..TWC |
1 | ||
| 44324-22030 |
GX61..TWC |
1 | ||
| 44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR | ||||
| 44305-30020 |
GX6#,LX60,RX60,TX60..AVT,SGT,SXL,XG,XL |
1 | ||
| 44305-30020 |
GX61,LX6#;SX60..STD,XG,XL |
1 | ||
| 44310 - PUMP ASSY, VANE | ||||
| 44320-14140 |
GX61..TWC |
1 | ||
| 44320-14141 |
GX61..TWC |
1 | ||
| 44310K - GASKET KIT, POWER STEERING PUMP | ||||
| 04446-16011 |
GX61..TWC |
1 | ||
| 04446-16010 |
GX61..TWC |
1 | ||
| 44311 - PULLEY, VANE PUMP | ||||
| 44311-22040 |
GX61..TWC |
1 | ||
| 44311-22041 |
GX61..TWC |
1 | ||
| 44311A - KEY, VANE PUMP PULLEY | ||||
| 90280-05008 |
GX61,LX6#,MX61;SX60..STD,XG,XL |
1 | ||
| 90280-05008 |
GX6#,LX60,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL |
1 | ||
| 44312 - SHAFT, VANE PUMP | ||||
| 44312-12010 |
GX6#,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL |
1 | ||
| 44312-12020 |
GX61..TWC |
1 | ||
| 44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT) | ||||
| 90520-10003 |
GX61..TWC |
1 | ||
| 90520-15001 |
GX6#,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL |
1 | ||
| 44313 - ROTOR, VANE PUMP | ||||
| 44313-12050 |
GX6#,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL ﾏｰｸ 4,MARK 4 |
1 | ||
| 44313-12020 |
GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL ﾏｰｸ 1,MARK 1 |
1 | ||
| 44313-12040 |
GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL ﾏｰｸ 3,MARK 3 |
1 | ||
| 44313-12010 |
GX6#,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL ﾏｰｸ無し |
1 | ||
| 44313-12010 |
GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL ﾏｰｸ無し |
1 | ||
| 44313-12030 |
GX6#,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL ﾏｰｸ 2,MARK 2 |
1 | ||
| 44313-12030 |
GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL ﾏｰｸ 2,MARK 2 |
1 | ||
| 44313-12040 |
GX6#,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL ﾏｰｸ 3,MARK 3 |
1 | ||
| 44313-12020 |
GX6#,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL ﾏｰｸ 1,MARK 1 |
1 | ||
| 44313-12050 |
GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL ﾏｰｸ 4,MARK 4 |
1 | ||
| 44326 - RING, CAM(FOR VANE PUMP) | ||||
| 44325-12020 |
GX6#,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL ﾏｰｸ 1,MARK 1 |
1 | ||
| 44325-12030 |
GX6#,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL ﾏｰｸ 2,MARK 2 |
1 | ||
| 44325-12010 |
GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL ﾏｰｸ無し |
1 | ||
| 44325-12010 |
GX6#,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL ﾏｰｸ無し |
1 | ||
| 44325-12040 |
GX6#,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL ﾏｰｸ 3,MARK 3 |
1 | ||
| 44325-12040 |
GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL ﾏｰｸ 3,MARK 3 |
1 | ||
| 44325-12030 |
GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL ﾏｰｸ 2,MARK 2 |
1 | ||
| 44325-12050 |
GX6#,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL ﾏｰｸ 4,MARK 4 |
1 | ||
| 44325-12050 |
GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL ﾏｰｸ 4,MARK 4 |
1 | ||
| 44325-12020 |
GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL ﾏｰｸ 1,MARK 1 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-05008 |
GX6#,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL 長さ=25,外径=5.0 |
2 | ||
| 90250-05017 |
GX61..TWC 長さ=43.5,外径=5.0,L=43.5 |
1 | ||
| 90250-05008 |
GX61..TWC 長さ=25,外径=5.0 |
1 | ||
| 44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING) | ||||
| 90250-05008 |
GX6#,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL 長さ=25,外径=5.0 |
2 | ||
| 90250-05017 |
GX61..TWC 長さ=43.5,外径=5.0,L=43.5 |
1 | ||
| 90250-05008 |
GX61..TWC 長さ=25,外径=5.0 |
1 | ||
| 44330 - VALVE ASSY, FLOW CONTROL | ||||
| 44330-12010 |
GX6#,RX60,TX60..AVT,SGT,SXL,XG,XL ﾏｰｸ A,MARK A |
1 | ||
| 44330-12020 |
GX6#,RX60,TX60..AVT,SGT,SXL,XG,XL ﾏｰｸ B,MARK B |
1 | ||
| 44330-12060 |
GX6#,RX60,TX60..AVT,SGT,SXL,XG,XL ﾏｰｸ F,MARK F |
1 | ||
| 44330-12050 |
GX6#,RX60,TX60..AVT,SGT,SXL,XG,XL ﾏｰｸ E,MARK E |
1 | ||
| 44330-12030 |
GX6#,RX60,TX60..AVT,SGT,SXL,XG,XL ﾏｰｸ C,MARK C |
1 | ||
| 44330-12040 |
GX6#,RX60,TX60..AVT,SGT,SXL,XG,XL ﾏｰｸ D,MARK D |
1 | ||
| 44330-12130 |
GX61,SX60..AVT,STD,SXL,XG,XL ﾏｰｸ A,MARK A |
1 | ||
| 44330-12140 |
GX61,SX60..AVT,STD,SXL,XG,XL ﾏｰｸ B,MARK B |
1 | ||
| 44330-12150 |
GX61,SX60..AVT,STD,SXL,XG,XL ﾏｰｸ C,MARK C |
1 | ||
| 44330-12170 |
GX61,SX60..AVT,STD,SXL,XG,XL ﾏｰｸ E,MARK E |
1 | ||
| 44330-12180 |
GX61,SX60..AVT,STD,SXL,XG,XL ﾏｰｸ F,MARK F |
1 | ||
| 44330-12160 |
GX61,SX60..AVT,STD,SXL,XG,XL ﾏｰｸ D,MARK D |
1 | ||
| 44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE) | ||||
| 90501-12447 |
GX61,LX6#,MX61;SX60..STD,XG,XL |
1 | ||
| 90501-12447 |
GX6#,LX60,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL |
1 | ||
| 44330C - RING, SNAP(FOR FLOW CONTROL VALVE) | ||||
| 96151-01700 |
GX6#,LX60,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL |
2 | ||
| 96151-02200 |
GX61..TWC |
1 | ||
| 44337 - UNION, POWER STEERING SUCTION PORT | ||||
| 44337-22030 |
GX61..TWC |
1 | ||
| 44337A - RING, O(FOR POWER STEERING SUCTION PORT) | ||||
| 96711-19013 |
GX61,LX6#..DSL,TDE,TWC |
1 | ||
| 44338 - UNION, PRESSURE PORT | ||||
| 44308-22020 |
GX6#,MX61 |
1 | ||
| 44308-14040 |
GX61..TWC |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-22001 |
GX6#,MX61,RX60,SX60..AVT,SGT,STD,SXL,XG,XL 外径=25.5,内径=22.5,ID=22.5,OD=25.5 |
1 | ||
| 44338A - RING, O(FOR PRESSURE PORT UNION) | ||||
| 90301-22001 |
GX6#,MX61,RX60,SX60..AVT,SGT,STD,SXL,XG,XL 外径=25.5,内径=22.5,ID=22.5,OD=25.5 |
1 | ||
| 44338B - SEAT, UNION(FOR PRESSURE PORT UNION) | ||||
| 90410-06030 |
GX6#,RX60 |
1 | ||
| 44341 - PLATE, VANE PUMP SIDE, FRONT | ||||
| 44341-12020 |
GX61..TWC |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-56002 |
GX61..TWC OUTER |
1 | ||
| 90301-21001 |
GX61..TWC INNER |
1 | ||
| 44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE) | ||||
| 90301-56002 |
GX61..TWC OUTER |
1 | ||
| 90301-21001 |
GX61..TWC INNER |
1 | ||
| 44342 - PLATE, VANE PUMP SIDE, REAR | ||||
| 44342-12010 |
GX61..TWC |
1 | ||
| 44341-12010 |
GX6#,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL |
1 | ||
| 44342-22010 |
GX61..TWC |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-53002 |
GX6#,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL |
1 | ||
| 90301-13004 |
GX61..TWC ID=13.4 |
1 | ||
| 90301-37002 |
GX61..TWC ID=37.5 |
1 | ||
| 90301-30004 |
GX61..TWC ID=30 |
1 | ||
| 44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR) | ||||
| 90301-53002 |
GX6#,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL |
1 | ||
| 90301-13004 |
GX61..TWC ID=13.4 |
1 | ||
| 90301-37002 |
GX61..TWC ID=37.5 |
1 | ||
| 90301-30004 |
GX61..TWC ID=30 |
1 | ||
| 44343 - SEAT, FLOW CONTROL SPRING | ||||
| 44343-12030 |
GX61..TWC |
1 | ||
| 44343-12010 |
GX6#,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL |
2 | ||
| 44343A - RING, O(FOR FLOW CONTROL SPRING SEAT) | ||||
| 96710-01014 |
GX6#,LX60,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL |
2 | ||
| 96711-19019 |
GX61..TWC |
1 | ||
| 44348 - PLATE, VANE PUMP | ||||
| 44345-12020 |
GX6#,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL 長さ=14.995,L=14.994-14.996,ROTOR MARK 1 |
10 | ||
| 44345-12010 |
GX6#,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL 長さ=14.997,L=14.996-14.998,ROTOR NO MARK |
10 | ||
| 44345-12030 |
GX6#,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL 長さ=14.993,L=14.992-14.994,ROTOR MARK 2 |
10 | ||
| 44345-12040 |
GX6#,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL 長さ=14.991,L=14.990-14.992,ROTOR MARK 3 |
10 | ||
| 44345-12030 |
GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL 長さ=14.993,L=14.992-14.994,ROTOR MARK 2 |
10 | ||
| 44345-12050 |
GX6#,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL 長さ=14.989,L=14.988-14.990,ROTOR MARK 4 |
10 | ||
| 44345-12050 |
GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL 長さ=14.989,L=14.988-14.990,ROTOR MARK 4 |
10 | ||
| 44345-12010 |
GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL 長さ=14.997,L=14.996-14.998,ROTOR NO MARK |
10 | ||
| 44345-12020 |
GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL 長さ=14.995,L=14.994-14.996,ROTOR MARK 1 |
10 | ||
| 44345-12040 |
GX61,MX61,SX60..AVT,SGT,STD,SXL,XG,XL 長さ=14.991,L=14.990-14.992,ROTOR MARK 3 |
10 | ||
| 44362 - RESERVOIR, OIL(FOR VANE PUMP) | ||||
| 44360-22060 |
GX61..TWC |
1 | ||
| 44362C - CUSHION(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90540-09004 |
GX61,LX6#..DSL,TDE,TWC |
3 | ||
| 44362D - SPACER(FOR VANE PUMP OIL RESERVOIR) | ||||
| 90560-06014 |
GX61,LX6#..DSL,TDE,TWC |
3 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44379-22030 |
GX61..TWC NO.2 |
1 | ||
| 44369-22030 |
GX61..TWC NO.1 |
1 | ||
| 44369 - BRACKET, OIL RESERVOIR, NO.1 | ||||
| 44379-22030 |
GX61..TWC NO.2 |
1 | ||
| 44369-22030 |
GX61..TWC NO.1 |
1 | ||
| 44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION | ||||
| 44391-30020 |
GX61,LX6#,MX61;SX60..STD,XG,XL |
1 | ||
| 44391-30020 |
GX6#,LX60,MX61,RX60,TX60..AVT,SGT,SXL,XG,XL |
1 | ||
| 44429 - HOSE, RESERVOIR TO OIL PUMP | ||||
| 44348-22070 |
GX61..TWC |
1 | ||
| 44429G - CLAMP, RESERVOIR TO OIL PUMP HOSE | ||||
| 90460-26001 |
GX61..TWC |
2 | ||
| 44429G - CLAMP, RESERVOIR TO OIL PUMP HOSE | ||||
| 90460-26001 |
GX61..TWC |
2 | ||
| Common parts | ||||
| 90119-10072 | ||||
| 90179-12022 | ||||
| 90206-30001 | ||||
| 91611-40814 | ||||
| 91651-40614 | ||||
