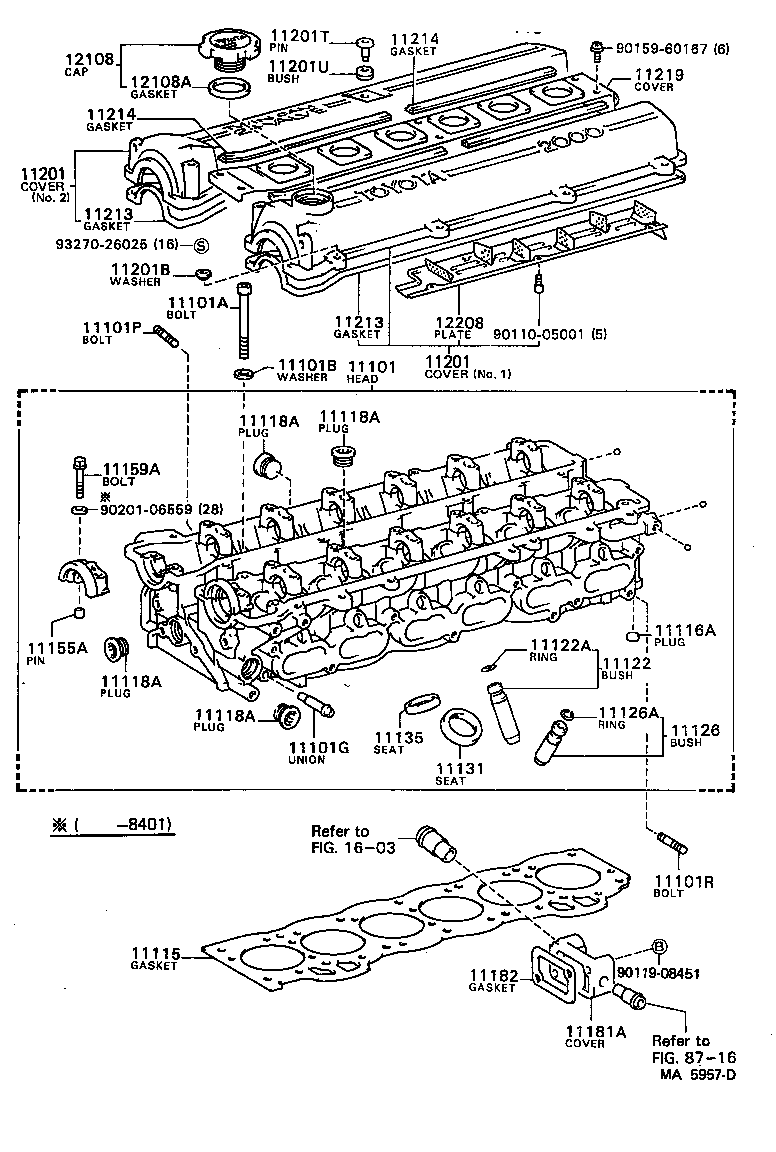

GX61-DEMGF (1982)
Toyota Chaser
(8208- )1GGEU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-88300 |
1GGEU..GX61 |
1 | ||
| 11101-88301 |
1GGEU..GX61 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90110-10003 |
1GGEU..GX61 |
14 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-10050 |
1GGEU..GX61 |
14 | ||
| 90201-10050 |
1G#..GX61 |
14 | ||
| 11101G - UNION(FOR CYLINDER HEAD) | ||||
| 90072-40625 |
1GGEU..GX61 |
1 | ||
| 11101P - BOLT, STUD(FOR DISTRIBUTOR) | ||||
| 90116-08115 |
1GGEU..GX61 |
1 | ||
| 11101R - BOLT, STUD(FOR FUEL PIPE) | ||||
| 92132-60614 |
1GGEU..GX61 |
2 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-88301 |
1GGEU..GX61 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-41800 |
1GGEU..GX61 |
4 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-27001 |
1GGEU..GX61 |
9 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-27001 |
1GGEU..GX61 |
9 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-27001 |
1GGEU..GX61 |
9 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-27001 |
1GGEU..GX61 |
9 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-88310 |
1GGEU..GX61 STD,STD |
12 | ||
| 11123-88310 |
1GGEU..GX61 O/S 0.05,O/S 0.05 |
12 | ||
| 11122A - RING, SHAFT SNAP (FOR VALVE GUIDE BUSH) | ||||
| 90520-10004 |
1GGEU..GX61 |
12 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11122-88310 |
1GGEU..GX61 STD,STD |
12 | ||
| 11123-88310 |
1GGEU..GX61 O/S 0.05,O/S 0.05 |
12 | ||
| 11126A - RING, SHAFT SNAP(FOR VALVE GUIDE BUSH) | ||||
| 90520-10004 |
1GGEU..GX61 |
12 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-70010 |
1GGEU..GX61 O/S 0.03,O/S 0.03 |
12 | ||
| 11131-70010 |
1GGEU..GX61 STD,STD |
12 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11135-70020 |
1GGEU..GX61 STD |
12 | ||
| 11136-70020 |
1GGEU..GX61 O/S 0.03,O/S 0.03 |
12 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-10004 |
1GGEU..GX61 |
4 | ||
| 90253-09002 |
1GGEU..GX61 |
4 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-06034 |
1GGEU..GX61 |
28 | ||
| 90119-07002 |
1GGEU..GX61 |
28 | ||
| 11181A - COVER, CYLINDER HEAD, REAR | ||||
| 11181-88300 |
1GGEU..GX61 |
1 | ||
| 11182 - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-88300 |
1GGEU..GX61 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-79025 |
1GGEU..GX61 NO.1 |
1 | ||
| 11212-79015 |
1GGEU..GX61 NO.2 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-79025 |
1GGEU..GX61 NO.1 |
1 | ||
| 11212-79015 |
1GGEU..GX61 NO.2 |
1 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-07001 |
1GGEU..GX61 |
16 | ||
| 11201T - PIN(FOR CYLINDER HEAD COVER) | ||||
| 90249-08089 |
1GGEU..GX61 |
1 | ||
| 11201U - BUSH(FOR CYLINDER HEAD COVER) | ||||
| 90385-07001 |
1GGEU..GX61 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-88300 |
1GGEU..GX61 |
2 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-88300 |
1GGEU..GX61 |
2 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11229-88300 |
1GGEU..GX61 RR |
2 | ||
| 11214-88300 |
1GGEU..GX61 FR |
2 | ||
| 11214 - GASKET, CYLINDER HEAD COVER, NO.2 | ||||
| 11229-88300 |
1GGEU..GX61 RR |
2 | ||
| 11214-88300 |
1GGEU..GX61 FR |
2 | ||
| 11219 - COVER, CYLINDER HEAD, NO.3 | ||||
| 11219-88300 |
1GGEU..GX61 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-70010 |
1GGEU..GX61 |
1 | ||
| 12180-70010 |
1GGEU..GX61 |
1 | ||
| 12180-70010 |
1G#..GX61 |
1 | ||
| 12180-70010 |
1G#..GX61 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
1G#..GX6# |
1 | ||
| 12208 - PLATE SUB-ASSY, VENTILATION BAFFLE | ||||
| 12208-88300 |
1GGEU..GX61 |
1 | ||
| 12208-88301 |
1GGEU..GX61 |
1 | ||
| Common parts | ||||
| 90110-05001 | ||||
| 90119-08451 | ||||
| 90159-60167 | ||||
| 90201-06559 | ||||
| 93270-26025 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8716 | ||||
