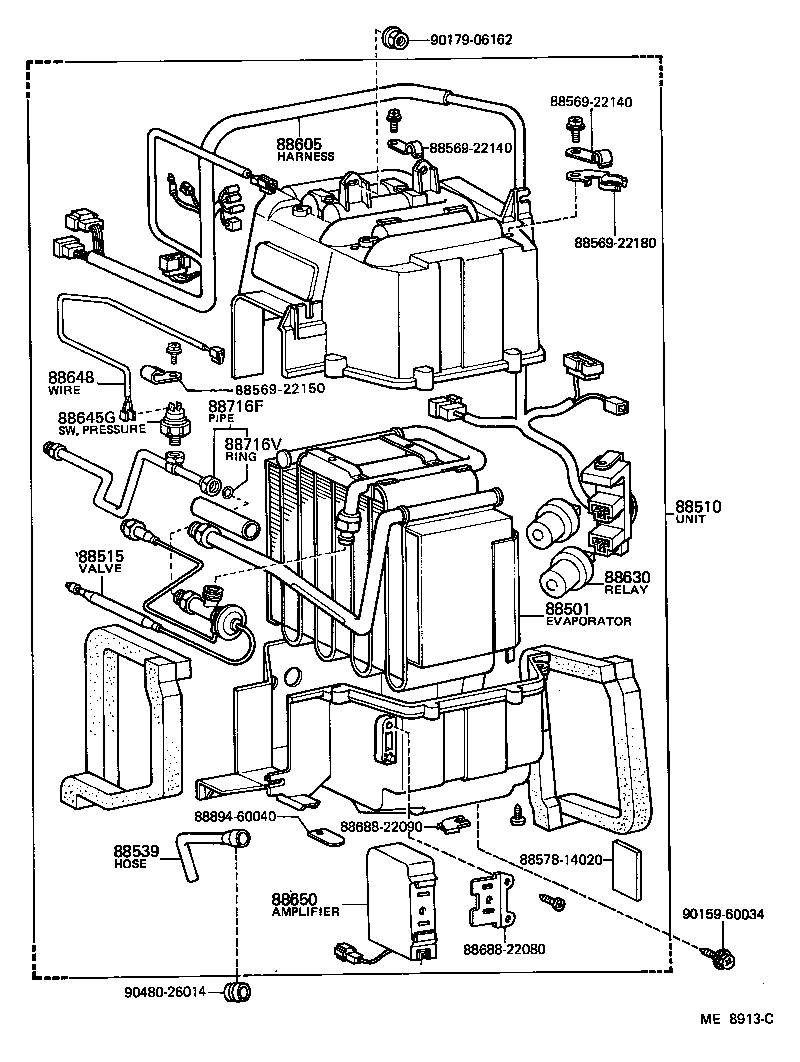

Toyota Chaser GX61 HEATING & AIR CONDITIONING - COOLER UNIT

Part #	Description	Period	Qty
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-22130	GX6#,LX6#,MX61,RX6#,SX60,TX60	09/1980 - 07/1984	1
88510 - UNIT ASSY, COOLER
88510-22171	GX61,MX61..AVT	08/1982 - 07/1984	1
88510-22170	GX61,MX61..AVT	09/1980 - 08/1982	1
88515 - VALVE, COOLER EXPANSION
88515-22070	GX6#,LX6#,MX61,RX6#,SX60,TX60	09/1980 - 07/1984	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-22090	GX61,MX61..AVT	11/1982 - 07/1984	1
88539-22080	GX6#,LX60,MX61,RX6#,SX60,TX60	09/1980 - 11/1982	1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-22210	GX6#,MX61 W/AUTOMATIC AIR CONDITIONER	09/1980 - 08/1982	1
88605-22211	GX61,LX65,MX61	08/1982 - 07/1984	1
88630 - RELAY ASSY, COOLER
90987-03001	GX6#,MX61	09/1980 - 07/1984	2
88645G - SWITCH, PRESSURE
88645-30250	GX6#,LX6#,MX61,RX6#,SX60,TX60 DENSO	09/1980 - 07/1984	1
88645-22020	GX6#,LX6#,MX61,RX6#,SX60,TX60 TOKAIRIKA	09/1980 - 07/1984	1
88648 - WIRING, COOLER, NO.1
88648-22060	GX6#,LX6#,MX61,RX6#,SX60,TX60	09/1980 - 07/1984	1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-22091	GX6#,LX65,MX61 W/AUTOMATIC AIR CONDITIONER	10/1980 - 07/1984	1
88650-22090	GX6# W/AUTOMATIC AIR CONDITIONER	09/1980 - 10/1980	1
88716F - PIPE, COOLER REFRIGERANT LIQUID, F
88716-22320	GX6#,LX60,MX61,RX6#,TX60	09/1980 - 08/1982	1
88716-22321	GX61,LX6#,MX61,SX60	08/1982 - 07/1984	1
88716V - RING, O(FOR COOLER UNIT)
90099-14044	GX6#,LX6#,MX61,RX6#,SX60,TX60	09/1980 - 07/1984	1
Common parts
88569-22140
88569-22150
88569-22180
88578-14020
88688-22080
88688-22090
88894-60040
90159-60034
90179-06162
90480-26014

GX61-DEMGE (1980)
