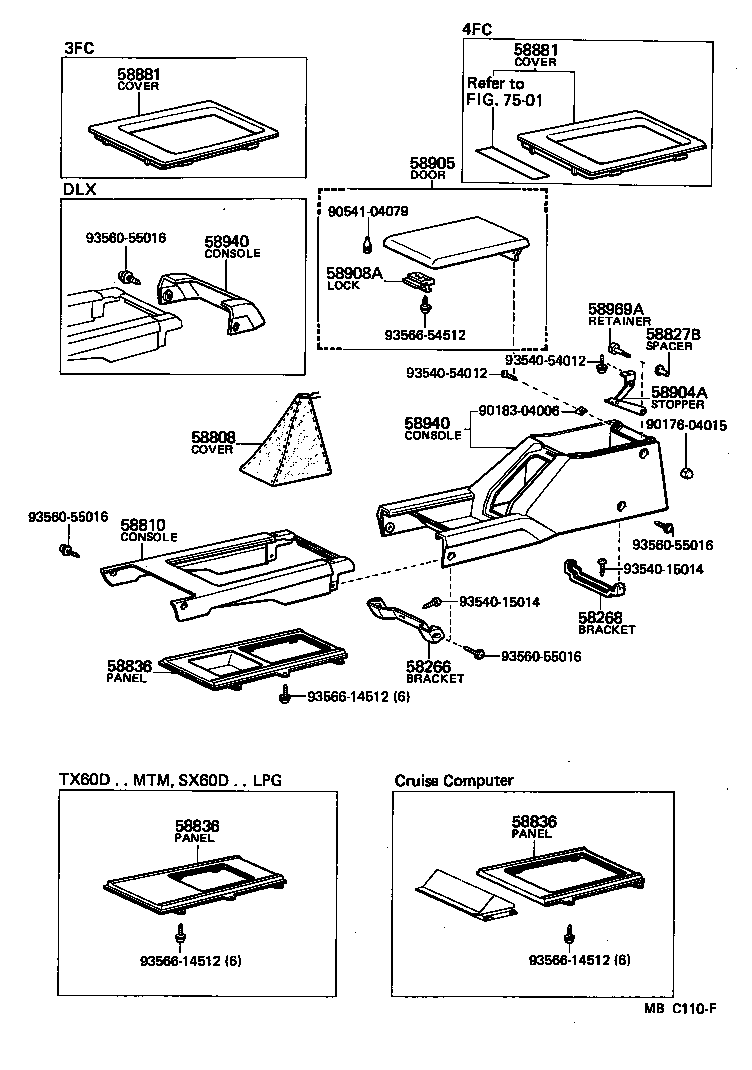

GX61-DEMGE (1980)
Toyota Chaser
(8009-8208) ; (8208- )5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58266 - BRACKET, CONSOLE BOX SUPPORT, FRONT | ||||
| 58996-22010 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 58268 - BRACKET, CONSOLE BOX SUPPORT, REAR | ||||
| 58853-22020 |
GX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL |
1 | ||
| 58853-22020 |
GX61,LX6#,MX61,SX60 |
1 | ||
| 58808 - COVER SUB-ASSY, SHIFTING HOLE | ||||
| 58808-2206001 |
GX6#,LX60,RX6#,TX60..MTM BLACK,BLACK,TRIM2# |
1 | ||
| 58808-2206002 |
GX61,LX60,SX60..5F..(AVT,DLX,SXL,XG,XL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 58808-2206004 |
GX6#,LX60,RX6#,TX60..MTM BLUE,BLUE,TRIM8# |
1 | ||
| 58808-2206014 |
GX61,LX60,SX60..5F BLUE,BLUE,TRIM8# |
1 | ||
| 58808-2206006 |
GX6#,LX60,RX6#,SX60,TX60..MTM..(AVT,DLX,GT,SGT,SXL,XG,XL) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58810 - CONSOLE ASSY | ||||
| 58811-2212001 |
GX6#,LX60,MX61,RX6#,TX60 BLACK,BLACK,TRIM2# |
1 | ||
| 58811-2212006 |
GX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58811-2212014 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 BLUE,BLUE,TRIM8# |
1 | ||
| 58811-2212002 |
GX61,LX6#,MX61,SX60..AVT,DLX,SGT,SXL,XG,XL DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 58811-2212006 |
GX6#,LX60,MX61,RX6#,TX60..SED DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58827B - SPACER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58967-22010 |
GX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL |
1 | ||
| 58967-22010 |
GX61,LX60,SX60..5F..(AVT,SXL,XG,XL) |
1 | ||
| 58836 - PANEL, CONSOLE, UPPER FRONT | ||||
| 58821-22010 |
TX60..3FC;GX6#,LX60,MX61,RX6# |
1 | ||
| 58821-22050 |
GX61,LX65,MX61;LX60,SX60..4FC |
1 | ||
| 58821-22030 |
GX61,MX61..AVT W/CRUISE COMPUTER |
1 | ||
| 58821-22070 |
GX61..AVT W/CRUISE COMPUTER |
1 | ||
| 58821-22070 |
GX61,MX61..AVT W/CRUISE COMPUTER |
1 | ||
| 58836 - PANEL, CONSOLE, UPPER FRONT | ||||
| 58821-22010 |
TX60..3FC;GX6#,LX60,MX61,RX6# |
1 | ||
| 58821-22050 |
GX61,LX65,MX61;LX60,SX60..4FC |
1 | ||
| 58821-22030 |
GX61,MX61..AVT W/CRUISE COMPUTER |
1 | ||
| 58821-22070 |
GX61..AVT W/CRUISE COMPUTER |
1 | ||
| 58821-22070 |
GX61,MX61..AVT W/CRUISE COMPUTER |
1 | ||
| 58836 - PANEL, CONSOLE, UPPER FRONT | ||||
| 58821-22010 |
TX60..3FC;GX6#,LX60,MX61,RX6# |
1 | ||
| 58821-22050 |
GX61,LX65,MX61;LX60,SX60..4FC |
1 | ||
| 58821-22030 |
GX61,MX61..AVT W/CRUISE COMPUTER |
1 | ||
| 58821-22070 |
GX61..AVT W/CRUISE COMPUTER |
1 | ||
| 58821-22070 |
GX61,MX61..AVT W/CRUISE COMPUTER |
1 | ||
| 58904A - STOPPER SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58904-22020 |
GX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL |
1 | ||
| 58904-22020 |
GX61,LX60,SX60..5F..(AVT,SXL,XG,XL) |
1 | ||
| 58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT | ||||
| 58905-2202001 |
GX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL BLACK,BLACK,TRIM2# |
1 | ||
| 58905-2202006 |
GX61,LX60,SX60..5F..(AVT,SXL,XG,XL) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58905-2202014 |
GX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL BLUE,BLUE,TRIM8# |
1 | ||
| 58905-2202006 |
GX6#,LX60,MX61,RX6#,TX60..SED..(AVT,GT,SGT,SXL,XG,XL) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58905-2202002 |
GX61,LX60,SX60..5F..(AVT,SXL,XG,XL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 58905-2202014 |
GX61,LX60,SX60..5F..(AVT,SXL,XG,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR | ||||
| 58908-22010 |
GX61,LX60,SX60..5F..(AVT,SXL,XG,XL) |
1 | ||
| 58908-22010 |
GX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL |
1 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58901-2202001 |
GX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL BLACK,BLACK,TRIM2# |
1 | ||
| 58901-2207014 |
GX61,LX60,SX60..5F..(AVT,SXL,XG,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 58901-2202004 |
GX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL BLUE,BLUE,TRIM8# |
1 | ||
| 58901-2207002 |
GX61,LX60,SX60..5F..(AVT,SXL,XG,XL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 58901-2202006 |
GX6#,LX60,MX61,RX6#,TX60..SED..(AVT,GT,SGT,SXL,XG,XL) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58901-2207006 |
GX61,LX60,SX60..5F..(AVT,SXL,XG,XL) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58940 - CONSOLE ASSY, REAR | ||||
| 58901-2202001 |
GX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL BLACK,BLACK,TRIM2# |
1 | ||
| 58901-2207014 |
GX61,LX60,SX60..5F..(AVT,SXL,XG,XL) BLUE,BLUE,TRIM8# |
1 | ||
| 58901-2202004 |
GX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL BLUE,BLUE,TRIM8# |
1 | ||
| 58901-2207002 |
GX61,LX60,SX60..5F..(AVT,SXL,XG,XL) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 58901-2202006 |
GX6#,LX60,MX61,RX6#,TX60..SED..(AVT,GT,SGT,SXL,XG,XL) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58901-2207006 |
GX61,LX60,SX60..5F..(AVT,SXL,XG,XL) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 58969A - RETAINER, CONSOLE COMPARTMENT DOOR STOPPER | ||||
| 58969-20010 |
GX61,LX60,SX60..5F..(AVT,SXL,XG,XL) |
1 | ||
| 58969-20010 |
GX6#,LX60,MX61,RX6#,TX60..AVT,GT,SGT,SXL,XG,XL |
1 | ||
| Common parts | ||||
| 90176-04015 | ||||
| 90183-04006 | ||||
| 90541-04079 | ||||
| 93540-15014 | ||||
| 93540-54012 | ||||
| 93560-55016 | ||||
| 93566-14512 | ||||
| 93566-54512 | ||||
| Linked diagrams | ||||
| 7501 | ||||
