GX61-DEMGE (1980)
Toyota Chaser

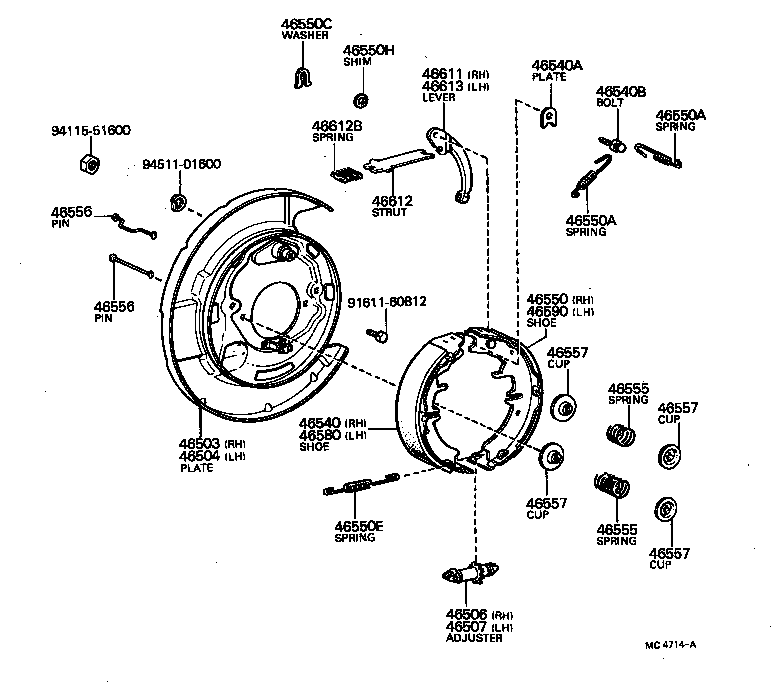

(8009-8208)GX61,MX61,RX63 ; (8208- )AVT,SGT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-22010 |
GX61,MX61,RX63 |
1 | ||
| 46503-22010 |
GX61,MX61..(AVT,SGT)..(EFI,TBO) |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-22010 |
GX61,MX61,RX63 |
1 | ||
| 46504-22010 |
GX61,MX61..(AVT,SGT)..(EFI,TBO) |
1 | ||
| 46506 - ADJUSTER SUB-ASSY, PARKING BRAKE SHOE, RH OR CENTER | ||||
| 47405-30040 |
GX61,MX61..AVT,SGT |
1 | ||
| 47405-30040 |
GX61,MX61,RX63 |
1 | ||
| 46507 - ADJUSTER SUB-ASSY, PARKING BRAKE SHOE, LH | ||||
| 47406-30040 |
GX61,MX61..AVT,SGT |
1 | ||
| 47406-30040 |
GX61,MX61,RX63 |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-22011 |
GX61,MX61..(AVT,SGT)..(EFI,TBO) |
1 | ||
| 46540-22011 |
GX61,MX61,RX63 |
1 | ||
| 46540A - PLATE, PARKING BRAKE SHOE GUIDE | ||||
| 47456-22010 |
GX61,MX61,RX63 |
2 | ||
| 47456-22010 |
GX61,MX61..AVT,SGT |
2 | ||
| 46540B - BOLT, PARKING BRAKE SHOE GUIDE PLATE SET | ||||
| 47459-30010 |
GX61,MX61..AVT,SGT |
2 | ||
| 47459-30010 |
GX61,MX61,RX63 |
2 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-22011 |
GX61,MX61,RX63 |
1 | ||
| 46550-22011 |
GX61,MX61..(AVT,SGT)..(EFI,TBO) |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-16005 |
GX61,MX61..AVT,SGT FR |
2 | ||
| 90506-16007 |
GX61,MX61,RX63 RR |
2 | ||
| 90506-16007 |
GX61,MX61..AVT,SGT RR |
2 | ||
| 90506-16005 |
GX61,MX61,RX63 FR |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-16005 |
GX61,MX61..AVT,SGT FR |
2 | ||
| 90506-16007 |
GX61,MX61,RX63 RR |
2 | ||
| 90506-16007 |
GX61,MX61..AVT,SGT RR |
2 | ||
| 90506-16005 |
GX61,MX61,RX63 FR |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07018 |
GX61,MX61,RX63 |
2 | ||
| 90213-07018 |
GX61,MX61..AVT,SGT |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12010 |
GX61,MX61..AVT,SGT |
2 | ||
| 90506-12010 |
GX61,MX61,RX63 |
2 | ||
| 46550H - SHIM(FOR PARKING BRAKE SHOE) | ||||
| 90564-09184 |
GX61,MX61,RX63 厚さ=0.3,T=0.3 |
2 | ||
| 90564-09184 |
GX61,MX61..AVT,SGT 厚さ=0.3,T=0.3 |
2 | ||
| 90564-09186 |
GX61,MX61..AVT,SGT 厚さ=0.9,T=0.9 |
2 | ||
| 90564-09185 |
GX61,MX61..AVT,SGT 厚さ=0.6,T=0.6 |
2 | ||
| 90564-09186 |
GX61,MX61,RX63 厚さ=0.9,T=0.9 |
2 | ||
| 90564-09185 |
GX61,MX61,RX63 厚さ=0.6,T=0.6 |
2 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 90501-14049 |
GX61,MX61,RX63 FR |
2 | ||
| 90501-14049 |
GX61,MX61..AVT,SGT FR |
2 | ||
| 90501-16053 |
GX61,MX61..AVT,SGT RR |
2 | ||
| 90501-16053 |
GX61,MX61,RX63 RR |
2 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 90501-14049 |
GX61,MX61,RX63 FR |
2 | ||
| 90501-14049 |
GX61,MX61..AVT,SGT FR |
2 | ||
| 90501-16053 |
GX61,MX61..AVT,SGT RR |
2 | ||
| 90501-16053 |
GX61,MX61,RX63 RR |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 47447-20030 |
GX61,MX61,RX63 FR |
2 | ||
| 47447-22020 |
GX61,MX61,RX63 RR |
2 | ||
| 47447-20030 |
GX61,MX61..AVT,SGT FR |
2 | ||
| 47447-22020 |
GX61,MX61..AVT,SGT RR |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 47447-20030 |
GX61,MX61,RX63 FR |
2 | ||
| 47447-22020 |
GX61,MX61,RX63 RR |
2 | ||
| 47447-20030 |
GX61,MX61..AVT,SGT FR |
2 | ||
| 47447-22020 |
GX61,MX61..AVT,SGT RR |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-30030 |
GX61,MX61,RX63 OUTER |
4 | ||
| 47449-30030 |
GX61,MX61..AVT,SGT OUTER |
4 | ||
| 47449-22010 |
GX61,MX61..AVT,SGT INNER |
4 | ||
| 47449-22010 |
GX61,MX61,RX63 INNER |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-30030 |
GX61,MX61,RX63 OUTER |
4 | ||
| 47449-30030 |
GX61,MX61..AVT,SGT OUTER |
4 | ||
| 47449-22010 |
GX61,MX61..AVT,SGT INNER |
4 | ||
| 47449-22010 |
GX61,MX61,RX63 INNER |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-30030 |
GX61,MX61,RX63 OUTER |
4 | ||
| 47449-30030 |
GX61,MX61..AVT,SGT OUTER |
4 | ||
| 47449-22010 |
GX61,MX61..AVT,SGT INNER |
4 | ||
| 47449-22010 |
GX61,MX61,RX63 INNER |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-30030 |
GX61,MX61,RX63 OUTER |
4 | ||
| 47449-30030 |
GX61,MX61..AVT,SGT OUTER |
4 | ||
| 47449-22010 |
GX61,MX61..AVT,SGT INNER |
4 | ||
| 47449-22010 |
GX61,MX61,RX63 INNER |
4 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-22011 |
GX61,MX61..(AVT,SGT)..(EFI,TBO) |
1 | ||
| 46540-22011 |
GX61,MX61,RX63 |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-22011 |
GX61,MX61,RX63 |
1 | ||
| 46590-22011 |
GX61,MX61..(AVT,SGT)..(EFI,TBO) |
1 | ||
| 46611 - LEVER, PARKING BRAKE SHOE, RH OR CENTER | ||||
| 47611-22030 |
GX61,MX61,RX63 |
1 | ||
| 47611-22030 |
GX61,MX61..AVT,SGT |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| 47613-22020 |
GX61,MX61,RX63 |
2 | ||
| 47613-22020 |
GX61,MX61..AVT,SGT |
2 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
GX61,MX61..AVT,SGT |
2 | ||
| 90504-14002 |
GX61,MX61,RX63 |
2 | ||
| 46613 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-22030 |
GX61,MX61..AVT,SGT |
1 | ||
| 47612-22030 |
GX61,MX61,RX63 |
1 | ||
| Common parts | ||||
| 91611-60812 | ||||
| 94115-51600 | ||||
| 94511-01600 | ||||

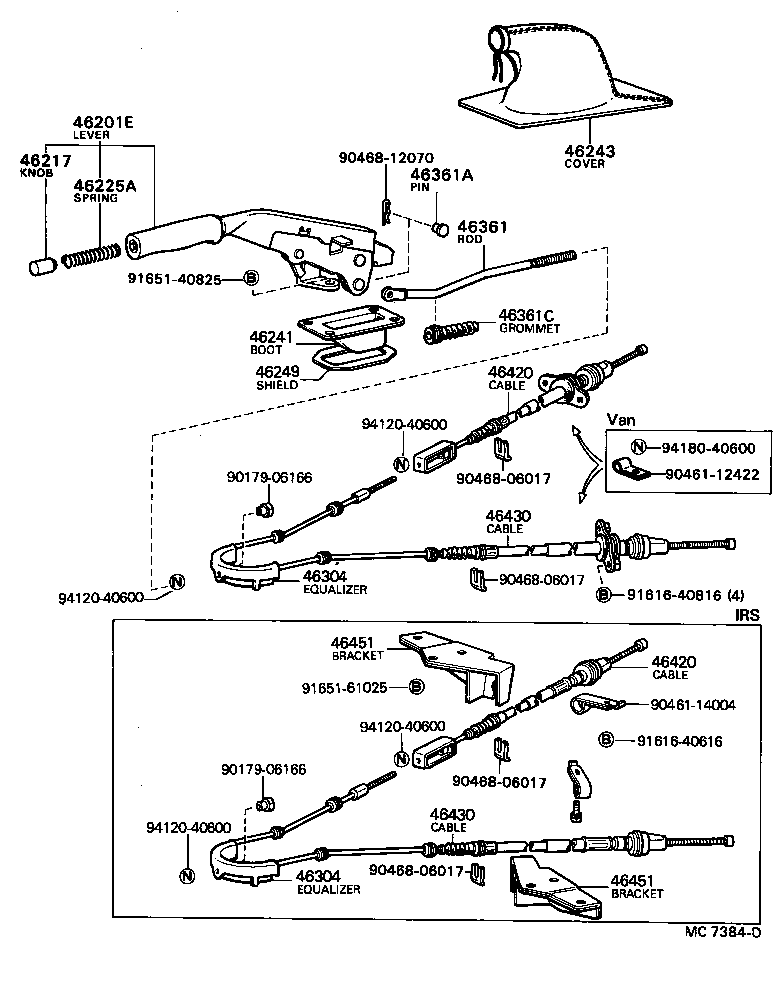

(8009-8208) ; (8208- )5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-22090 |
GX61 |
1 | ||
| 46201-22091 |
GX61,MX61 |
1 | ||
| 46201-2212002 |
GX61,SX60..5F..(AVT,SXL,XG) DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 46201-2212014 |
GX61,SX60..5F..(AVT,SXL,XG) BLUE,BLUE,TRIM8# |
1 | ||
| 46201-2212006 |
GX61,SX60..5F..(AVT,SXL,XG) DARK BROWN,BROWN,TRIM4# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-1002016 |
GX61,MX61 BROWN,BROWN,TRIM4# |
1 | ||
| 46217-1002022 |
GX61,LX60,SX60..5F DEEP MAROON,RED/MAROON,TRIM3# |
1 | ||
| 46217-1002006 |
GX61,LX60,SX60..5F DARK BROWN,BROWN,TRIM4# |
1 | ||
| 46217-1002014 |
GX61,LX60,SX60..5F BLUE,BLUE,TRIM8# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10745 |
GX6#,LX60,MX61,RX6#,TX60 |
1 | ||
| 90501-10745 |
GX61,LX60,SX60..5F |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-14021 |
GX61,LX60,SX60..5F |
1 | ||
| 46241-14021 |
GX6#,LX60,MX61,RX6#,TX60 |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-22020 |
GX6#,LX60,MX61,RX6#,TX60 |
1 | ||
| 46249-22020 |
GX61,LX60,SX60..5F |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-22030 |
GX6#,LX60,MX61,RX6#,TX60 |
1 | ||
| 46341-22030 |
GX61,LX60,SX60..5F |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-22030 |
GX6#,LX60,MX61,RX6#,TX60 |
1 | ||
| 46341-22030 |
GX61,LX60,SX60..5F |
1 | ||
| 46361 - ROD, PARKING BRAKE PULL | ||||
| 46361-22050 |
GX6#,LX60,MX61,RX6#,TX60 |
1 | ||
| 46361-22050 |
GX61,LX60,SX60..5F |
1 | ||
| 46361A - PIN, PARKING BRAKE PULL ROD | ||||
| 90240-08037 |
GX61,LX60,SX60..5F |
1 | ||
| 90240-08037 |
GX6#,LX60,MX61,RX6#,TX60 |
1 | ||
| 46361C - GROMMET(FOR PARKING BRAKE PULL ROD) | ||||
| 90480-01429 |
GX6#,LX60,MX61,RX6#,TX60 |
1 | ||
| 90480-01429 |
GX61,LX60,SX60..5F |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-22131 |
GX61,MX61,RX63 |
1 | ||
| 46420-22131 |
GX61,MX61..AVT,SGT |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-22131 |
GX61,MX61,RX63 |
1 | ||
| 46420-22131 |
GX61,MX61..AVT,SGT |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-22110 |
GX61,MX61,RX63 |
1 | ||
| 46430-22110 |
GX61,MX61..AVT,SGT |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-22110 |
GX61,MX61,RX63 |
1 | ||
| 46430-22110 |
GX61,MX61..AVT,SGT |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46403-22010 |
GX61,LX65,MX61,RX63 LH |
1 | ||
| 46401-22010 |
GX61,LX65,MX61,RX63 RH |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46403-22010 |
GX61,LX65,MX61,RX63 LH |
1 | ||
| 46401-22010 |
GX61,LX65,MX61,RX63 RH |
1 | ||
| Common parts | ||||
| 90179-06166 | ||||
| 90461-12422 | ||||
| 90461-14004 | ||||
| 90468-06017 | ||||
| 90468-12070 | ||||
| 91616-40616 | ||||
| 91616-40816 | ||||
| 91651-40825 | ||||
| 91651-61025 | ||||
| 94120-40600 | ||||
| 94180-40600 | ||||
