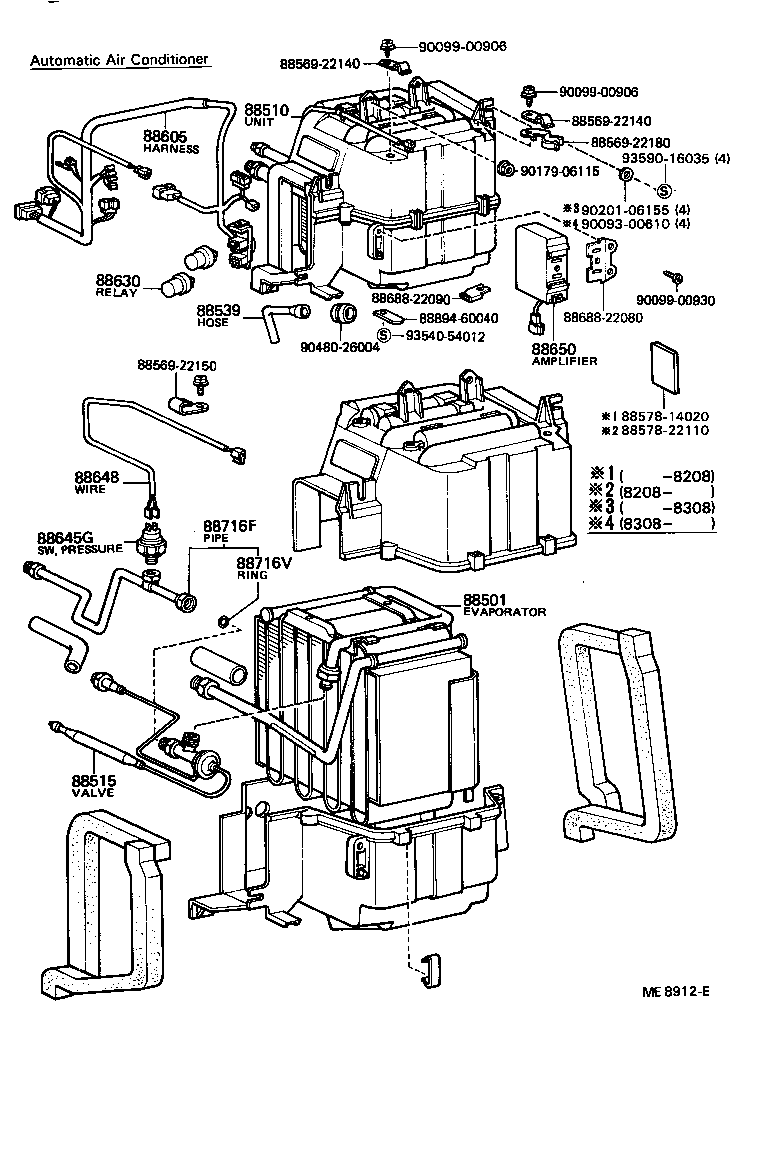

GX60-DTPFE (1980)
Toyota Chaser
(8009- )GX6#,LX60,MX61,RX6#,SX60,TX60..DLX,GT,SGT,STD,SXL,XG,XL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-22130 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-22180 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..DLX,GT,SGT,STD,SXL,XG,XL |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-22070 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-22080 |
GX6#,LX60,MX61,RX6#,SX60,TX60 |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-22210 |
GX6#,MX61 W/AUTOMATIC AIR CONDITIONER |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-30250 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 DENSO |
1 | ||
| 88645-22020 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 TOKAIRIKA |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-22060 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-22090 |
GX6# W/AUTOMATIC AIR CONDITIONER |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-22320 |
GX6#,LX60,MX61,RX6#,TX60 |
1 | ||
| 88716V - RING, O(FOR COOLER UNIT) | ||||
| 90099-14044 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| Common parts | ||||
| 88569-22150 | ||||
| 88569-22190 | ||||
| 90093-00610 | ||||
| 90099-00906 | ||||
| 90099-00930 | ||||
| 90179-06115 | ||||
| 90201-06155 | ||||
| 90480-26004 | ||||
| 93590-16035 | ||||
(8009- )SGT,SXL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-22130 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-22180 |
GX6#,LX6#,MX61,RX6#,SX60,TX60..DLX,GT,SGT,STD,SXL,XG,XL |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-22070 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-22080 |
GX6#,LX60,MX61,RX6#,SX60,TX60 |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-22210 |
GX6#,MX61 W/AUTOMATIC AIR CONDITIONER |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-03001 |
GX6#,MX61 |
2 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-30250 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 DENSO |
1 | ||
| 88645-22020 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 TOKAIRIKA |
1 | ||
| 88648 - WIRING, COOLER, NO.1 | ||||
| 88648-22060 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-22090 |
GX6# W/AUTOMATIC AIR CONDITIONER |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-22320 |
GX6#,LX60,MX61,RX6#,TX60 |
1 | ||
| 88716V - RING, O(FOR COOLER UNIT) | ||||
| 90099-14044 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
1 | ||
| Common parts | ||||
| 88569-22140 | ||||
| 88569-22150 | ||||
| 88569-22180 | ||||
| 88578-14020 | ||||
| 88578-22110 | ||||
| 88688-22080 | ||||
| 88688-22090 | ||||
| 88894-60040 | ||||
| 90093-00610 | ||||
| 90099-00906 | ||||
| 90099-00930 | ||||
| 90179-06115 | ||||
| 90201-06155 | ||||
| 90480-26004 | ||||
| 93540-54012 | ||||
| 93590-16035 | ||||
