GX60-DTPFE (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine 1GEU
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )ATM..CBR,DSL,EFI,TBO,TDE

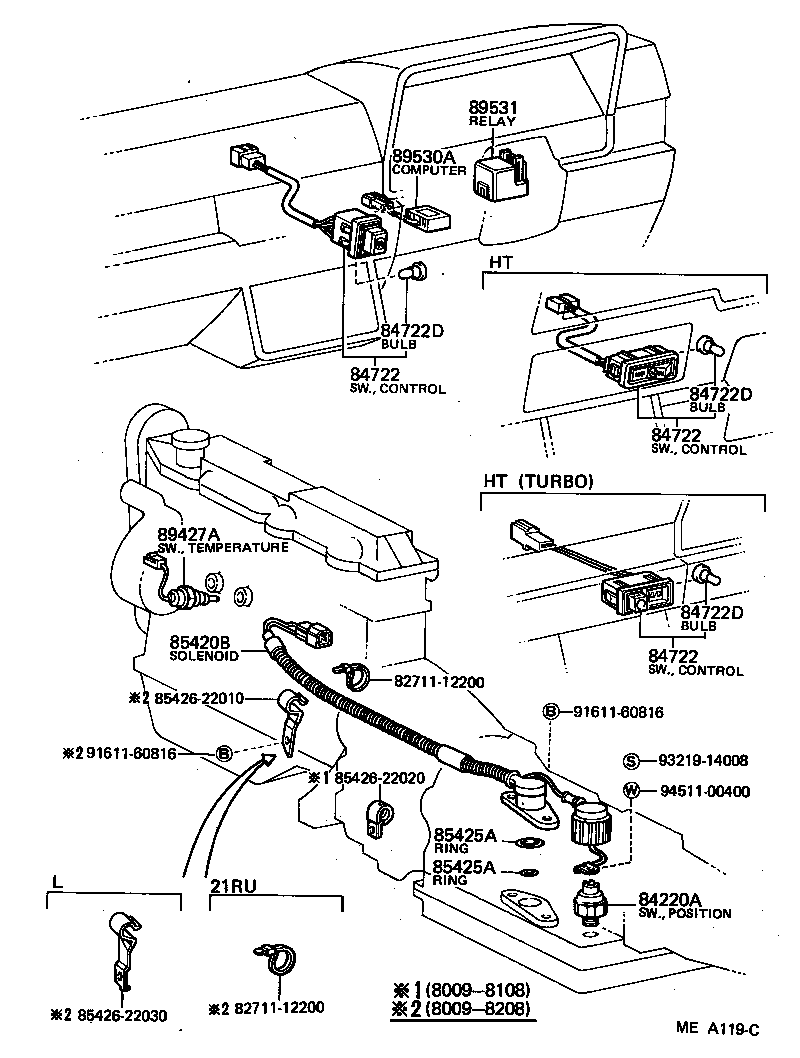

Click highlighted areas on diagram

diagram 8271112200 8271112200 84220A 84722 84722 84722 84722D 84722D 84722D 85420B 85425A 85425A 8542622010 8542622020 8542622030 89427A 89530A 89531 9161160816 9161160816 9321914008 9451100400
Part # Description Qty Price
84220A - SWITCH ASSY, TRANSMISSION POSITION INDICATOR
84220-30050

GX6#,LX6#,MX61,RX60,SX60..4FC..(CBR,DSL,EFI,TBO,TDE)

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-22040

GX6#,RX60,SX60..HT..4FC..(CBR,EFI)

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-22040

GX6#,RX60,SX60..HT..4FC..(CBR,EFI)

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-22040

GX6#,RX60,SX60..HT..4FC..(CBR,EFI)

 1
84722D - BULB, TRANSMISSION CONTROL SWITCH
90981-11024

GX6#,LX6#,MX61,RX60,SX60..4FC..(CBR,DSL,EFI,TBO,TDE)

12V 1.4W,12V 1.4W

 1
84722D - BULB, TRANSMISSION CONTROL SWITCH
90981-11024

GX6#,LX6#,MX61,RX60,SX60..4FC..(CBR,DSL,EFI,TBO,TDE)

12V 1.4W,12V 1.4W

 1
84722D - BULB, TRANSMISSION CONTROL SWITCH
90981-11024

GX6#,LX6#,MX61,RX60,SX60..4FC..(CBR,DSL,EFI,TBO,TDE)

12V 1.4W,12V 1.4W

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-22040

GX6#,LX6#,RX60,SX60..4FC..(CBR,DSL,EFI,TDE)

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
90301-11001

GX6#,LX6#,MX61,RX60,SX60..4FC..(CBR,DSL,EFI,TBO,TDE)

ID=11

 1
90301-23001

GX6#,LX6#,MX61,RX60,SX60..4FC..(CBR,DSL,EFI,TBO,TDE)

ID=23

 1
85425A - RING, O (FOR OVERDRIVE SOLENOID)
90301-11001

GX6#,LX6#,MX61,RX60,SX60..4FC..(CBR,DSL,EFI,TBO,TDE)

ID=11

 1
90301-23001

GX6#,LX6#,MX61,RX60,SX60..4FC..(CBR,DSL,EFI,TBO,TDE)

ID=23

 1
89427A - SWITCH, TEMPERATURE
89428-30050

GX6#,MX61..4FC..(EFI,TBO)

 1
89531 - RELAY, TRANSMISSION CONTROL
89531-22030

GX6#,RX60,SX60..4FC..(CBR,EFI)

 1
Common parts
82711-12200
85426-22010
85426-22020
85426-22030
91611-60816
93219-14008
94511-00400
