GX60-DTPFE (1980)
Toyota Chaser
Production
Sep 1980
-
Aug 1982
Engine
1GEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8009-8208)GX6#,MX61,RX60

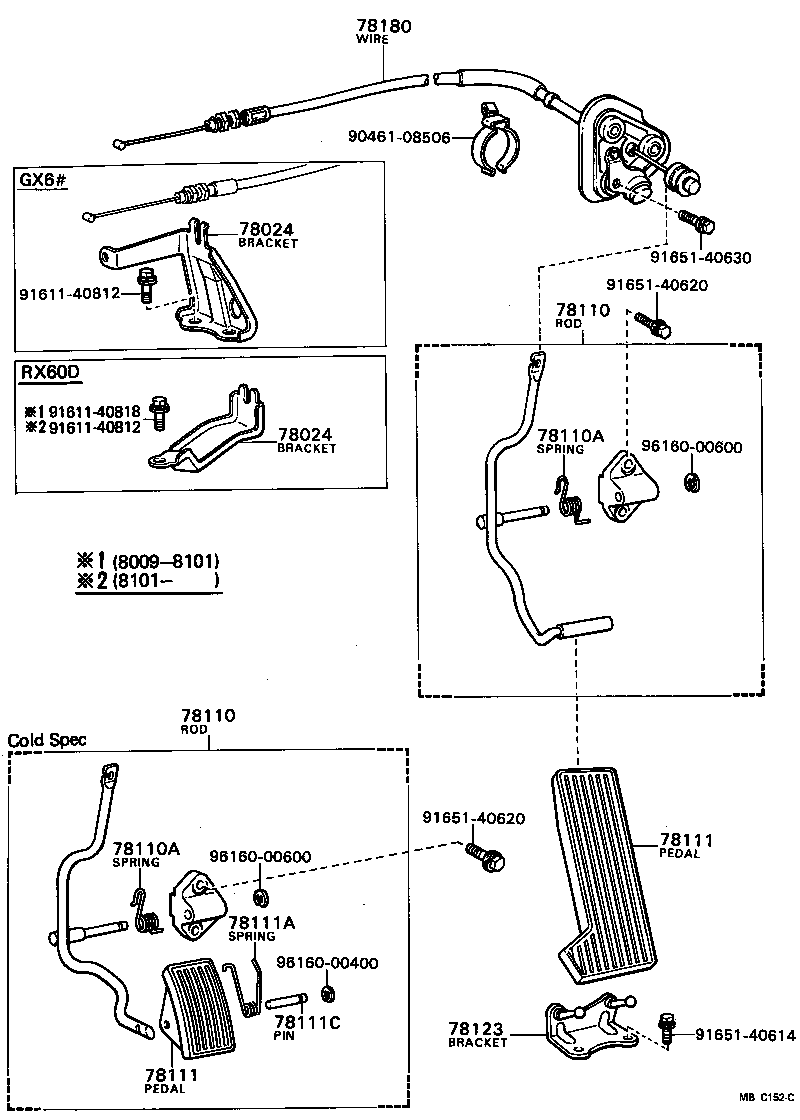

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78184-22070 |
GX6#..EFI |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78184-22070 |
GX6#..EFI |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-22070 |
GX6#,MX61 |
1 | ||
| 78120-22090 |
GX6#,MX61 COLD SPEC |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-22070 |
GX6#,MX61 |
1 | ||
| 78120-22090 |
GX6#,MX61 COLD SPEC |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-23037 |
GX6#,LX60,MX61,RX60 COLD SPEC |
1 | ||
| 90508-18006 |
GX6#,LX60,MX61,RX60 |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-23037 |
GX6#,LX60,MX61,RX60 COLD SPEC |
1 | ||
| 90508-18006 |
GX6#,LX60,MX61,RX60 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-12100 |
GX6#,LX60,MX61,RX6#,TX60 COLD SPEC |
1 | ||
| 78111-30080 |
GX6#,LX60,MX61,RX6#,TX60 |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-12100 |
GX6#,LX60,MX61,RX6#,TX60 COLD SPEC |
1 | ||
| 78111-30080 |
GX6#,LX60,MX61,RX6#,TX60 |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-23003 |
GX6#,LX60,MX61,RX6#,TX60 COLD SPEC |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
GX6#,LX60,MX61,RX6#,SX60,TX60 |
1 | ||
| 78123 - BRACKET, ACCELERATOR PEDAL SUPPORT | ||||
| 78114-22040 |
GX6#,LX60,MX61,RX6#,TX60 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-22280 |
GX6#..EFI |
1 | ||
| Common parts | ||||
| 90461-08506 | ||||
| 91611-40812 | ||||
| 91611-40818 | ||||
| 91651-40614 | ||||
| 91651-40620 | ||||
| 91651-40630 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
