GX60-DTPFE (1980)
Toyota Chaser
Production
Sep 1980
-
Aug 1982
Engine
1GEU
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

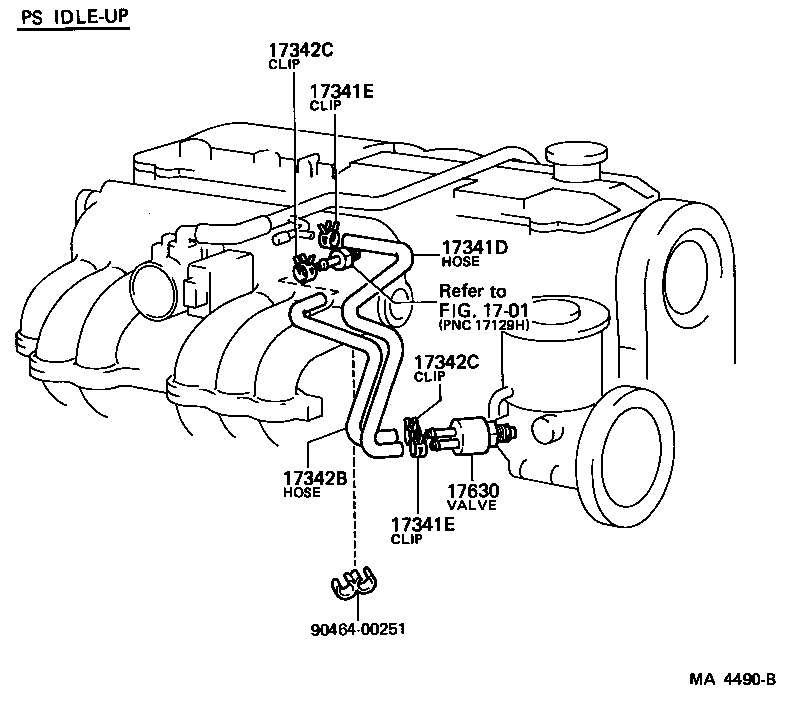

ILLUST NO. 2 OF 2(8009- )1GEU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-70020 |
1GEU..GX6# W/PS |
1 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
1G#..GX6# W/PS |
2 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
1G#..GX6# W/PS |
2 | ||
| 17342B - HOSE, NO.2(FOR IDLE-UP) | ||||
| 17342-70020 |
1GEU..GX6# W/PS |
1 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
1GEU..GX6# W/PS |
2 | ||
| 17342C - CLIP, NO.2(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
1GEU..GX6# W/PS |
2 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-28010 |
1GEU..GX6# W/PS |
1 | ||
| Common parts | ||||
| 90464-00251 | ||||
| Linked diagrams | ||||
| 1701 | ||||

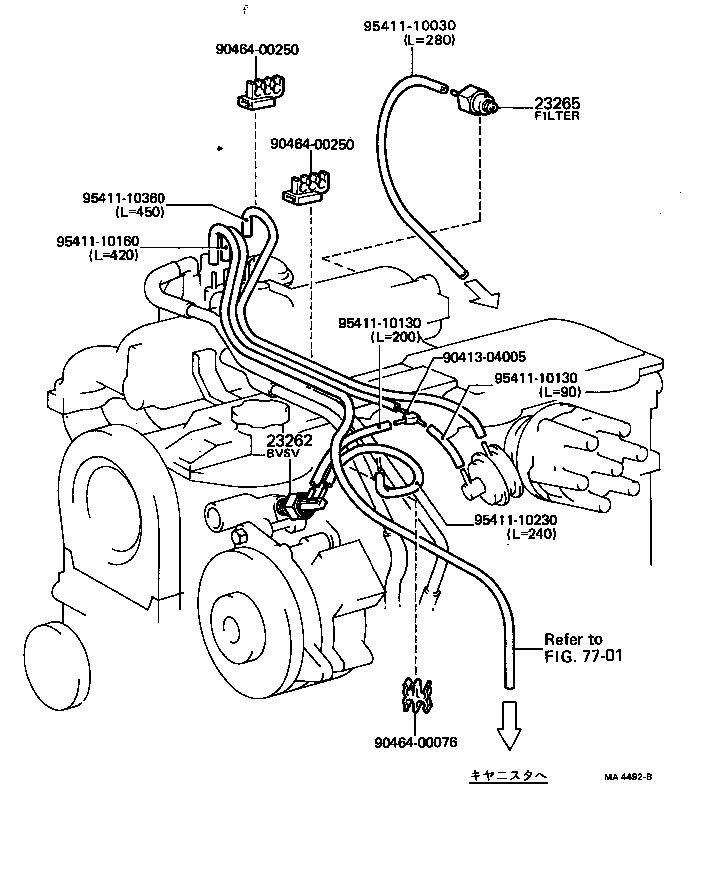

ILLUST NO. 1 OF 2(8009-8208)1GEU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05057 |
1GEU..GX6# |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
1GEU..GX6# |
1 | ||
| Common parts | ||||
| 90413-04005 | ||||
| 90464-00076 | ||||
| 90464-00250 | ||||
| 95411-10030 | ||||
| 95411-10130 | ||||
| 95411-10160 | ||||
| 95411-10230 | ||||
| 95411-10360 | ||||
| Linked diagrams | ||||
| 7701 | ||||
(8009- )1G#
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90414-04002 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90925-01004 | ||||
| 90925-01005 | ||||
| 90925-01006 | ||||
| 90925-01008 | ||||
| 90925-01009 | ||||
| 90925-01011 | ||||
| 90925-01014 | ||||
| 90925-01015 | ||||
| 90925-01018 | ||||
| 90925-01019 | ||||
| 90925-01021 | ||||
| 90925-01027 | ||||
| 90925-01029 | ||||
| 90925-01032 | ||||
| 90925-01035 | ||||
| 90925-01036 | ||||
| 90925-01037 | ||||
| 90925-01038 | ||||
| 90925-01040 | ||||
| 90925-01041 | ||||
| 90925-01042 | ||||
| 90925-01043 | ||||
| 90925-01045 | ||||
| 90925-01046 | ||||
| 90925-01047 | ||||
| 90925-01052 | ||||
| 90925-01053 | ||||
| 90925-01055 | ||||
| 90925-01056 | ||||
| 90925-01058 | ||||
| 90925-01059 | ||||
| 90925-01060 | ||||
(8009- )L,2LTE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90414-04002 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90925-01004 | ||||
| 90925-01005 | ||||
| 90925-01006 | ||||
| 90925-01008 | ||||
| 90925-01009 | ||||
| 90925-01011 | ||||
| 90925-01014 | ||||
| 90925-01015 | ||||
| 90925-01018 | ||||
| 90925-01019 | ||||
| 90925-01021 | ||||
| 90925-01027 | ||||
| 90925-01029 | ||||
| 90925-01032 | ||||
| 90925-01035 | ||||
| 90925-01036 | ||||
| 90925-01037 | ||||
| 90925-01038 | ||||
| 90925-01040 | ||||
| 90925-01041 | ||||
| 90925-01042 | ||||
| 90925-01043 | ||||
| 90925-01045 | ||||
| 90925-01046 | ||||
| 90925-01047 | ||||
| 90925-01052 | ||||
| 90925-01053 | ||||
| 90925-01055 | ||||
| 90925-01056 | ||||
| 90925-01058 | ||||
| 90925-01059 | ||||
| 90925-01060 | ||||
