GX60-DTKFE (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine 1GEU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

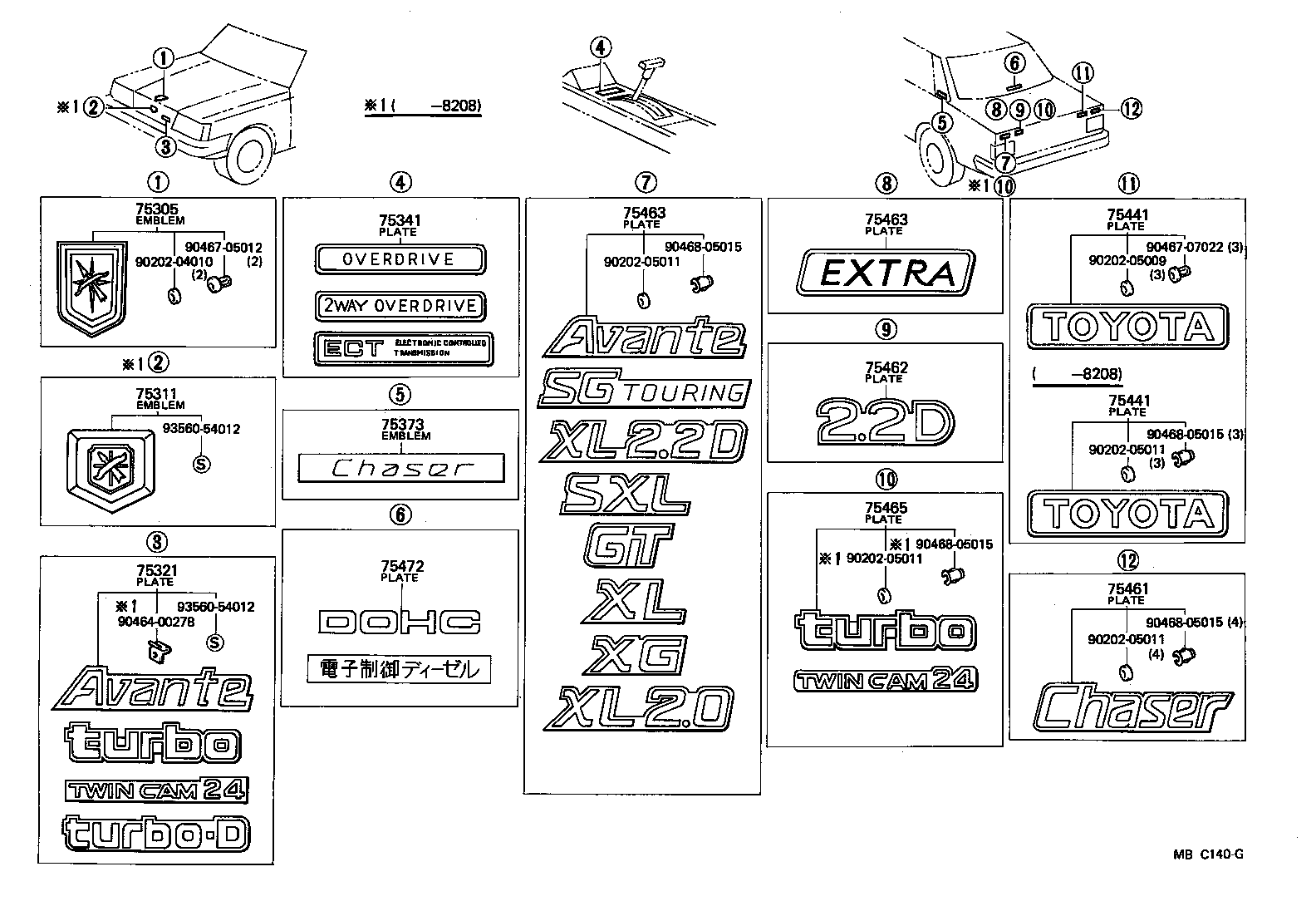

Click highlighted areas on diagram

diagram 75305 75311 75321 75341 75373 75441 75441 75461 75462 75463 75463 75465 75472 9020204010 9020205009 9020205011 9020205011 9020205011 9020205011 9046400278 9046705012 9046707022 9046805015 9046805015 9046805015 9046805015 9356054012 9356054012
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
75301-22150

GX6#,LX60,MX61,RX6#,TX60

 1
75441 - PLATE, REAR NAME, NO.1
75442-22020

GX6#,LX60,MX61,RX6#,TX60

 1
75441 - PLATE, REAR NAME, NO.1
75442-22020

GX6#,LX60,MX61,RX6#,TX60

 1
75461 - PLATE, REAR NAME, NO.2 (MODEL MARK)
75441-22060

GX6#,LX6#,MX61,RX6#,SX60,TX60

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-22290

GX6#,LX65..SXL

SXL

 1
75463 - PLATE, REAR NAME, NO.4 (GRADE MARK)
75443-22290

GX6#,LX65..SXL

SXL

 1
Common parts
90202-04010
90202-05009
90202-05011
90464-00278
90467-05012
90467-07022
90468-05015
93560-54012
