GX60-DTKFE (1980)
Toyota Chaser
Production
Sep 1980
-
Aug 1982
Engine
1GEU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8009- )GX60,LX60,RX60,SX60,TX60
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42185 - GASKET, REAR AXLE HOUSING END | ||||
| 42185-22020 |
GX60,LX60,RX60,TX60 |
2 | ||
| 42185 - GASKET, REAR AXLE HOUSING END | ||||
| 42185-22020 |
GX60,LX60,RX60,TX60 |
2 | ||
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-22130 |
GX60,RX60 |
2 | ||
| 42311 - SHAFT, REAR AXLE | ||||
| 42311-22130 |
GX60,RX60 |
2 | ||
| 42311A - SEAL, OIL (FOR REAR AXLE SHAFT) | ||||
| 90311-52059 |
GX60,LX60,RX60,SX60,TX60 |
2 | ||
| 42311C - BEARING (FOR REAR AXLE SHAFT) | ||||
| 04421-30011 |
GX60,LX60,RX60,SX60,TX60 |
2 | ||
| 42403 - DRUM SUB-ASSY, REAR BRAKE | ||||
| 42431-12060 |
GX60,LX60,RX60,SX60,TX60 |
2 | ||
| 42403A - PIECE, BALANCE (FOR REAR BRAKE DRUM) | ||||
| 90937-01118 |
GX60,LX60,RX60,TX60 20G,20G |
2 | ||
| 90937-01117 |
GX60,LX60,RX60,TX60 10G,10G |
2 | ||
| 90937-01195 |
GX60,LX60,RX60,TX60 40G,40G |
2 | ||
| 90937-01119 |
GX60,LX60,RX60,TX60 30G,30G |
2 | ||
| 90937-01196 |
GX60,LX60,RX60,TX60 50G,50G |
2 | ||
| 90937-01197 |
GX60,LX60,RX60,TX60 60G,60G |
2 | ||
| 42424 - RETAINER, REAR AXLE BEARING, OUTER, RH | ||||
| 42424-21010 |
GX60,LX60,RX60,TX60 |
1 | ||
| 42424 - RETAINER, REAR AXLE BEARING, OUTER, RH | ||||
| 42424-21010 |
GX60,LX60,RX60,TX60 |
1 | ||
| 42425 - GASKET, REAR AXLE BEARING RETAINER | ||||
| 42425-22020 |
GX60,LX60,RX60,TX60 |
2 | ||
| 42425 - GASKET, REAR AXLE BEARING RETAINER | ||||
| 42425-22020 |
GX60,LX60,RX60,TX60 |
2 | ||
| 42454 - RETAINER, REAR AXLE BEARING, OUTER, LH | ||||
| 42454-21010 |
GX60,LX60,RX60,TX60 |
1 | ||
| 42454 - RETAINER, REAR AXLE BEARING, OUTER, LH | ||||
| 42454-21010 |
GX60,LX60,RX60,TX60 |
1 | ||
| 42611E - BOLT, HUB (FOR REAR AXLE) | ||||
| 90942-02035 |
GX6#,LX6#,MX61,RX6#,SX60,TX60 |
8 | ||

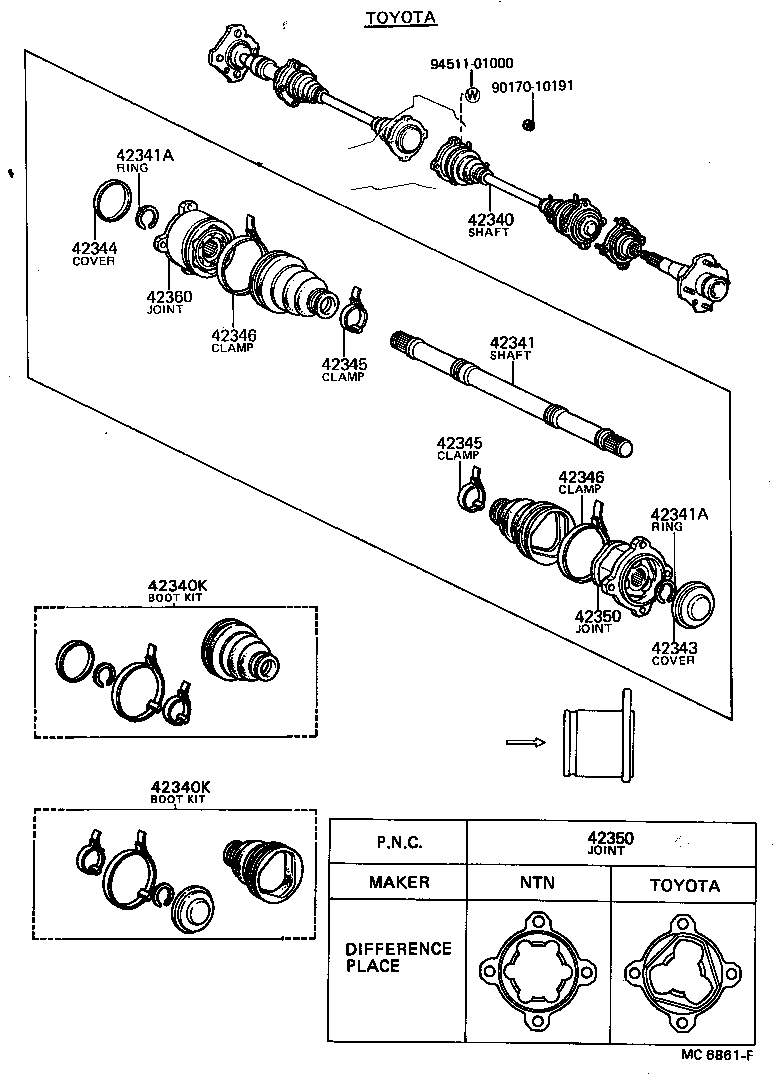

ILLUST NO. 1 OF 2(8009- )GX61,RX63..EFI ; (8009- )GX61,RX63..EFI ; (8301- )4FC..TDE,TWC ; (
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90170-10191 | ||||
| 94511-01000 | ||||
