GX60-DTKFE (1980)
Toyota Chaser
(8009-8208)4F

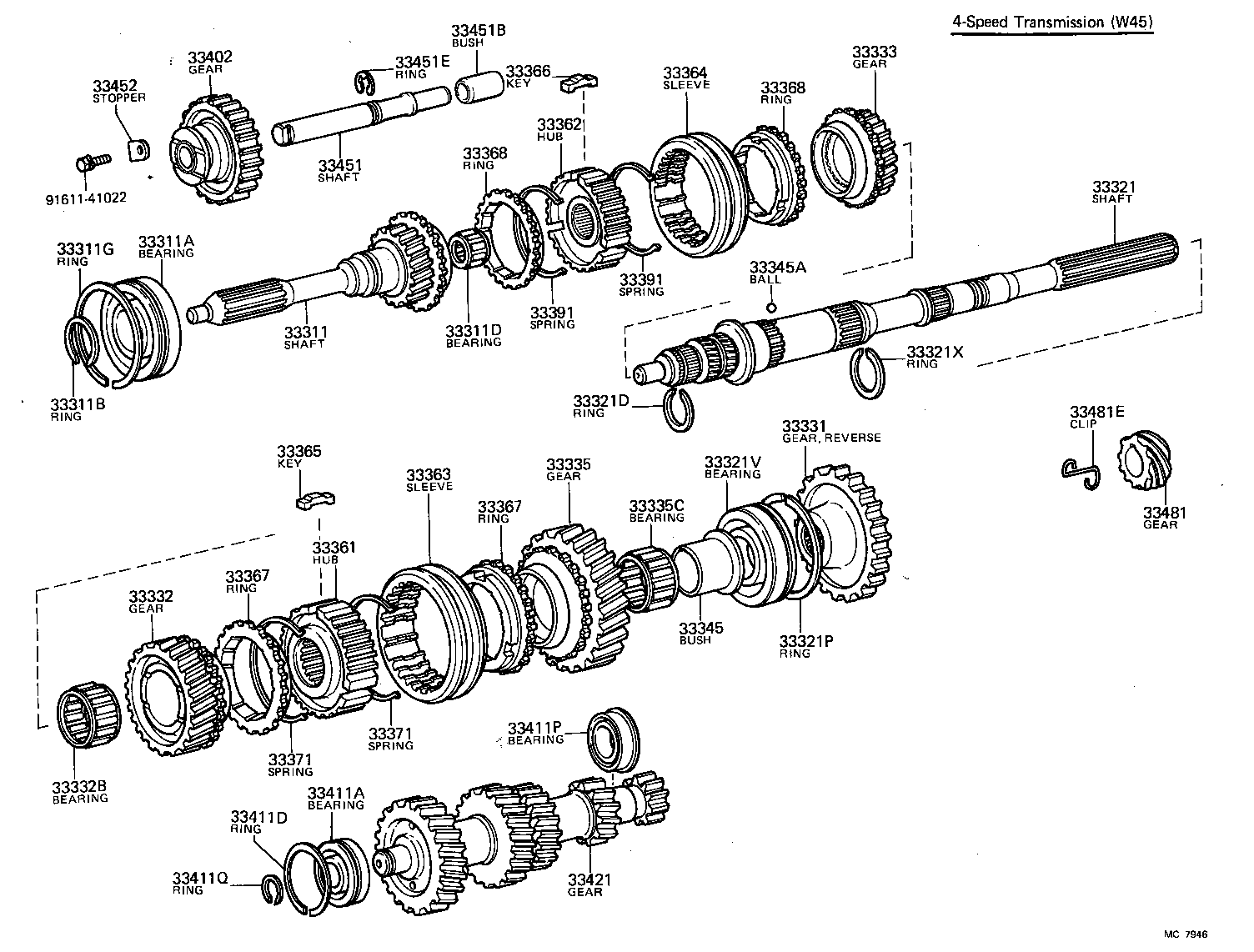

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33301-22020 |
GX6#,LX60,RX6#,TX60..MTM |
1 | ||
| 33301-22020 |
GX6#,RX6#,TX60..MTM |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-35007 |
GX6#,LX60,RX6#,SX60,TX60..MTM |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-33172 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=2.25,ﾏｰｸ 5,T=2.25-2.30 |
1 | ||
| 90520-33171 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=2.20,ﾏｰｸ 4,T=2.20-2.25 |
1 | ||
| 90520-33169 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=2.10,ﾏｰｸ 2,T=2.10-2.15 |
1 | ||
| 90520-33132 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=2.35−2.40,ﾏｰｸ 12,T=2.35-2.40 |
1 | ||
| 90520-33170 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=2.15,ﾏｰｸ 3,T=2.15-2.20 |
1 | ||
| 90520-33107 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=2.30−2.35,ﾏｰｸ 11,T=2.30-2.35 |
1 | ||
| 90520-33168 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=2.05,ﾏｰｸ 1,T=2.05-2.10 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90364-19043 |
GX6#,LX60,RX6#,SX60,TX60..MTM |
1 | ||
| 33311G - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-76001 |
GX6#,LX60,RX6#,SX60,TX60..MTM |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-22050 |
GX6#,LX60,RX6#,SX60,TX60..MTM |
1 | ||
| 33321D - RING, SHAFT SNAP (FOR CLUTCH HUB SET) | ||||
| 90520-28015 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=1.92,ﾏｰｸ 12,T=1.92-1.97 |
1 | ||
| 90520-28017 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=2.04,ﾏｰｸ 14,T=2.04-2.09 |
1 | ||
| 90520-28016 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=1.98,ﾏｰｸ 13,T=1.98-2.03 |
1 | ||
| 90520-28018 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=2.10,ﾏｰｸ 15,T=2.10-2.15 |
1 | ||
| 90520-28014 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=1.86,ﾏｰｸ 11,T=1.86-1.91 |
1 | ||
| 90520-28245 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=1.80−1.85,ﾏｰｸ D,T=1.80-1.85 |
1 | ||
| 33321P - RING, SNAP (FOR OUTPUT SHAFT CENTER BEARING) | ||||
| 90520-76001 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=1.65 |
1 | ||
| 33321V - BEARING (FOR OUTPUT SHAFT CENTER) | ||||
| 90363-35009 |
GX6#,LX60,RX6#,SX60,TX60..MTM |
1 | ||
| 33321X - RING, SHAFT SNAP (FOR OUTPUT SHAFT CENTER BEARING) | ||||
| 90520-33004 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=2.79,ﾏｰｸ 20,T=2.79-2.84 |
1 | ||
| 90520-33107 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=2.30−2.35,ﾏｰｸ 11,T=2.30-2.35 |
1 | ||
| 90520-33002 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=2.67,ﾏｰｸ 18,T=2.67-2.72 |
1 | ||
| 90520-33006 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=2.91,ﾏｰｸ 22,T=2.91-2.96 |
1 | ||
| 90520-33005 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=2.85,ﾏｰｸ 21,T=2.85-2.90 |
1 | ||
| 90520-33007 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=2.97,ﾏｰｸ 23,T=2.97-3.02 |
1 | ||
| 90520-33133 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=2.45,ﾏｰｸ 14,T=2.45-2.50 |
1 | ||
| 90520-33109 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=2.50,ﾏｰｸ 15,T=2.50-2.55 |
1 | ||
| 90520-33003 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=2.73,ﾏｰｸ 19,T=2.73-2.78 |
1 | ||
| 90520-33134 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=2.55,ﾏｰｸ 16,T=2.55-2.60 |
1 | ||
| 90520-33001 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=2.61,ﾏｰｸ 17,T=2.61-2.66 |
1 | ||
| 90520-33132 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=2.35−2.40,ﾏｰｸ 12,T=2.35-2.40 |
1 | ||
| 90520-33172 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=2.25,ﾏｰｸ 5,T=2.25-2.30 |
1 | ||
| 90520-33108 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=2.40,ﾏｰｸ 13,T=2.40-2.45 |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33331-22020 |
GX6#,LX60,RX6#,TX60..MTM |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-22020 |
GX6#,LX60,RX6#,SX60,TX60..MTM |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-43002 |
GX6#,LX60,RX6#,SX60,TX60..MTM |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-22020 |
GX6#,LX60,RX6#,SX60,TX60..MTM |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-22020 |
GX6#,LX60,RX6#,SX60,TX60..MTM |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-43002 |
GX6#,LX60,RX6#,SX60,TX60..MTM |
1 | ||
| 33345 - BUSH, 1ST GEAR | ||||
| 33345-22010 |
GX6#,LX60,RX6#,SX60,TX60..MTM |
1 | ||
| 33345A - BALL (FOR 1ST GEAR BUSH) | ||||
| 90360-06004 |
GX6#,LX60,RX6#,SX60,TX60..MTM |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-22020 |
GX6#,LX60,RX6#,SX60,TX60..MTM |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-22020 |
GX6#,LX60,RX6#,SX60,TX60..MTM |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33363-22020 |
GX6#,LX60,RX6#,SX60,TX60..MTM |
1 | ||
| 33364 - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 33364-22020 |
GX6#,LX60,RX6#,SX60,TX60..MTM |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33366-20011 |
GX6#,LX60,RX6#,SX60,TX60..MTM |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-20011 |
GX6#,LX60,RX6#,SX60,TX60..MTM |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-22020 |
GX6#,LX60,RX6#,SX60,TX60..MTM |
2 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-22020 |
GX6#,LX60,RX6#,SX60,TX60..MTM |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
GX6#,LX60,RX6#,SX60,TX60..MTM |
2 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-20012 |
GX6#,LX60,RX6#,SX60,TX60..MTM |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-22030 |
GX6#,LX60,RX6#,SX60,TX60..MTM |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-22030 |
GX6#,LX60,RX6#,SX60,TX60..MTM |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-14031 |
GX6#,LX60,RX6#,SX60,TX60..MTM |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33371-14031 |
GX6#,LX60,RX6#,SX60,TX60..MTM |
2 | ||
| 33402 - GEAR SUB-ASSY, REVERSE IDLER | ||||
| 33402-22020 |
GX6#,LX60,RX6#,TX60..MTM |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-25009 |
GX6#,LX60,RX6#,TX60..MTM |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-49222 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=1.07,外径=55.6 |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 90365-30011 |
GX6#,LX60,RX6#,TX60..MTM |
1 | ||
| 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 | ||||
| 90520-23089 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=2.10−2.15,T=2.10-2.15 |
1 | ||
| 90520-23090 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=2.20−2.25,T=2.20-2.25 |
1 | ||
| 90520-23145 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=2.30−2.35,T=2.30-2.35 |
1 | ||
| 90520-23143 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=2.15−2.20,T=2.15-2.20 |
1 | ||
| 90520-23144 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=2.25−2.30,T=2.25-2.30 |
1 | ||
| 90520-23146 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=2.35−2.40,T=2.35-2.40 |
1 | ||
| 90520-23115 |
GX6#,LX60,RX6#,SX60,TX60..MTM 厚さ=2.05−2.10,T=2.05-2.10 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-22030 |
GX60,RX60,TX60..4F |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-22021 |
GX6#,LX60,RX6#,SX60..MTM |
1 | ||
| 33451B - BUSH (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90387-17002 |
GX60,RX60,TX60..4F |
1 | ||
| 33451E - RING, E (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90523-17001 |
GX6#,LX60,RX6#,SX60,TX60..MTM |
1 | ||
| 33452 - STOPPER, REVERSE IDLER GEAR SHAFT | ||||
| 33452-22010 |
GX60,RX60,TX60..4F |
1 | ||
| 33481 - GEAR, SPEEDOMETER DRIVE (MTM) | ||||
| 33481-22020 |
GX60,RX60..MTM 歯数=11,N=11 |
1 | ||
| 33481E - CLIP (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 90467-25001 |
GX6#,LX60,RX6#,SX60,TX60..MTM |
1 | ||
| Common parts | ||||
| 91611-41022 | ||||
