GX60-DTKFE (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine 1GEU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009-8208)1GEU

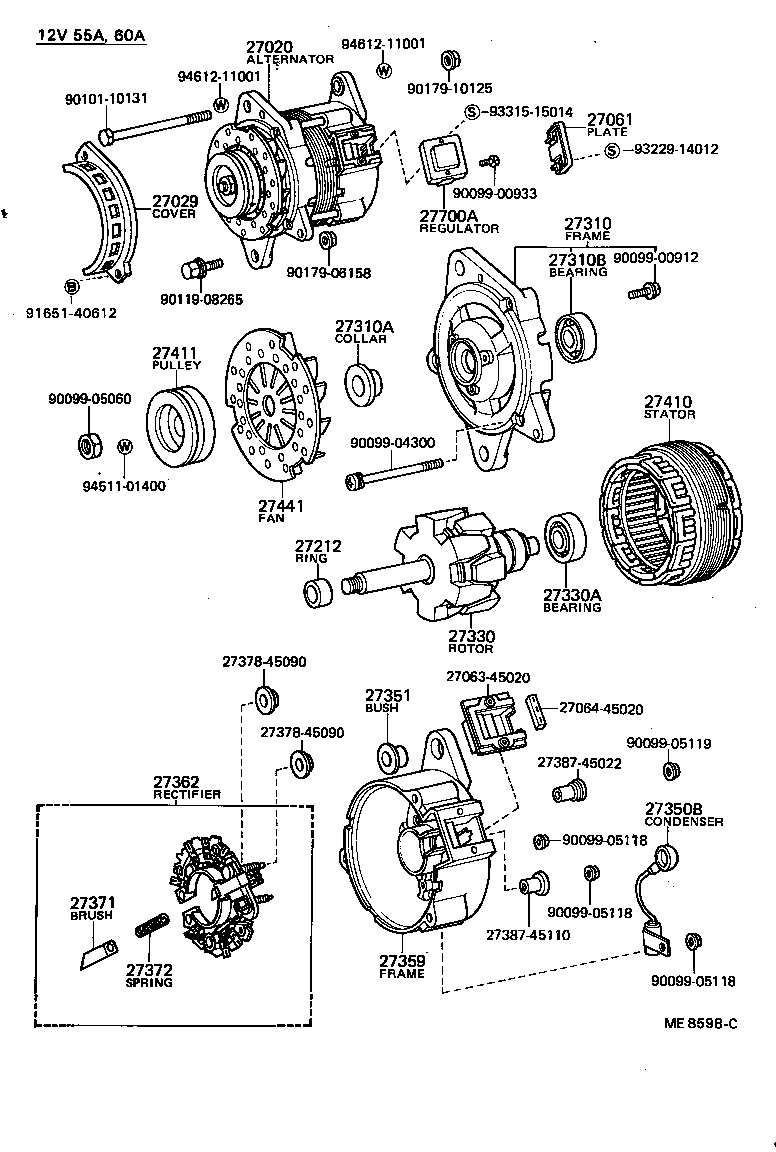

Click highlighted areas on diagram

diagram 27020 27029 27061 2706345020 2706445020 27212 27310 27310A 27310B 27330 27330A 27350B 27351 27359 27362 27371 27372 2737845090 2737845090 2738745022 2738745110 27410 27411 27441 27700A 9009900912 9009900933 9009904300 9009905060 9009905118 9009905118 9009905118 9009905119 9010110131 9011908265 9017906158 9017910125 9165140612 9322914012 9331515014 9451101400 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-70020

1GEU..GX6#

12V 60A

 1
27020-70010

1GEU..GX6#

12V 55A

 1
27029 - COVER, ALTERNATOR
27029-70010

1GEU..GX6#

12V 55A,60A,65A

 1
27061 - PLATE, REGULATOR COVER
27062-45050

1GEU..GX6#

12V 55A,60A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070

21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60

12V 55A,60A,65A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-70010

1GEU..GX6#

12V 55A,60A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60

12V 55A,60A,65A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-45090

1GEU..GX6#

12V 55,60A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10116

21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60

12V 55A,60A,65A

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60

12V 55A,60A,65A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-70010

1GEU..GX6#

12V 55A,60A,65A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-70010

1GEU..GX6#

12V 55A,60A

 1
27362 - RECTIFIER ASSY, W/BRUSH
27362-70011

1GEU..GX6#

12V 55A

 1
27362-70010

1GEU..GX6#

12V 55A

 1
27362-70021

1GEU..GX6#

12V 60A

 1
27362-70020

1GEU..GX6#

12V 60A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60

12V 55A,60A,65A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60

12V 55A,60A,65A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-41080

1GEU..GX6#

12V 55A

 1
27410-45120

18RGEU,1GEU,MTEU..GX6#,MX61,RX63

12V 60A

 1
27411 - PULLEY, ALTERNATOR
27411-45010

1GEU..GX6#

12V 55A,60A,65A

 1
27441 - FAN, ALTERNATOR
27441-45110

18RGEU,1GEU,MTEU..GX6#,MX61,RX63

12V 55A,60A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-41050

1GEU..GX6#

12V 55A,60A

 1
Common parts
27063-45020
27064-45020
27378-45090
27387-45022
27387-45110
90099-00912
90099-00933
90099-04300
90099-05060
90099-05118
90099-05119
90101-10131
90119-08265
90179-06158
90179-10125
91651-40612
93229-14012
93315-15014
94511-01400
94612-11001

(8009- )L

Click highlighted areas on diagram

diagram 27020 27036 27039 27113 27212 27310 27310A 27310B 27310C 27315 27330 27330B 27350 27350B 27351 27352 27353 27356 27370 27371 27372 2737845020 2737845020 2737854010 2737854010 2738354010 2738745090 2738754010 2738754010 2738756070 27410 27411 27441 27700A 9009901437 9009902181 9009902208 9009904915 9009904916 9009905118 9009905118 9009905118 9009905118 9009905118 9009905118 9009905119 9009905135 9010110231 9011908127 9017910015 9020110283 9020110283 9165140612 9331915008 9451201000
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-70020

1GEU..GX6#

12V 60A

 1
27020-70010

1GEU..GX6#

12V 55A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070

21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60

12V 55A,60A,65A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-70010

1GEU..GX6#

12V 55A,60A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60

12V 55A,60A,65A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-45090

1GEU..GX6#

12V 55,60A

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60

12V 55A,60A,65A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-70010

1GEU..GX6#

12V 55A,60A,65A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60

12V 55A,60A,65A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60

12V 55A,60A,65A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-41080

1GEU..GX6#

12V 55A

 1
27410-45120

18RGEU,1GEU,MTEU..GX6#,MX61,RX63

12V 60A

 1
27411 - PULLEY, ALTERNATOR
27411-45010

1GEU..GX6#

12V 55A,60A,65A

 1
27441 - FAN, ALTERNATOR
27441-45110

18RGEU,1GEU,MTEU..GX6#,MX61,RX63

12V 55A,60A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-41050

1GEU..GX6#

12V 55A,60A

 1
Common parts
27378-45020
27378-54010
27383-54010
27387-45090
27387-54010
27387-56070
90099-01437
90099-02181
90099-02208
90099-04915
90099-04916
90099-05118
90099-05119
90099-05135
90101-10231
90119-08127
90179-10015
90201-10283
91651-40612
93319-15008
94512-01000

(8009- )L

Click highlighted areas on diagram

diagram 27020 27113 27212 27310 27310A 27310B 27310C 27315 27330 27330B 27350 27350B 27350C 27351 27353 27356 27370 27371 27372 27373 2737845020 2737845020 2737854010 2738745090 2738754010 2738756070 27388 27410 27411 27441 2744757100 27700A 9009900937 9009900937 9009901437 9009902208 9009904915 9009904916 9009905118 9009905118 9009905118 9009905119 9009905135 9009934013 9009934013 9010110231 9011908127 9017906158 9017910015 9020110283 9020110283 9331515010 9331915008 9451201000
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27020-70020

1GEU..GX6#

12V 60A

 1
27020-70010

1GEU..GX6#

12V 55A

 1
27212 - RING, SPACE(FOR ALTERNATOR ROTOR)
27412-45070

21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60

12V 55A,60A,65A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-70010

1GEU..GX6#

12V 55A,60A

 1
27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)
27412-31040

21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60

12V 55A,60A,65A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-45090

1GEU..GX6#

12V 55,60A

 1
27350B - CONDENSER, ALTERNATOR
90099-52065

21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60

12V 55A,60A,65A

 1
27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME)
27351-70010

1GEU..GX6#

12V 55A,60A,65A

 1
27371 - BRUSH, ALTERNATOR
27371-31011

21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60

12V 55A,60A,65A

 2
27372 - SPRING, ALTERNATOR BRUSH
27372-31011

21RU,13TU,18RGEU,1GEU,1SU,MTEU..GX6#,MX61,RX6#,SX60,TX60

12V 55A,60A,65A

 2
27410 - STATOR ASSY, ALTERNATOR
27410-41080

1GEU..GX6#

12V 55A

 1
27410-45120

18RGEU,1GEU,MTEU..GX6#,MX61,RX63

12V 60A

 1
27411 - PULLEY, ALTERNATOR
27411-45010

1GEU..GX6#

12V 55A,60A,65A

 1
27441 - FAN, ALTERNATOR
27441-45110

18RGEU,1GEU,MTEU..GX6#,MX61,RX63

12V 55A,60A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-41050

1GEU..GX6#

12V 55A,60A

 1
Common parts
27378-45020
27378-54010
27387-45090
27387-54010
27387-56070
27447-57100
90099-00937
90099-01437
90099-02208
90099-04915
90099-04916
90099-05118
90099-05119
90099-05135
90099-34013
90101-10231
90119-08127
90179-06158
90179-10015
90201-10283
93315-15010
93319-15008
94512-01000
