GX60-DEMFE (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine 1GEU
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )

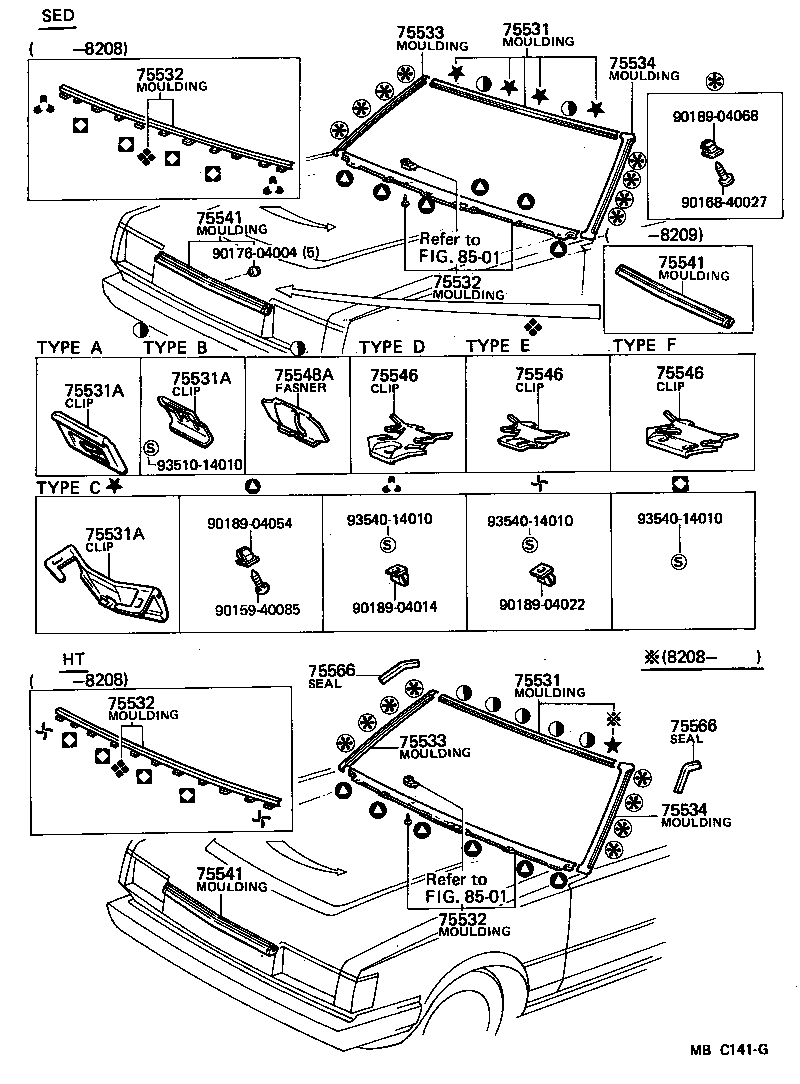

Click highlighted areas on diagram

diagram 75531 75531 75531A 75531A 75531A 75532 75532 75532 75532 75533 75533 75534 75534 75541 75541 75541 75546 75546 75546 75548A 75566 75566 8501 8501 9015940085 9016840027 9017604004 9018904014 9018904022 9018904054 9018904068 9351014010 9354014010 9354014010 9354014010
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-22070

GX6#,LX6#,MX61,RX6#,SX60,TX60..SED

 1
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-22070

GX6#,LX6#,MX61,RX6#,SX60,TX60..SED

 1
75531A - CLIP, WINDSHIELD MOULDING SET, NO.1
75545-30021

GX6#,LX60,MX61,RX6#,TX60

TYPE A

 2
75545-30040

GX6#,LX6#,MX61,RX6#,SX60,TX60

TYPE B

 2
75545-22020

GX6#,LX60,MX61,RX6#,TX60..SED

TYPE C

 4
75531A - CLIP, WINDSHIELD MOULDING SET, NO.1
75545-30021

GX6#,LX60,MX61,RX6#,TX60

TYPE A

 2
75545-30040

GX6#,LX6#,MX61,RX6#,SX60,TX60

TYPE B

 2
75545-22020

GX6#,LX60,MX61,RX6#,TX60..SED

TYPE C

 4
75531A - CLIP, WINDSHIELD MOULDING SET, NO.1
75545-30021

GX6#,LX60,MX61,RX6#,TX60

TYPE A

 2
75545-30040

GX6#,LX6#,MX61,RX6#,SX60,TX60

TYPE B

 2
75545-22020

GX6#,LX60,MX61,RX6#,TX60..SED

TYPE C

 4
75532 - MOULDING, WINDSHIELD, LOWER
75504-22020

GX6#,LX60,MX61,RX6#,TX60

 1
75532 - MOULDING, WINDSHIELD, LOWER
75504-22020

GX6#,LX60,MX61,RX6#,TX60

 1
75532 - MOULDING, WINDSHIELD, LOWER
75504-22020

GX6#,LX60,MX61,RX6#,TX60

 1
75532 - MOULDING, WINDSHIELD, LOWER
75504-22020

GX6#,LX60,MX61,RX6#,TX60

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-22090

GX6#,LX60,MX61,RX6#,TX60..SED

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-22090

GX6#,LX60,MX61,RX6#,TX60..SED

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-22080

GX6#,LX60,MX61,RX6#,TX60..SED

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-22080

GX6#,LX60,MX61,RX6#,TX60..SED

 1
75541 - MOULDING, HOOD, FRONT
75771-22060

GX6#,LX60,MX61,RX6#,TX60

 1
75541 - MOULDING, HOOD, FRONT
75771-22060

GX6#,LX60,MX61,RX6#,TX60

 1
75541 - MOULDING, HOOD, FRONT
75771-22060

GX6#,LX60,MX61,RX6#,TX60

 1
75546 - CLIP, WINDSHIELD OUTSIDE MOULDING
75547-22020

GX6#,LX60,MX61,RX6#,TX60

TYPE E

 5
75546-22030

GX6#,LX60,MX61,RX6#,TX60

TYPE D

 4
75961-22020

GX6#,LX60,MX61,RX6#,TX60

TYPE F

 2
75546 - CLIP, WINDSHIELD OUTSIDE MOULDING
75547-22020

GX6#,LX60,MX61,RX6#,TX60

TYPE E

 5
75546-22030

GX6#,LX60,MX61,RX6#,TX60

TYPE D

 4
75961-22020

GX6#,LX60,MX61,RX6#,TX60

TYPE F

 2
75546 - CLIP, WINDSHIELD OUTSIDE MOULDING
75547-22020

GX6#,LX60,MX61,RX6#,TX60

TYPE E

 5
75546-22030

GX6#,LX60,MX61,RX6#,TX60

TYPE D

 4
75961-22020

GX6#,LX60,MX61,RX6#,TX60

TYPE F

 2
Common parts
90159-40085
90168-40027
90176-04004
90189-04014
90189-04022
90189-04054
90189-04068
93510-14010
93540-14010
Linked diagrams
8501
