GX60-DEMFE (1980)
Toyota Chaser
Production
Sep 1980
-
Aug 1982
Engine
1GEU
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)

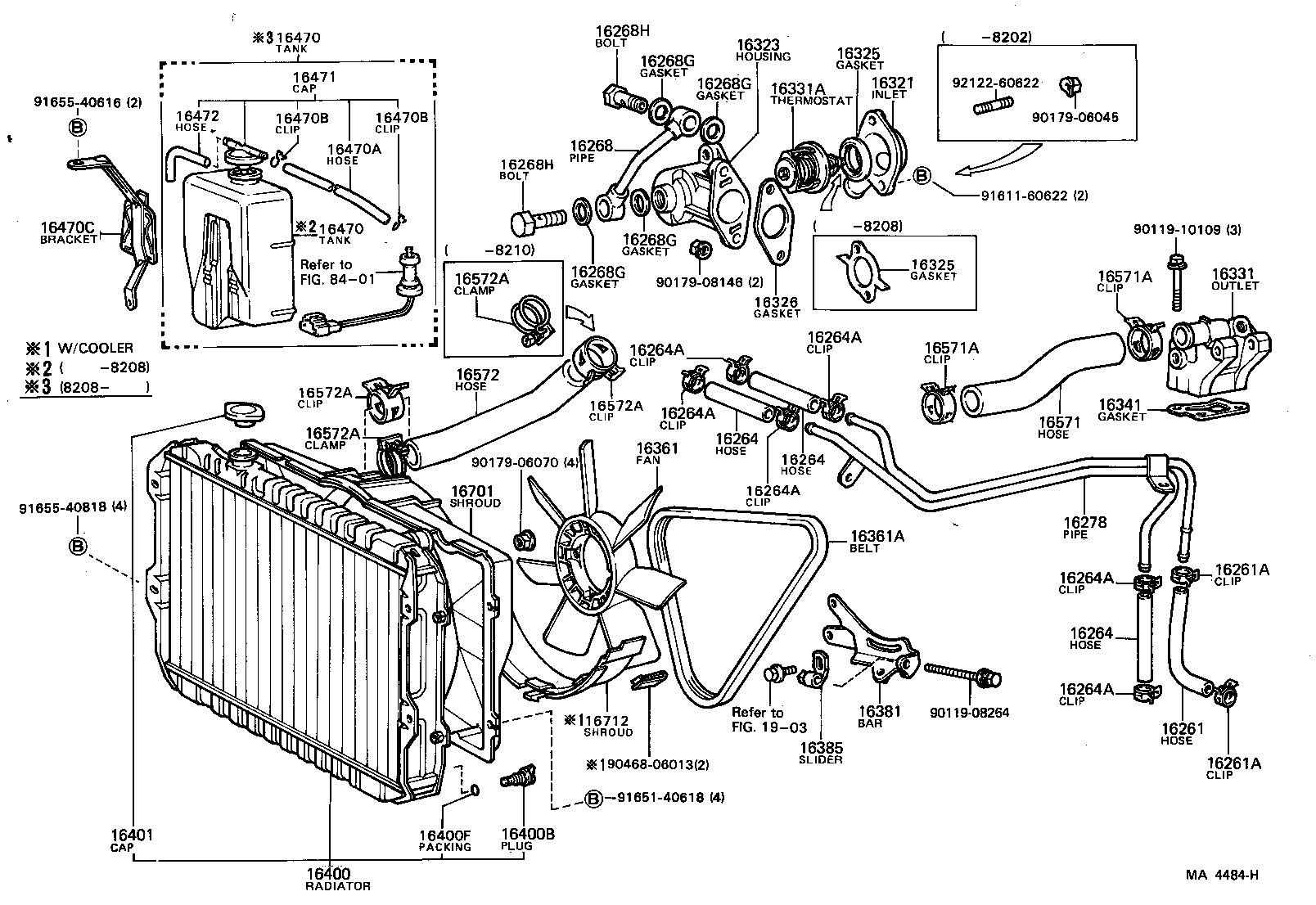

ILLUST NO. 1 OF 2(8009- )1GEU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-70010 |
1GEU..GX6# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13001 |
1GEU..GX6# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-13001 |
1GEU..GX6# |
2 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 99553-10100 |
1GEU..GX6# |
3 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 99553-10100 |
1GEU..GX6# |
3 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 99553-10100 |
1GEU..GX6# |
3 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
1GEU..GX6# |
6 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
1GEU..GX6# |
6 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
1GEU..GX6# |
6 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
1GEU..GX6# |
6 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
1GEU..GX6# |
6 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13001 |
1GEU..GX6# |
6 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-70010 |
1GEU..GX6# |
1 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 90430-18012 |
1GEU..GX6# |
4 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 90430-18012 |
1GEU..GX6# |
4 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 90430-18012 |
1GEU..GX6# |
4 | ||
| 16268G - GASKET(FOR WATER BY-PASS PIPE) | ||||
| 90430-18012 |
1GEU..GX6# |
4 | ||
| 16268H - BOLT, UNION(FOR WATER BY-PASS PIPE) | ||||
| 90401-18006 |
1GEU..GX6# |
2 | ||
| 16268H - BOLT, UNION(FOR WATER BY-PASS PIPE) | ||||
| 90401-18006 |
1GEU..GX6# |
2 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-70020 |
1GEU..GX6# |
1 | ||
| 16278-70010 |
1GEU..GX6# |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-70010 |
1GEU..GX6# |
1 | ||
| 16323 - HOUSING, WATER INLET | ||||
| 16323-70010 |
1GEU..GX6# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-70021 |
1GEU..GX6# |
1 | ||
| 16325-15010 |
1GEU..GX6# |
1 | ||
| 16325-70020 |
1GEU..GX6# |
1 | ||
| 16325 - GASKET, WATER INLET HOUSING, NO.1 | ||||
| 16325-70021 |
1GEU..GX6# |
1 | ||
| 16325-15010 |
1GEU..GX6# |
1 | ||
| 16325-70020 |
1GEU..GX6# |
1 | ||
| 16326 - GASKET, WATER INLET HOUSING, NO.2 | ||||
| 16326-70010 |
1GEU..GX6# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-70010 |
1GEU..GX6# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
1GEU..GX6# *WAX 82−95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-70010 |
1GEU..GX6# |
1 | ||
| 16361 - FAN | ||||
| 16361-70010 |
1GEU..GX6# |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99332-51130 |
1GEU..GX6# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-70010 |
1GEU..GX6# |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-70010 |
1GEU..GX6# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-70010 |
1G#..GX6#..MTM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
1G#..GX6# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
1GEU..GX6# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
1G#..GX6# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-70010 |
1GEU..GX60 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-70010 |
1GEU..GX60 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12097 |
1GEU..GX6# *H,L=250 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1G#..GX6# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1G#..GX6# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-70010 |
1GEU..GX6# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-70010 |
1GEU..GX6# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-70010 |
1GEU..GX6# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
1G#..GX6# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
1G#..GX6# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-70010 |
1GEU..GX6# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
1GEU..GX6# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
1GEU..GX6# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
1GEU..GX6# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
1GEU..GX6# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-70010 |
1G#..GX6# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-70010 |
1G#..GX6# W/COOLER |
1 | ||
| Common parts | ||||
| 90119-08264 | ||||
| 90119-10109 | ||||
| 90179-06045 | ||||
| 90179-06070 | ||||
| 90179-08146 | ||||
| 90468-06013 | ||||
| 91611-60622 | ||||
| 91651-40618 | ||||
| 91655-40616 | ||||
| 91655-40818 | ||||
| 92122-60622 | ||||
| Linked diagrams | ||||
| 1903 | ||||
| 8401 | ||||
ILLUST NO. 1 OF 2(8009-8208)L
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-70010 |
1GEU..GX6# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03046 |
1GEU..GX6# *WAX 82−95 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-70010 |
1GEU..GX6# |
1 | ||
| 16361 - FAN | ||||
| 16361-70010 |
1GEU..GX6# |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99332-51130 |
1GEU..GX6# |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-70010 |
1GEU..GX6# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-70010 |
1G#..GX6#..MTM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
1G#..GX6# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96710-01007 |
1GEU..GX6# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
1G#..GX6# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16480-70010 |
1GEU..GX60 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12097 |
1GEU..GX6# *H,L=250 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1G#..GX6# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1G#..GX6# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-70010 |
1GEU..GX6# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-70010 |
1GEU..GX6# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-70010 |
1GEU..GX6# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
1G#..GX6# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
1G#..GX6# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-70010 |
1GEU..GX6# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
1GEU..GX6# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
1GEU..GX6# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-70010 |
1G#..GX6# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-70010 |
1G#..GX6# W/COOLER |
1 | ||
| Common parts | ||||
| 90119-08108 | ||||
| 90119-08127 | ||||
| 90179-06070 | ||||
| 91611-60820 | ||||
| 91611-60840 | ||||
| 91651-40818 | ||||
| 91655-40616 | ||||
| 91655-40818 | ||||
| 91659-41222 | ||||
ILLUST NO. 2 OF 2(8009- )1GEU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99332-51130 |
1GEU..GX6# |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 90916-02092 |
GX6#..EFI |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-00880 |
GX6#..SGT,SXL |
1 | ||
| 99322-00920 |
GX6# |
1 | ||
| Linked diagrams | ||||
| 1603 | ||||
| 4503 | ||||
| 8719 | ||||
ILLUST NO. 2 OF 2(8009- )L,2LTE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99332-51130 |
1GEU..GX6# |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 90916-02092 |
GX6#..EFI |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-00880 |
GX6#..SGT,SXL |
1 | ||
| 99322-00920 |
GX6# |
1 | ||
| Linked diagrams | ||||
| 1603 | ||||
| 4503 | ||||
| 8719 | ||||
