GX60-DEKFE (1980)

Toyota Chaser

Production Sep 1980 - Aug 1982
Engine 1GEU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8009- )GX60,LX60,SX60

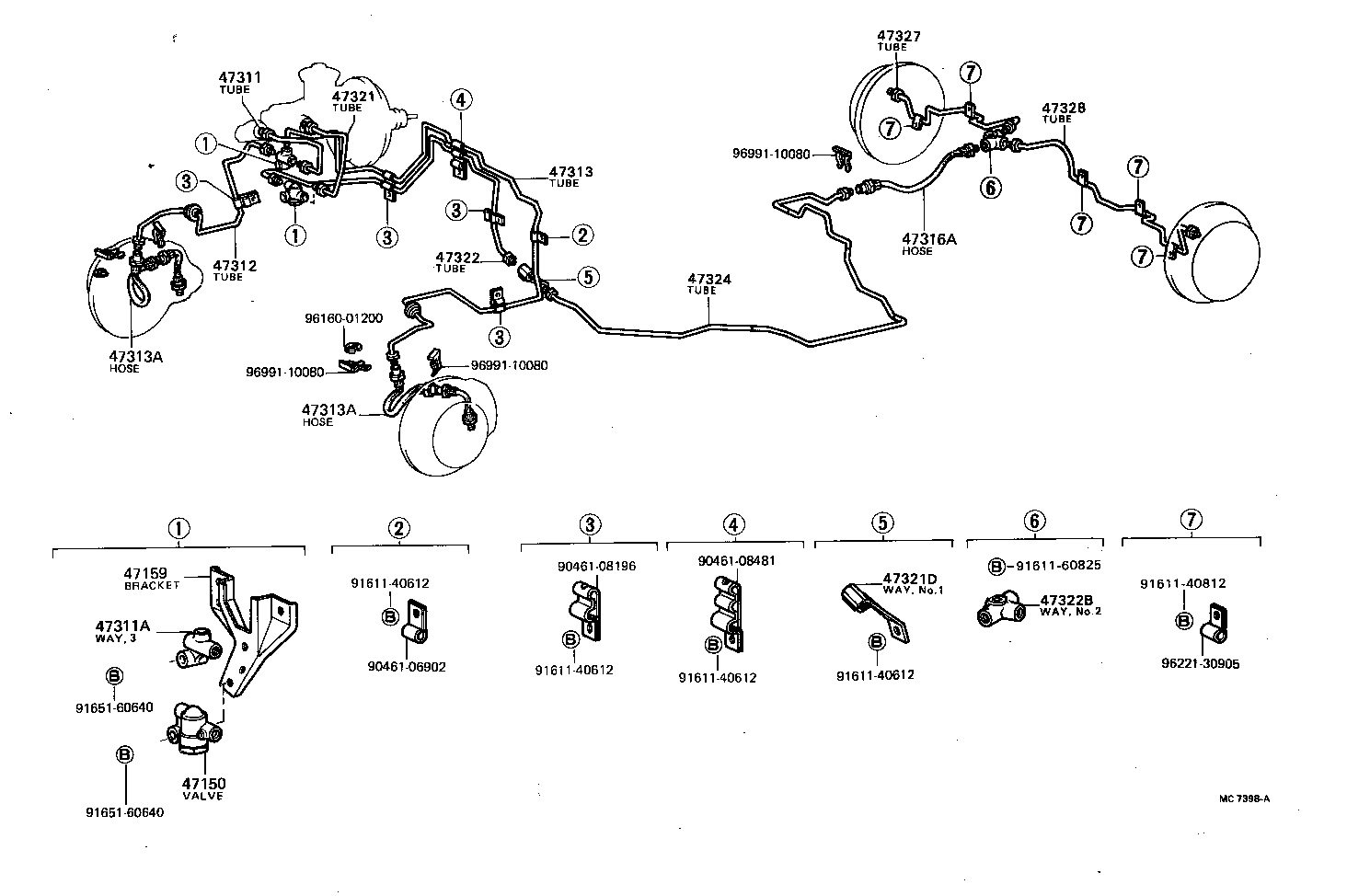

Click highlighted areas on diagram

diagram 47150 47159 47311 47311A 47312 47313 47313A 47313A 47316A 47321 47321D 47322 47322B 47324 47327 47328 9046106902 9046108196 9046108481 9161140612 9161140612 9161140612 9161140612 9161140812 9161160825 9165160640 9165160640 9616001200 9622130905 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-12031

GX60,LX60,RX60,TX60

 1
47159 - BRACKET, PROPORTIONING VALVE
47159-22100

GX60,LX60,RX60,SX60,TX60

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-22190

GX60,LX60,RX60,TX60

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10002

GX6#,LX6#,MX61,RX6#,SX60,TX60

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-22060

GX6#,LX60,RX6#,SX60,TX60

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-22190

GX6#,LX60,RX6#,SX60,TX60

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02407

GX6#,LX6#,MX61,RX6#,SX60,TX60

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02407

GX6#,LX6#,MX61,RX6#,SX60,TX60

 2
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96940-32855

GX60,LX60,RX60,SX60,TX60

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-22040

GX60,LX60,RX60,TX60

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10017

GX6#,LX6#,MX61,SX60

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-22080

GX6#,LX60,SX60

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10098

GX60,LX60,RX60,SX60,TX60

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-22110

GX60,LX60,SX60

 1
47327 - TUBE, REAR BRAKE, NO.7
47327-22070

GX60,LX60,RX60,SX60,TX60

 1
47328 - TUBE, REAR BRAKE, NO.8
47328-22070

GX60,LX60,RX60,SX60,TX60

 1
Common parts
90461-06902
90461-08196
90461-08481
91611-40612
91611-40812
91611-60825
91651-60640
96160-01200
96221-30905
96991-10080
