GX105-BTPQK (1998)

Toyota Chaser

Production Aug 1998 - Jun 2001
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9808- )1GFE

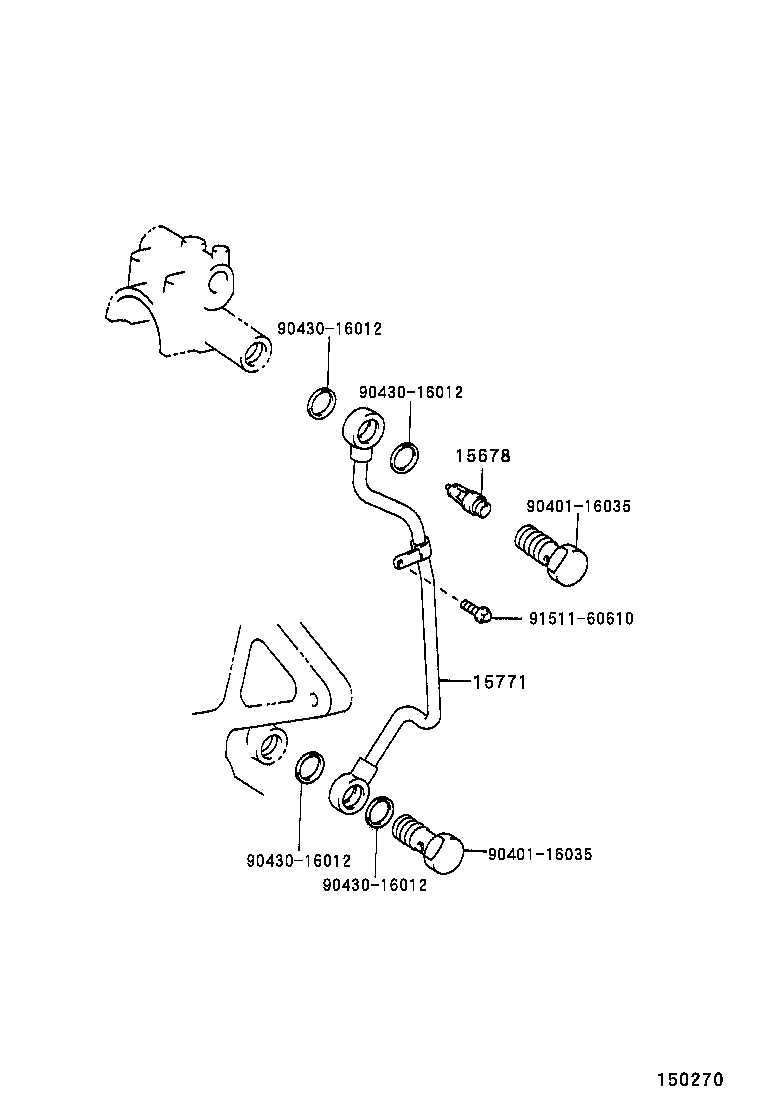

Click highlighted areas on diagram

diagram 15678 15771 9040116035 9040116035 9043016012 9043016012 9043016012 9043016012 9151160610
Part # Description Qty Price
15678 - FILTER, OIL CONTROL VALVE
15678-46010

1GFE..GX10#

 1
15678-46020

1GFE..GX10#

 1
15771 - PIPE, OIL, NO.1
15771-70010

1GFE..GX10#

 1
Common parts
90401-16035
90430-16012
91511-60610
