GX100-BTPQK (1996)
Toyota Chaser

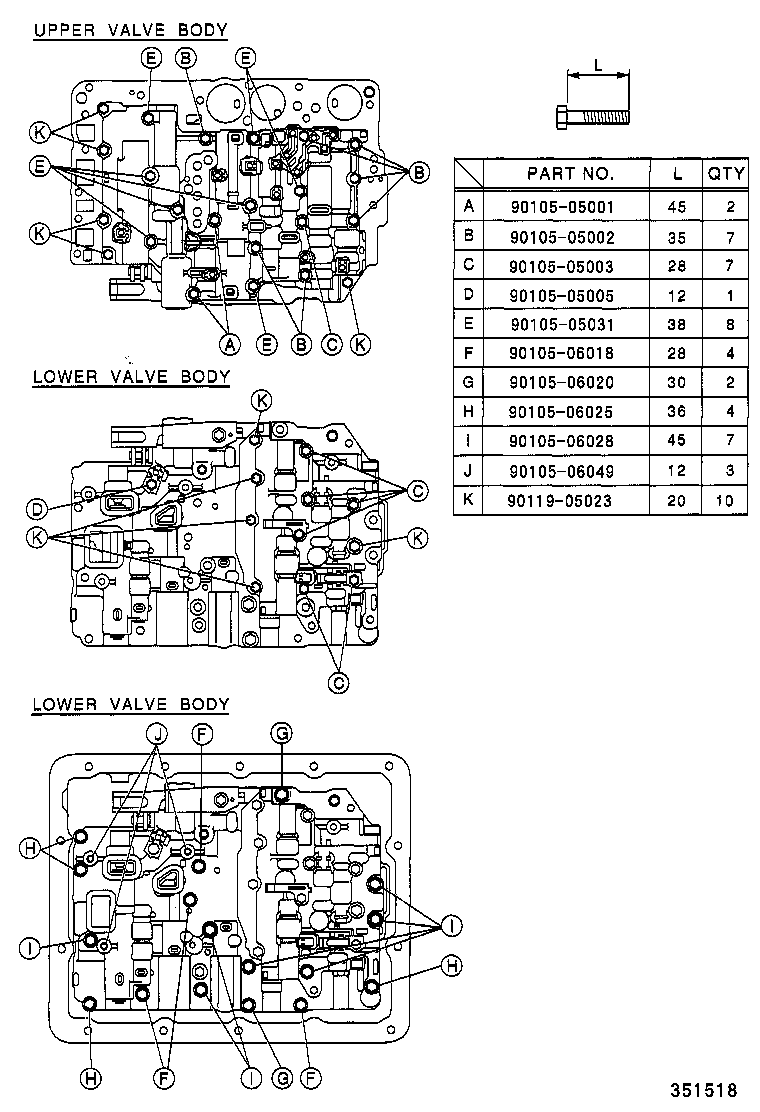

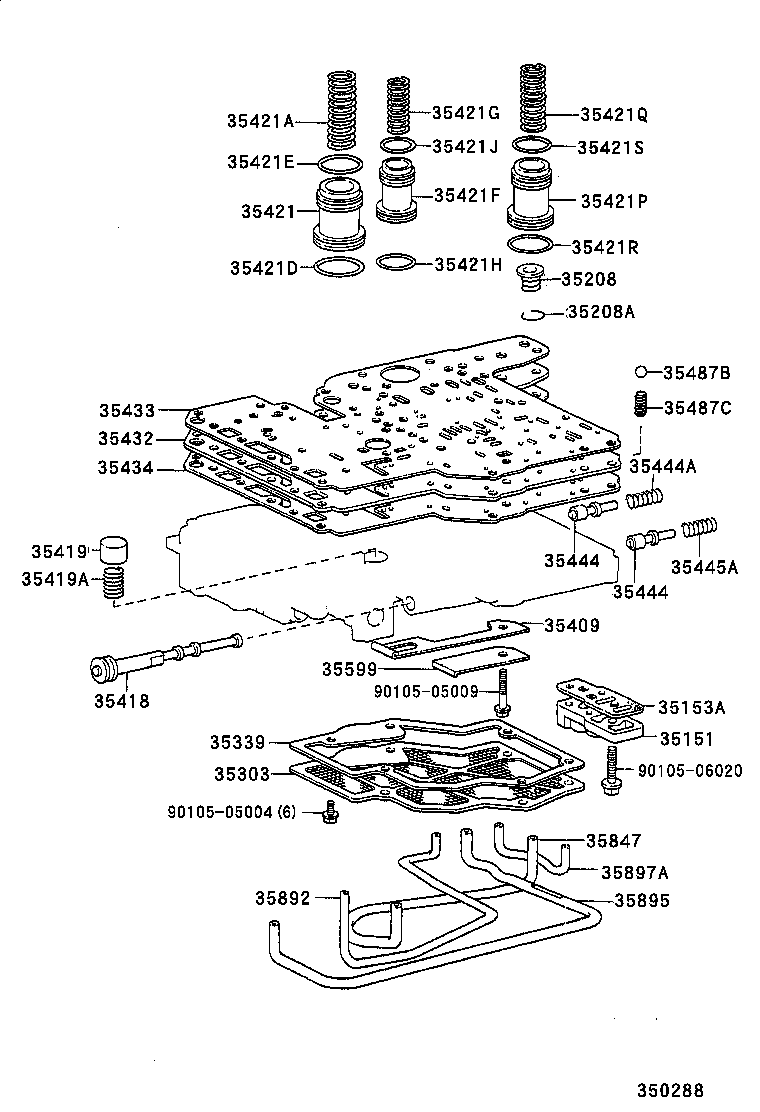

ILLUST NO. 1 OF 3(9609-9808)GX100..4FC
A42DE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35151 - COVER, TRANSMISSION CASE, LOWER | ||||
| 35151-30020 |
GX100..4FC |
1 | ||
| 35153A - GASKET, TRANSMISSION CASE LOWER COVER | ||||
| 35153-30010 |
GX100..4FC |
1 | ||
| 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR | ||||
| 35208-28010 |
GX100..4FC |
1 | ||
| 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
GX10#,JZX10#..ATM |
1 | ||
| 35303 - STRAINER SUB-ASSY, OIL | ||||
| 35303-30060 |
GX100..4FC |
1 | ||
| 35339 - GASKET, OIL STRAINER | ||||
| 35339-28030 |
GX100..4FC |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-30010 |
GX100,LX100,SX100..4FC..(AVT,RAF,XL) |
1 | ||
| 35409-22030 |
GX100..4FC..AVT |
1 | ||
| 35409-30010 |
GX100,LX100..4FC |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-30060 |
GX100..4FC |
1 | ||
| 35418-24010 |
GX10#,JZX100,105..4FC |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-50010 |
GX100..4FC |
1 | ||
| 35419-22010 |
GX100,LX100,SX100..4FC |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-09093 |
GX10#,JZX10#..ATM |
1 | ||
| 90501-13003 |
GX100,LX100..4FC |
1 | ||
| 35421 - PISTON, ACCUMULATOR, NO.1 | ||||
| 35421-26010 |
GX100..4FC |
1 | ||
| 35421A - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90501-20063 |
GX100,SX100..4FC |
1 | ||
| 90501-20162 |
GX100..4FC |
1 | ||
| 90501-21028 |
GX100..4FC |
1 | ||
| 35421D - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-29187 |
GX100,LX100,SX100..4FC |
1 | ||
| 35421E - RING (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90301-23194 |
GX100,LX100,SX100..4FC |
1 | ||
| 35421F - PISTON, ACCUMULATOR, NO.2 | ||||
| 35441-30010 |
GX100,SX100..4FC |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-27016 |
GX100..4FC |
1 | ||
| 90501-28030 |
GX100..4FC |
1 | ||
| 90501-26092 |
GX100..4FC |
1 | ||
| 35421H - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-26190 |
GX100,LX100,SX100..4FC |
1 | ||
| 35421J - RING (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90301-18186 |
GX100,LX100,SX100..4FC |
1 | ||
| 35421P - PISTON, ACCUMULATOR, NO.3 | ||||
| 35421-22030 |
GX100,SX100..4FC |
1 | ||
| 35421Q - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90501-22033 |
GX100..4FC |
1 | ||
| 90501-23147 |
GX100..4FC |
1 | ||
| 35421R - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-26190 |
GX100,LX100,SX100..4FC |
1 | ||
| 35421S - RING (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90301-22185 |
GX100,LX100,SX100..4FC |
1 | ||
| 35432 - PLATE, VALVE BODY, NO.1 | ||||
| 35432-22290 |
GX100..4FC |
1 | ||
| 35432-22291 |
GX100..4FC |
1 | ||
| 35433 - GASKET, VALVE BODY, NO.1 | ||||
| 35433-22040 |
GX100..4FC |
1 | ||
| 35433-22041 |
GX100..4FC |
1 | ||
| 35434 - GASKET, VALVE BODY, NO.2 | ||||
| 35434-22040 |
GX100..4FC |
1 | ||
| 35434-22041 |
GX100..4FC |
1 | ||
| 35444 - VALVE, INTERMEDIATE MODULATOR | ||||
| 35444-22010 |
GX100..4FC |
2 | ||
| 35444 - VALVE, INTERMEDIATE MODULATOR | ||||
| 35444-22010 |
GX100..4FC |
2 | ||
| 35444A - SPRING, COMPRESSION (FOR INTERMEDIATE MODULATOR VALVE) | ||||
| 90501-11009 |
GX100,LX100..4FC |
1 | ||
| 90501-09686 |
GX100..4FC |
1 | ||
| 35445A - SPRING, COMPRESSION (FOR LOW MODULATOR VALVE) | ||||
| 90501-08725 |
GX100,LX100,SX100..4FC |
1 | ||
| 35487B - BALL, CHECK, NO.4 | ||||
| 35487-30010 |
GX100,LX100,SX100..4FC |
1 | ||
| 35487C - SPRING, COMPRESSION (FOR CHECK BALL) | ||||
| 90504-05006 |
GX100,LX100,SX100..4FC |
1 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-22030 |
GX100..4FC..AVT |
1 | ||
| 35599-30010 |
GX100,LX100,SX100..4FC |
1 | ||
| 35847 - TUBE, TRANSMISSION LUBE APPLY | ||||
| 35847-30010 |
GX100..4FC |
1 | ||
| 35892 - TUBE, OVERDRIVE BRAKE | ||||
| 35892-30030 |
GX100..4FC |
1 | ||
| 35892-26010 |
GX100..4FC |
1 | ||
| 35892-22010 |
GX100..4FC |
1 | ||
| 35895 - TUBE, FRONT CLUTCH APPLY | ||||
| 35895-30030 |
GX100..4FC |
1 | ||
| 35897A - TUBE, 1ST & REVERSE BRAKE, NO.1 | ||||
| 35897-30010 |
GX100..4FC |
1 | ||
| Common parts | ||||
| 90105-05004 | ||||
| 90105-05009 | ||||
| 90105-06020 | ||||

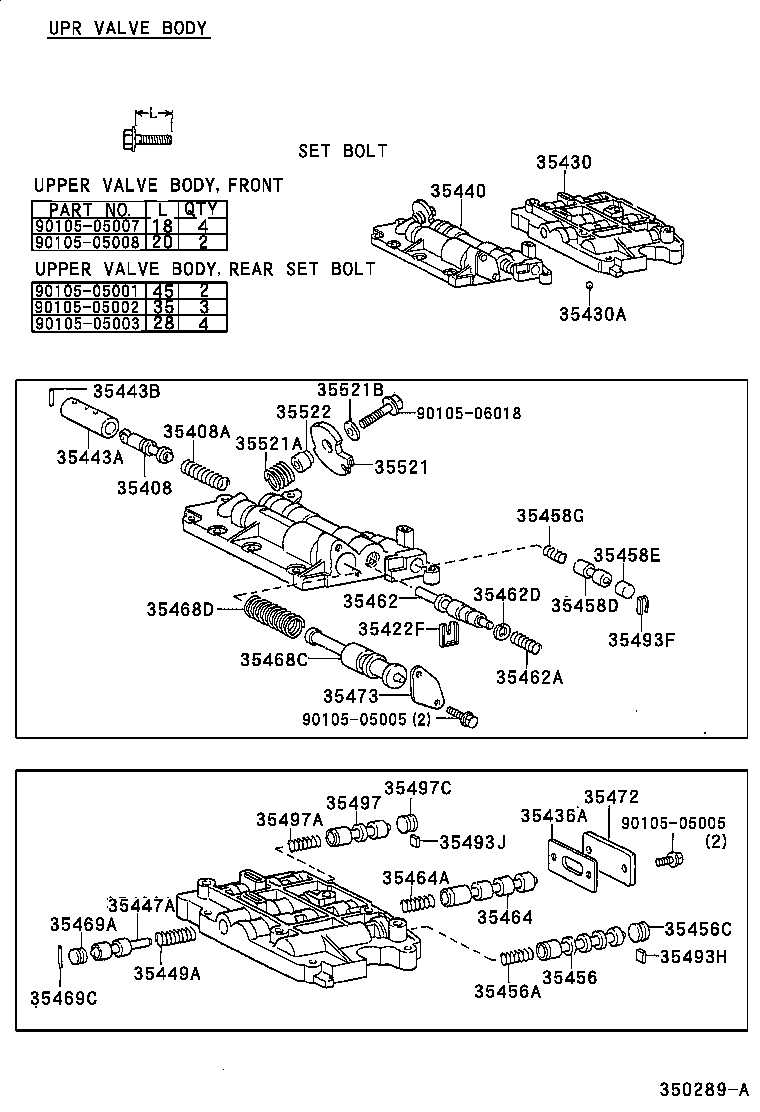

ILLUST NO. 2 OF 3(9609-9808)GX100..4FC
A42DE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35408 - PLUG SUB-ASSY, PRIMARY DOWN SHIFT | ||||
| 35408-22040 |
GX100..4FC |
1 | ||
| 35408A - SPRING, COMPRESSION (FOR PRIMARY DOWN SHIFT PLUG) | ||||
| 90501-11011 |
GX100..4FC |
1 | ||
| 35422F - STOPPER, VALVE VIBRATING | ||||
| 35422-22010 |
GX100,LX100,SX100..4FC |
1 | ||
| 35430 - BODY ASSY, REAR UPPER VALVE | ||||
| 35430-22180 |
GX100..4FC |
1 | ||
| 35430A - BALL (FOR REAR UPPER VALVE BODY) | ||||
| 90360-06023 |
GX100..4FC 外径=5.56,STEEL |
6 | ||
| 35436A - GASKET, VALVE BODY PLATE, NO.4 | ||||
| 35436-30050 |
GX100..4FC |
1 | ||
| 35440 - BODY ASSY, FRONT UPPER VALVE | ||||
| 35440-22151 |
GX100..4FC |
1 | ||
| 35443A - SLEEVE, DOWN SHIFT PLUG | ||||
| 35443-22010 |
GX100..4FC |
1 | ||
| 35443B - PIN (FOR DOWN SHIFT PLUG SLEEVE) | ||||
| 90250-03034 |
GX100..4FC |
1 | ||
| 35447A - VALVE, REVERSE CLUTCH SEQUENCE | ||||
| 35447-30010 |
GX100..4FC |
1 | ||
| 35449A - SPRING, COMPRESSION (FOR SEQUENCE VALVE) | ||||
| 90501-11048 |
GX100..4FC |
1 | ||
| 90501-10219 |
GX100..4FC |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-30050 |
GX100..4FC |
1 | ||
| 35456-12020 |
GX100..4FC |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-09028 |
GX100..4FC |
1 | ||
| 90501-08135 |
GX100..4FC;JZX100..TOUS |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 90339-05014 |
GX100,JZX10#..4FC |
1 | ||
| 90339-05019 |
GX100..4FC |
1 | ||
| 35458D - VALVE, CUT BACK | ||||
| 35458-30020 |
GX100..4FC |
1 | ||
| 35458E - PLUG (FOR CUT BACK VALVE) | ||||
| 35459-22010 |
GX100,LX100,SX100..4FC |
1 | ||
| 35458G - SPRING, COMPRESSION (FOR CUT BACK VALVE) | ||||
| 90501-06022 |
GX100..4FC |
1 | ||
| 35462 - VALVE, THROTTLE | ||||
| 35462-22011 |
GX100,LX100..4FC |
1 | ||
| 35462A - SPRING, COMPRESSION (FOR THROTTLE VALVE) | ||||
| 90501-07680 |
GX100,LX100..4FC 長さ=19.24 |
1 | ||
| 35462D - RING, E (FOR THROTTLE VALVE) | ||||
| 90523-06023 |
GX100,LX100..4FC |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-30030 |
GX100..4FC |
1 | ||
| 35464-12040 |
GX100..4FC |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-09028 |
GX100..4FC |
1 | ||
| 90501-08135 |
GX100..4FC |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35204-30010 |
GX100..4FC |
1 | ||
| 35468-24010 |
GX10#,JZX100,105..4FC |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-12170 |
GX10#,JZX100,105..4FC |
1 | ||
| 90501-19001 |
GX100,LX100,SX100..4FC |
1 | ||
| 35469A - PLUG, 3-2 KICK DOWN ORIFICE CONTROL VALVE | ||||
| 35469-30020 |
GX100..4FC |
1 | ||
| 35469A - PLUG, 3-2 KICK DOWN ORIFICE CONTROL VALVE | ||||
| 35469-30020 |
GX100..4FC |
1 | ||
| 35469C - ROLLER, SHIFT VALVE PLUG | ||||
| 90361-02051 |
GX100..4FC |
1 | ||
| 35472 - COVER, VALVE BODY, NO.2 | ||||
| 35472-30010 |
GX100..4FC |
1 | ||
| 35473 - COVER, TRANSMISSION VALVE BODY | ||||
| 35473-22010 |
GX100,LX100..4FC |
1 | ||
| 35473-22020 |
GX100..4FC |
1 | ||
| 35493F - SEAT, SHIFT VALVE PLUG | ||||
| 35493-22010 |
GX100,LX100,SX100..4FC |
1 | ||
| 35493H - SEAT, SHIFT VALVE PLUG (FOR LOCK UP RELAY VALVE) | ||||
| 35493-30030 |
GX100..4FC |
1 | ||
| 35493J - SEAT, SHIFT VALVE PLUG (FOR MANUAL DOWN TIMING VALVE) | ||||
| 35493-30030 |
GX100..4FC |
1 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-12020 |
GX100..4FC |
1 | ||
| 35497-30030 |
GX100..4FC |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-09028 |
GX100..4FC |
1 | ||
| 90501-08135 |
GX100..4FC;JZX100..TOUS |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90339-05014 |
GX100,JZX10#..4FC |
1 | ||
| 90339-05033 |
GX100..4FC |
1 | ||
| 35521 - CAM, THROTTLE VALVE | ||||
| 35521-30060 |
GX100,JZX100,105..4FC..(AVT,AVTG,TOU,TOUS) |
1 | ||
| 35521A - SPRING (FOR THROTTLE VALVE CAM RETURN) | ||||
| 90508-12331 |
GX100,LX100..4FC |
1 | ||
| 35521B - WASHER (FOR THROTTLE VALVE CAM SET) | ||||
| 90201-06472 |
GX100,JZX10#,LX100..4FC..(AVT,AVTG,TOU,TOUS,XL) |
1 | ||
| 35522 - PIN, THROTTLE VALVE CAM | ||||
| 35522-22010 |
GX100,JZX101,LX100..4FC |
1 | ||
| Common parts | ||||
| 90105-05001 | ||||
| 90105-05002 | ||||
| 90105-05003 | ||||
| 90105-05005 | ||||
| 90105-05007 | ||||
| 90105-05008 | ||||
| 90105-06018 | ||||
ILLUST NO. 3 OF 3(9609-9808)GX100..4FC
A42DE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35202-30010 |
GX100..4FC |
1 | ||
| 35212-30050 |
GX100,JZX101..4FC |
1 | ||
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-10113 |
GX100..4FC |
1 | ||
| 90501-06057 |
GX10#,JZX10#..ATM |
1 | ||
| 35215B - PIN, STRAIGHT (FOR LOCK UP RELAY VALVE SLEEVE) | ||||
| 90250-04027 |
GX100..4FC |
1 | ||
| 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 | ||||
| 35215-30013 |
GX100..4FC |
1 | ||
| 35215-22020 |
GX100..4FC |
1 | ||
| 35222 - PLATE, LOCK UP RELAY VALVE BODY | ||||
| 35222-30010 |
GX100..4FC |
1 | ||
| 35223 - GASKET, LOCK UP RELAY VALVE BODY | ||||
| 35223-30010 |
GX100..4FC |
1 | ||
| 35415 - VALVE, PRESSURE REGULATOR | ||||
| 35203-30011 |
GX100..4FC |
1 | ||
| 35415A - SPRING, COMPRESSION (FOR PRESSURE REGULATOR VALVE) | ||||
| 90501-17021 |
GX100..4FC |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-22030 |
GX100..4FC |
1 | ||
| 35416-14010 |
GX100..4FC |
1 | ||
| 35417 - SLEEVE, PRESSURE REGULATOR VALVE | ||||
| 35417-14010 |
GX100..4FC |
1 | ||
| 35420 - BODY ASSY, LOWER VALVE | ||||
| 35420-30172 |
GX100..4FC |
1 | ||
| 35420A - BALL (FOR PRESSURE RELIEF) | ||||
| 90360-13024 |
GX100,LX100..4FC |
1 | ||
| 90360-06004 |
GX100..4FC |
2 | ||
| 35420B - SPRING (FOR PRESSURE RELIEF) | ||||
| 90501-18677 |
GX100,LX100..4FC |
1 | ||
| 35425 - SEAT, PRESSURE REGULATOR VALVE SLEEVE | ||||
| 35425-14010 |
GX100,LX100..4FC |
1 | ||
| 35427J - SEAT, CHECK VALVE SPRING (FOR PRESSURE RELIEF) | ||||
| 35427-30020 |
GX100..4FC |
1 | ||
| 35435 - GASKET, VALVE BODY PLATE, NO.3 | ||||
| 35435-30040 |
GX100..4FC |
1 | ||
| 35475 - COVER, VALVE BODY, NO.5 | ||||
| 35475-30040 |
GX100..4FC |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
| 90105-06014 | ||||
| 90105-06015 | ||||
| 90105-06017 | ||||
| 90105-06020 | ||||

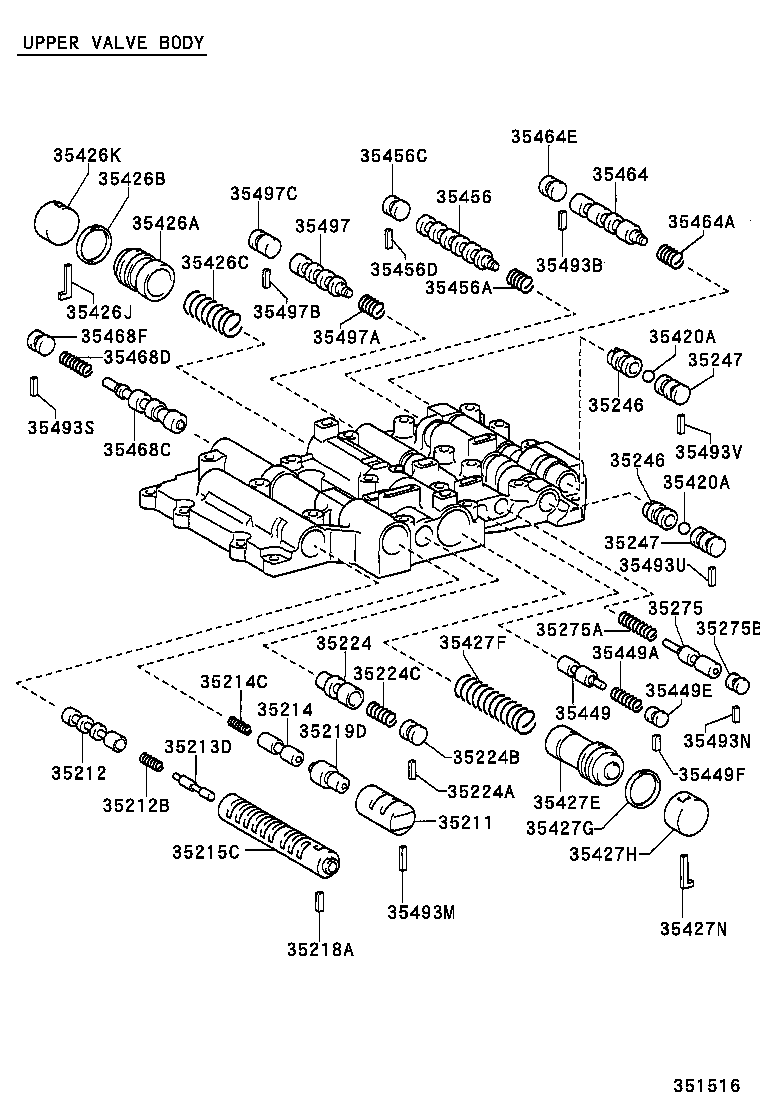

ILLUST NO. 2 OF 4(9808- )GX100..4FC
A42DE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35211 - VALVE, LOCK UP SIGNAL | ||||
| 35211-22010 |
GX100..4FC |
1 | ||
| 35212 - VALVE, LOCK UP RELAY | ||||
| 35202-30010 |
GX100..4FC |
1 | ||
| 35212-30050 |
GX100,JZX101..4FC |
1 | ||
| 35212B - SPRING, COMPRESSION (FOR LOCK UP RELAY VALVE) | ||||
| 90501-10113 |
GX100..4FC |
1 | ||
| 90501-06057 |
GX10#,JZX10#..ATM |
1 | ||
| 35213D - PLUNGER, LOCK UP RELAY VALVE | ||||
| 35213-50010 |
GX100,JZX101..4FC |
1 | ||
| 35214 - VALVE, LOCK UP CONTROL | ||||
| 35214-50010 |
GX10#,JZX10#..ATM |
1 | ||
| 35214C - SPRING, COMPRESSION (FOR LOCK UP CONTROL VALVE) | ||||
| 90501-07111 |
GX10#,JZX10#..ATM |
1 | ||
| 35215C - SLEEVE, LOCK UP RELAY VALVE, NO.1 | ||||
| 35215-30013 |
GX100..4FC |
1 | ||
| 35215-22020 |
GX100..4FC |
1 | ||
| 35218A - KEY, STRAIGHT (FOR LOCK UP RELAY VALVE PLUG) | ||||
| 90282-03016 |
GX100..4FC |
1 | ||
| 35219D - PLUNGER, LOCK UP CONTROL VALVE | ||||
| 35219-50010 |
GX10#,JZX10#..ATM |
1 | ||
| 35224 - VALVE, REVERSE CONTROL | ||||
| 35224-30010 |
GX100..4FC;JZX100..TOUS |
1 | ||
| 35224A - KEY, STRAIGHT (FOR REVERSE CONTROL VALVE) | ||||
| 35493-22020 |
GX100..4FC |
1 | ||
| 35224B - PLUG (FOR REVERSE CONTROL VALVE) | ||||
| 90339-05020 |
JZX100..TOUS;GX100,JZX101..4FC |
1 | ||
| 35224C - SPRING, COMPRESSION (FOR REVERSE CONTROL VALVE) | ||||
| 90501-06056 |
GX100,JZX101..4FC |
1 | ||
| 35246 - VALVE, CHECK, NO.1 | ||||
| 35246-30010 |
GX100..4FC |
2 | ||
| 35246 - VALVE, CHECK, NO.1 | ||||
| 35246-30010 |
GX100..4FC |
2 | ||
| 35247 - VALVE, CHECK, NO.2 | ||||
| 35247-30010 |
GX100..4FC |
2 | ||
| 35247 - VALVE, CHECK, NO.2 | ||||
| 35247-30010 |
GX100..4FC |
2 | ||
| 35275 - VALVE, SOLENOID MODULATOR | ||||
| 35275-30010 |
GX100,JZX101..4FC |
1 | ||
| 35275A - SPRING, COMPRESSION (FOR SOLENOID MODULATOR VALVE) | ||||
| 90501-12143 |
GX100,JZX101..4FC |
1 | ||
| 35275B - PLUG (FOR SOLENOID MODULATOR VALVE) | ||||
| 90339-04030 |
GX100,JZX101..4FC |
1 | ||
| 35420A - BALL (FOR PRESSURE RELIEF) | ||||
| 90360-13024 |
GX100,LX100..4FC |
1 | ||
| 90360-06004 |
GX100..4FC |
2 | ||
| 35420A - BALL (FOR PRESSURE RELIEF) | ||||
| 90360-13024 |
GX100,LX100..4FC |
1 | ||
| 90360-06004 |
GX100..4FC |
2 | ||
| 35426A - PISTON, C-0 ACCUMULATOR | ||||
| 35426-22010 |
GX100..4FC |
1 | ||
| 35426B - RING, O (FOR C-0 ACCUMULATOR PISTON) | ||||
| 35232-50010 |
GX100..4FC |
1 | ||
| 35426C - SPRING, COMPRESSION (FOR C-0 ACCUMULATOR PISTON) | ||||
| 90905-01045 |
GX100..4FC |
1 | ||
| 35426J - SEAT, C-0 ACCUMULATOR PISTON PLUG | ||||
| 35493-22040 |
GX100..4FC |
1 | ||
| 35426K - PLUG, C-0 ACCUMULATOR PISTON | ||||
| 90339-24002 |
GX100..4FC |
1 | ||
| 35427E - PISTON, B-0 ACCUMULATOR | ||||
| 35427-22020 |
GX100..4FC |
1 | ||
| 35427F - SPRING, COMPRESSION (FOR B-0 ACCUMULATOR PISTON) | ||||
| 90501-20156 |
GX100..4FC |
1 | ||
| 35427G - RING, O (FOR B-0 ACCUMULATOR PISTON) | ||||
| 35232-50010 |
GX100..4FC |
1 | ||
| 35427H - PLUG, B-0 ACCUMULATOR PISTON | ||||
| 90339-24002 |
GX100..4FC |
1 | ||
| 35427N - SEAT, B-0 ACCUMULATOR PISTON PLUG | ||||
| 35493-22040 |
GX100..4FC |
1 | ||
| 35449 - VALVE, SEQUENCE | ||||
| 35447-22020 |
GX100..4FC |
1 | ||
| 35449A - SPRING, COMPRESSION (FOR SEQUENCE VALVE) | ||||
| 90501-11048 |
GX100..4FC |
1 | ||
| 90501-10219 |
GX100..4FC |
1 | ||
| 35449E - PLUG, SEQUENCE VALVE | ||||
| 90339-04030 |
GX100..4FC |
1 | ||
| 35449F - SEAT, REVERSE SEQUENCE VALVE PLUG | ||||
| 35493-30030 |
GX100..4FC |
1 | ||
| 35456 - VALVE, 2-3 SHIFT | ||||
| 35456-30050 |
GX100..4FC |
1 | ||
| 35456-12020 |
GX100..4FC |
1 | ||
| 35456A - SPRING, COMPRESSION (FOR 2-3 SHIFT VALVE) | ||||
| 90501-09028 |
GX100..4FC |
1 | ||
| 90501-08135 |
GX100..4FC;JZX100..TOUS |
1 | ||
| 35456C - PLUG (FOR 2-3 SHIFT VALVE) | ||||
| 90339-05014 |
GX100,JZX10#..4FC |
1 | ||
| 90339-05019 |
GX100..4FC |
1 | ||
| 35456D - SEAT (FOR 2-3 SHIFT VALVE) | ||||
| 35438-22020 |
GX100..4FC |
1 | ||
| 35464 - VALVE, 1-2 SHIFT | ||||
| 35464-30030 |
GX100..4FC |
1 | ||
| 35464-12040 |
GX100..4FC |
1 | ||
| 35464A - SPRING, COMPRESSION (FOR 1-2 SHIFT VALVE) | ||||
| 90501-09028 |
GX100..4FC |
1 | ||
| 90501-08135 |
GX100..4FC |
1 | ||
| 35464E - PLUG (FOR 1-2 SHIFT VALVE) | ||||
| 90339-05019 |
GX100..4FC;JZX100..TOUS |
1 | ||
| 35468C - VALVE, SECONDARY REGULATOR | ||||
| 35204-30010 |
GX100..4FC |
1 | ||
| 35468-24010 |
GX10#,JZX100,105..4FC |
1 | ||
| 35468D - SPRING, COMPRESSION (FOR SECONDARY REGULATOR VALVE) | ||||
| 90501-12170 |
GX10#,JZX100,105..4FC |
1 | ||
| 90501-19001 |
GX100,LX100,SX100..4FC |
1 | ||
| 35468F - PLUG (FOR SECONDARY REGULATOR VALVE) | ||||
| 90339-05020 |
GX10#,JZX10#..ATM |
1 | ||
| 35493B - SEAT, 1-2 SHIFT VALVE PLUG | ||||
| 35438-22020 |
GX100..4FC |
1 | ||
| 35493M - SEAT, LOCK UP CONTROL VALVE PLUG | ||||
| 35493-50050 |
GX100..4FC;JZX100..TOUS |
1 | ||
| 35493N - SEAT, SOLENOID MODULATOR VALVE PLUG | ||||
| 35493-30030 |
GX100..4FC |
1 | ||
| 35493S - SEAT, SECONDARY REGULATOR VALVE PLUG | ||||
| 35493-50050 |
GX100..4FC |
1 | ||
| 35493U - SEAT, CHECK VALVE, NO.1 | ||||
| 35493-30030 |
GX100,JZX101..4FC |
1 | ||
| 35493V - SEAT, CHECK VALVE, NO.2 | ||||
| 35438-22020 |
GX100..4FC |
1 | ||
| 35497 - VALVE, 3-4 SHIFT | ||||
| 35497-12020 |
GX100..4FC |
1 | ||
| 35497-30030 |
GX100..4FC |
1 | ||
| 35497A - SPRING, COMPRESSION (FOR 3-4 SHIFT VALVE) | ||||
| 90501-09028 |
GX100..4FC |
1 | ||
| 90501-08135 |
GX100..4FC;JZX100..TOUS |
1 | ||
| 35497B - SEAT, SHIFT VALVE PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 35438-22020 |
GX100..4FC |
1 | ||
| 35497C - PLUG (FOR 3-4 SHIFT VALVE) | ||||
| 90339-05014 |
GX100,JZX10#..4FC |
1 | ||
| 90339-05033 |
GX100..4FC |
1 | ||

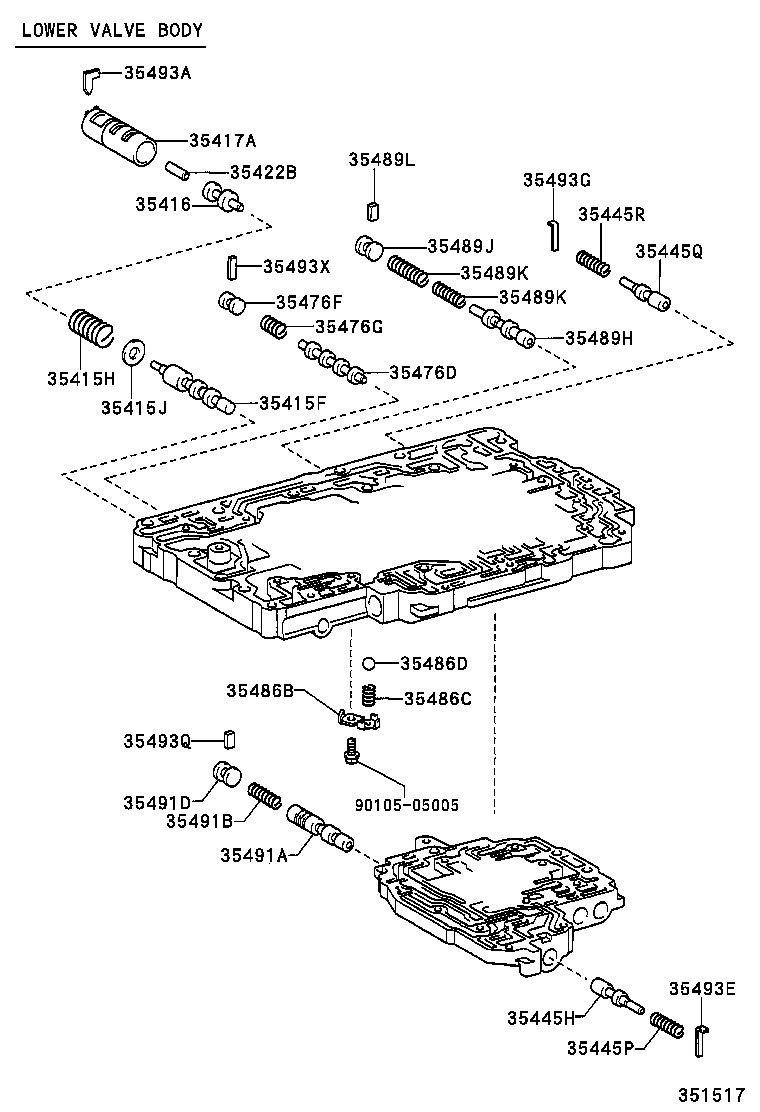

ILLUST NO. 3 OF 4(9808- )GX100..4FC
A42DE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35415F - VALVE, PRIMARY REGULATOR | ||||
| 35415-22030 |
GX100..4FC |
1 | ||
| 35415H - SPRING, COMPRESSION (FOR PRIMARY REGULATOR VALVE) | ||||
| 90501-15028 |
GX100..4FC |
1 | ||
| 35415J - WASHER (FOR PRIMARY REGULATOR VALVE) | ||||
| 90560-08099 |
GX100..4FC;JZX100..TOUS |
1 | ||
| 35416 - PLUNGER, PRIMARY REGULATOR VALVE, NO.1 | ||||
| 35416-22030 |
GX100..4FC |
1 | ||
| 35416-14010 |
GX100..4FC |
1 | ||
| 35417A - SLEEVE, PRIMARY REGULATOR VALVE | ||||
| 35417-22050 |
GX100..4FC |
1 | ||
| 35422B - PLUNGER, PRIMARY REGULATOR VALVE, NO.2 | ||||
| 35422-22020 |
GX100..4FC |
1 | ||
| 35445H - VALVE, 2ND COAST MODULATOR | ||||
| 35445-50010 |
GX10#,JZX10#..4FC |
1 | ||
| 35445P - SPRING, COMPRESSION (FOR 2ND COAST MODULATOR VALVE) | ||||
| 90501-10140 |
GX10#,JZX100,105..4FC..(AVT,AVTG) |
1 | ||
| 35445Q - VALVE, LOW COAST MODULATOR | ||||
| 35445-50010 |
GX10#,JZX10#..4FC |
1 | ||
| 35445R - SPRING, COMPRESSION (FOR LOW COAST MODULATOR VALVE) | ||||
| 90501-07123 |
GX100..4FC |
1 | ||
| 35476D - VALVE, CUT OFF | ||||
| 35284-50010 |
GX100..4FC |
1 | ||
| 35476F - PLUG (FOR CUT OFF VALVE) | ||||
| 90339-04030 |
GX100..4FC |
1 | ||
| 35476G - SPRING, COMPRESSION (FOR CUT OFF VALVE) | ||||
| 90501-06055 |
GX100..4FC |
1 | ||
| 35486B - SEAT, PRESSURE RELIEF VALVE SPRING | ||||
| 35486-50010 |
GX100,JZX101..4FC |
1 | ||
| 35486C - SPRING, COMPRESSION(FOR PRESSURE RELIFE VALVE) | ||||
| 90501-11061 |
GX100,JZX101..4FC |
1 | ||
| 35486D - BALL (FOR PRESSURE RELIFE VALVE) | ||||
| 90360-08003 |
GX100..4FC |
1 | ||
| 35489H - VALVE, C-1 ORIFICE CONTROL | ||||
| 35489-30030 |
GX100..4FC;JZX100..TOUS |
1 | ||
| 35489J - PLUG (FOR C-1 ORIFICE CONTROL VALVE) | ||||
| 90339-05014 |
GX100..4FC |
1 | ||
| 35489K - SPRING, COMPRESSION (FOR C-1 ORIFICE CONTROL VALVE) | ||||
| 90501-07130 |
GX100..4FC 内側 |
1 | ||
| 90501-08196 |
GX100..4FC 内側 |
1 | ||
| 90501-08121 |
JZX100..TOUS;GX100,JZX101..4FC 外側 |
1 | ||
| 35489K - SPRING, COMPRESSION (FOR C-1 ORIFICE CONTROL VALVE) | ||||
| 90501-07130 |
GX100..4FC 内側 |
1 | ||
| 90501-08196 |
GX100..4FC 内側 |
1 | ||
| 90501-08121 |
JZX100..TOUS;GX100,JZX101..4FC 外側 |
1 | ||
| 35489L - KEY, STRAIGHT (FOR C-1 ORIFICE CONTROL VALVE) | ||||
| 35493-30030 |
GX100..4FC |
1 | ||
| 35491A - VALVE, ACCUMULATOR CONTROL, NO.1 | ||||
| 35491-22020 |
GX100..4FC |
1 | ||
| 35491B - SPRING, COMPRESSION (FOR ACCUMULATOR CONTROL VALVE NO.1 | ||||
| 90501-08178 |
GX100..4FC |
1 | ||
| 90501-07135 |
GX100..4FC |
1 | ||
| 35491D - PLUG (FOR ACCUMULATOR CONTROL VALVE NO.1) | ||||
| 90339-05014 |
GX100..4FC |
1 | ||
| 35493A - SEAT, PRIMARY REGULATOR VALVE PLUG | ||||
| 35493-50010 |
GX10#,JZX10#..ATM |
1 | ||
| 35493E - SEAT, 2ND COAST MODULATOR VALVE PLUG | ||||
| 35493-22030 |
GX100..4FC |
1 | ||
| 35493G - SEAT, LOW COAST MODULATOR VALVE PLUG | ||||
| 35493-22030 |
GX100..4FC |
1 | ||
| 35493Q - SEAT, ACCUMULATOR CONTROL VALVE PLUG, NO.1 | ||||
| 35493-30040 |
GX100..4FC |
1 | ||
| 35493X - SEAT, CUT OFF VALAE | ||||
| 35493-50050 |
GX100,JZX101..4FC |
1 | ||
| Common parts | ||||
| 90105-05005 | ||||
ILLUST NO. 4 OF 4(9808- )GX100..4FC
A42DE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-05001 | ||||
| 90105-05002 | ||||
| 90105-05003 | ||||
| 90105-05005 | ||||
| 90105-05031 | ||||
| 90105-06018 | ||||
| 90105-06020 | ||||
| 90105-06025 | ||||
| 90105-06028 | ||||
| 90105-06049 | ||||
| 90119-05023 | ||||

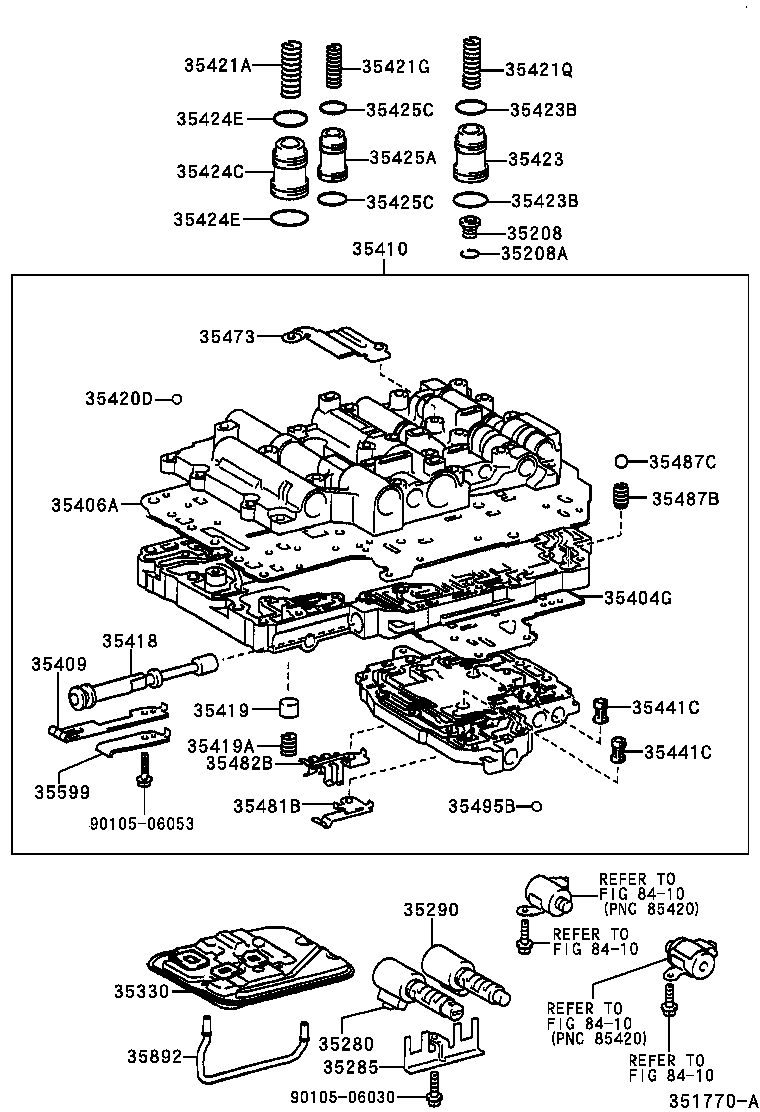

ILLUST NO. 1 OF 4(9808- )GX100..4FC
A42DE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35208 - SPRING SUB-ASSY, B-2 ACCUMULATOR | ||||
| 35208-28010 |
GX100..4FC |
1 | ||
| 35208A - RING, HOLE SNAP (FOR B-2 ACCUMULATOR SPRING) | ||||
| 90521-22004 |
GX10#,JZX10#..ATM |
1 | ||
| 35280 - SOLENOID ASSY, LOCK UP CONTROL | ||||
| 35280-22010 |
GX100..4FC |
1 | ||
| 35285 - PLATE, SOLENOID LOCK | ||||
| 35285-22010 |
GX100..4FC |
1 | ||
| 35290 - SOLENOID ASSY, LINE PRESSURE CONTROL | ||||
| 35290-22010 |
GX100..4FC |
1 | ||
| 35330 - STRAINER ASSY, VALVE BODY OIL | ||||
| 35330-22031 |
GX100..4FC |
1 | ||
| 35330-22030 |
GX100..4FC |
1 | ||
| 35330-22032 |
GX100..4FC |
1 | ||
| 35404G - PLATE SUB-ASSY, VALVE BODY, NO.2 | ||||
| 35404-22010 |
GX100..4FC |
1 | ||
| 35406A - PLATE SUB-ASSY, VALVE BODY | ||||
| 35406-22030 |
GX100..4FC |
1 | ||
| 35409 - SPRING SUB-ASSY, MANUAL DETENT | ||||
| 35409-30010 |
GX100,LX100,SX100..4FC..(AVT,RAF,XL) |
1 | ||
| 35409-22030 |
GX100..4FC..AVT |
1 | ||
| 35409-30010 |
GX100,LX100..4FC |
1 | ||
| 35410 - BODY ASSY, TRANSMISSION VALVE | ||||
| 35410-22730 |
GX100..4FC..AVT |
1 | ||
| 35418 - VALVE, MANUAL | ||||
| 35418-30060 |
GX100..4FC |
1 | ||
| 35418-24010 |
GX10#,JZX100,105..4FC |
1 | ||
| 35419 - VALVE, CHECK, NO.1 | ||||
| 35419-50010 |
GX100..4FC |
1 | ||
| 35419-22010 |
GX100,LX100,SX100..4FC |
1 | ||
| 35419A - SPRING, COMPRESSION (FOR CHECK VALVE) | ||||
| 90501-09093 |
GX10#,JZX10#..ATM |
1 | ||
| 90501-13003 |
GX100,LX100..4FC |
1 | ||
| 35420D - BALL (FOR LOWER VALVE BODY) | ||||
| 35496-22030 |
GX100..4FC 外径=6.35,ﾗﾊﾞｰ |
2 | ||
| 35421A - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.1) | ||||
| 90501-20063 |
GX100,SX100..4FC |
1 | ||
| 90501-20162 |
GX100..4FC |
1 | ||
| 90501-21028 |
GX100..4FC |
1 | ||
| 35421G - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.2) | ||||
| 90501-27016 |
GX100..4FC |
1 | ||
| 90501-28030 |
GX100..4FC |
1 | ||
| 90501-26092 |
GX100..4FC |
1 | ||
| 35421Q - SPRING, COMPRESSION (FOR ACCUMULATOR PISTON NO.3) | ||||
| 90501-22033 |
GX100..4FC |
1 | ||
| 90501-23147 |
GX100..4FC |
1 | ||
| 35423 - PISTON, B-2 ACCUMULATOR | ||||
| 35421-26010 |
GX100..4FC |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-23010 |
GX10#,JZX10#..ATM 上側 |
1 | ||
| 90301-26012 |
GX100..4FC 下側 |
1 | ||
| 35423B - RING, O (FOR B-2 ACCUMULATOR PISTON) | ||||
| 90301-23010 |
GX10#,JZX10#..ATM 上側 |
1 | ||
| 90301-26012 |
GX100..4FC 下側 |
1 | ||
| 35424C - PISTON, C-1 ACCUMULATOR | ||||
| 35421-22030 |
GX100..4FC |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-21012 |
GX100..4FC 上側 |
1 | ||
| 90301-29011 |
GX100..4FC 下側 |
1 | ||
| 35424E - RING, O (FOR C-1 ACCUMULATOR PISTON) | ||||
| 90301-21012 |
GX100..4FC 上側 |
1 | ||
| 90301-29011 |
GX100..4FC 下側 |
1 | ||
| 35425A - PISTON, C-2 ACCUMULATOR | ||||
| 35441-30010 |
GX100..4FC |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-26012 |
GX100..4FC 下側 |
1 | ||
| 90301-18010 |
GX100..4FC 上側 |
1 | ||
| 35425C - RING, O (FOR C-2 ACCUMULATOR PISTON) | ||||
| 90301-26012 |
GX100..4FC 下側 |
1 | ||
| 90301-18010 |
GX100..4FC 上側 |
1 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-50030 |
JZX100..TOUS;GX100,JZX101..4FC |
2 | ||
| 35441C - STRAINER, SOLENOID OIL | ||||
| 35441-50030 |
JZX100..TOUS;GX100,JZX101..4FC |
2 | ||
| 35473 - COVER, TRANSMISSION VALVE BODY | ||||
| 35473-22010 |
GX100,LX100..4FC |
1 | ||
| 35473-22020 |
GX100..4FC |
1 | ||
| 35481B - CLAMP, VALVE BODY WIRE HARNESS | ||||
| 35481-22020 |
GX100..4FC |
1 | ||
| 35482B - CLAMP, TEMPERATURE SENSOR | ||||
| 35482-22020 |
GX100..4FC |
1 | ||
| 35487B - BALL, CHECK, NO.4 | ||||
| 35487-30010 |
GX100,LX100,SX100..4FC |
1 | ||
| 35487C - SPRING, COMPRESSION (FOR CHECK BALL) | ||||
| 90504-05006 |
GX100,LX100,SX100..4FC |
1 | ||
| 35495B - BALL, CHECK, NO.1 | ||||
| 35495-22020 |
GX100..4FC |
11 | ||
| 35599 - COVER, MANUAL DETENT SPRING | ||||
| 35599-22030 |
GX100..4FC..AVT |
1 | ||
| 35599-30010 |
GX100,LX100,SX100..4FC |
1 | ||
| 35892 - TUBE, OVERDRIVE BRAKE | ||||
| 35892-30030 |
GX100..4FC |
1 | ||
| 35892-26010 |
GX100..4FC |
1 | ||
| 35892-22010 |
GX100..4FC |
1 | ||
| Common parts | ||||
| 90105-06030 | ||||
| 90105-06053 | ||||
| Linked diagrams | ||||
| 8410 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
