GX100-BTMQK (1996)
Toyota Chaser

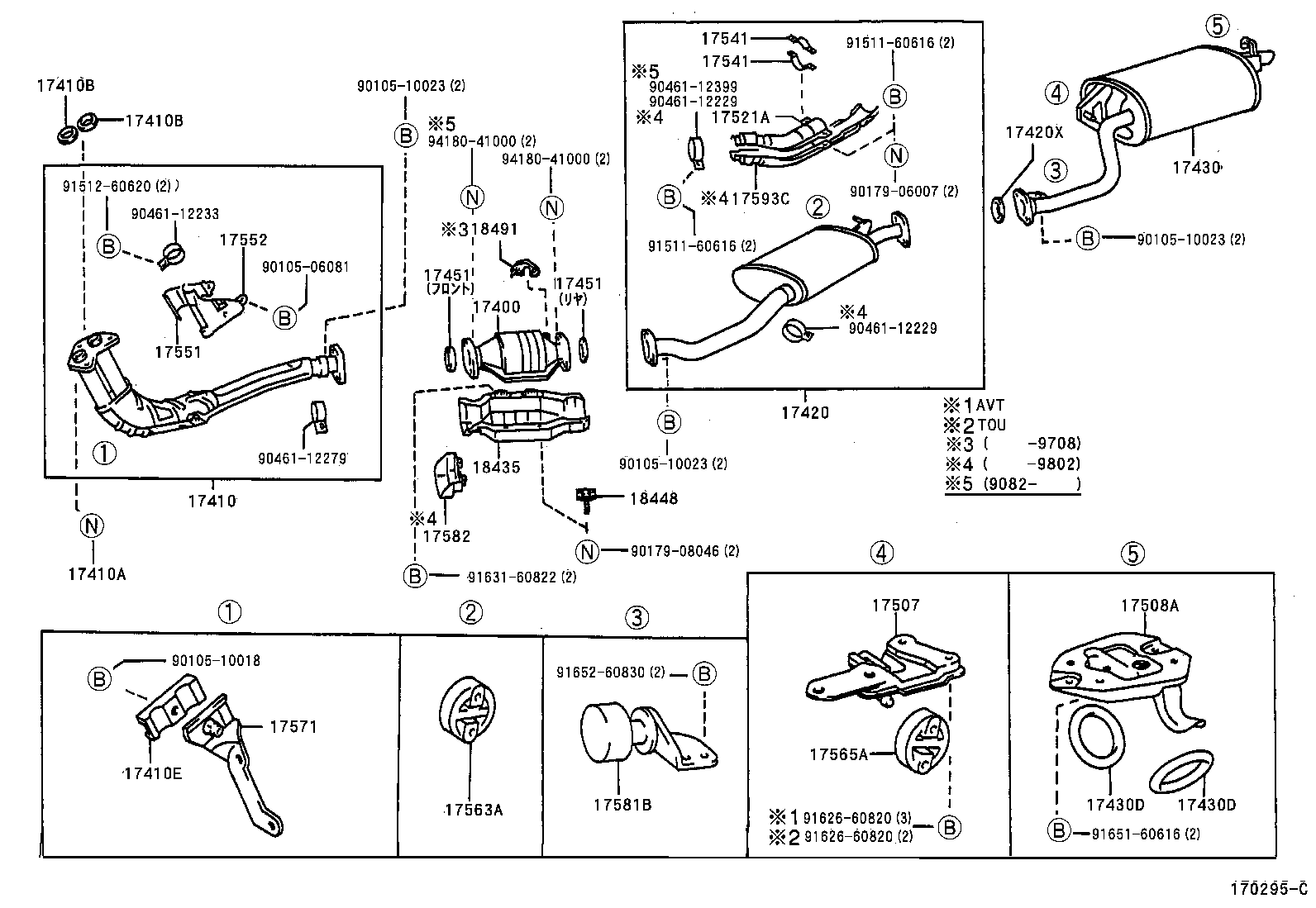

(9609-9808)1GFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17400 - CONVERTER ASSY, W/CATALYST | ||||
| 18450-70110 |
1GFE..GX100 |
1 | ||
| 18450-70140 |
1GFE..GX100 |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-70240 |
1GFE..GX100 |
1 | ||
| 17410-70230 |
1GFE..GX100 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
1GFE,1JZ#,2JZGE,2LTE,4SFE..GX10#,JZX10#,LX100,SX100 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06061 |
1GFE,1JZGE..GX10#,JZX100,105 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06061 |
1GFE,1JZGE..GX10#,JZX100,105 |
2 | ||
| 17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT) | ||||
| 90917-04060 |
1GFE,1JZGE..GX100,JZX100,105 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-70291 |
1GFE..GX100 |
1 | ||
| 17420-70310 |
1GFE..GX100 |
1 | ||
| 17420-70290 |
1GFE..GX100 |
1 | ||
| 17420-70320 |
1GFE..GX100 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06078 |
1GFE,1JZGE,2JZGE..GX10#,JZX10# |
1 | ||
| 90917-06045 |
1GFE,2LTE..GX100,LX100 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-70620 |
1GFE..GX100 |
1 | ||
| 17430-70650 |
1GFE..GX100 |
1 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 90301-36001 |
1GFE,1JZ#,2JZGE,2LTE,4SFE..GX100,JZX10#,LX100,SX100 |
2 | ||
| 90301-36001 |
1GFE,1JZ#,2JZGE,2LTE,4SFE..GX10#,JZX10#,LX100,SX100..AVT,AVTG,TOUS,TOUV,XL |
2 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 90301-36001 |
1GFE,1JZ#,2JZGE,2LTE,4SFE..GX100,JZX10#,LX100,SX100 |
2 | ||
| 90301-36001 |
1GFE,1JZ#,2JZGE,2LTE,4SFE..GX10#,JZX10#,LX100,SX100..AVT,AVTG,TOUS,TOUV,XL |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06041 |
1GFE..GX100 ﾌﾛﾝﾄ |
1 | ||
| 90917-06045 |
1GFE..GX100 ﾘﾔ |
1 | ||
| 90917-06078 |
1GFE,2JZGE..GX100,JZX101 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06041 |
1GFE..GX100 ﾌﾛﾝﾄ |
1 | ||
| 90917-06045 |
1GFE..GX100 ﾘﾔ |
1 | ||
| 90917-06078 |
1GFE,2JZGE..GX100,JZX101 |
1 | ||
| 17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT | ||||
| 17507-46070 |
1GFE,1JZGE,2JZGE,2LTE,4SFE..GX10#,JZX10#,LX100,SX100..AVT,AVTG,RAF,XL |
1 | ||
| 17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT | ||||
| 17508-46020 |
1GFE,1JZ#,2JZGE,2LTE,4SFE..GX100,JZX10#,LX100,SX100 |
1 | ||
| 17508-70070 |
1GFE..GX100 |
1 | ||
| 17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1 | ||||
| 17521-70130 |
1GFE..GX100 |
1 | ||
| 17541 - STAY, EXHUST PIPE PROTECTOR, NO.1 | ||||
| 17541-34020 |
1GFE..GX100 |
2 | ||
| 17541 - STAY, EXHUST PIPE PROTECTOR, NO.1 | ||||
| 17541-34020 |
1GFE..GX100 |
2 | ||
| 17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1 | ||||
| 17551-41041 |
1GFE,1JZGE..GX100,JZX100 |
1 | ||
| 17552 - INSULATOR, EXHAUST PIPE HEAT, NO.2 | ||||
| 17552-41041 |
1GFE,1JZGE..GX100,JZX100 |
1 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17565-11160 |
1GFE,2LTE,4SFE..GX100,LX100,SX100..AVT,XL |
1 | ||
| 17565-74280 |
1JZGE..JZX105;1GFE,1JZGTE,2JZGE..GX100,JZX100,101 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-11160 |
1GFE..GX10#..AVT |
1 | ||
| 17565-74280 |
1JZGE..JZX105;1GFE,1JZGTE,2JZGE,2LTE,4SFE..GX100,JZX100,101,LX100,SX100 |
1 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-70030 |
1GFE..GX100 |
1 | ||
| 17582 - BRACKET, CATALYTIC CONVERTER SUPPORT, UPPER | ||||
| 17582-46020 |
1GFE..GX100 |
1 | ||
| 17593C - PROTECTOR, EXHAUST PIPE, LOWER NO.1 | ||||
| 17593-70120 |
1GFE..GX100 |
1 | ||
| 18435 - PROTECTOR, CATALYTIC CONVERTER | ||||
| 18407-42010 |
1GFE,1JZGE..GX100,JZX100,105 |
1 | ||
| 18448 - BRACKET, CONVERTER PROTECTOR, CENTER | ||||
| 18448-43010 |
1GFE,1JZGE..GX100,JZX100,105 |
2 | ||
| 18491 - FLANGE, THERMOSENSOR INLET | ||||
| 18491-63010 |
1GFE,1JZGE,4SFE..GX100,JZX100,105,SX100 |
1 | ||
| Common parts | ||||
| 90105-06081 | ||||
| 90105-10018 | ||||
| 90105-10023 | ||||
| 90179-06007 | ||||
| 90179-08046 | ||||
| 90461-12229 | ||||
| 90461-12233 | ||||
| 90461-12279 | ||||
| 90461-12399 | ||||
| 91511-60616 | ||||
| 91512-60620 | ||||
| 91626-60820 | ||||
| 91631-60822 | ||||
| 91651-60616 | ||||
| 91652-60830 | ||||
| 94180-41000 | ||||

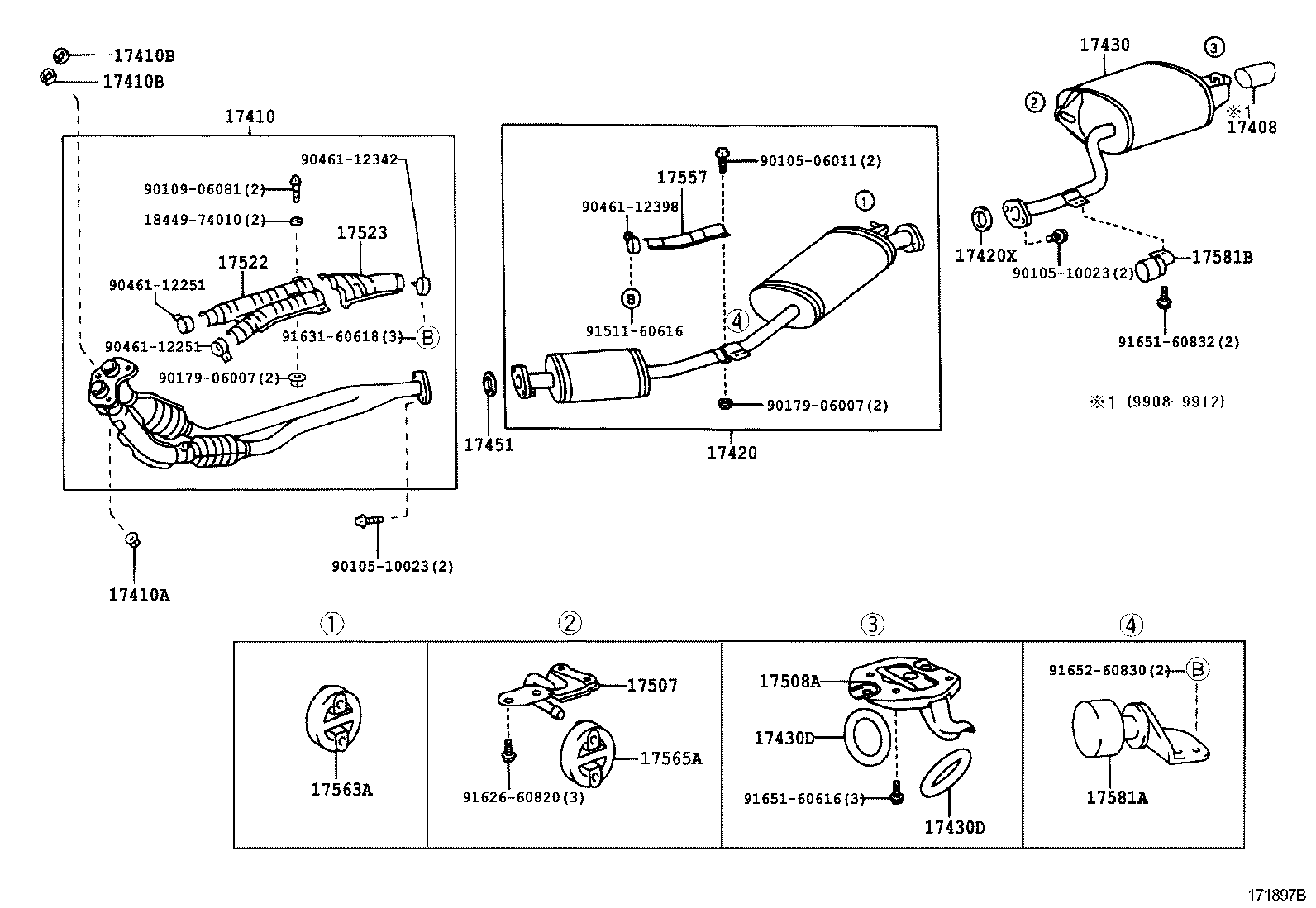

(9808- )1GFE..GX100
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17410-70240 |
1GFE..GX100 |
1 | ||
| 17410-70230 |
1GFE..GX100 |
1 | ||
| 17410A - NUT, EXHAUST PIPE SET STUD BOLT | ||||
| 90179-10070 |
1GFE,1JZ#,2JZGE,2LTE,4SFE..GX10#,JZX10#,LX100,SX100 |
3 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06061 |
1GFE,1JZGE..GX10#,JZX100,105 |
2 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 90917-06061 |
1GFE,1JZGE..GX10#,JZX100,105 |
2 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17420-70291 |
1GFE..GX100 |
1 | ||
| 17420-70310 |
1GFE..GX100 |
1 | ||
| 17420-70290 |
1GFE..GX100 |
1 | ||
| 17420-70320 |
1GFE..GX100 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 90917-06078 |
1GFE,1JZGE,2JZGE..GX10#,JZX10# |
1 | ||
| 90917-06045 |
1GFE,2LTE..GX100,LX100 |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17430-70620 |
1GFE..GX100 |
1 | ||
| 17430-70650 |
1GFE..GX100 |
1 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 90301-36001 |
1GFE,1JZ#,2JZGE,2LTE,4SFE..GX100,JZX10#,LX100,SX100 |
2 | ||
| 90301-36001 |
1GFE,1JZ#,2JZGE,2LTE,4SFE..GX10#,JZX10#,LX100,SX100..AVT,AVTG,TOUS,TOUV,XL |
2 | ||
| 17430D - BOLT OR RING, EXHAUST TAIL PIPE (FOR FRONT) | ||||
| 90301-36001 |
1GFE,1JZ#,2JZGE,2LTE,4SFE..GX100,JZX10#,LX100,SX100 |
2 | ||
| 90301-36001 |
1GFE,1JZ#,2JZGE,2LTE,4SFE..GX10#,JZX10#,LX100,SX100..AVT,AVTG,TOUS,TOUV,XL |
2 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 90917-06041 |
1GFE..GX100 ﾌﾛﾝﾄ |
1 | ||
| 90917-06045 |
1GFE..GX100 ﾘﾔ |
1 | ||
| 90917-06078 |
1GFE,2JZGE..GX100,JZX101 |
1 | ||
| 17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT | ||||
| 17507-46070 |
1GFE,1JZGE,2JZGE,2LTE,4SFE..GX10#,JZX10#,LX100,SX100..AVT,AVTG,RAF,XL |
1 | ||
| 17508A - BRACKET SUB-ASSY, EXHAUST PIPE NO.3 SUPPORT | ||||
| 17508-46020 |
1GFE,1JZ#,2JZGE,2LTE,4SFE..GX100,JZX10#,LX100,SX100 |
1 | ||
| 17508-70070 |
1GFE..GX100 |
1 | ||
| 17522 - PROTECTOR, EXHAUST PIPE, UPPER NO.2 | ||||
| 17522-70120 |
1GFE..GX100 |
1 | ||
| 17523 - PROTECTOR, EXHAUST PIPE, UPPER NO.3 | ||||
| 17523-70060 |
1GFE..GX100 |
1 | ||
| 17557 - INSULATOR, EXHAUST PIPE HEAT, NO.7 | ||||
| 17557-46020 |
1GFE,2JZGE..GX100,JZX101 |
1 | ||
| 17563A - SUPPORT, EXHAUST PIPE, NO.3 | ||||
| 17565-11160 |
1GFE,2LTE,4SFE..GX100,LX100,SX100..AVT,XL |
1 | ||
| 17565-74280 |
1JZGE..JZX105;1GFE,1JZGTE,2JZGE..GX100,JZX100,101 |
1 | ||
| 17565A - SUPPORT, EXHAUST PIPE, NO.4 | ||||
| 17565-11160 |
1GFE..GX10#..AVT |
1 | ||
| 17565-74280 |
1JZGE..JZX105;1GFE,1JZGTE,2JZGE,2LTE,4SFE..GX100,JZX100,101,LX100,SX100 |
1 | ||
| 17581A - DAMPER, EXHAUST PIPE | ||||
| 17581-46070 |
1GFE,2JZGE..GX100,JZX101 |
1 | ||
| Common parts | ||||
| 18449-74010 | ||||
| 90105-06011 | ||||
| 90105-10023 | ||||
| 90109-06081 | ||||
| 90179-06007 | ||||
| 90461-12251 | ||||
| 90461-12342 | ||||
| 90461-12398 | ||||
| 91511-60616 | ||||
| 91626-60820 | ||||
| 91631-60618 | ||||
| 91651-60616 | ||||
| 91651-60832 | ||||
| 91652-60830 | ||||
