VG45-GEPQE (1990)

Toyota Century

Production Sep 1990 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9502- )

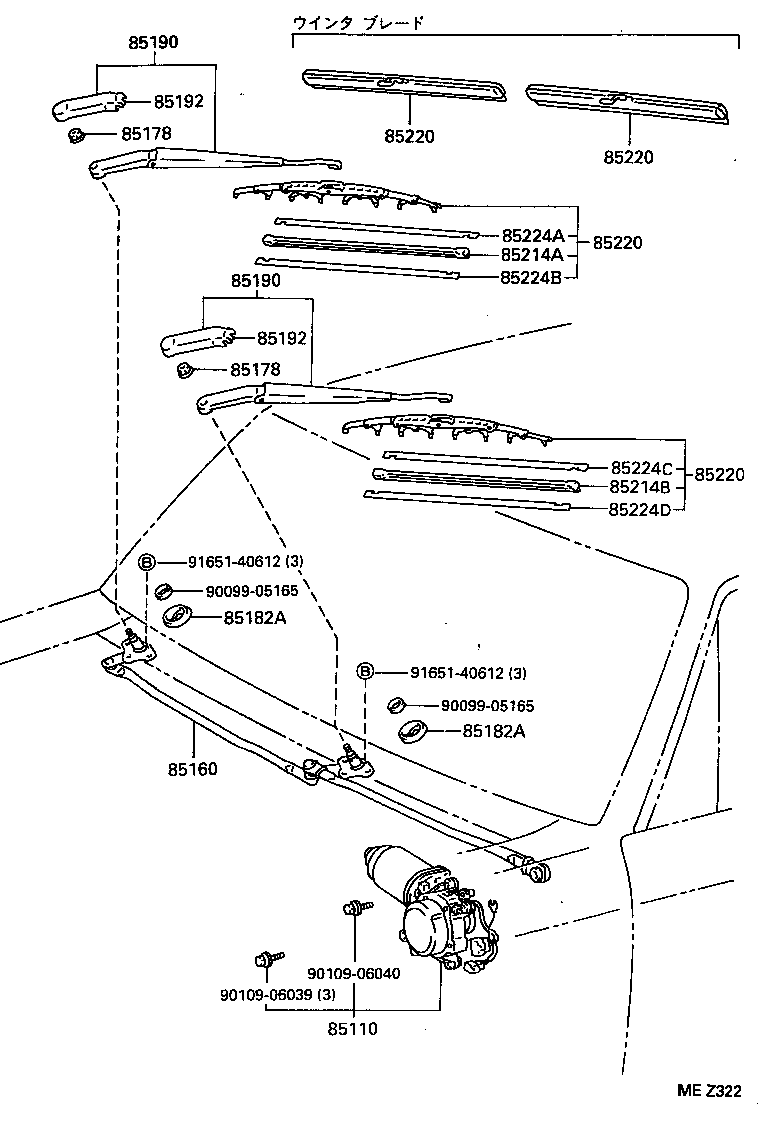

Click highlighted areas on diagram

diagram 85110 85160 85178 85178 85182A 85182A 85190 85190 85192 85192 85214A 85214B 85220 85220 85220 85220 85224A 85224B 85224C 85224D 9009905165 9009905165 9010906039 9010906040 9165140612 9165140612
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-40030

VG4#

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-40040

VG4#

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08016

VG4#

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
90176-08016

VG4#

 2
85182A - COVER, WIPER SHAFT
85182-40040

VG4#

 2
85182A - COVER, WIPER SHAFT
85182-40040

VG4#

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-40051

VG4#

右側

 1
85211-40060

VG4#

右側

 1
85221-40050

VG4#

左側

 1
85210-40031

VG4#

左側

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-40051

VG4#

右側

 1
85211-40060

VG4#

右側

 1
85221-40050

VG4#

左側

 1
85210-40031

VG4#

左側

 1
85192 - COVER, WINDSHIELD WIPER ARM
85192-40010

VG4#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85192-40010

VG4#

 2
85214A - RUBBER, WIPER, RH
85214-20320

VG4#

 1
85214B - RUBBER, WIPER, LH
85214-20320

VG4#

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16521

VG4#

左側

 1
85212-40060

VG4#

右側

 1
85291-60020

VG4#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,右側

 1
85222-40050

VG4#

左側

 1
85291-30030

VG4#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,左側

 1
85212-40070

VG4#

右側

 1
85222-40060

VG4#

左側

 1
85220-16481

VG4#

右側

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16521

VG4#

左側

 1
85212-40060

VG4#

右側

 1
85291-60020

VG4#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,右側

 1
85222-40050

VG4#

左側

 1
85291-30030

VG4#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,左側

 1
85212-40070

VG4#

右側

 1
85222-40060

VG4#

左側

 1
85220-16481

VG4#

右側

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16521

VG4#

左側

 1
85212-40060

VG4#

右側

 1
85291-60020

VG4#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,右側

 1
85222-40050

VG4#

左側

 1
85291-30030

VG4#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,左側

 1
85212-40070

VG4#

右側

 1
85222-40060

VG4#

左側

 1
85220-16481

VG4#

右側

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16521

VG4#

左側

 1
85212-40060

VG4#

右側

 1
85291-60020

VG4#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,右側

 1
85222-40050

VG4#

左側

 1
85291-30030

VG4#

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ,左側

 1
85212-40070

VG4#

右側

 1
85222-40060

VG4#

左側

 1
85220-16481

VG4#

右側

 1
85224A - PLATE, WIPER RUBBER BACKING, NO.1
85224-40060

VG4#

 1
85224B - PLATE, WIPER RUBBER BACKING, NO.2
85224-40060

VG4#

 1
85224C - PLATE, WIPER RUBBER BACKING, NO.3
85224-40050

VG4#

 1
85224D - PLATE, WIPER RUBBER BACKING, NO.4
85224-40050

VG4#

 1
Common parts
90099-05165
90109-06039
90109-06040
91651-40612
