VG40-GESQE (1987)

Toyota Century

Production Sep 1987 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

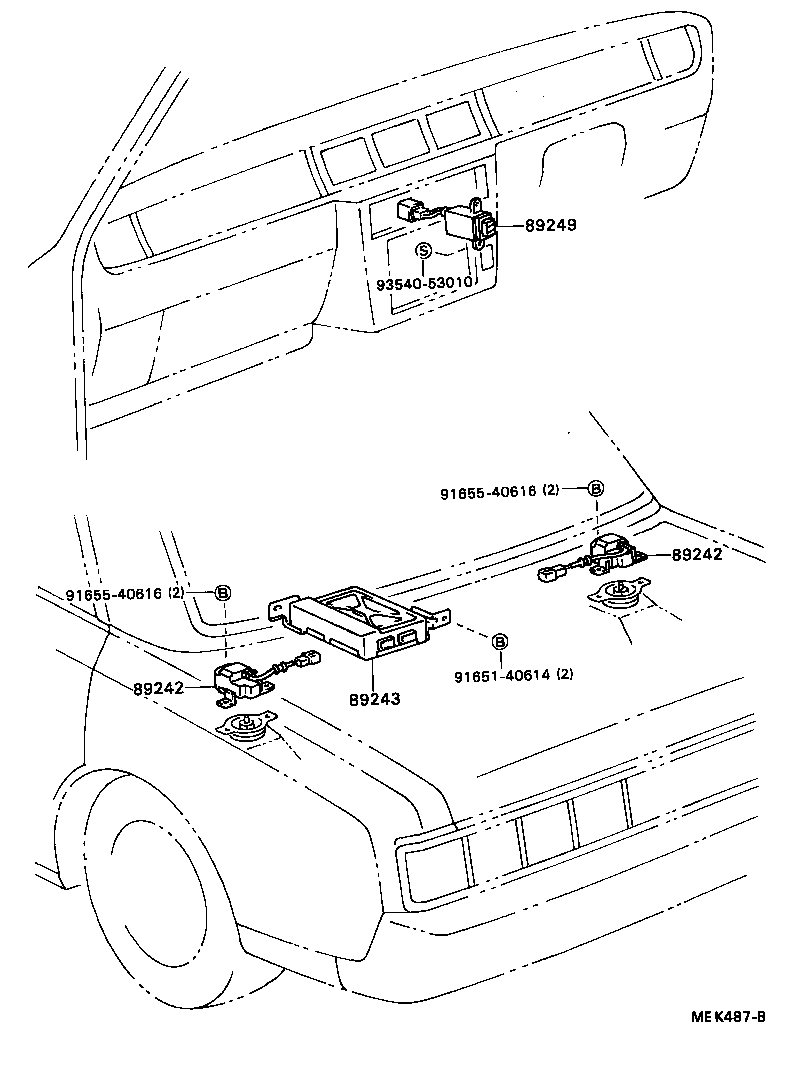

Click highlighted areas on diagram

diagram 89242 89242 89243 89249 9165140614 9165540616 9165540616 9354053010
Part # Description Qty Price
89242 - ACTUATOR, ABSORBER CONTROL, RR
89242-22010

VG4#..E,L

 2
89242 - ACTUATOR, ABSORBER CONTROL, RR
89242-22010

VG4#..E,L

 2
89243 - COMPUTER, ABSORBER CONTROL
89243-40021

VG4#..E,L

 1
89243-40020

VG40..E

 1
89249 - SWITCH, ABSORBER CONTROL
89249-40010

VG40..E

 1
89249-40020

VG4#..E,L

 1
Common parts
91651-40614
91655-40616
93540-53010
