VG40-GESGE (1987)
Toyota Century
Production
Sep 1987
-
Sep 1990
Engine
5VEU
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8709- )

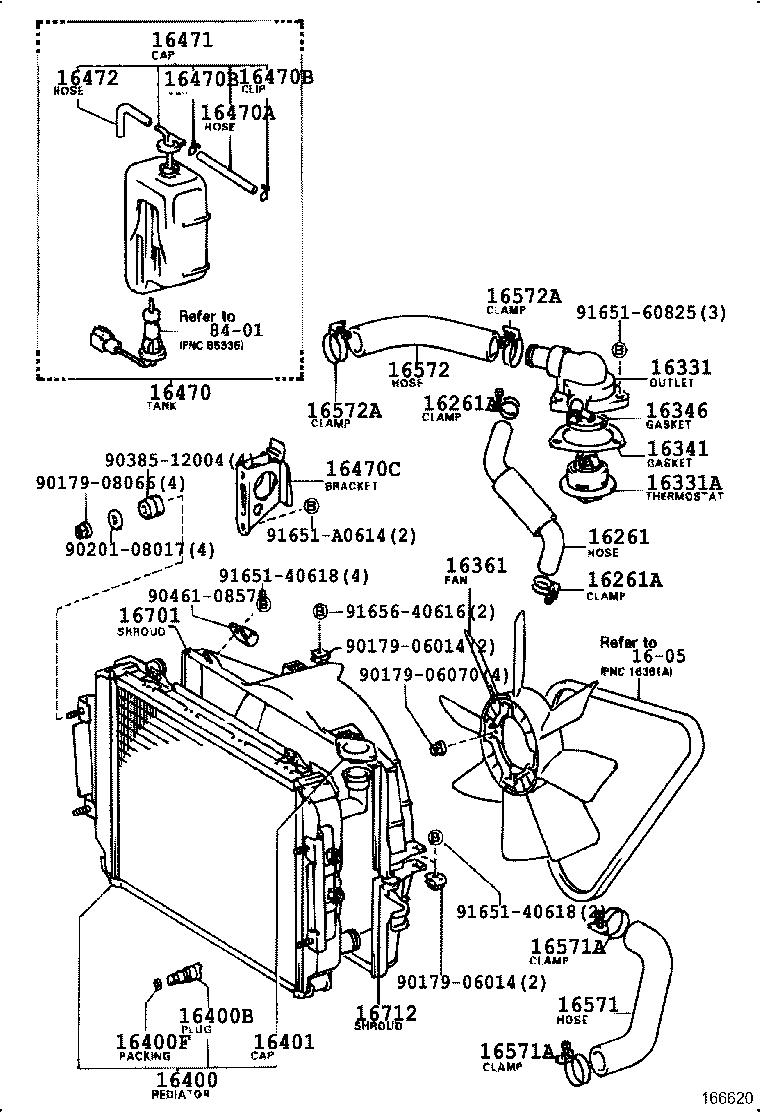

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-52010 |
5VEU..VG4# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10330 |
5VEU..VG4# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 96112-10330 |
5VEU..VG4# |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16304-52020 |
5VEU..VG40..4HC..E ﾘﾑｼﾞﾝ H,S |
1 | ||
| 16304-52010 |
5VEU..VG4# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03064 |
5VEU..VG4# *WAX 88−100 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-52020 |
5VEU..VG40 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 90430-40058 |
5VEU..VG4# |
1 | ||
| 16361 - FAN | ||||
| 16361-52020 |
5VEU..VG4# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-52050 |
5VEU..VG4# |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09054 |
5VEU..VG4# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
5VEU..VG4# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
5VEU..VG4# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-52021 |
5VEU..VG4# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90099-33534 |
5VEU..VG4# 長さ=1000 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
5VEU..VG4# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
5VEU..VG4# |
2 | ||
| 16470C - BRACKET(FOR RADIATOR RESERVE TANK) | ||||
| 16402-52010 |
5VEU..VG4# |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-52011 |
5VEU..VG4# |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-22030 |
5VEU..VG4# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-52020 |
5VEU..VG4# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10510 |
5VEU..VG4# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 96111-10510 |
5VEU..VG4# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-52040 |
5VEU..VG4# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10510 |
5VEU..VG4# |
2 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10510 |
5VEU..VG4# |
2 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-52020 |
5VEU..VG4# |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-52010 |
5VEU..VG4# |
1 | ||
| Common parts | ||||
| 90179-06014 | ||||
| 90179-06070 | ||||
| 90179-08066 | ||||
| 90201-08017 | ||||
| 90385-12004 | ||||
| 90461-08570 | ||||
| 91651-40618 | ||||
| 91651-60825 | ||||
| 91651-A0614 | ||||
| 91656-40616 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 8401 | ||||
