VG40-GEPQE (1987)
Toyota Century
(8709- )

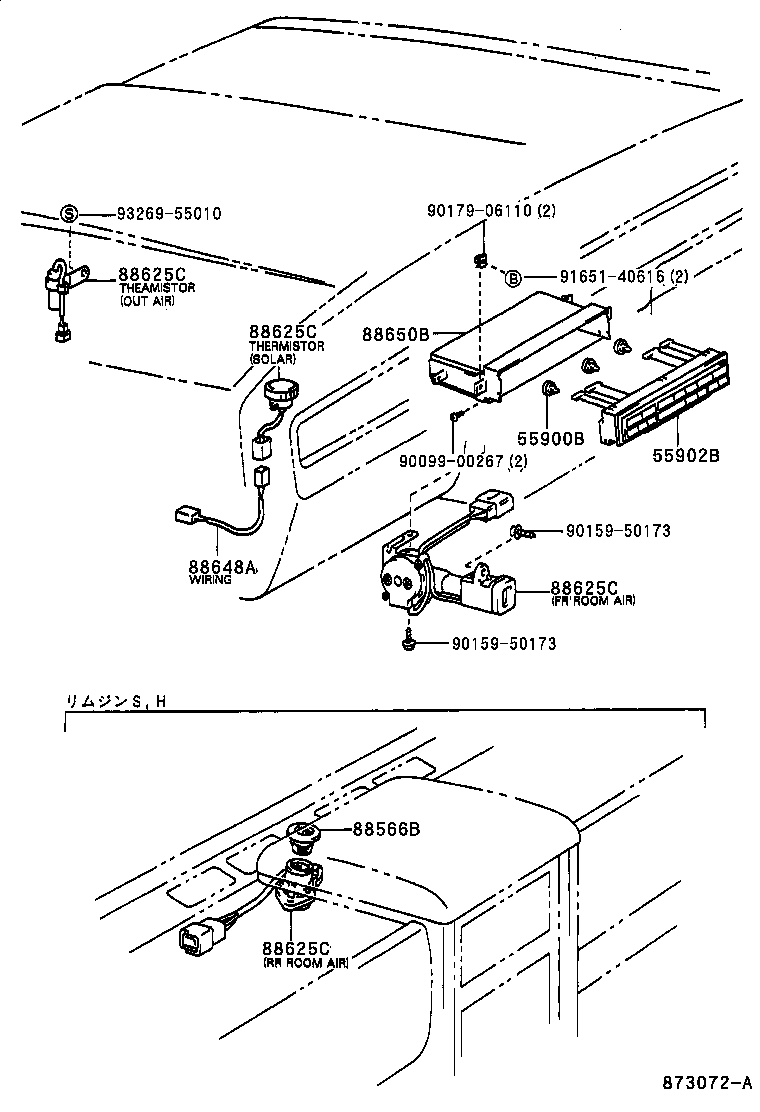

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 84999-60760 |
VG4# |
3 | ||
| 55902B - CONTROL SUB-ASSY, HEATER | ||||
| 55902-40020 |
VG4# |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-30550 |
VG4# OUT AIR SENSOR |
1 | ||
| 88625-4010002 |
VG4#..E,L MAROON,TRIM3#,SOLAR SENSOR |
1 | ||
| 88625-4010013 |
VG4# SHADOW GRAY,TRIM1#,SOLAR SENSOR |
1 | ||
| 88625-4010014 |
VG4# DARK BLUE,TRIM8#,SOLAR SENSOR |
1 | ||
| 88625-4010001 |
VG4#..E,L BLACK,TRIM2#,SOLAR SENSOR |
1 | ||
| 88790-40030 |
VG4# FR ROOM AIR SENSOR |
1 | ||
| 88625-40100E0 |
VG4#..E,L SABLE,TRIM4#,SOLAR SENSOR |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-30550 |
VG4# OUT AIR SENSOR |
1 | ||
| 88625-4010002 |
VG4#..E,L MAROON,TRIM3#,SOLAR SENSOR |
1 | ||
| 88625-4010013 |
VG4# SHADOW GRAY,TRIM1#,SOLAR SENSOR |
1 | ||
| 88625-4010014 |
VG4# DARK BLUE,TRIM8#,SOLAR SENSOR |
1 | ||
| 88625-4010001 |
VG4#..E,L BLACK,TRIM2#,SOLAR SENSOR |
1 | ||
| 88790-40030 |
VG4# FR ROOM AIR SENSOR |
1 | ||
| 88625-40100E0 |
VG4#..E,L SABLE,TRIM4#,SOLAR SENSOR |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-30550 |
VG4# OUT AIR SENSOR |
1 | ||
| 88625-4010002 |
VG4#..E,L MAROON,TRIM3#,SOLAR SENSOR |
1 | ||
| 88625-4010013 |
VG4# SHADOW GRAY,TRIM1#,SOLAR SENSOR |
1 | ||
| 88625-4010014 |
VG4# DARK BLUE,TRIM8#,SOLAR SENSOR |
1 | ||
| 88625-4010001 |
VG4#..E,L BLACK,TRIM2#,SOLAR SENSOR |
1 | ||
| 88790-40030 |
VG4# FR ROOM AIR SENSOR |
1 | ||
| 88625-40100E0 |
VG4#..E,L SABLE,TRIM4#,SOLAR SENSOR |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-30550 |
VG4# OUT AIR SENSOR |
1 | ||
| 88625-4010002 |
VG4#..E,L MAROON,TRIM3#,SOLAR SENSOR |
1 | ||
| 88625-4010013 |
VG4# SHADOW GRAY,TRIM1#,SOLAR SENSOR |
1 | ||
| 88625-4010014 |
VG4# DARK BLUE,TRIM8#,SOLAR SENSOR |
1 | ||
| 88625-4010001 |
VG4#..E,L BLACK,TRIM2#,SOLAR SENSOR |
1 | ||
| 88790-40030 |
VG4# FR ROOM AIR SENSOR |
1 | ||
| 88625-40100E0 |
VG4#..E,L SABLE,TRIM4#,SOLAR SENSOR |
1 | ||
| 88648A - WIRING, COOLER | ||||
| 88648-40040 |
VG4# |
1 | ||
| 88650B - AMPLIFIER ASSY, AIRCONDITIONER | ||||
| 88650-40130 |
VG4# |
1 | ||
| 88650-40160 |
VG4# |
1 | ||
| 88650-40150 |
VG4# |
1 | ||
| 88650-40110 |
VG4# |
1 | ||
| Common parts | ||||
| 90099-00267 | ||||
| 90159-50173 | ||||
| 90179-06110 | ||||
| 91651-40616 | ||||
| 93269-55010 | ||||
(8709- )

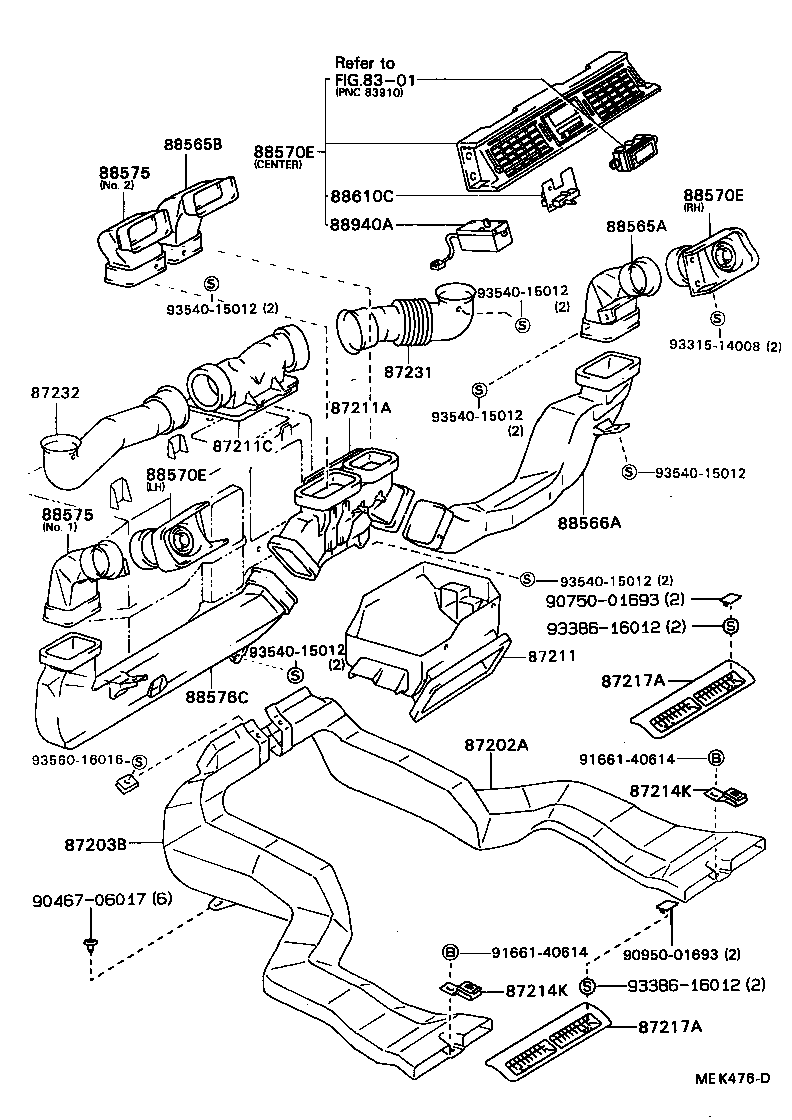

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87202A - DUCT SUB-ASSY, AIR, REAR RH | ||||
| 87202-40030 |
VG4# |
1 | ||
| 87202-40010 |
VG4# |
1 | ||
| 87202-91403 |
VG40 |
1 | ||
| 87203B - DUCT SUB-ASSY, AIR, REAR LH | ||||
| 87203-40030 |
VG4# |
1 | ||
| 87203-40010 |
VG4# |
1 | ||
| 87203-91402 |
VG40 |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-40070 |
VG4# |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-40090 |
VG4# |
1 | ||
| 87211C - DUCT, AIR, NO.4 | ||||
| 87211-40060 |
VG4# |
1 | ||
| 87214K - BRACKET, AIR DUCT | ||||
| 87214-91403 |
VG40 |
2 | ||
| 87214K - BRACKET, AIR DUCT | ||||
| 87214-91403 |
VG40 |
2 | ||
| 87217A - DUCT, AIR, REAR NO.6 | ||||
| 87217-5002001 |
VG4#..E,L BLACK,TRIM2# |
2 | ||
| 87217-5002013 |
VG4# SHADOW GRAY,TRIM1# |
2 | ||
| 87217-5002003 |
VG4# GRAY,TRIM1# |
2 | ||
| 87217-50020E1 |
VG4#..E,L SABLE,TRIM4# |
2 | ||
| 87217-5002012 |
VG4#..E,L MAROON,TRIM3# |
2 | ||
| 87217-5002014 |
VG4# DARK BLUE,TRIM8# |
2 | ||
| 87217A - DUCT, AIR, REAR NO.6 | ||||
| 87217-5002001 |
VG4#..E,L BLACK,TRIM2# |
2 | ||
| 87217-5002013 |
VG4# SHADOW GRAY,TRIM1# |
2 | ||
| 87217-5002003 |
VG4# GRAY,TRIM1# |
2 | ||
| 87217-50020E1 |
VG4#..E,L SABLE,TRIM4# |
2 | ||
| 87217-5002012 |
VG4#..E,L MAROON,TRIM3# |
2 | ||
| 87217-5002014 |
VG4# DARK BLUE,TRIM8# |
2 | ||
| 87231 - HOSE, HEATER DEFROSTER, RH | ||||
| 87231-40060 |
VG4# |
1 | ||
| 87232 - HOSE, HEATER DEFROSTER, LH | ||||
| 87232-40060 |
VG4# |
1 | ||
| 88565A - ADAPTER, AIR DUCT, NO.1 | ||||
| 88565-40010 |
VG4# |
1 | ||
| 88565B - ADAPTER, AIR DUCT, NO.2 | ||||
| 88565-40021 |
VG4# |
1 | ||
| 88566A - DUCT, COOLER AIR, NO.1 | ||||
| 88566-40080 |
VG4# |
1 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-40081 |
VG4# 左側 |
1 | ||
| 88570-40071 |
VG4# 右側 |
1 | ||
| 88570-40100 |
VG4# CENTER |
1 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-40081 |
VG4# 左側 |
1 | ||
| 88570-40071 |
VG4# 右側 |
1 | ||
| 88570-40100 |
VG4# CENTER |
1 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-40081 |
VG4# 左側 |
1 | ||
| 88570-40071 |
VG4# 右側 |
1 | ||
| 88570-40100 |
VG4# CENTER |
1 | ||
| 88575 - ADAPTER, AIR DUCT | ||||
| 88575-40010 |
VG4# NO.1 |
1 | ||
| 88575-40021 |
VG4# NO.2 |
1 | ||
| 88575 - ADAPTER, AIR DUCT | ||||
| 88575-40010 |
VG4# NO.1 |
1 | ||
| 88575-40021 |
VG4# NO.2 |
1 | ||
| 88576C - DUCT, COOLER AIR, NO.1 | ||||
| 88576-40060 |
VG4# |
1 | ||
| 88610C - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-40060 |
VG4# |
1 | ||
| 88940A - ACTUATOR ASSY, SWING GRILLE | ||||
| 88940-40011 |
VG4# |
1 | ||
| 88940-40010 |
VG40 |
1 | ||
| Common parts | ||||
| 90467-06017 | ||||
| 90750-01693 | ||||
| 90950-01693 | ||||
| 91661-40614 | ||||
| 93315-14008 | ||||
| 93386-16012 | ||||
| 93540-15012 | ||||
| 93540-15020 | ||||
| 93560-16016 | ||||
| Linked diagrams | ||||
| 8301 | ||||
