VG40-GEPQE (1987)

Toyota Century

Production Sep 1987 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

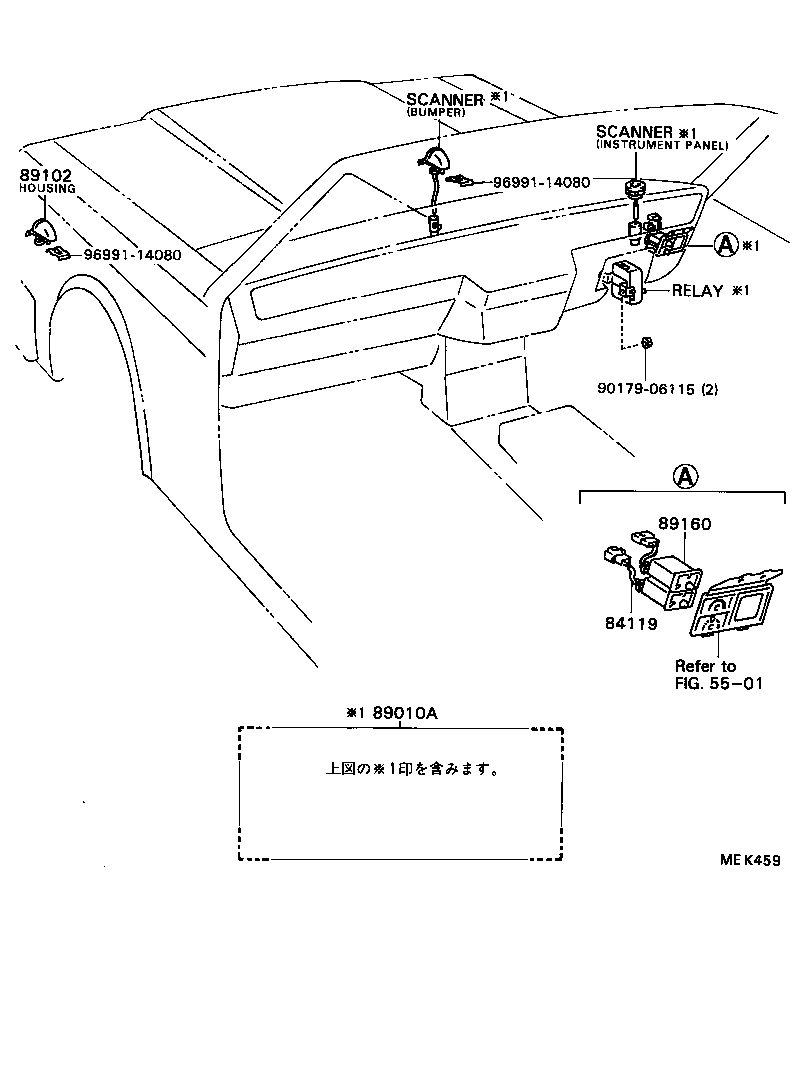

Click highlighted areas on diagram

diagram 5501 84119 89010A 89102 89160 9017906115 9699114080 9699114080
Part # Description Qty Price
84119 - RHEOSTAT, LIGHT CONTROL
84119-40010

VG4#

 1
89010A - CONLIGHT SET
89010-4004003

VG4#

SHADOW GRAY,TRIM1#

 1
89010-4004001

VG4#..E,L

BLACK,TRIM2#

 1
89010-40040E0

VG4#..E,L

SABLE,TRIM4#

 1
89010-4004002

VG4#..E,L

MAROON,TRIM3#

 1
89010-4004004

VG4#

DARK BLUE,TRIM8#

 1
89102 - HOUSING SUB-ASSY, CONLIGHT SCANNER
89102-40020

VG4#

 1
89160 - VOLUME ASSY, CONLIGHT DIMMER
89160-40040

VG4#

 1
Common parts
90179-06115
96991-14080
Linked diagrams
5501
