VG40-GEPQE (1987)

Toyota Century

Production Sep 1987 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

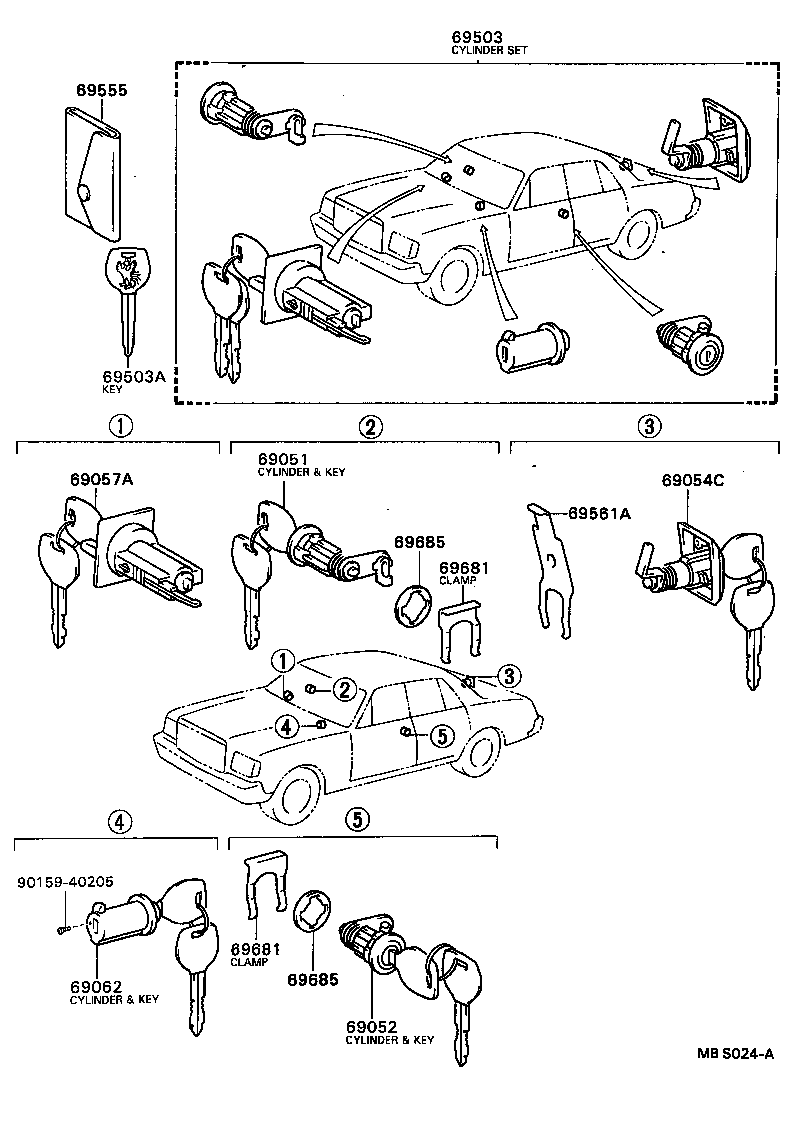

Click highlighted areas on diagram

diagram 69051 69052 69054C 69057A 69062 69503 69503A 69555 69561A 69681 69681 69685 69685 9015940205
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-40040

VG4#

 1
69051-40041

VG4#

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-40040

VG4#

 1
69052-40041

VG4#

 1
69054C - CYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69055-40020

VG4#

 1
69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK
69057-40020

VG4#

 1
69062 - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-40020

VG4#

 1
69503 - CYLINDER SET, LOCK
69005-40030

VG4#

 1
69005-40031

VG4#

 1
69503A - KEY, BLANK
90999-00141

VG4#

ﾏｽﾀｰｷｰ

 1
90999-00142

VG4#

ｻﾌﾞｷｰ

 1
69555 - COVER, KEY
84041-40011

VG4#

 1
69561A - RETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER
69561-30020

VG4#

 1
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

VG4#

 2
69681 - CLAMP, DOOR LOCK CYLINDER & SLEEVE
69681-20040

VG4#

 2
69685 - PAD, LOCK CYLINDER
69513-12020

VG4#

 2
69685 - PAD, LOCK CYLINDER
69513-12020

VG4#

 2
Common parts
90159-40205
