VG40-GEPQE (1987)

Toyota Century

Production Sep 1987 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )VG40 ; (9009- )VG45

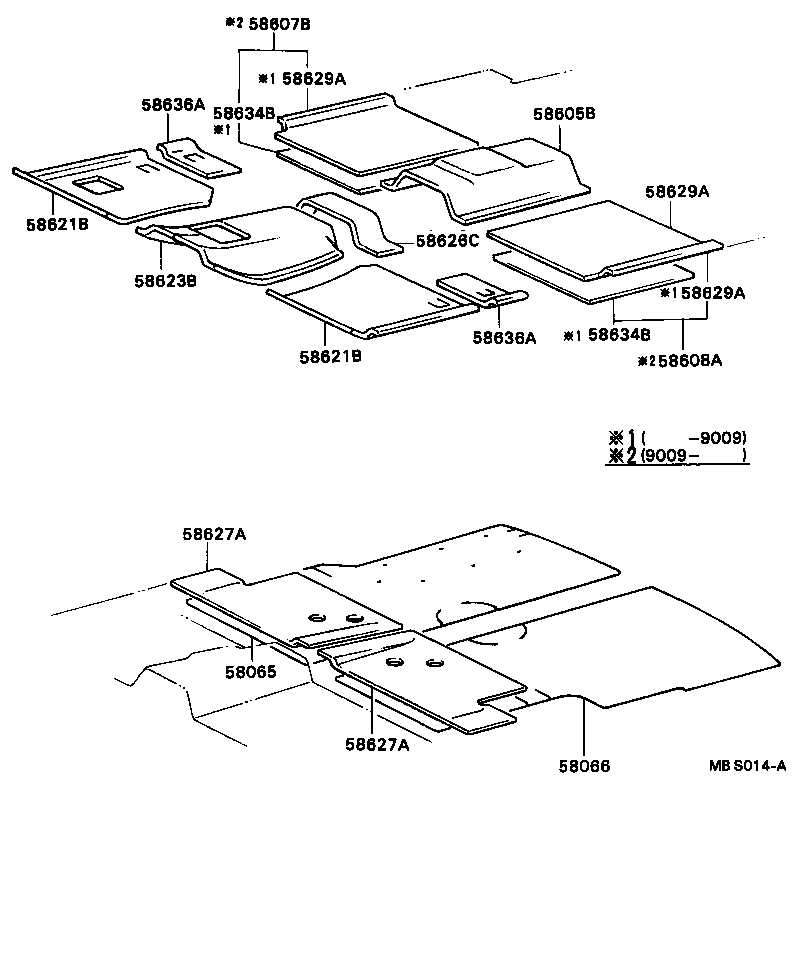

Click highlighted areas on diagram

VG45=ﾘﾑｼﾞﾝL

diagram 58065 58066 58605B 58607B 58608A 58621B 58621B 58623B 58626C 58627A 58627A 58629A 58629A 58629A 58634B 58634B 58636A 58636A
Part # Description Qty Price
58065 - PAD SUB-ASSY, REAR FLOOR SILENSER, RH
58065-91402

VG4#

 1
58065-40010

VG4#

 1
58066 - PAD SUB-ASSY, REAR FLOOR SILENSER, LH
58066-91404

VG4#

 1
58066-91403

VG40

 1
58066-40010

VG4#

 1
58605B - PAD SUB-ASSY, FRONT FLOOR SILENSER, NO.1
58605-91405

VG40

 1
58605-40030

VG40

 1
58607B - PAD SUB-ASSY, FRONT FLOOR SILENCER, REAR RH
58607-40010

VG40

 1
58607-40040

VG40

 1
58608A - PAD SUB-ASSY, FRONT FLOOR SILENCER, REAR LH
58608-40040

VG40

 1
58608-40010

VG40

 1
58621B - PAD, FRONT FLOOR SILENCER
58606-40010

VG4#

左側

 1
58606-40020

VG4#

左側

 1
58605-40040

VG4#

右側

 1
58605-40010

VG4#

右側

 1
58621B - PAD, FRONT FLOOR SILENCER
58606-40010

VG4#

左側

 1
58606-40020

VG4#

左側

 1
58605-40040

VG4#

右側

 1
58605-40010

VG4#

右側

 1
58623B - PAD, FRONT FLOOR SILENCER, CENTER
58623-40010

VG4#

 1
58623-91403

VG4#

 1
58626C - PAD, CENTER FLOOR SILENCER, CENTER
58626-91404

VG4#..4FC

 1
58626-40010

VG4#..4FC

 1
58627A - PAD, CENTER FLOOR SILENCER, REAR
58627-91402

VG4#

右側

 1
58628-40010

VG4#

左側

 1
58627-40010

VG4#

右側

 1
58628-91401

VG4#

左側

 1
58627A - PAD, CENTER FLOOR SILENCER, REAR
58627-91402

VG4#

右側

 1
58628-40010

VG4#

左側

 1
58627-40010

VG4#

右側

 1
58628-91401

VG4#

左側

 1
58634B - PAD, FRONT FLOOR SILENCER, REAR SIDE
58634-91403

VG40

 2
58634B - PAD, FRONT FLOOR SILENCER, REAR SIDE
58634-91403

VG40

 2
58636A - PAD, FRONT FLOOR SILENCER, REAR CENTER
58636-91403

VG4#

 2
58636A - PAD, FRONT FLOOR SILENCER, REAR CENTER
58636-91403

VG4#

 2
