VG40-GEPQE (1987)
Toyota Century
Production
Sep 1987
-
Jan 1997
Engine
5VEU
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

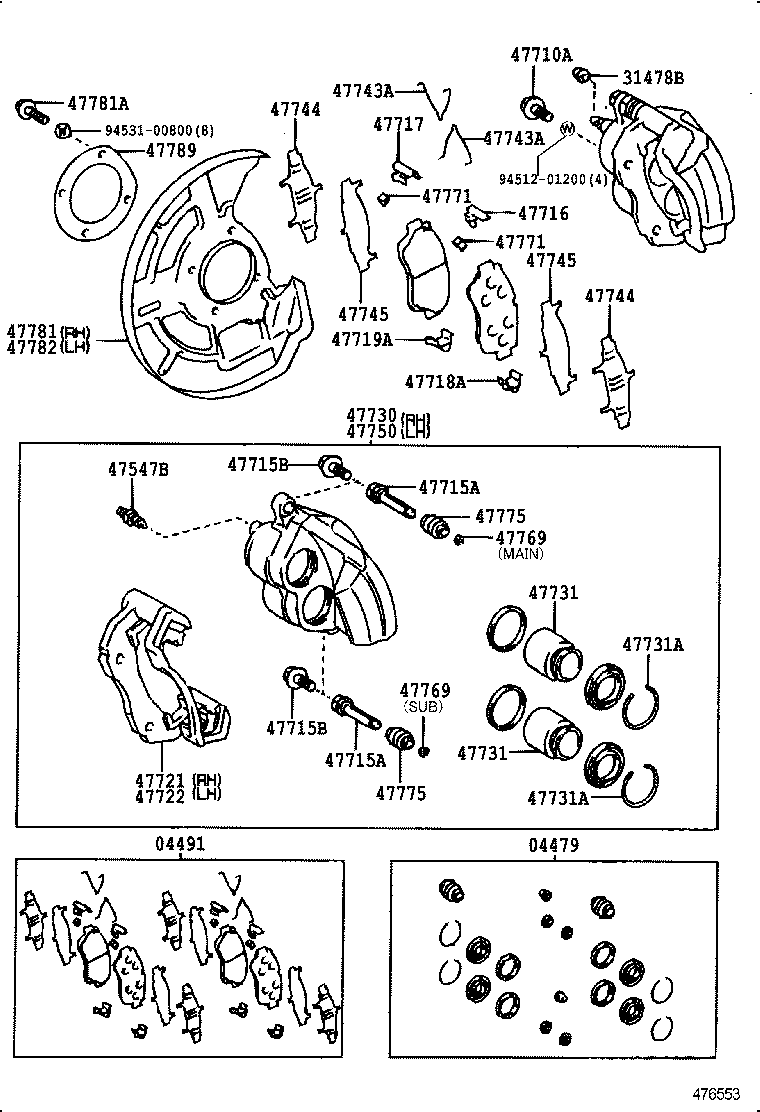

ILLUST NO. 1 OF 2(9212- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-40010 |
VG4# |
1 | ||
| 04479-50030 |
VG4# |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-24031 |
VG4# |
1 | ||
| 04491-40041 |
VG4# |
1 | ||
| 04491-24060 |
VG4# |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
VG4# |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12010 |
VG4# |
2 | ||
| 47547-27030 |
VG4# |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-12030 |
VG4# *12−1.25PX31−20 |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-50020 |
VG4# |
4 | ||
| 47715A - PIN, FRONT DISC BRAKE CYLINDER SLIDE | ||||
| 47715-50020 |
VG4# |
4 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08164 |
VG4# |
4 | ||
| 47715B - BOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE) | ||||
| 90105-08164 |
VG4# |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-50010 |
VG4# |
2 | ||
| 47716-40010 |
VG4# |
4 | ||
| 47716-26040 |
VG4# |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47716-50030 |
VG4# |
2 | ||
| 47717-40010 |
VG4# |
4 | ||
| 47717-26010 |
VG4# |
4 | ||
| 47718A - PLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE) | ||||
| 47717-50011 |
VG4# |
2 | ||
| 47719A - PLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE) | ||||
| 47717-50031 |
VG4# |
2 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-40010 |
VG4# |
1 | ||
| 47721-40030 |
VG4# |
1 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47721-40010 |
VG4# |
1 | ||
| 47722-40010 |
VG4# |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-40081 |
VG4# |
1 | ||
| 47730-40080 |
VG4# |
1 | ||
| 47730-40050 |
VG4# |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-50030 |
VG4# |
4 | ||
| 47731-40010 |
VG4# |
2 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-50030 |
VG4# |
4 | ||
| 47731-40010 |
VG4# |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-70001 |
VG4# |
2 | ||
| 90522-50002 |
VG4# |
4 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-70001 |
VG4# |
2 | ||
| 90522-50002 |
VG4# |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-50030 |
VG4# |
4 | ||
| 47743-40020 |
VG4# |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-50030 |
VG4# |
4 | ||
| 47743-40020 |
VG4# |
4 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-50010 |
VG4# |
4 | ||
| 47744-40040 |
VG4# |
4 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-50010 |
VG4# |
4 | ||
| 47744-40040 |
VG4# |
4 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-50010 |
VG4# |
4 | ||
| 47745-40040 |
VG4# |
4 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-50010 |
VG4# |
4 | ||
| 47745-40040 |
VG4# |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-40050 |
VG4# |
1 | ||
| 47750-40080 |
VG4# |
1 | ||
| 47750-40081 |
VG4# |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-40010 |
VG4# |
2 | ||
| 47769-50010 |
VG4# ﾒｲﾝ ﾋﾟﾝ側 |
2 | ||
| 47769-50020 |
VG4# ｻﾌﾞ ﾋﾟﾝ側 |
2 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-40010 |
VG4# |
2 | ||
| 47769-50010 |
VG4# ﾒｲﾝ ﾋﾟﾝ側 |
2 | ||
| 47769-50020 |
VG4# ｻﾌﾞ ﾋﾟﾝ側 |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-50010 |
VG4# |
4 | ||
| 47771-35010 |
VG4# |
4 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-50010 |
VG4# |
4 | ||
| 47771-35010 |
VG4# |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-50010 |
VG4# |
4 | ||
| 47775 - BOOT, BUSH DUST(FOR FRONT DISC BRAKE) | ||||
| 47775-50010 |
VG4# |
4 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47703-40010 |
VG4#..E,L |
1 | ||
| 47703-40020 |
VG4#..E,L |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90101-08461 |
VG4# |
8 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47704-40020 |
VG4#..E,L |
1 | ||
| 47704-40010 |
VG4#..E,L |
1 | ||
| Common parts | ||||
| 94512-01200 | ||||
| 94531-00800 | ||||

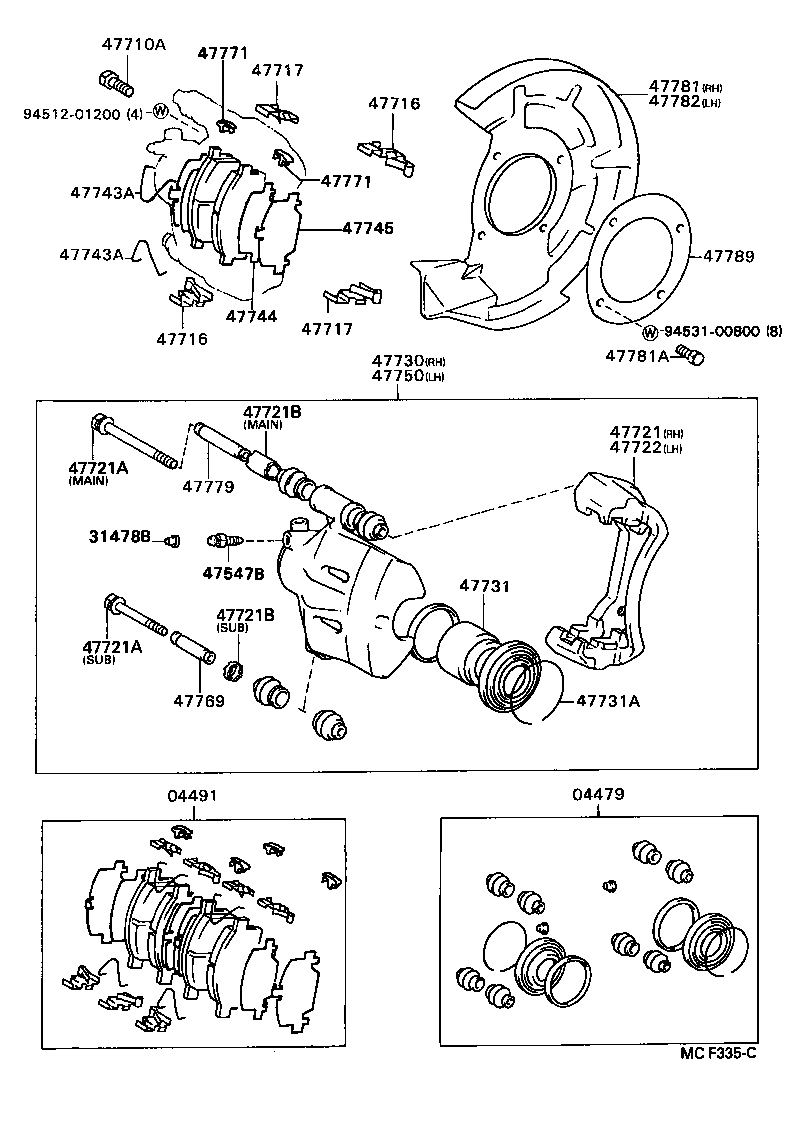

ILLUST NO. 1 OF 2(8709-9212)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04479-40010 |
VG4# |
1 | ||
| 04479-50030 |
VG4# |
1 | ||
| 04491 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04491-24031 |
VG4# |
1 | ||
| 04491-40041 |
VG4# |
1 | ||
| 04491-24060 |
VG4# |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
VG4# |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-12010 |
VG4# |
2 | ||
| 47547-27030 |
VG4# |
2 | ||
| 47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER) | ||||
| 90101-12030 |
VG4# *12−1.25PX31−20 |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-50010 |
VG4# |
2 | ||
| 47716-40010 |
VG4# |
4 | ||
| 47716-26040 |
VG4# |
4 | ||
| 47716 - PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47716-50010 |
VG4# |
2 | ||
| 47716-40010 |
VG4# |
4 | ||
| 47716-26040 |
VG4# |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47716-50030 |
VG4# |
2 | ||
| 47717-40010 |
VG4# |
4 | ||
| 47717-26010 |
VG4# |
4 | ||
| 47717 - PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47716-50030 |
VG4# |
2 | ||
| 47717-40010 |
VG4# |
4 | ||
| 47717-26010 |
VG4# |
4 | ||
| 47721 - MOUNTING, FRONT DISC BRAKE CYLINDER, RH | ||||
| 47721-40010 |
VG4# |
1 | ||
| 47721-40030 |
VG4# |
1 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-10014 |
VG4# *10−1.25PX65.5−30,ｻﾌﾞ ﾋﾟﾝ側 |
2 | ||
| 90119-10249 |
VG4# *10−1.25PX95.5−30,ﾒｲﾝ ﾋﾟﾝ側 |
2 | ||
| 47721A - BOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90119-10014 |
VG4# *10−1.25PX65.5−30,ｻﾌﾞ ﾋﾟﾝ側 |
2 | ||
| 90119-10249 |
VG4# *10−1.25PX95.5−30,ﾒｲﾝ ﾋﾟﾝ側 |
2 | ||
| 47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90387-16005 |
VG4# L=36,MAIN PIN SIDE |
2 | ||
| 90387-16004 |
VG4# L=6,SUB PIN SIDE |
2 | ||
| 47721B - COLLAR(FOR FRONT DISC BRAKE CYLINDER MOUNTING) | ||||
| 90387-16005 |
VG4# L=36,MAIN PIN SIDE |
2 | ||
| 90387-16004 |
VG4# L=6,SUB PIN SIDE |
2 | ||
| 47722 - MOUNTING, FRONT DISC BRAKE CYLINDER, LH | ||||
| 47721-40010 |
VG4# |
1 | ||
| 47722-40010 |
VG4# |
1 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-40081 |
VG4# |
1 | ||
| 47730-40080 |
VG4# |
1 | ||
| 47730-40050 |
VG4# |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-50030 |
VG4# |
4 | ||
| 47731-40010 |
VG4# |
2 | ||
| 47731A - RING, SET(FOR FRONT DISC BRAKE PISTON) | ||||
| 90522-70001 |
VG4# |
2 | ||
| 90522-50002 |
VG4# |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-50030 |
VG4# |
4 | ||
| 47743-40020 |
VG4# |
4 | ||
| 47743A - SPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE) | ||||
| 47743-50030 |
VG4# |
4 | ||
| 47743-40020 |
VG4# |
4 | ||
| 47744 - SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47744-50010 |
VG4# |
4 | ||
| 47744-40040 |
VG4# |
4 | ||
| 47745 - SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47745-50010 |
VG4# |
4 | ||
| 47745-40040 |
VG4# |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-40050 |
VG4# |
1 | ||
| 47750-40080 |
VG4# |
1 | ||
| 47750-40081 |
VG4# |
1 | ||
| 47769 - BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47769-40010 |
VG4# |
2 | ||
| 47769-50010 |
VG4# ﾒｲﾝ ﾋﾟﾝ側 |
2 | ||
| 47769-50020 |
VG4# ｻﾌﾞ ﾋﾟﾝ側 |
2 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-50010 |
VG4# |
4 | ||
| 47771-35010 |
VG4# |
4 | ||
| 47771 - PLATE, PAD WEAR INDICATOR, NO.1 | ||||
| 47771-50010 |
VG4# |
4 | ||
| 47771-35010 |
VG4# |
4 | ||
| 47779 - BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE) | ||||
| 47779-40010 |
VG4# |
2 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47703-40010 |
VG4#..E,L |
1 | ||
| 47703-40020 |
VG4#..E,L |
1 | ||
| 47781A - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING) | ||||
| 90101-08461 |
VG4# |
8 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47704-40020 |
VG4#..E,L |
1 | ||
| 47704-40010 |
VG4#..E,L |
1 | ||
| Common parts | ||||
| 94512-01200 | ||||
| 94531-00800 | ||||
ILLUST NO. 2 OF 2(8709- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-40010 |
VG4# ﾏｰｸ NBK PN524 |
1 | ||
| 04465-24010 |
VG4# ﾏｰｸ NBK PN529 |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-40010 |
VG4# |
1 | ||
| 04945-50020 |
VG4# |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-26030 |
VG4# |
1 | ||
| 04947-50030 |
VG4# |
1 | ||
