VG40-GEPQE (1987)
Toyota Century
Production
Sep 1987
-
Jan 1997
Engine
5VEU
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

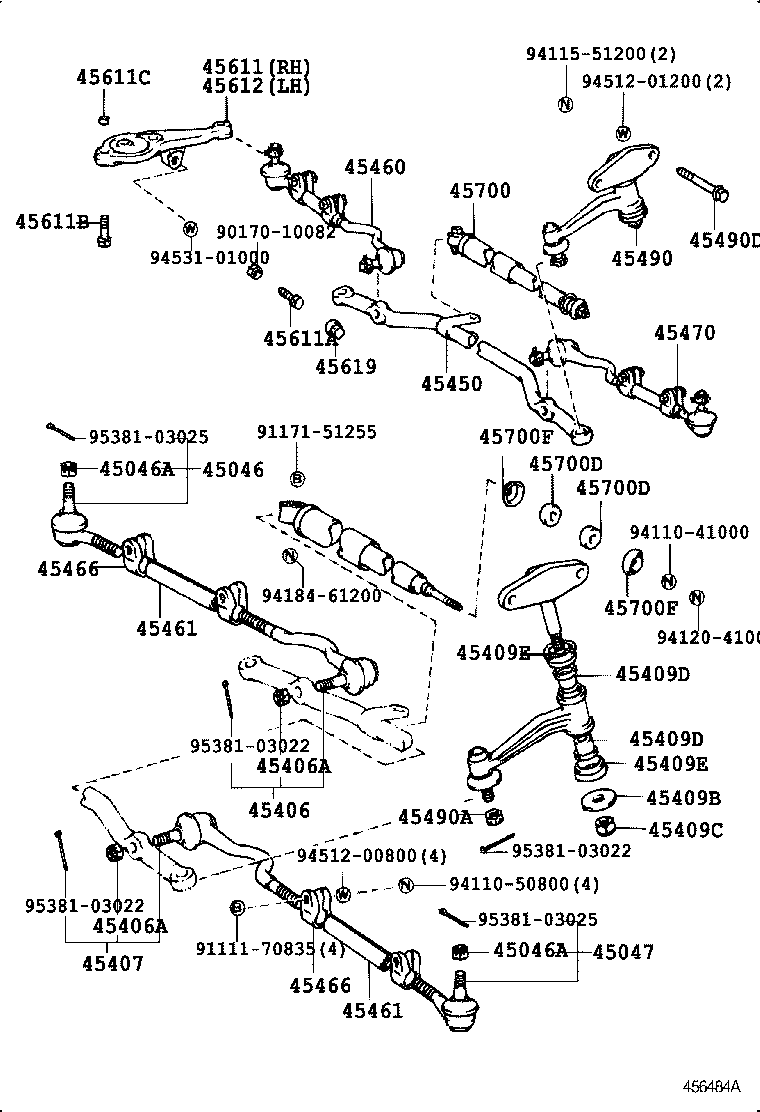

ILLUST NO. 3 OF 3(8709- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45046 - END SUB-ASSY, TIE ROD, RH | ||||
| 45046-49065 |
VG4# |
1 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14002 |
VG4# |
2 | ||
| 45046A - NUT, CASTLE(FOR TIE ROD END) | ||||
| 90171-14002 |
VG4# |
2 | ||
| 45047 - END SUB-ASSY, TIE ROD, LH | ||||
| 45046-49065 |
VG4# |
1 | ||
| 45406 - ROD SUB-ASSY, TIE, RH | ||||
| 45406-49045 |
VG4# |
1 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-14042 |
VG4# |
2 | ||
| 45406A - NUT, CASTLE(FOR TIE ROD) | ||||
| 90171-14042 |
VG4# |
2 | ||
| 45407 - ROD SUB-ASSY, TIE, LH | ||||
| 45406-49045 |
VG4# |
1 | ||
| 45409B - WASHER, PLATE(FOR IDLER ARM RUBBER BUSH) | ||||
| 90201-14519 |
VG4# |
1 | ||
| 45409C - NUT(FOR IDLER ARM SUPPORT) | ||||
| 94182-11400 |
VG4# |
1 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90386-18002 |
VG4# |
2 | ||
| 90385-18068 |
VG4# |
2 | ||
| 45409D - BUSH(FOR IDLER ARM) | ||||
| 90386-18002 |
VG4# |
2 | ||
| 90385-18068 |
VG4# |
2 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
VG4# |
2 | ||
| 45409E - SEAL, DUST(FOR IDLER ARM SUPPORT) | ||||
| 90304-31012 |
VG4# |
2 | ||
| 45450 - ROD ASSY, STEERING RELAY | ||||
| 45450-49065 |
VG4# |
1 | ||
| 45460 - ROD ASSY, TIE, RH | ||||
| 45460-49015 |
VG4# |
1 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-30010 |
VG4# |
2 | ||
| 45461 - ROD, STEERING TIE | ||||
| 45465-30010 |
VG4# |
2 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
VG4# |
4 | ||
| 45466 - CLAMP, TIE ROD END | ||||
| 45466-30020 |
VG4# |
4 | ||
| 45470 - ROD ASSY, TIE, LH | ||||
| 45460-49015 |
VG4# |
1 | ||
| 45490 - ARM ASSY, STEERING IDLER | ||||
| 45490-49015 |
VG4# |
1 | ||
| 45490-49025 |
VG4# |
1 | ||
| 45490A - NUT, CASTLE(FOR IDLER ARM) | ||||
| 90171-12028 |
VG4# |
1 | ||
| 45490D - BOLT(FOR IDLER ARM) | ||||
| 90105-12024 |
VG4# |
2 | ||
| 45611 - ARM, STEERING KNUCKLE, RH | ||||
| 45611-40020 |
VG4# |
1 | ||
| 45611A - BOLT, KNUCKLE STOPPER | ||||
| 90106-10032 |
VG4# |
2 | ||
| 45611B - BOLT, HEXAGON(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90101-14020 |
VG4# |
4 | ||
| 45611C - PIN, STRAIGHT(FOR STEERING KNUCKLE TO SHOCK ABSORBER) | ||||
| 90253-17007 |
VG4# |
4 | ||
| 45612 - ARM, STEERING KNUCKLE, LH | ||||
| 45612-40010 |
VG4# |
1 | ||
| 45619 - COVER, KNUCKLE STOPPER | ||||
| 45619-14020 |
VG4# |
2 | ||
| 45700 - DAMPER ASSY, STEERING | ||||
| 45700-49025 |
VG4# |
1 | ||
| 45700D - CUSHION, STEERING DAMPER | ||||
| 90948-01003 |
VG4# |
2 | ||
| 45700D - CUSHION, STEERING DAMPER | ||||
| 90948-01003 |
VG4# |
2 | ||
| 45700F - RETAINER, STEERING DAMPER CUSHION | ||||
| 90948-02002 |
VG4# |
2 | ||
| 45700F - RETAINER, STEERING DAMPER CUSHION | ||||
| 90948-02002 |
VG4# |
2 | ||
| Common parts | ||||
| 90170-10082 | ||||
| 91111-70835 | ||||
| 91171-51255 | ||||
| 94110-41000 | ||||
| 94110-50800 | ||||
| 94115-51200 | ||||
| 94120-41000 | ||||
| 94184-61200 | ||||
| 94512-00800 | ||||
| 94512-01200 | ||||
| 94531-01000 | ||||
| 95381-03022 | ||||
| 95381-03025 | ||||

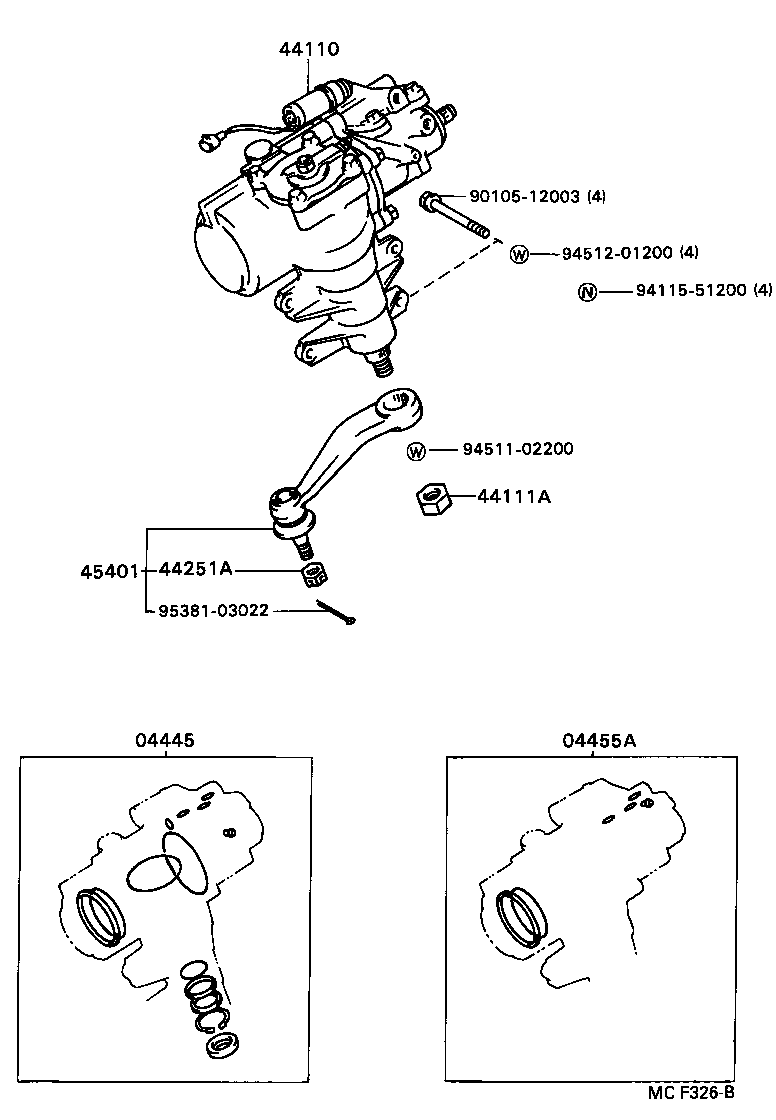

ILLUST NO. 1 OF 3(8709- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04445 - GASKET KIT, POWER STEERING GEAR(FOR RECIRCULATING BALL) | ||||
| 04445-40032 |
VG4# |
1 | ||
| 04445-40031 |
VG4# |
1 | ||
| 04455A - GASKET KIT, POWER STEERING CROSS SHAFT OVERHOLE | ||||
| 04455-40020 |
VG4# |
1 | ||
| 04455-40021 |
VG4# |
1 | ||
| 44110 - GEAR ASSY, POWER STEERING | ||||
| 44110-40060 |
VG4# |
1 | ||
| 44110-40041 |
VG40 |
1 | ||
| 44110-40050 |
VG4# |
1 | ||
| 44110-40042 |
VG40 |
1 | ||
| 44111A - NUT, HEXAGON(FOR CROSS SHAFT TO PITMAN ARM SETTING) | ||||
| 90170-22058 |
VG4# |
1 | ||
| 44251A - NUT, CASTLE(FOR PITMAN ARM) | ||||
| 90171-14042 |
VG4# |
1 | ||
| 45401 - ARM SUB-ASSY, PITMAN | ||||
| 45401-49015 |
VG4# |
1 | ||
| 45401-49025 |
VG4# |
1 | ||
| Common parts | ||||
| 90105-12003 | ||||
| 94115-51200 | ||||
| 94511-02200 | ||||
| 94512-01200 | ||||
| 95381-03022 | ||||

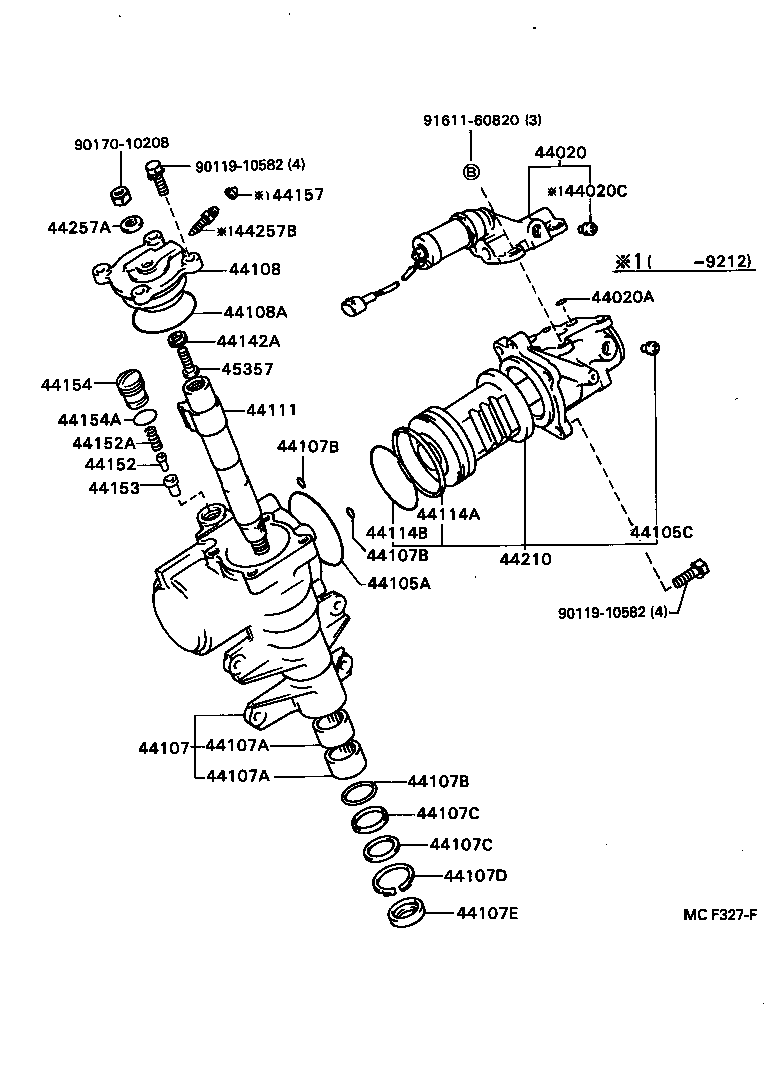

ILLUST NO. 2 OF 3(8709- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44020 - VALVE ASSY, PRESSURE CONTROL W/SOLENOID VALVE | ||||
| 44020-40010 |
VG40 |
1 | ||
| 44020-40020 |
VG4# |
1 | ||
| 44020A - RING, O(FOR POWER STEERING PRESSURE CONTROL VALVE) | ||||
| 96711-19014 |
VG4# |
3 | ||
| 44020C - SEAT, UNION(PRESSURE CONTROL VALVE ASSY) | ||||
| 90410-06006 |
VG40 |
1 | ||
| 90410-06005 |
VG40 |
1 | ||
| 44105A - RING, O(FOR VALVE HOUSING) | ||||
| 90301-82001 |
VG4# |
1 | ||
| 90301-75001 |
VG4# |
1 | ||
| 44105C - SEAT, UNION(FOR VALVE BODY HOUSING) | ||||
| 90410-06006 |
VG40 |
1 | ||
| 90410-06005 |
VG4# |
1 | ||
| 44107 - HOUSING SUB-ASSY, POWER STEERING GEAR | ||||
| 44107-40021 |
VG40 |
1 | ||
| 44107-40030 |
VG4# |
1 | ||
| 44107-40040 |
VG4# |
1 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32003 |
VG4# |
2 | ||
| 44107A - BEARING, NEEDLE ROLLER(FOR POWER STEERING GEAR HOUSING) | ||||
| 90364-32003 |
VG4# |
2 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-19010 |
VG4# 外径=13.6,内径=9.8 |
1 | ||
| 96711-19010 |
VG4# 外径=13.6,内径=9.8 |
2 | ||
| 90301-33002 |
VG4# 内径=33.7,外径=40.7 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-19010 |
VG4# 外径=13.6,内径=9.8 |
1 | ||
| 96711-19010 |
VG4# 外径=13.6,内径=9.8 |
2 | ||
| 90301-33002 |
VG4# 内径=33.7,外径=40.7 |
1 | ||
| 44107B - RING, O(FOR POWER STEERING GEAR HOUSING) | ||||
| 96711-19010 |
VG4# 外径=13.6,内径=9.8 |
1 | ||
| 96711-19010 |
VG4# 外径=13.6,内径=9.8 |
2 | ||
| 90301-33002 |
VG4# 内径=33.7,外径=40.7 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-31002 |
VG4# 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 90562-32002 |
VG4# 内径=32,外径=40 |
1 | ||
| 44107C - RING(FOR POWER STEERING GEAR HOUSING) | ||||
| 90562-31002 |
VG4# 内径=31.7,外径=34.1,厚さ=4 |
1 | ||
| 90562-32002 |
VG4# 内径=32,外径=40 |
1 | ||
| 44107D - RING, HOLE SNAP(FOR POWER STEERING GEAR HOUSING) | ||||
| 90521-44002 |
VG4# |
1 | ||
| 44107E - SEAL, OIL(FOR POWER STEERING GEAR HOUSING) | ||||
| 90312-32002 |
VG4# |
1 | ||
| 44108 - COVER SUB-ASSY, SIDE | ||||
| 44108-40030 |
VG4# |
1 | ||
| 44108-40020 |
VG4# |
1 | ||
| 44108A - RING, O(FOR SIDE COVER) | ||||
| 90301-64002 |
VG4# |
1 | ||
| 44111 - SHAFT, CROSS | ||||
| 44111-40040 |
VG4# |
1 | ||
| 44111-40030 |
VG4# |
1 | ||
| 44114A - RING(FOR POWER PISTON NUT) | ||||
| 90562-77002 |
VG4# |
1 | ||
| 44114B - RING, O(FOR POWER PISTON NUT) | ||||
| 90301-73002 |
VG4# |
1 | ||
| 44142A - NUT, LOCK, NO.1 | ||||
| 44142-60020 |
VG4# |
1 | ||
| 44142-22020 |
VG40 |
1 | ||
| 44152 - PLUNGER, POWER PISTON | ||||
| 44152-30020 |
VG4# |
1 | ||
| 44152A - SPRING, COMPRESSION(FOR POWER PISTON PLUNGER) | ||||
| 90501-20095 |
VG4# |
1 | ||
| 44153 - GUIDE, POWER PISTON PLUNGER | ||||
| 44153-30020 |
VG4# |
1 | ||
| 44154 - NUT, POWER PISTON PLUNGER GUIDE | ||||
| 44154-30020 |
VG4# |
1 | ||
| 44154A - RING, O(FOR POWER PISTON PLUNGER GUIDE NUT) | ||||
| 96711-19014 |
VG4# |
1 | ||
| 44157 - CAP, BLEEDER PLUG(FOR POWER STEERING HOUSING) | ||||
| 44157-30010 |
VG4# |
1 | ||
| 44210 - VALVE ASSY, POWER STEERING CONTROL | ||||
| 44120-40020 |
VG40 |
1 | ||
| 44120-40040 |
VG4# |
1 | ||
| 44120-40021 |
VG40 |
1 | ||
| 44120-40030 |
VG4# |
1 | ||
| 44257A - WASHER, SEAL(FOR CROSS SHAFT ADJUSTING SCREW) | ||||
| 90210-10001 |
VG4# |
1 | ||
| 44257B - PLUG, BLEEDER(FOR POWER STEERING HOUSING) | ||||
| 47547-20010 |
VG4# |
1 | ||
| 45357 - SCREW, SECTOR SHAFT ADJUSTING | ||||
| 45357-60030 |
VG4# |
1 | ||
| 45357-22010 |
VG40 |
1 | ||
| Common parts | ||||
| 90119-10582 | ||||
| 90170-10208 | ||||
| 91611-60820 | ||||
