VG40-GEPQE (1987)
Toyota Century

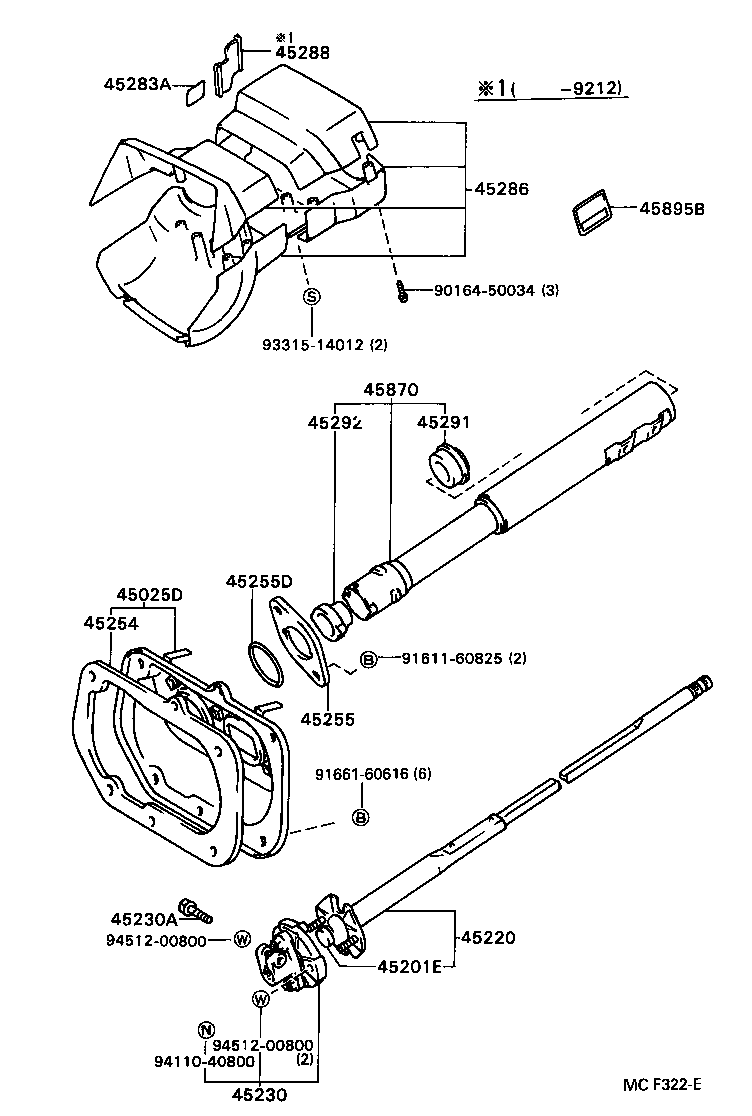

ILLUST NO. 1 OF 2(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-40040 |
VG4#..4FC |
1 | ||
| 45201E - PLUG, PLATE(FOR STEERING MAIN SHAFT) | ||||
| 90333-21008 |
VG4# |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-40010 |
VG4# |
1 | ||
| 45220-40020 |
VG4# |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-30100 |
VG4# |
1 | ||
| 45230A - BOLT, HEXAGON(FOR STEERING FLEXIBLE COPLING SET) | ||||
| 90101-08230 |
VG4# |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-40040 |
VG4# |
1 | ||
| 45255 - PLATE, STEERING COLUMN HOLE COVER | ||||
| 45255-12020 |
VG4# |
1 | ||
| 45255D - RING, O(FOR STEERING COLUMN HOLE COVER PLATE) | ||||
| 90301-45202 |
VG4# |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
VG4# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-4090301 |
VG40..E BLACK,TRIM2# |
1 | ||
| 45286-4090404 |
VG40 DARK BLUE,TRIM8# |
1 | ||
| 45286-4090302 |
VG40..E MAROON,TRIM3# |
1 | ||
| 45286-4090401 |
VG40..E BLACK,TRIM2# |
1 | ||
| 45286-4090402 |
VG40..E MAROON,TRIM3# |
1 | ||
| 45286-40906R8 |
VG4# DARK BLUE,TRIM8# |
1 | ||
| 45286-4090303 |
VG40 SHADOW GRAY,TRIM1# |
1 | ||
| 45286-40905P0 |
VG4# SHADOW GRAY,TRIM1# |
1 | ||
| 45286-4090403 |
VG40 SHADOW GRAY,TRIM1# |
1 | ||
| 45286-40906P0 |
VG4# SHADOW GRAY,TRIM1# |
1 | ||
| 45286-4090522 |
VG4#..E,L BLACK,TRIM2# |
1 | ||
| 45286-40906E0 |
VG4#..E,L SABLE,TRIM4# |
1 | ||
| 45286-40905D0 |
VG4#..E,L MAROON,TRIM3# |
1 | ||
| 45286-40905R8 |
VG4# DARK BLUE,TRIM8# |
1 | ||
| 45286-4090304 |
VG40 DARK BLUE,TRIM8# |
1 | ||
| 45288 - PLATE, STEERING COLUMN COVER | ||||
| 45288-4001004 |
VG4# DARK BLUE,TRIM8# |
1 | ||
| 45288-4001002 |
VG4#..E,L MAROON,TRIM3# |
1 | ||
| 45288-4001001 |
VG4#..E,L BLACK,TRIM2# |
1 | ||
| 45288-4001003 |
VG4# SHADOW GRAY,TRIM1# |
1 | ||
| 45291 - SEAL, MAIN SHAFT UPPER DUST | ||||
| 45282-22010 |
VG4# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-22050 |
VG4# |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-40050 |
VG4# |
1 | ||
| 45895B - PLATE, TILT LEVER INSTRUCTION | ||||
| 45895-40020 |
VG4# |
1 | ||
| 45895-40010 |
VG4# |
1 | ||
| Common parts | ||||
| 90164-50034 | ||||
| 91611-60825 | ||||
| 91661-60616 | ||||
| 93315-14012 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||

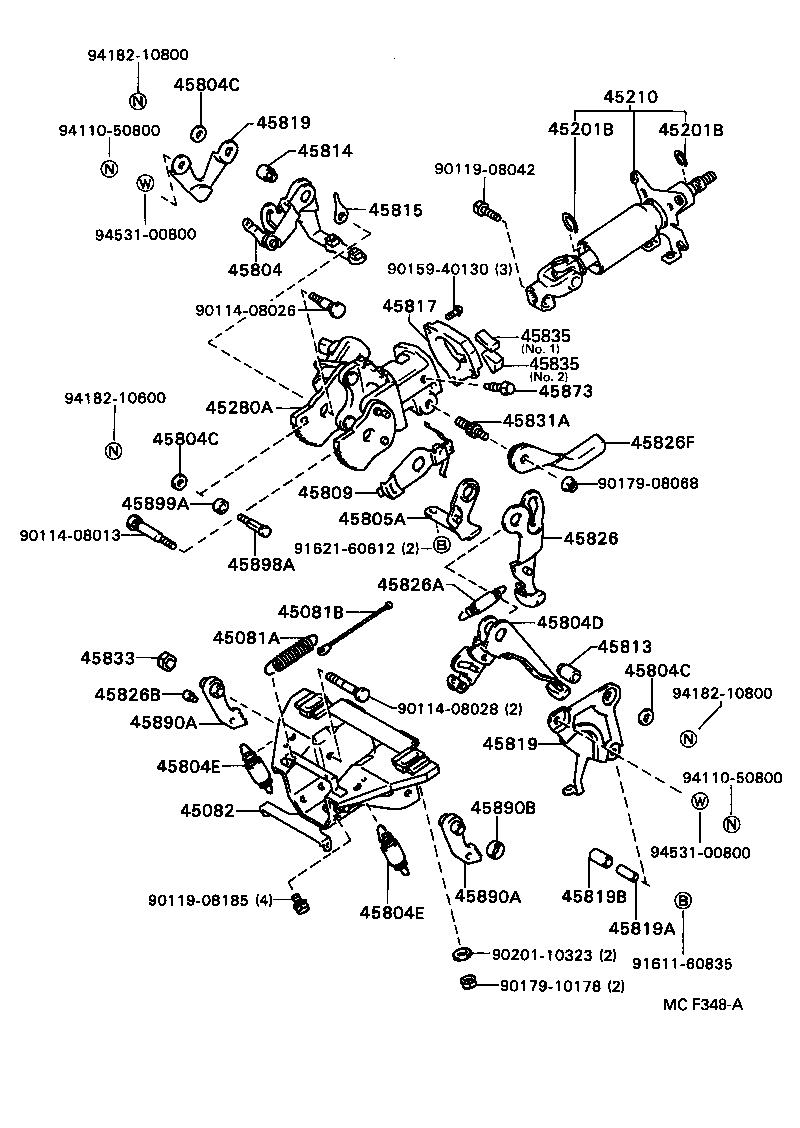

ILLUST NO. 2 OF 2(8709-9212)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-32003 |
VG4# |
2 | ||
| 90506-32004 |
VG4# |
2 | ||
| 90506-29010 |
VG4# |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02052 |
VG4# 長さ=122 |
2 | ||
| 90945-02086 |
VG4# 長さ=121 |
2 | ||
| 90945-02087 |
VG4# 長さ=139 |
2 | ||
| 90945-02090 |
VG4# 長さ=141 |
2 | ||
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-40020 |
VG4# |
1 | ||
| 45082-40030 |
VG4# |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17002 |
VG4# 厚さ=1.55−1.65 |
1 | ||
| 90520-17003 |
VG4# 厚さ=1.75−1.85 |
1 | ||
| 90520-27001 |
VG4# 厚さ=1.33−1.47 |
1 | ||
| 90520-17196 |
VG4# 厚さ=1.35−1.45 |
1 | ||
| 90520-17042 |
VG4# 厚さ=1.20 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17002 |
VG4# 厚さ=1.55−1.65 |
1 | ||
| 90520-17003 |
VG4# 厚さ=1.75−1.85 |
1 | ||
| 90520-27001 |
VG4# 厚さ=1.33−1.47 |
1 | ||
| 90520-17196 |
VG4# 厚さ=1.35−1.45 |
1 | ||
| 90520-17042 |
VG4# 厚さ=1.20 |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-14151 |
VG4# |
1 | ||
| 45210-14150 |
VG40 |
1 | ||
| 45210-20200 |
VG4# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-14090 |
VG40 |
1 | ||
| 45280-14091 |
VG4# |
1 | ||
| 45280-20351 |
VG40 |
1 | ||
| 45280-40040 |
VG4# |
1 | ||
| 45804 - LEVER SUB-ASSY, STEERING TILT | ||||
| 45804-20041 |
VG4# |
1 | ||
| 45804-20040 |
VG40 |
1 | ||
| 45804C - WASHER, PLATE(FOR STEERING TILT LEVER) | ||||
| 90201-06204 |
VG4# 右側 |
1 | ||
| 90201-08065 |
VG4# 左側 |
2 | ||
| 45804C - WASHER, PLATE(FOR STEERING TILT LEVER) | ||||
| 90201-06204 |
VG4# 右側 |
1 | ||
| 90201-08065 |
VG4# 左側 |
2 | ||
| 45804C - WASHER, PLATE(FOR STEERING TILT LEVER) | ||||
| 90201-06204 |
VG4# 右側 |
1 | ||
| 90201-08065 |
VG4# 左側 |
2 | ||
| 45804D - LEVER SUB-ASSY, STEERING TILT(FOR TILT UP CONTROL) | ||||
| 45804-40020 |
VG4# |
1 | ||
| 45804-40030 |
VG4# |
1 | ||
| 45804E - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-13003 |
VG4# |
2 | ||
| 90507-13002 |
VG4# |
2 | ||
| 45804E - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-13003 |
VG4# |
2 | ||
| 90507-13002 |
VG4# |
2 | ||
| 45805A - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45805-20010 |
VG40 |
1 | ||
| 45805-20011 |
VG4# |
1 | ||
| 45809 - COVER SUB-ASSY, ADJUSTER MEMORY | ||||
| 45809-20060 |
VG4# |
1 | ||
| 45809-20050 |
VG4# |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-20030 |
VG4# 外径=18.003−18.010 |
1 | ||
| 45813-20050 |
VG4# 外径=18.017−18.024 |
1 | ||
| 45813-20040 |
VG4# 外径=18.010−18.017 |
1 | ||
| 45813-20020 |
VG4# 外径=17.996−18.003 |
1 | ||
| 45813-20060 |
VG4# 外径=17.989−17.996 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-20020 |
VG4# 外径=18.003−18.010 |
1 | ||
| 45814-20050 |
VG4# 外径=17.989−17.996 |
1 | ||
| 45814-20010 |
VG4# 外径=17.996−18.003 |
1 | ||
| 45814-20040 |
VG4# 外径=18.017−18.024 |
1 | ||
| 45814-20030 |
VG4# 外径=18.010−18.017 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-20010 |
VG4# 厚さ=0.2 |
1 | ||
| 45815-20020 |
VG4# 厚さ=0.5 |
1 | ||
| 45815-20050 |
VG4# 厚さ=1.8 |
1 | ||
| 45815-20030 |
VG4# 厚さ=0.8 |
1 | ||
| 45815-20040 |
VG4# 厚さ=1.4 |
1 | ||
| 45817 - STOPPER, STEERING SHAFT THRUST | ||||
| 45817-14010 |
VG4# |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-24010 |
VG4# |
1 | ||
| 45819-20020 |
VG4# 右側 |
1 | ||
| 45819-20030 |
VG4# 左側 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-24010 |
VG4# |
1 | ||
| 45819-20020 |
VG4# 右側 |
1 | ||
| 45819-20030 |
VG4# 左側 |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08046 |
VG4# |
1 | ||
| 45819B - CUSHION(FOR TILT LEVER RETAINER) | ||||
| 90540-11007 |
VG4# |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-40050 |
VG4# |
1 | ||
| 45826-40030 |
VG4# |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-09005 |
VG4# |
1 | ||
| 90507-11006 |
VG4# |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 90241-06039 |
VG4# |
2 | ||
| 45826F - LEVER, STEERING TELESCOPIC | ||||
| 45804-20060 |
VG4# |
1 | ||
| 45831A - BOLT, TELESCOPE LEVER LOCK | ||||
| 45831-20020 |
VG4# |
1 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-20020 |
VG4# |
1 | ||
| 45835 - WEDGE, LOCK | ||||
| 45835-20050 |
VG4# NO.2 |
1 | ||
| 45835-20040 |
VG4# NO.1 |
1 | ||
| 45835 - WEDGE, LOCK | ||||
| 45835-20050 |
VG4# NO.2 |
1 | ||
| 45835-20040 |
VG4# NO.1 |
1 | ||
| 45873 - STOPPER, STEERING COLUMN TUBE | ||||
| 45873-20031 |
VG4# |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20070 |
VG4# 左側 |
1 | ||
| 45890-20070 |
VG4# |
1 | ||
| 45890-20080 |
VG4# 右側 |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20070 |
VG4# 左側 |
1 | ||
| 45890-20070 |
VG4# |
1 | ||
| 45890-20080 |
VG4# 右側 |
1 | ||
| 45890B - SPACER(FOR TILT STEERING PAWL) | ||||
| 90560-13008 |
VG4# |
1 | ||
| 45898A - BOLT, RETURN SPRING SET | ||||
| 45898-22010 |
VG4# |
1 | ||
| 45899A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
VG4# |
1 | ||
| Common parts | ||||
| 90114-08013 | ||||
| 90114-08026 | ||||
| 90114-08028 | ||||
| 90119-08042 | ||||
| 90119-08185 | ||||
| 90159-40130 | ||||
| 90179-08068 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 91611-60835 | ||||
| 91621-60612 | ||||
| 94110-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94531-00800 | ||||

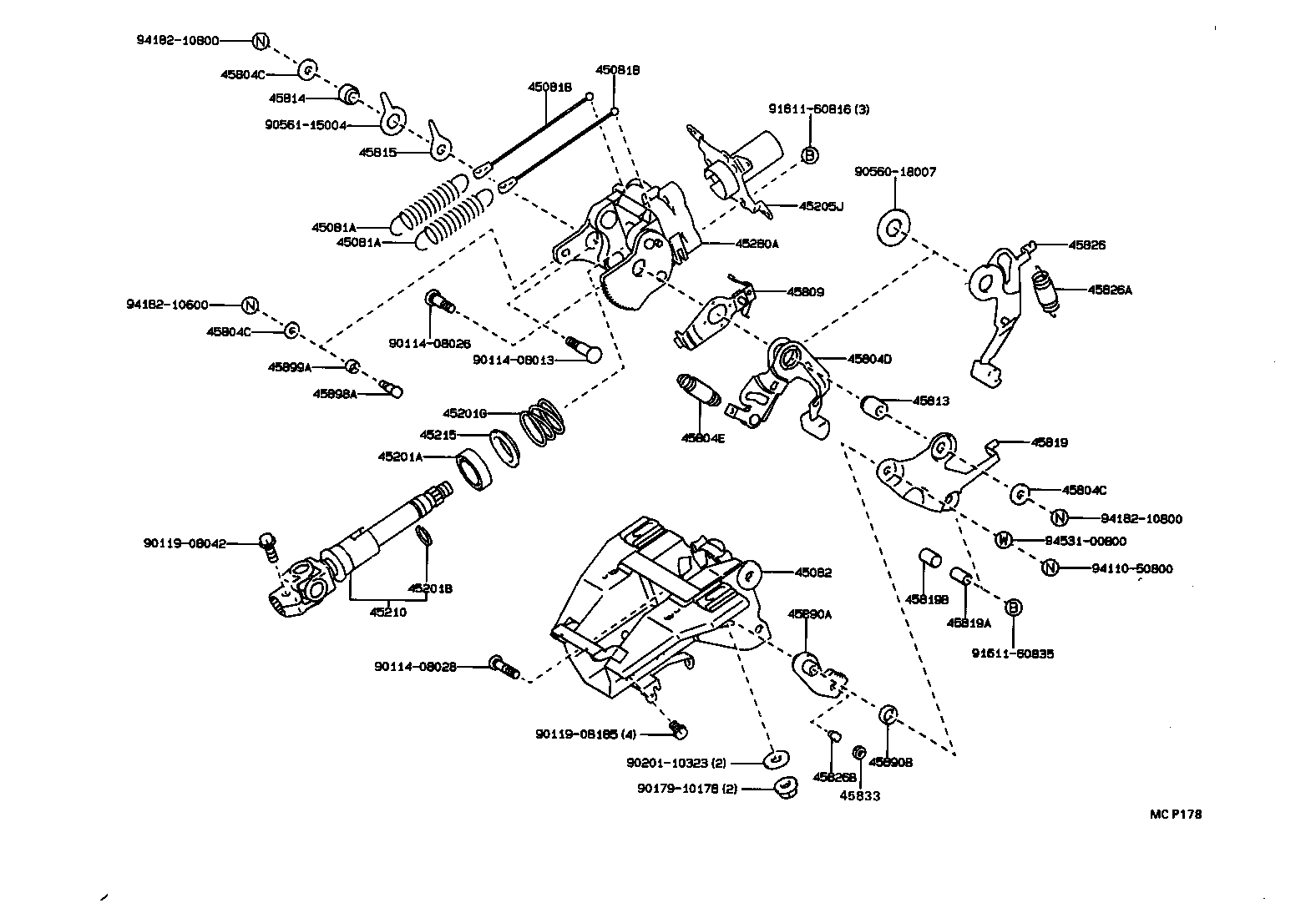

ILLUST NO. 2 OF 2(9212- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-32003 |
VG4# |
2 | ||
| 90506-32004 |
VG4# |
2 | ||
| 90506-29010 |
VG4# |
2 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-32003 |
VG4# |
2 | ||
| 90506-32004 |
VG4# |
2 | ||
| 90506-29010 |
VG4# |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02052 |
VG4# 長さ=122 |
2 | ||
| 90945-02086 |
VG4# 長さ=121 |
2 | ||
| 90945-02087 |
VG4# 長さ=139 |
2 | ||
| 90945-02090 |
VG4# 長さ=141 |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02052 |
VG4# 長さ=122 |
2 | ||
| 90945-02086 |
VG4# 長さ=121 |
2 | ||
| 90945-02087 |
VG4# 長さ=139 |
2 | ||
| 90945-02090 |
VG4# 長さ=141 |
2 | ||
| 45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE | ||||
| 45082-40020 |
VG4# |
1 | ||
| 45082-40030 |
VG4# |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
VG4# |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17002 |
VG4# 厚さ=1.55−1.65 |
1 | ||
| 90520-17003 |
VG4# 厚さ=1.75−1.85 |
1 | ||
| 90520-27001 |
VG4# 厚さ=1.33−1.47 |
1 | ||
| 90520-17196 |
VG4# 厚さ=1.35−1.45 |
1 | ||
| 90520-17042 |
VG4# 厚さ=1.20 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
VG4# |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-40080 |
VG4# |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-14151 |
VG4# |
1 | ||
| 45210-14150 |
VG40 |
1 | ||
| 45210-20200 |
VG4# |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
VG4# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-14090 |
VG40 |
1 | ||
| 45280-14091 |
VG4# |
1 | ||
| 45280-20351 |
VG40 |
1 | ||
| 45280-40040 |
VG4# |
1 | ||
| 45804C - WASHER, PLATE(FOR STEERING TILT LEVER) | ||||
| 90201-06204 |
VG4# 右側 |
1 | ||
| 90201-08065 |
VG4# 左側 |
2 | ||
| 45804C - WASHER, PLATE(FOR STEERING TILT LEVER) | ||||
| 90201-06204 |
VG4# 右側 |
1 | ||
| 90201-08065 |
VG4# 左側 |
2 | ||
| 45804C - WASHER, PLATE(FOR STEERING TILT LEVER) | ||||
| 90201-06204 |
VG4# 右側 |
1 | ||
| 90201-08065 |
VG4# 左側 |
2 | ||
| 45804D - LEVER SUB-ASSY, STEERING TILT(FOR TILT UP CONTROL) | ||||
| 45804-40020 |
VG4# |
1 | ||
| 45804-40030 |
VG4# |
1 | ||
| 45804E - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-13003 |
VG4# |
2 | ||
| 90507-13002 |
VG4# |
2 | ||
| 45809 - COVER SUB-ASSY, ADJUSTER MEMORY | ||||
| 45809-20060 |
VG4# |
1 | ||
| 45809-20050 |
VG4# |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-20030 |
VG4# 外径=18.003−18.010 |
1 | ||
| 45813-20050 |
VG4# 外径=18.017−18.024 |
1 | ||
| 45813-20040 |
VG4# 外径=18.010−18.017 |
1 | ||
| 45813-20020 |
VG4# 外径=17.996−18.003 |
1 | ||
| 45813-20060 |
VG4# 外径=17.989−17.996 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-20020 |
VG4# 外径=18.003−18.010 |
1 | ||
| 45814-20050 |
VG4# 外径=17.989−17.996 |
1 | ||
| 45814-20010 |
VG4# 外径=17.996−18.003 |
1 | ||
| 45814-20040 |
VG4# 外径=18.017−18.024 |
1 | ||
| 45814-20030 |
VG4# 外径=18.010−18.017 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-20010 |
VG4# 厚さ=0.2 |
1 | ||
| 45815-20020 |
VG4# 厚さ=0.5 |
1 | ||
| 45815-20050 |
VG4# 厚さ=1.8 |
1 | ||
| 45815-20030 |
VG4# 厚さ=0.8 |
1 | ||
| 45815-20040 |
VG4# 厚さ=1.4 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-24010 |
VG4# |
1 | ||
| 45819-20020 |
VG4# 右側 |
1 | ||
| 45819-20030 |
VG4# 左側 |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08046 |
VG4# |
1 | ||
| 45819B - CUSHION(FOR TILT LEVER RETAINER) | ||||
| 90540-11007 |
VG4# |
1 | ||
| 45826 - LEVER, STEERING TILT | ||||
| 45826-40050 |
VG4# |
1 | ||
| 45826-40030 |
VG4# |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-09005 |
VG4# |
1 | ||
| 90507-11006 |
VG4# |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 90241-06039 |
VG4# |
2 | ||
| 45833 - NUT, TILT STEERING ADJUSTING, NO.1 | ||||
| 45833-20020 |
VG4# |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-20070 |
VG4# 左側 |
1 | ||
| 45890-20070 |
VG4# |
1 | ||
| 45890-20080 |
VG4# 右側 |
1 | ||
| 45890B - SPACER(FOR TILT STEERING PAWL) | ||||
| 90560-13008 |
VG4# |
1 | ||
| 45898A - BOLT, RETURN SPRING SET | ||||
| 45898-22010 |
VG4# |
1 | ||
| 45899A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
VG4# |
1 | ||
| Common parts | ||||
| 90114-08013 | ||||
| 90114-08026 | ||||
| 90114-08028 | ||||
| 90119-08042 | ||||
| 90119-08185 | ||||
| 90179-10178 | ||||
| 90201-10323 | ||||
| 90560-18007 | ||||
| 90561-15004 | ||||
| 91611-60816 | ||||
| 91611-60835 | ||||
| 94110-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94631-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
