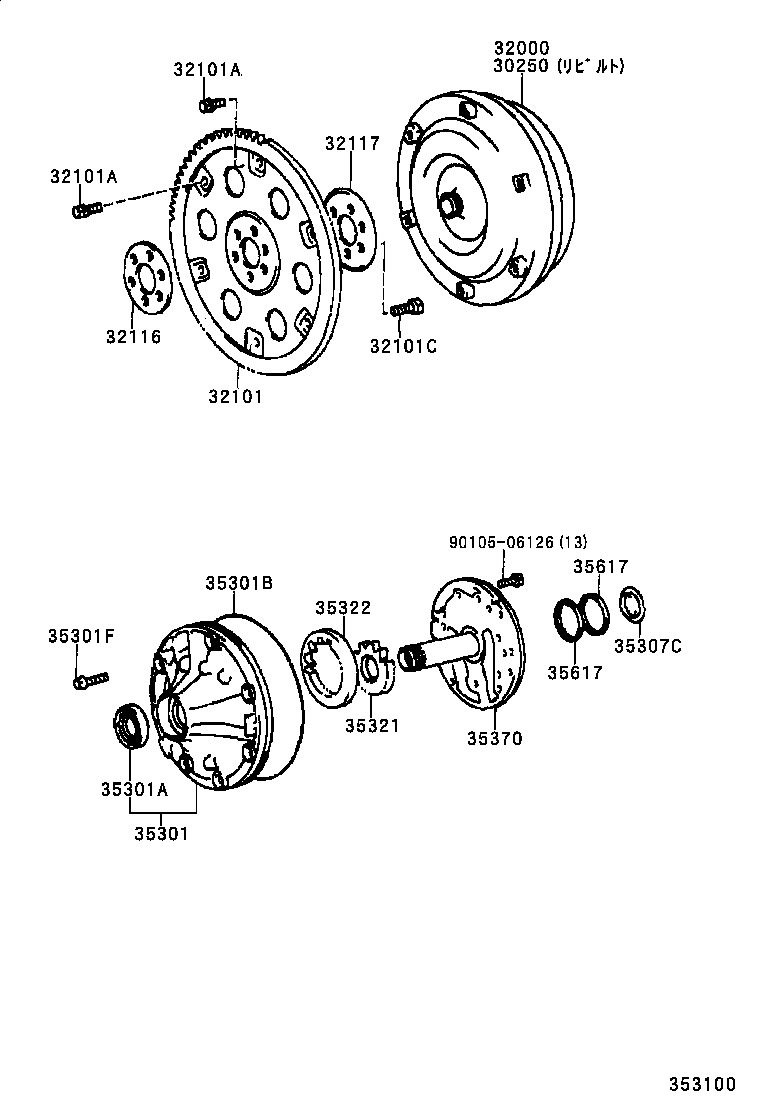

Toyota Century VG40 TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

Part #	Description	Period	Qty
30250 - CONVERTER ASSY, TORQUE, REBUILT
30250-40060	VG40	09/1987 - 09/1990	1
30250-40080	VG4#	12/1992 - 01/1997	1
30250-40070	VG4#	09/1990 - 12/1992	1
32000 - CONVERTER ASSY, TORQUE
32000-40070	VG4#	09/1990 - 12/1992	1
32000-40080	VG4#	12/1992 - 01/1997	1
32000-40060	VG40	09/1987 - 09/1990	1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-40030	VG4#	09/1987 - 01/1997	1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-08269	VG4# *8−1.25PX12−8	09/1987 - 01/1997	6
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-08269	VG4# *8−1.25PX12−8	09/1987 - 01/1997	6
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-12030	VG4#	09/1987 - 01/1997	6
32116 - SPACER, DRIVE PLATE, FRONT
32116-40010	VG4#	09/1987 - 01/1997	1
32117 - SPACER, DRIVE PLATE, REAR
32117-40010	VG4#	09/1987 - 01/1997	1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-35010	VG4#	09/1987 - 01/1997	1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38029	VG4#	09/1987 - 01/1997	1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99033	VG4#	09/1987 - 01/1997	1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08091	VG4# *8−1.25PX35−35	09/1987 - 01/1997	7
35307C - RACE, THRUST BEARING (FOR STATOR SHAFT)
35789-30020	VG4# 厚さ=3.7	09/1987 - 01/1997	1
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-35010	VG40	09/1987 - 12/1987	1
35321-12040	VG40 厚さ=10.710−10.720	02/1988 - 09/1989	1
35321-12030	VG40 厚さ=10.700−10.709	02/1988 - 09/1989	1
35321-12050	VG4# 厚さ=10.721−10.730	11/1995 - 01/1997	1
35321-12060	VG4# 厚さ=10.731−10.740	11/1995 - 01/1997	1
35321-12050	VG40 厚さ=10.721−10.730	02/1988 - 09/1989	1
35321-12060	VG40 厚さ=10.731−10.740	02/1988 - 09/1989	1
35321-12020	VG4# 厚さ=10.690−10.699	12/1987 - 11/1995	1
35321-12030	VG4# 厚さ=10.700−10.709	11/1995 - 01/1997	1
35321-12040	VG4# 厚さ=10.710−10.720	11/1995 - 01/1997	1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-12020	VG4# 厚さ=10.700−10.709	11/1995 - 01/1997	1
35322-12010	VG4# 厚さ=10.690−10.699	09/1989 - 11/1995	1
35322-12030	VG4# 厚さ=10.710−10.720	11/1995 - 01/1997	1
35322-35010	VG40 厚さ=10.690−10.740	09/1987 - 09/1989	1
35322-12050	VG4# 厚さ=10.731−10.740	11/1995 - 01/1997	1
35322-12040	VG4# 厚さ=10.721−10.730	11/1995 - 01/1997	1
35370 - SHAFT ASSY, STATOR
35370-50010	VG4#	09/1989 - 01/1997	1
35370-40010	VG40	09/1987 - 09/1989	1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-30020	VG4#	09/1987 - 01/1997	2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-30020	VG4#	09/1987 - 01/1997	2
Common parts
90105-06126

VG40-GEPQE (1987)

(8709- )
