VG40-GEPQE (1987)
Toyota Century
Production
Sep 1987
-
Jan 1997
Engine
5VEU
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(8709- )

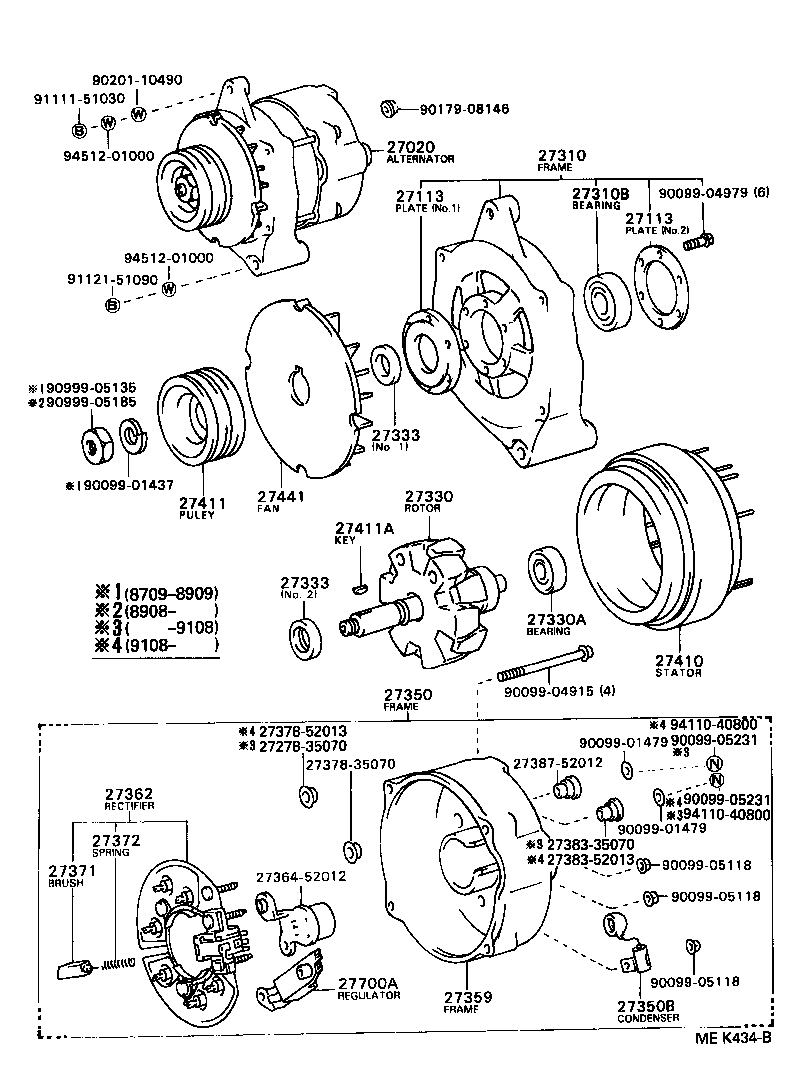

Click highlighted areas on diagram
12V 80A,100A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-52013 |
5VEU..VG4# 12V 80A |
1 | ||
| 27060-52012 |
5VEU..VG4# 12V 80A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-35070 |
5VEU..VG4# NO.2 |
1 | ||
| 27316-35070 |
5VEU..VG4# NO.1 |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-35070 |
5VEU..VG4# NO.2 |
1 | ||
| 27316-35070 |
5VEU..VG4# NO.1 |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-52012 |
5VEU..VG4# |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10137 |
5VEU..VG4# |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-52012 |
5VEU..VG4# |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10116 |
5VEU..VG4# |
1 | ||
| 27333 - COLLAR, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27333-57060 |
5VEU..VG4# NO.2 |
1 | ||
| 27333-35070 |
5VEU..VG4# NO.1 |
1 | ||
| 27333 - COLLAR, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27333-35070 |
5VEU..VG4# NO.1 |
1 | ||
| 27333-57060 |
5VEU..VG4# NO.2 |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-52012 |
5VEU..VG4# |
1 | ||
| 27350-52013 |
5VEU..VG4# |
1 | ||
| 27350B - CONDENSER, ALTERNATOR | ||||
| 90099-52091 |
5VEU..VG4# |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-52012 |
5VEU..VG4# |
1 | ||
| 27359-52013 |
5VEU..VG4# |
1 | ||
| 27362 - RECTIFIER ASSY, W/BRUSH | ||||
| 27362-52012 |
5VEU..VG4# |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-31011 |
5VEU..VG4# |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-31011 |
5VEU..VG4# |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-52012 |
5VEU..VG4# |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-52012 |
5VEU..VG4# |
1 | ||
| 27411A - KEY(FOR ALTERNATOR PULLEY) | ||||
| 90099-00405 |
5VEU..VG4# |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-35070 |
5VEU..VG4# |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-13070 |
5VEU..VG4# |
1 | ||
| Common parts | ||||
| 27278-35070 | ||||
| 27364-52012 | ||||
| 27378-35070 | ||||
| 27378-52013 | ||||
| 27383-35070 | ||||
| 27383-52013 | ||||
| 27387-52012 | ||||
| 90099-01437 | ||||
| 90099-01479 | ||||
| 90099-04915 | ||||
| 90099-04979 | ||||
| 90099-05118 | ||||
| 90099-05231 | ||||
| 90179-08146 | ||||
| 90201-10490 | ||||
| 90999-05135 | ||||
| 90999-05185 | ||||
| 91111-51030 | ||||
| 91121-51090 | ||||
| 94110-40800 | ||||
| 94512-01000 | ||||
