VG40-GEPGE (1987)
Toyota Century
Production
Sep 1987
-
Jan 1997
Engine
5VEU
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

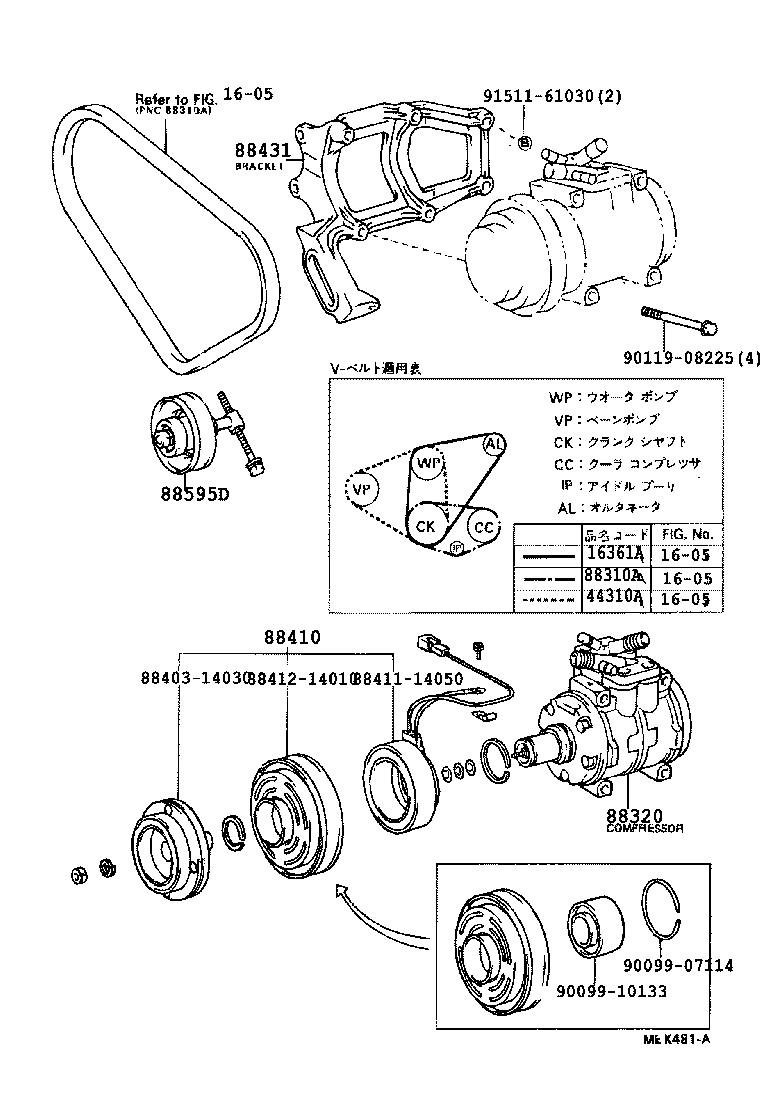

(8709-9212)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-40050 |
VG4# |
1 | ||
| 88320-40040 |
VG4# |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-40060 |
VG4# |
1 | ||
| 88410-14090 |
VG4# |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-40050 |
VG4# |
1 | ||
| 88431-40040 |
VG4# |
1 | ||
| 88595D - PULLEY ASSY, IDLE | ||||
| 88440-40010 |
VG4# |
1 | ||
| Common parts | ||||
| 88403-14030 | ||||
| 88411-14050 | ||||
| 88412-14010 | ||||
| 90099-07114 | ||||
| 90099-10133 | ||||
| 90119-08225 | ||||
| 91511-61030 | ||||
| Linked diagrams | ||||
| 1605 | ||||

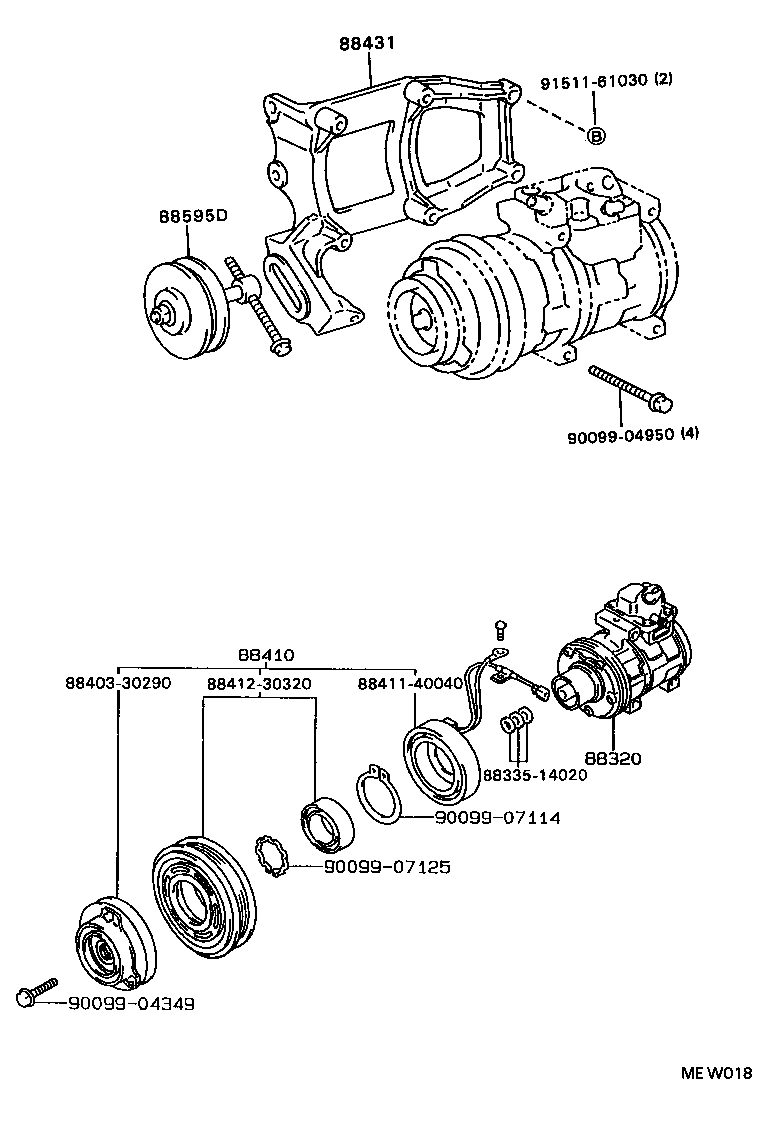

(9212- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-40050 |
VG4# |
1 | ||
| 88320-40040 |
VG4# |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-40060 |
VG4# |
1 | ||
| 88410-14090 |
VG4# |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-40050 |
VG4# |
1 | ||
| 88431-40040 |
VG4# |
1 | ||
| 88595D - PULLEY ASSY, IDLE | ||||
| 88440-40010 |
VG4# |
1 | ||
| Common parts | ||||
| 88335-14020 | ||||
| 88403-30290 | ||||
| 88411-40040 | ||||
| 88412-30320 | ||||
| 90099-04349 | ||||
| 90099-04950 | ||||
| 90099-07114 | ||||
| 90099-07125 | ||||
| 91511-61030 | ||||
