VG40-GEPGE (1987)
Toyota Century
Production
Sep 1987
-
Jan 1997
Engine
5VEU
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

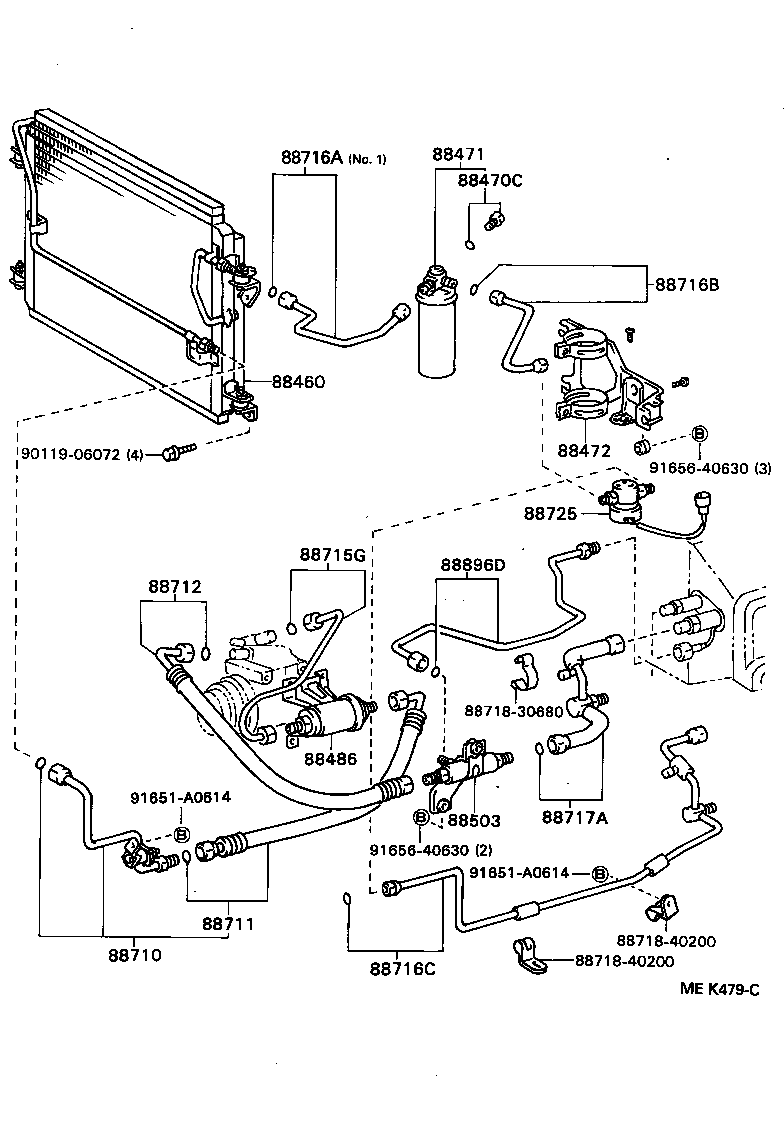

ILLUST NO. 1 OF 3(8709-9212)
Click highlighted areas on diagram
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-40060 |
VG4# |
1 | ||
| 88460-40040 |
VG4# |
1 | ||
| 88470C - BOLT, FUSE | ||||
| 88475-12020 |
VG4# |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-40070 |
VG4# |
1 | ||
| 88471-40010 |
VG4# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-40061 |
VG4# |
1 | ||
| 88472-40070 |
VG4# |
1 | ||
| 88486 - MUFFLER, DISCHARGE | ||||
| 88486-40010 |
VG4# |
1 | ||
| 88503 - REGULATOR ASSY, PRESSURE | ||||
| 88503-40020 |
VG4# |
1 | ||
| 88503-40010 |
VG4# |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88720-40020 |
VG4# |
1 | ||
| 88710-40041 |
VG4# |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-40081 |
VG4# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-40080 |
VG4# |
1 | ||
| 88712-40070 |
VG4# |
1 | ||
| 88715G - TUBE, DISCHARGE, G | ||||
| 88715-40070 |
VG4# |
1 | ||
| 88715-40060 |
VG4# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-40250 |
VG4# NO.1 |
1 | ||
| 88716-40270 |
VG40 NO.2 |
1 | ||
| 88716-40320 |
VG4# NO.3 |
1 | ||
| 88716-40400 |
VG4# NO.1 |
1 | ||
| 88716-40530 |
VG40 NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-40410 |
VG4# NO.2 |
1 | ||
| 88716-40281 |
VG4# |
1 | ||
| 88716-40440 |
VG4# NO.1 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-40262 |
VG4# |
1 | ||
| 88716-40450 |
VG4# |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-40200 |
VG4# |
1 | ||
| 88717-40130 |
VG4# |
1 | ||
| 88725 - SENSOR, REFRIGERANT | ||||
| 88725-40011 |
VG4# |
1 | ||
| 88896D - PIPE, EQUALIZER | ||||
| 88896-40050 |
VG4# |
1 | ||
| 88896-40040 |
VG4# |
1 | ||
| Common parts | ||||
| 88718-30680 | ||||
| 88718-40200 | ||||
| 90119-06072 | ||||
| 91651-A0614 | ||||
| 91656-40630 | ||||

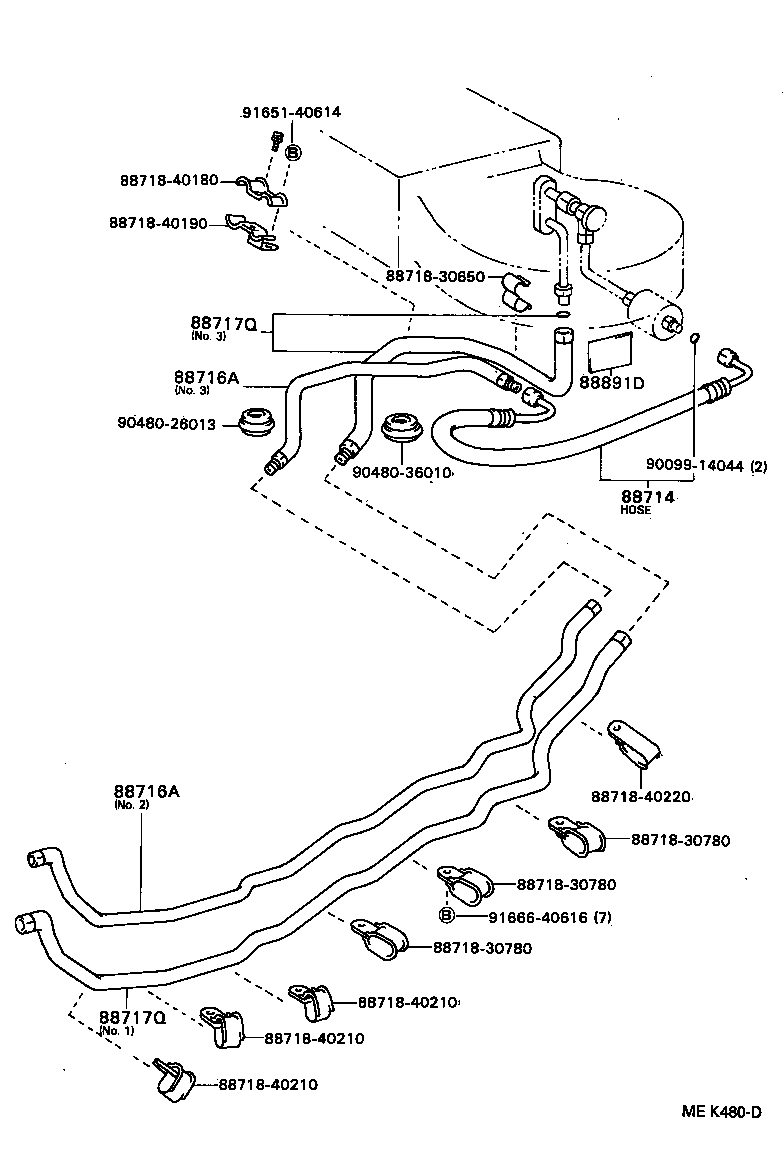

ILLUST NO. 3 OF 3(8709- )
Click highlighted areas on diagram
ﾘﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-40020 |
VG4# |
1 | ||
| 88721-40010 |
VG4# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-40250 |
VG4# NO.1 |
1 | ||
| 88716-40270 |
VG40 NO.2 |
1 | ||
| 88716-40320 |
VG4# NO.3 |
1 | ||
| 88716-40400 |
VG4# NO.1 |
1 | ||
| 88716-40530 |
VG40 NO.2 |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-40250 |
VG4# NO.1 |
1 | ||
| 88716-40270 |
VG40 NO.2 |
1 | ||
| 88716-40320 |
VG4# NO.3 |
1 | ||
| 88716-40400 |
VG4# NO.1 |
1 | ||
| 88716-40530 |
VG40 NO.2 |
1 | ||
| 88717Q - PIPE, COOLER REFRIGERANT SUCTION, Q | ||||
| 88717-40130 |
VG4# NO.2 |
1 | ||
| 88717-40120 |
VG40 NO.1 |
1 | ||
| 88717-40260 |
VG40 NO.1 |
1 | ||
| 88717-40160 |
VG4# NO.3 |
1 | ||
| 88717Q - PIPE, COOLER REFRIGERANT SUCTION, Q | ||||
| 88717-40130 |
VG4# NO.2 |
1 | ||
| 88717-40120 |
VG40 NO.1 |
1 | ||
| 88717-40260 |
VG40 NO.1 |
1 | ||
| 88717-40160 |
VG4# NO.3 |
1 | ||
| 88891D - PACKING D (FOR COOLER) | ||||
| 88578-30290 |
VG4# |
2 | ||
| Common parts | ||||
| 88718-30650 | ||||
| 88718-30780 | ||||
| 88718-40180 | ||||
| 88718-40190 | ||||
| 88718-40210 | ||||
| 88718-40220 | ||||
| 90099-14044 | ||||
| 90480-26013 | ||||
| 90480-36010 | ||||
| 91651-40614 | ||||
| 91666-40616 | ||||

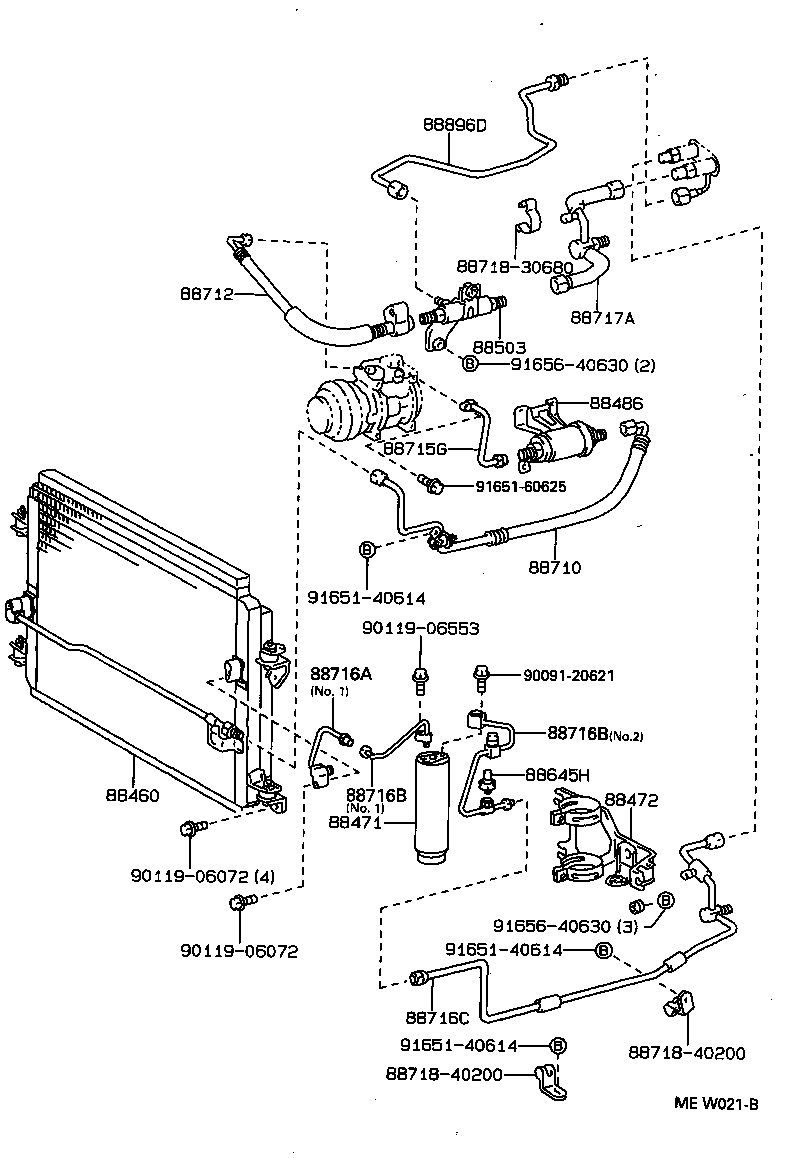

(9212- )
Click highlighted areas on diagram
ﾌﾛﾝﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-40060 |
VG4# |
1 | ||
| 88460-40040 |
VG4# |
1 | ||
| 88471 - TANK, RECEIVER AIR CONDITIONER | ||||
| 88471-40070 |
VG4# |
1 | ||
| 88471-40010 |
VG4# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-40061 |
VG4# |
1 | ||
| 88472-40070 |
VG4# |
1 | ||
| 88486 - MUFFLER, DISCHARGE | ||||
| 88486-40010 |
VG4# |
1 | ||
| 88503 - REGULATOR ASSY, PRESSURE | ||||
| 88503-40020 |
VG4# |
1 | ||
| 88503-40010 |
VG4# |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-34010 |
VG4# |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88720-40020 |
VG4# |
1 | ||
| 88710-40041 |
VG4# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-40080 |
VG4# |
1 | ||
| 88712-40070 |
VG4# |
1 | ||
| 88715G - TUBE, DISCHARGE, G | ||||
| 88715-40070 |
VG4# |
1 | ||
| 88715-40060 |
VG4# |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-40250 |
VG4# NO.1 |
1 | ||
| 88716-40270 |
VG40 NO.2 |
1 | ||
| 88716-40320 |
VG4# NO.3 |
1 | ||
| 88716-40400 |
VG4# NO.1 |
1 | ||
| 88716-40530 |
VG40 NO.2 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-40410 |
VG4# NO.2 |
1 | ||
| 88716-40281 |
VG4# |
1 | ||
| 88716-40440 |
VG4# NO.1 |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-40410 |
VG4# NO.2 |
1 | ||
| 88716-40281 |
VG4# |
1 | ||
| 88716-40440 |
VG4# NO.1 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-40262 |
VG4# |
1 | ||
| 88716-40450 |
VG4# |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-40200 |
VG4# |
1 | ||
| 88717-40130 |
VG4# |
1 | ||
| 88896D - PIPE, EQUALIZER | ||||
| 88896-40050 |
VG4# |
1 | ||
| 88896-40040 |
VG4# |
1 | ||
| Common parts | ||||
| 88718-30680 | ||||
| 88718-40200 | ||||
| 90091-20621 | ||||
| 90119-06072 | ||||
| 90119-06553 | ||||
| 91651-40614 | ||||
| 91651-60625 | ||||
| 91656-40630 | ||||
