VG40-GEPGE (1987)

Toyota Century

Production Sep 1987 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

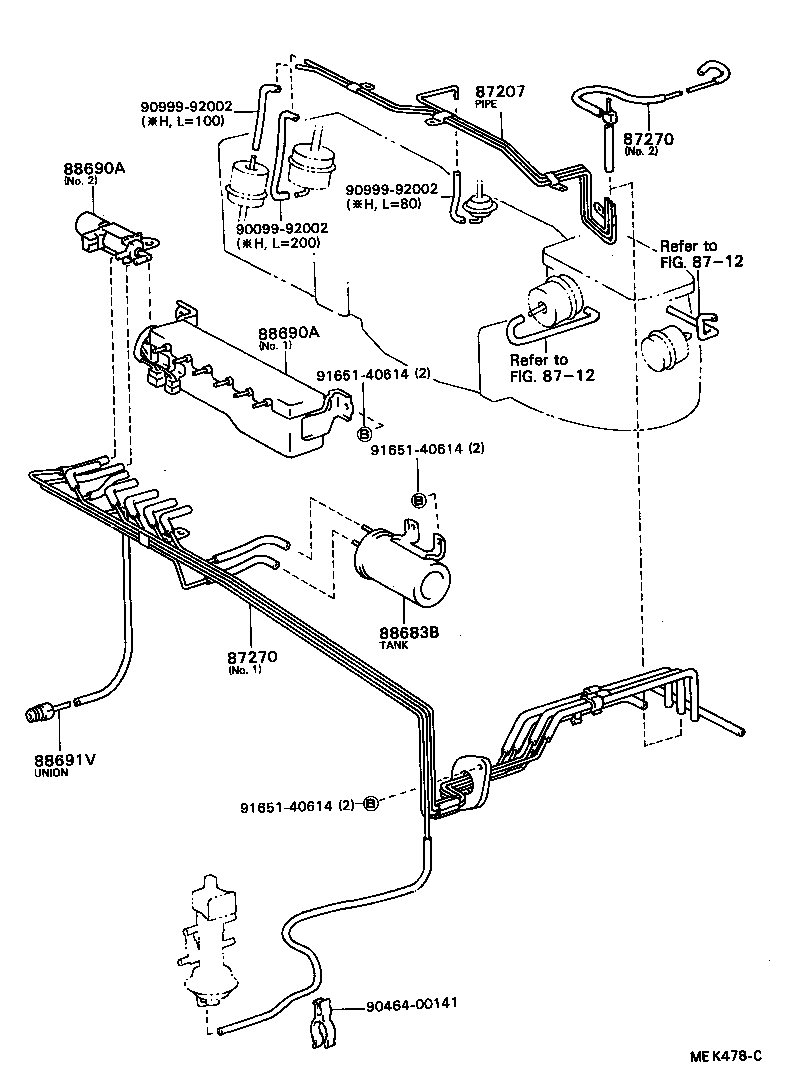

Click highlighted areas on diagram

diagram 8712 8712 87207 87270 87270 88683B 88690A 88690A 88691V 9009992002 9046400141 9099992002 9099992002 9165140614 9165140614 9165140614
Part # Description Qty Price
87207 - PIPE SUB-ASSY, VACUUM
87207-40010

VG4#

 1
87270 - PIPE ASSY, VACUUM
87270-40020

VG4#

 1
87270-40020

VG40

NO.1

 1
87270 - PIPE ASSY, VACUUM
87270-40020

VG4#

 1
87270-40020

VG40

NO.1

 1
88683B - TANK, VACUUM
88683-40050

VG4#

 1
88690A - VALVE ASSY, COMBINATION
88691-90K01

VG4#

NO.2

 1
88691-40050

VG4#

NO.1

 1
88690A - VALVE ASSY, COMBINATION
88691-40050

VG4#

NO.1

 1
88691-90K01

VG4#

NO.2

 1
88691V - UNION (FOR VACUUM PIPE)
90404-51010

VG4#

 1
Common parts
90099-92002
90464-00141
90999-92002
91651-40614
Linked diagrams
8712
