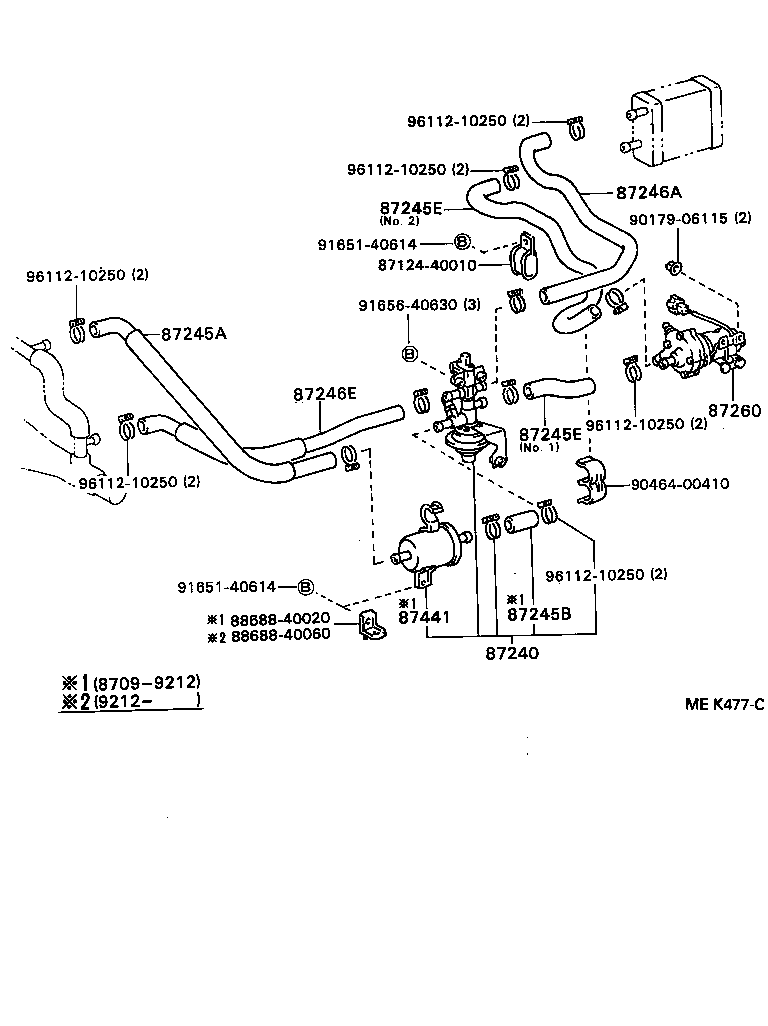

Toyota Century VG40 HEATING & AIR CONDITIONING - WATER PIPING

Part #	Description	Period	Qty
87240 - VALVE ASSY, HEATER WATER
87240-40090	VG4# ﾊﾟﾙｽｼｷ	12/1992 - 02/1993	1
87240-40100	VG4# ﾘﾆｱｼｷ	02/1993 - 01/1997	1
87240-40072	VG4#	09/1987 - 12/1992	1
87245A - HOSE, HEATER WATER, INLET A
87209-40100	VG4#	12/1992 - 02/1993	1
87209-40022	VG4#	02/1993 - 01/1997	1
87209-40022	VG4#	09/1987 - 12/1992	1
87245B - HOSE, HEATER WATER, INLET B
99552-30100	VG4# *H,L=100	09/1987 - 12/1992	1
87245E - HOSE, HEATER WATER, INLET E
87209-40040	VG4# NO.1	09/1987 - 12/1992	1
87209-40050	VG4# NO.2	09/1987 - 01/1997	1
87209-40110	VG4# 長さ=170,NO.1	12/1992 - 02/1993	1
87209-40040	VG4# NO.1	02/1993 - 01/1997	1
87245E - HOSE, HEATER WATER, INLET E
87209-40040	VG4# NO.1	09/1987 - 12/1992	1
87209-40050	VG4# NO.2	09/1987 - 01/1997	1
87209-40110	VG4# 長さ=170,NO.1	12/1992 - 02/1993	1
87209-40040	VG4# NO.1	02/1993 - 01/1997	1
87246A - HOSE, HEATER WATER, OUTLET A
87209-40060	VG4#	02/1993 - 01/1997	1
87209-40060	VG4#	09/1987 - 12/1992	1
87209-40120	VG4#	12/1992 - 02/1993	1
87246E - HOSE, HEATER WATER, OUTLET E
87209-40030	VG4#	09/1987 - 01/1997	1
87260 - PUMP ASSY, HEATER
87260-40011	VG4#	09/1987 - 01/1997	1
87441 - FILTER, WATER VALVE
87441-40011	VG4#	09/1987 - 12/1992	1
Common parts
87124-40010
88688-40020
88688-40060
90179-06115
90464-00410
91651-40614
91656-40630
96112-10250

VG40-GEPGE (1987)
