VG40-GEPGE (1987)
Toyota Century

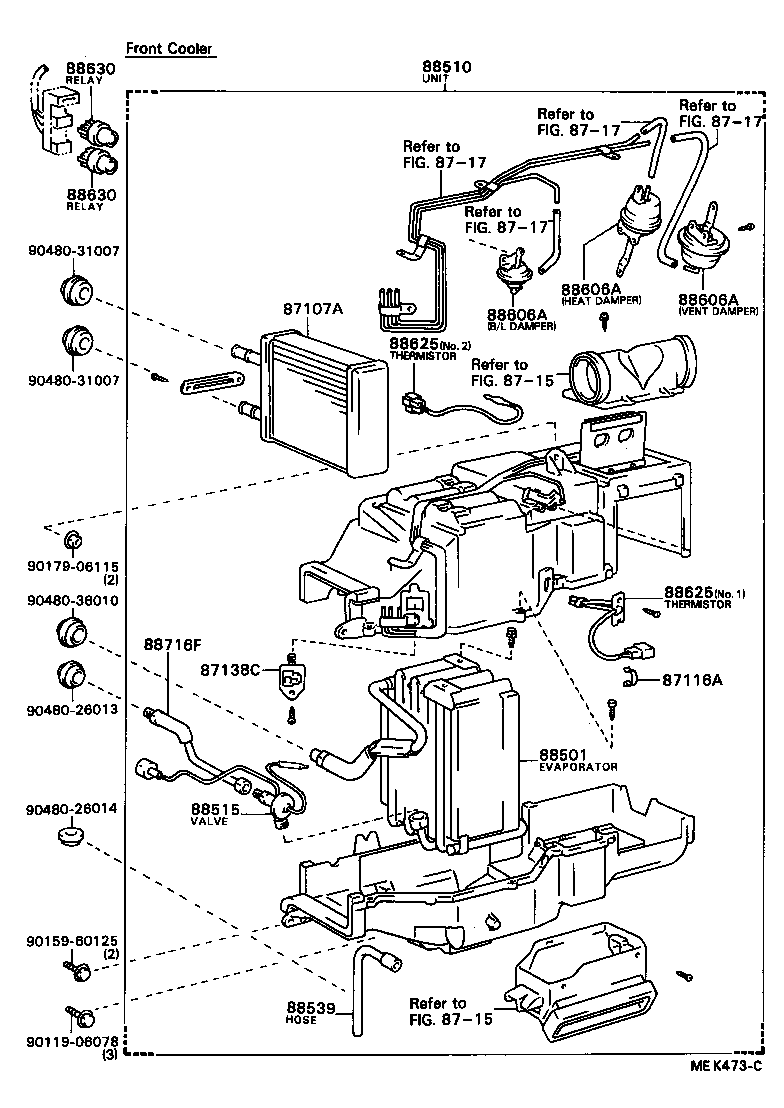

ILLUST NO. 1 OF 3(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-40061 |
VG4# |
1 | ||
| 87107-40060 |
VG4# |
1 | ||
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
VG4# REAR COOLER UNIT |
7 | ||
| 87116-14010 |
VG4# FRONT COOLER UNIT |
2 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-40012 |
VG4# |
1 | ||
| 87138-40020 |
VG4# |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-40051 |
VG4# |
1 | ||
| 88501-40050 |
VG4# ﾌﾛﾝﾄ |
1 | ||
| 88501-30540 |
VG4# ﾘﾔ |
1 | ||
| 88501-40100 |
VG4# ﾘﾔ |
1 | ||
| 88501-40080 |
VG4# ﾌﾛﾝﾄ |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-40110 |
VG4# ﾘﾔ |
1 | ||
| 88510-40160 |
VG4# ﾌﾛﾝﾄ |
1 | ||
| 88510-40083 |
VG4# ﾌﾛﾝﾄ |
1 | ||
| 88510-40170 |
VG4# ﾘﾔ |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-22071 |
VG4# |
1 | ||
| 88515-22070 |
VG4# ﾌﾛﾝﾄ |
1 | ||
| 88515-30310 |
VG4# ﾘﾔ |
1 | ||
| 88515-50050 |
VG4# ﾘﾔ |
1 | ||
| 88515-40060 |
VG4# ﾌﾛﾝﾄ |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-40050 |
VG4# ﾌﾛﾝﾄ |
1 | ||
| 88539-40070 |
VG4# ﾘﾔ |
1 | ||
| 88606A - DIAPHRAGM SUB-ASSY, COOLER | ||||
| 87108-30310 |
VG4# HEAT DAMPER |
1 | ||
| 87108-30300 |
VG4# VENT DAMPER |
1 | ||
| 87108-40050 |
VG4# VENT DAMPER |
1 | ||
| 87108-40040 |
VG4# B/L DAMPER |
1 | ||
| 88606A - DIAPHRAGM SUB-ASSY, COOLER | ||||
| 87108-30310 |
VG4# HEAT DAMPER |
1 | ||
| 87108-30300 |
VG4# VENT DAMPER |
1 | ||
| 87108-40050 |
VG4# VENT DAMPER |
1 | ||
| 87108-40040 |
VG4# B/L DAMPER |
1 | ||
| 88606A - DIAPHRAGM SUB-ASSY, COOLER | ||||
| 87108-30310 |
VG4# HEAT DAMPER |
1 | ||
| 87108-30300 |
VG4# VENT DAMPER |
1 | ||
| 87108-40050 |
VG4# VENT DAMPER |
1 | ||
| 87108-40040 |
VG4# B/L DAMPER |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88790-40010 |
VG4# NO.1 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88790-40010 |
VG4# NO.1 |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-02004 |
VG4# |
2 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 90987-02004 |
VG4# |
2 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-40290 |
VG4# |
1 | ||
| Common parts | ||||
| 90119-06078 | ||||
| 90159-60125 | ||||
| 90179-06115 | ||||
| 90480-26013 | ||||
| 90480-26014 | ||||
| 90480-31007 | ||||
| 90480-36010 | ||||
| Linked diagrams | ||||
| 8715 | ||||
| 8717 | ||||

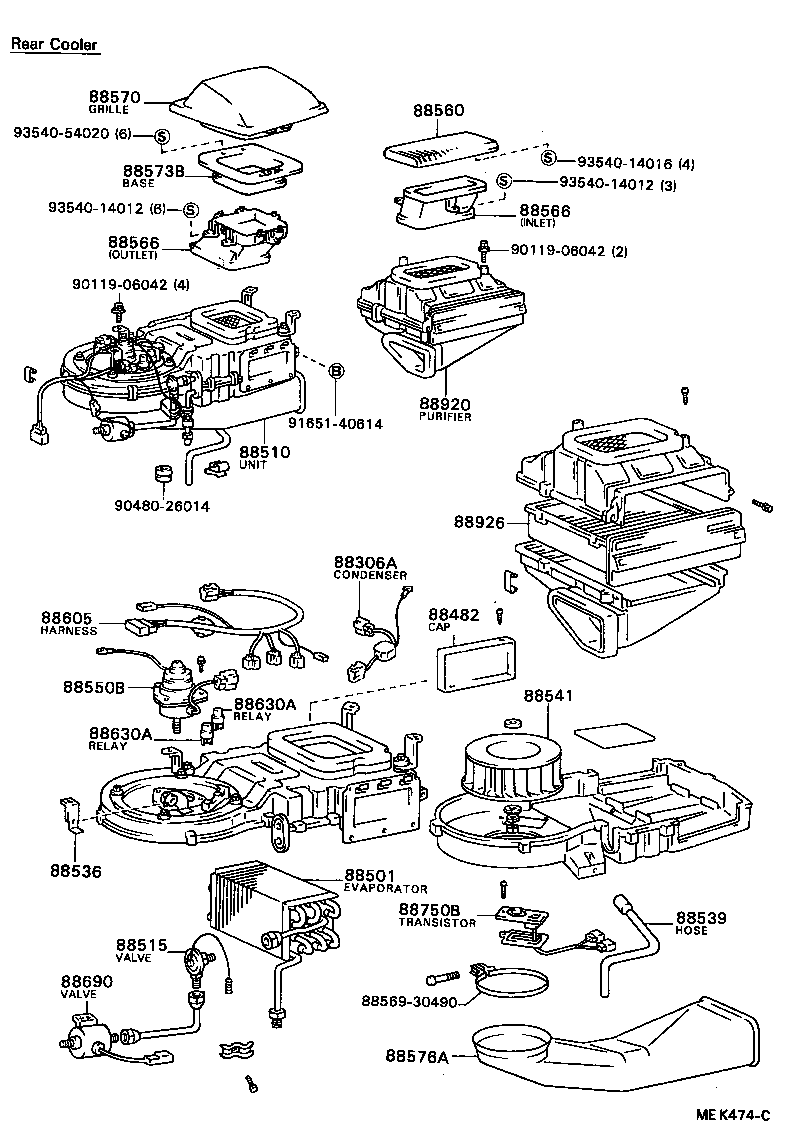

ILLUST NO. 2 OF 3(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88306A - CONDENSER (FOR BLOWER MOTOR) | ||||
| 90980-04035 |
VG4# |
1 | ||
| 88482 - CAP, COOLER | ||||
| 88482-30250 |
VG4# |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-40051 |
VG4# |
1 | ||
| 88501-40050 |
VG4# ﾌﾛﾝﾄ |
1 | ||
| 88501-30540 |
VG4# ﾘﾔ |
1 | ||
| 88501-40100 |
VG4# ﾘﾔ |
1 | ||
| 88501-40080 |
VG4# ﾌﾛﾝﾄ |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-40110 |
VG4# ﾘﾔ |
1 | ||
| 88510-40160 |
VG4# ﾌﾛﾝﾄ |
1 | ||
| 88510-40083 |
VG4# ﾌﾛﾝﾄ |
1 | ||
| 88510-40170 |
VG4# ﾘﾔ |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-22071 |
VG4# |
1 | ||
| 88515-22070 |
VG4# ﾌﾛﾝﾄ |
1 | ||
| 88515-30310 |
VG4# ﾘﾔ |
1 | ||
| 88515-50050 |
VG4# ﾘﾔ |
1 | ||
| 88515-40060 |
VG4# ﾌﾛﾝﾄ |
1 | ||
| 88536 - BRACKET, COOLING UNIT, NO.1 | ||||
| 88536-40010 |
VG4# |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-40050 |
VG4# ﾌﾛﾝﾄ |
1 | ||
| 88539-40070 |
VG4# ﾘﾔ |
1 | ||
| 88541 - FAN, BLOWER | ||||
| 88541-30270 |
VG4# |
1 | ||
| 88550B - MOTOR ASSY, BLOWER | ||||
| 88550-91701 |
VG4# |
1 | ||
| 88560 - GRILLE ASSY, COOLER AIR INLET | ||||
| 88561-3030022 |
VG4#..E,L MAROON,TRIM3# |
1 | ||
| 88561-30300B0 |
VG4# SHADOW GRAY,TRIM1# |
1 | ||
| 88561-3030034 |
VG4# DARK BLUE,TRIM8# |
1 | ||
| 88561-3030011 |
VG4#..E,L BLACK,TRIM2# |
1 | ||
| 88561-30300E2 |
VG4#..E,L SABLE,TRIM4# |
1 | ||
| 88566 - DUCT, COOLER AIR, NO.1 | ||||
| 88566-40090 |
VG4# INLET |
1 | ||
| 88566-40100 |
VG4# OUTLET |
1 | ||
| 88566 - DUCT, COOLER AIR, NO.1 | ||||
| 88566-40090 |
VG4# INLET |
1 | ||
| 88566-40100 |
VG4# OUTLET |
1 | ||
| 88570 - GRILLE SUB-ASSY, COOLER AIR OUTLET | ||||
| 88570-3062001 |
VG4#..E,L BLACK,TRIM2# |
1 | ||
| 88570-3062014 |
VG4# DARK BLUE,TRIM8# |
1 | ||
| 88570-3062023 |
VG4# SHADOW GRAY,TRIM1# |
1 | ||
| 88570-30620E0 |
VG4#..E,L SABLE,TRIM4# |
1 | ||
| 88570-3062012 |
VG4#..E,L MAROON,TRIM3# |
1 | ||
| 88570-30620B0 |
VG4# SHADOW GRAY,TRIM1# |
1 | ||
| 88573B - BASE, GRILLE | ||||
| 88573-30490 |
VG4# |
1 | ||
| 88576A - FILTER, EXPANSION, NO.1 | ||||
| 88576-30680 |
VG4# |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88608-40020 |
VG4# ﾘﾔ |
1 | ||
| 88608-40050 |
VG4# ﾘﾔ |
1 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 90987-02004 |
VG4# |
2 | ||
| 88630A - RELAY ASSY, COOLER | ||||
| 90987-02004 |
VG4# |
2 | ||
| 88690 - VALVE ASSY, COOLER MAGNET | ||||
| 88691-40100 |
VG4# |
1 | ||
| 88691-30440 |
VG4# |
1 | ||
| 88750B - TRANSISTOR ASSY, BLOWER RESISTOR | ||||
| 88750-40010 |
VG4# |
1 | ||
| 88920 - PURIFIER ASSY, AIR | ||||
| 88920-40030 |
VG4# |
1 | ||
| 88926 - FILTER, AIR PURIFIER | ||||
| 88926-40010 |
VG4# |
1 | ||
| Common parts | ||||
| 88569-30490 | ||||
| 90119-06042 | ||||
| 90480-26014 | ||||
| 91651-40614 | ||||
| 93540-14012 | ||||
| 93540-14016 | ||||
| 93540-54020 | ||||
