VG40-GEPGE (1987)

Toyota Century

Production Sep 1987 - Jan 1997
Engine 5VEU
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8709- )

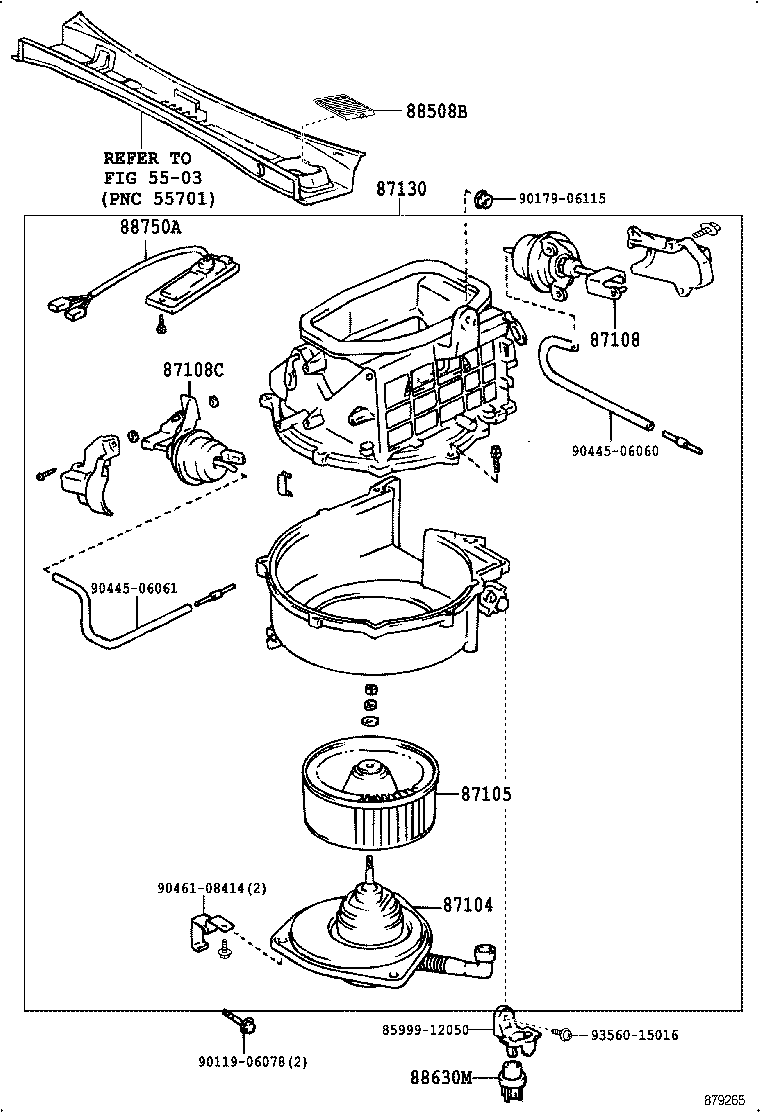

Click highlighted areas on diagram

diagram 5503 8599912050 87104 87105 87108 87108C 87130 88508B 88630M 88750A 9011906078 9017906115 9044506060 9044506061 9046108414 9356015016
Part # Description Qty Price
87104 - MOTOR SUB-ASSY, HEATER BLOWER
87104-40010

VG4#

 1
87104-40020

VG4#

 1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-14030

VG4#

 1
87108 - DIAPHRAGM SUB-ASSY, HEATER DOOR CONTROL
87108-40010

VG4#

 1
87108C - DIAPHRAGM SUB-ASSY, HEATER BLOWER DAMPER
87108-24020

VG4#

 1
87130 - BLOWER ASSY, HEATER, FRONT
87130-40020

VG4#

 1
87130-40010

VG4#

 1
88508B - FILTER SUB-ASSY, CLEAN AIR
88508-40010

VG4#

 1
88630M - RELAY ASSY, COOLER
90987-02004

VG4#

 1
88750A - TRANSISTOR ASSY, BLOWER RESISTOR
88750-24011

VG4#

 1
Common parts
85999-12050
90119-06078
90179-06115
90445-06060
90445-06061
90461-08414
93560-15016
Linked diagrams
5503
