Toyota Century VG40 TELEPHONE & MAYDAY

Manufacturers Home
Toyota
JP
CENTURY
VG40-GEPGE (1987)
8615 - TELEPHONE & MAYDAY

VG40-GEPGE (1987)

Toyota Century

Production Sep 1987 - Jan 1997

Engine 5VEU

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

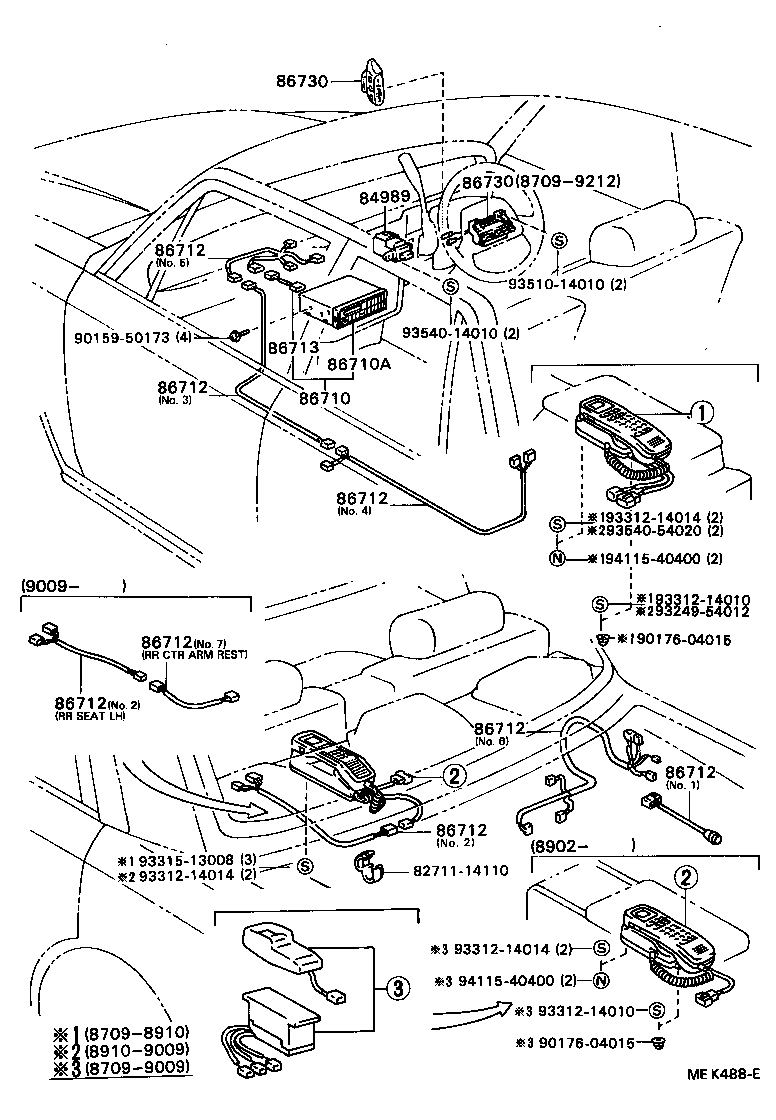

ILLUST NO. 1 OF 3(8709- )

Click highlighted areas on diagram

ﾃﾚﾎﾝ

Part #	Description	Period	Qty
84989 - SWITCH, STANDBY TELEPHONE
84989-40010	VG4#	10/1989 - 12/1992	1
86710 - COMPUTER ASSY, TELEPHONE
86710-40011	VG40	09/1987 - 02/1989	1
86710-40031	VG4#	12/1992 - 01/1997	1
86710-40030	VG4#	09/1990 - 12/1992	1
86710-40020	VG40	02/1989 - 09/1990	1
86710A - COMPUTER ASSY, TELEPHONE
86710-30081	VG4#	02/1991 - 01/1997	1
86710-30080	VG4#	02/1989 - 02/1991	1
86712 - WIRE, TELEPHONE
86712-22021	VG40;VG45..4FC	09/1990 - 12/1992	1
86712-22021	VG40..D	10/1989 - 08/1990	1
86712-91401	VG40..4FC NO.5	09/1987 - 10/1989	1
86712-22021	VG40	02/1989 - 10/1989	1
86712-91404	VG40	09/1987 - 09/1990	1
86712-91407	VG40..4FC NO.3	09/1987 - 09/1990	1
86712-30031	VG40	09/1987 - 02/1989	1
86712-22021	VG40..E	10/1989 - 08/1990	1
86712-91401	VG40 NO.5	10/1989 - 09/1990	1
86712-40020	VG4#..4FC NO.3	09/1990 - 12/1992	1
86712-40050	VG4# RR SEAT LH	09/1990 - 12/1992	1
86712-22021	VG40	08/1990 - 09/1990	1
86712-40010	VG4#	09/1990 - 12/1992	1
86712-40060	VG4# RR CTR ARMREST	09/1990 - 12/1992	1
86712-40120	VG4#..4FC NO.3	12/1992 - 01/1997	1
86712-40100	VG4#	12/1992 - 01/1997	1
86712-40140	VG4#	12/1992 - 01/1997	1
86712 - WIRE, TELEPHONE
86712-91401	VG40 NO.5	10/1989 - 09/1990	1
86712-22021	VG40..D	10/1989 - 08/1990	1
86712-91401	VG40..4FC NO.5	09/1987 - 10/1989	1
86712-22021	VG40	02/1989 - 10/1989	1
86712-91404	VG40	09/1987 - 09/1990	1
86712-91407	VG40..4FC NO.3	09/1987 - 09/1990	1
86712-30031	VG40	09/1987 - 02/1989	1
86712-22021	VG40..E	10/1989 - 08/1990	1
86712-22021	VG40;VG45..4FC	09/1990 - 12/1992	1
86712-40020	VG4#..4FC NO.3	09/1990 - 12/1992	1
86712-40050	VG4# RR SEAT LH	09/1990 - 12/1992	1
86712-22021	VG40	08/1990 - 09/1990	1
86712-40010	VG4#	09/1990 - 12/1992	1
86712-40060	VG4# RR CTR ARMREST	09/1990 - 12/1992	1
86712-40120	VG4#..4FC NO.3	12/1992 - 01/1997	1
86712-40100	VG4#	12/1992 - 01/1997	1
86712-40140	VG4#	12/1992 - 01/1997	1
86712 - WIRE, TELEPHONE
86712-22021	VG40;VG45..4FC	09/1990 - 12/1992	1
86712-22021	VG40..D	10/1989 - 08/1990	1
86712-91401	VG40..4FC NO.5	09/1987 - 10/1989	1
86712-22021	VG40	02/1989 - 10/1989	1
86712-91404	VG40	09/1987 - 09/1990	1
86712-91407	VG40..4FC NO.3	09/1987 - 09/1990	1
86712-30031	VG40	09/1987 - 02/1989	1
86712-22021	VG40..E	10/1989 - 08/1990	1
86712-91401	VG40 NO.5	10/1989 - 09/1990	1
86712-40020	VG4#..4FC NO.3	09/1990 - 12/1992	1
86712-40050	VG4# RR SEAT LH	09/1990 - 12/1992	1
86712-22021	VG40	08/1990 - 09/1990	1
86712-40010	VG4#	09/1990 - 12/1992	1
86712-40060	VG4# RR CTR ARMREST	09/1990 - 12/1992	1
86712-40120	VG4#..4FC NO.3	12/1992 - 01/1997	1
86712-40100	VG4#	12/1992 - 01/1997	1
86712-40140	VG4#	12/1992 - 01/1997	1
86712 - WIRE, TELEPHONE
86712-22021	VG40..D	10/1989 - 08/1990	1
86712-91401	VG40..4FC NO.5	09/1987 - 10/1989	1
86712-22021	VG40	02/1989 - 10/1989	1
86712-91404	VG40	09/1987 - 09/1990	1
86712-91407	VG40..4FC NO.3	09/1987 - 09/1990	1
86712-30031	VG40	09/1987 - 02/1989	1
86712-22021	VG40..E	10/1989 - 08/1990	1
86712-22021	VG40;VG45..4FC	09/1990 - 12/1992	1
86712-91401	VG40 NO.5	10/1989 - 09/1990	1
86712-40020	VG4#..4FC NO.3	09/1990 - 12/1992	1
86712-40050	VG4# RR SEAT LH	09/1990 - 12/1992	1
86712-22021	VG40	08/1990 - 09/1990	1
86712-40010	VG4#	09/1990 - 12/1992	1
86712-40060	VG4# RR CTR ARMREST	09/1990 - 12/1992	1
86712-40120	VG4#..4FC NO.3	12/1992 - 01/1997	1
86712-40100	VG4#	12/1992 - 01/1997	1
86712-40140	VG4#	12/1992 - 01/1997	1
86712 - WIRE, TELEPHONE
86712-22021	VG40;VG45..4FC	09/1990 - 12/1992	1
86712-22021	VG40..D	10/1989 - 08/1990	1
86712-91401	VG40..4FC NO.5	09/1987 - 10/1989	1
86712-22021	VG40	02/1989 - 10/1989	1
86712-91404	VG40	09/1987 - 09/1990	1
86712-91407	VG40..4FC NO.3	09/1987 - 09/1990	1
86712-30031	VG40	09/1987 - 02/1989	1
86712-22021	VG40..E	10/1989 - 08/1990	1
86712-91401	VG40 NO.5	10/1989 - 09/1990	1
86712-40020	VG4#..4FC NO.3	09/1990 - 12/1992	1
86712-40050	VG4# RR SEAT LH	09/1990 - 12/1992	1
86712-22021	VG40	08/1990 - 09/1990	1
86712-40010	VG4#	09/1990 - 12/1992	1
86712-40060	VG4# RR CTR ARMREST	09/1990 - 12/1992	1
86712-40120	VG4#..4FC NO.3	12/1992 - 01/1997	1
86712-40100	VG4#	12/1992 - 01/1997	1
86712-40140	VG4#	12/1992 - 01/1997	1
86712 - WIRE, TELEPHONE
86712-22021	VG40;VG45..4FC	09/1990 - 12/1992	1
86712-22021	VG40..D	10/1989 - 08/1990	1
86712-91401	VG40..4FC NO.5	09/1987 - 10/1989	1
86712-22021	VG40	02/1989 - 10/1989	1
86712-91404	VG40	09/1987 - 09/1990	1
86712-91407	VG40..4FC NO.3	09/1987 - 09/1990	1
86712-30031	VG40	09/1987 - 02/1989	1
86712-22021	VG40..E	10/1989 - 08/1990	1
86712-91401	VG40 NO.5	10/1989 - 09/1990	1
86712-40020	VG4#..4FC NO.3	09/1990 - 12/1992	1
86712-40050	VG4# RR SEAT LH	09/1990 - 12/1992	1
86712-22021	VG40	08/1990 - 09/1990	1
86712-40010	VG4#	09/1990 - 12/1992	1
86712-40060	VG4# RR CTR ARMREST	09/1990 - 12/1992	1
86712-40120	VG4#..4FC NO.3	12/1992 - 01/1997	1
86712-40100	VG4#	12/1992 - 01/1997	1
86712-40140	VG4#	12/1992 - 01/1997	1
86712 - WIRE, TELEPHONE
86712-22021	VG40;VG45..4FC	09/1990 - 12/1992	1
86712-22021	VG40..D	10/1989 - 08/1990	1
86712-91401	VG40..4FC NO.5	09/1987 - 10/1989	1
86712-22021	VG40	02/1989 - 10/1989	1
86712-91404	VG40	09/1987 - 09/1990	1
86712-91407	VG40..4FC NO.3	09/1987 - 09/1990	1
86712-30031	VG40	09/1987 - 02/1989	1
86712-22021	VG40..E	10/1989 - 08/1990	1
86712-91401	VG40 NO.5	10/1989 - 09/1990	1
86712-40020	VG4#..4FC NO.3	09/1990 - 12/1992	1
86712-40050	VG4# RR SEAT LH	09/1990 - 12/1992	1
86712-22021	VG40	08/1990 - 09/1990	1
86712-40010	VG4#	09/1990 - 12/1992	1
86712-40060	VG4# RR CTR ARMREST	09/1990 - 12/1992	1
86712-40120	VG4#..4FC NO.3	12/1992 - 01/1997	1
86712-40100	VG4#	12/1992 - 01/1997	1
86712-40140	VG4#	12/1992 - 01/1997	1
86712 - WIRE, TELEPHONE
86712-22021	VG40;VG45..4FC	09/1990 - 12/1992	1
86712-22021	VG40..D	10/1989 - 08/1990	1
86712-91401	VG40..4FC NO.5	09/1987 - 10/1989	1
86712-22021	VG40	02/1989 - 10/1989	1
86712-91404	VG40	09/1987 - 09/1990	1
86712-91407	VG40..4FC NO.3	09/1987 - 09/1990	1
86712-30031	VG40	09/1987 - 02/1989	1
86712-22021	VG40..E	10/1989 - 08/1990	1
86712-91401	VG40 NO.5	10/1989 - 09/1990	1
86712-40020	VG4#..4FC NO.3	09/1990 - 12/1992	1
86712-40050	VG4# RR SEAT LH	09/1990 - 12/1992	1
86712-22021	VG40	08/1990 - 09/1990	1
86712-40010	VG4#	09/1990 - 12/1992	1
86712-40060	VG4# RR CTR ARMREST	09/1990 - 12/1992	1
86712-40120	VG4#..4FC NO.3	12/1992 - 01/1997	1
86712-40100	VG4#	12/1992 - 01/1997	1
86712-40140	VG4#	12/1992 - 01/1997	1
86713 - WIRE, TELEPHONE COMPUTER
86713-40010	VG40..D	10/1989 - 08/1990	1
86713-40010	VG40..E	10/1989 - 08/1990	1
86713-40040	VG4# 24P-24P	12/1992 - 01/1997	1
86713-40010	VG40	09/1987 - 10/1989	1
86713-40010	VG40	08/1990 - 09/1990	1
86713-40020	VG40..E	10/1989 - 08/1990	1
86713-40030	VG4#	09/1990 - 12/1992	1
86713-40050	VG4# 14P-10P	12/1992 - 01/1997	1
86730 - MICROPHONE ASSY, TELEPHONE
86730-40011	VG40;VG45..4HC	05/1992 - 12/1992	1
86730-40011	VG4#	09/1987 - 05/1992	1
86730-50020	VG40;VG45..4HC	12/1992 - 01/1997	1
86730-30080	VG40 ｱﾘ(ﾌﾛﾝﾄ & ﾘﾔｺ-ﾄﾞﾊﾝﾄﾞｾﾂﾄ)	05/1992 - 01/1997	1
86730 - MICROPHONE ASSY, TELEPHONE
86730-40011	VG40;VG45..4HC	05/1992 - 12/1992	1
86730-40011	VG4#	09/1987 - 05/1992	1
86730-50020	VG40;VG45..4HC	12/1992 - 01/1997	1
86730-30080	VG40 ｱﾘ(ﾌﾛﾝﾄ & ﾘﾔｺ-ﾄﾞﾊﾝﾄﾞｾﾂﾄ)	05/1992 - 01/1997	1
Common parts
82711-14110
90159-50173
90176-04015
93249-54012
93312-14010
93312-14014
93315-13008
93510-14010
93540-14010
93540-54020
94115-40400

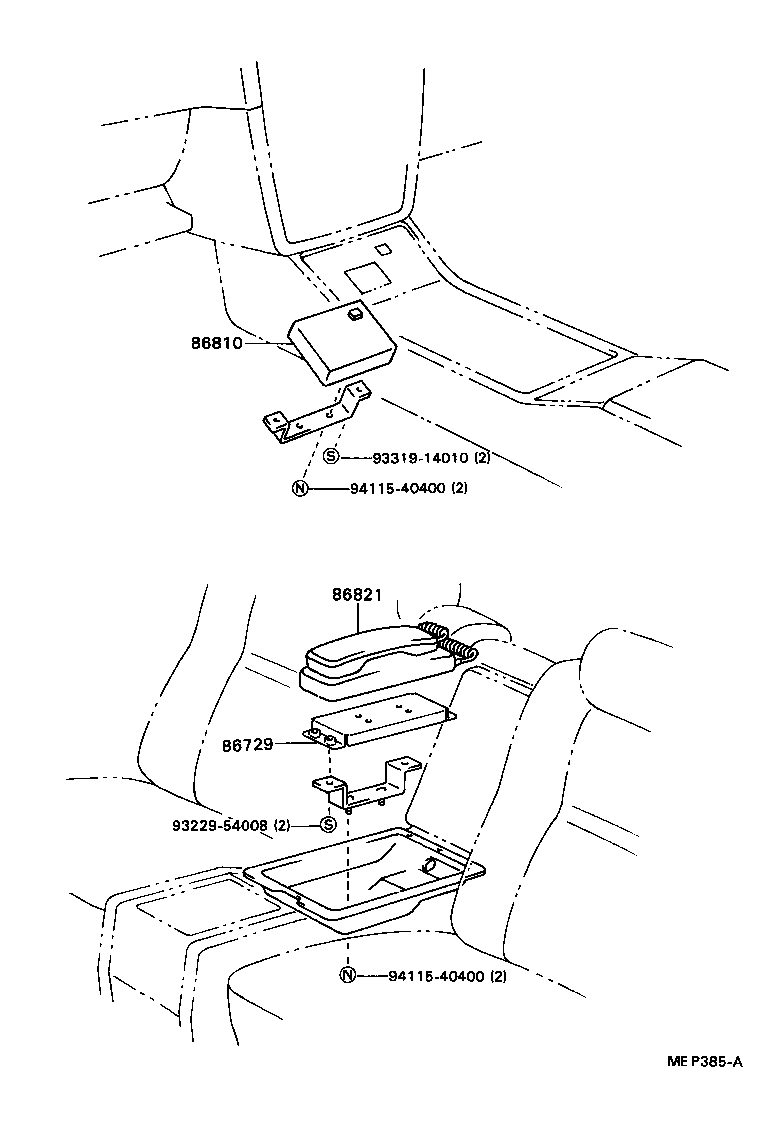

ILLUST NO. 3 OF 3(8910- )

Click highlighted areas on diagram

ｲﾝﾀ-ﾎﾝ

Part #	Description	Period	Qty	Price
Common parts
93229-54008
93319-14010
94115-40400

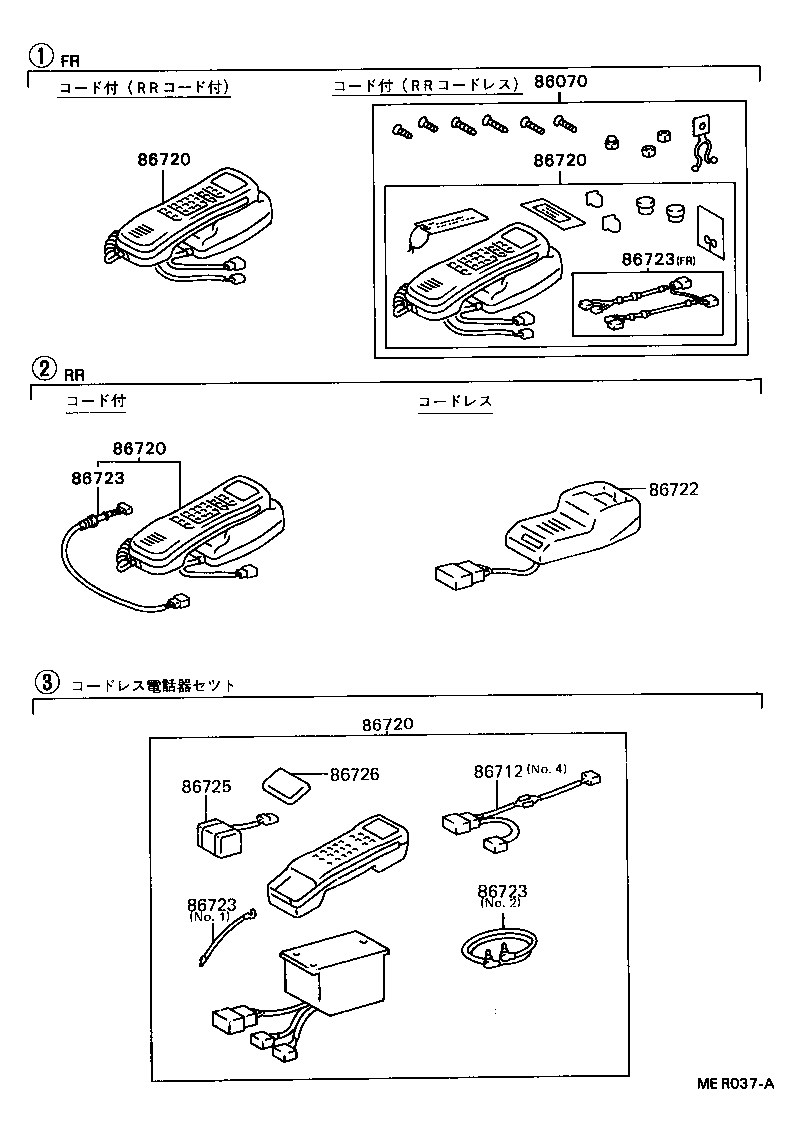

ILLUST NO. 1 OF 3(8709- )

Click highlighted areas on diagram

ﾃﾚﾎﾝ

Part #	Description	Period	Qty
86070 - MOBILEPHONE & ACCESSORY ASSY
86070-30170	VG40 TEN	05/1992 - 01/1997	1
86070-30030	VG40;VG45..4FC	09/1990 - 05/1992	1
86070-30160	VG40 MATSUSHITA	05/1992 - 01/1997	1
86070-30160	VG40;VG45..4FC	05/1992 - 01/1997	1
86712 - WIRE, TELEPHONE
86712-22021	VG40;VG45..4FC	09/1990 - 12/1992	1
86712-22021	VG40..D	10/1989 - 08/1990	1
86712-91401	VG40..4FC NO.5	09/1987 - 10/1989	1
86712-22021	VG40	02/1989 - 10/1989	1
86712-91404	VG40	09/1987 - 09/1990	1
86712-91407	VG40..4FC NO.3	09/1987 - 09/1990	1
86712-30031	VG40	09/1987 - 02/1989	1
86712-22021	VG40..E	10/1989 - 08/1990	1
86712-91401	VG40 NO.5	10/1989 - 09/1990	1
86712-40020	VG4#..4FC NO.3	09/1990 - 12/1992	1
86712-40050	VG4# RR SEAT LH	09/1990 - 12/1992	1
86712-22021	VG40	08/1990 - 09/1990	1
86712-40010	VG4#	09/1990 - 12/1992	1
86712-40060	VG4# RR CTR ARMREST	09/1990 - 12/1992	1
86712-40120	VG4#..4FC NO.3	12/1992 - 01/1997	1
86712-40100	VG4#	12/1992 - 01/1997	1
86712-40140	VG4#	12/1992 - 01/1997	1
86720 - MOBILEPHONE ASSY
86720-30050	VG40..D	10/1989 - 01/1990	1
86720-30050	VG40..E ﾘﾔ	10/1989 - 01/1990	1
86720-40010	VG40	09/1987 - 02/1989	1
86720-40020	VG40..E	01/1990 - 08/1990	1
86720-30050	VG40	02/1989 - 10/1989	1
86720-40020	VG40 ﾌﾛﾝﾄ	09/1990 - 05/1992	1
86720-30051	VG40;VG45..4FC	09/1990 - 05/1992	1
86720-40020	VG40..E ﾌﾛﾝﾄ	10/1989 - 01/1990	1
86720-30051	VG40 ﾘﾔ	09/1990 - 05/1992	1
86720-30080	VG40 ﾘﾔ	05/1992 - 01/1997	1
86720-30090	VG40 ﾌﾛﾝﾄ	05/1992 - 01/1997	1
86720-30080	VG40;VG45..4FC	05/1992 - 01/1997	1
86720 - MOBILEPHONE ASSY
86720-30050	VG40..D	10/1989 - 01/1990	1
86720-30050	VG40..E ﾘﾔ	10/1989 - 01/1990	1
86720-40010	VG40	09/1987 - 02/1989	1
86720-40020	VG40..E	01/1990 - 08/1990	1
86720-30050	VG40	02/1989 - 10/1989	1
86720-40020	VG40 ﾌﾛﾝﾄ	09/1990 - 05/1992	1
86720-30051	VG40;VG45..4FC	09/1990 - 05/1992	1
86720-40020	VG40..E ﾌﾛﾝﾄ	10/1989 - 01/1990	1
86720-30051	VG40 ﾘﾔ	09/1990 - 05/1992	1
86720-30080	VG40 ﾘﾔ	05/1992 - 01/1997	1
86720-30090	VG40 ﾌﾛﾝﾄ	05/1992 - 01/1997	1
86720-30080	VG40;VG45..4FC	05/1992 - 01/1997	1
86720 - MOBILEPHONE ASSY
86720-30050	VG40..D	10/1989 - 01/1990	1
86720-30050	VG40..E ﾘﾔ	10/1989 - 01/1990	1
86720-40010	VG40	09/1987 - 02/1989	1
86720-40020	VG40..E	01/1990 - 08/1990	1
86720-30050	VG40	02/1989 - 10/1989	1
86720-40020	VG40 ﾌﾛﾝﾄ	09/1990 - 05/1992	1
86720-30051	VG40;VG45..4FC	09/1990 - 05/1992	1
86720-40020	VG40..E ﾌﾛﾝﾄ	10/1989 - 01/1990	1
86720-30051	VG40 ﾘﾔ	09/1990 - 05/1992	1
86720-30080	VG40 ﾘﾔ	05/1992 - 01/1997	1
86720-30090	VG40 ﾌﾛﾝﾄ	05/1992 - 01/1997	1
86720-30080	VG40;VG45..4FC	05/1992 - 01/1997	1
86720 - MOBILEPHONE ASSY
86720-30050	VG40..D	10/1989 - 01/1990	1
86720-30050	VG40..E ﾘﾔ	10/1989 - 01/1990	1
86720-40010	VG40	09/1987 - 02/1989	1
86720-40020	VG40..E	01/1990 - 08/1990	1
86720-30050	VG40	02/1989 - 10/1989	1
86720-40020	VG40 ﾌﾛﾝﾄ	09/1990 - 05/1992	1
86720-30051	VG40;VG45..4FC	09/1990 - 05/1992	1
86720-40020	VG40..E ﾌﾛﾝﾄ	10/1989 - 01/1990	1
86720-30051	VG40 ﾘﾔ	09/1990 - 05/1992	1
86720-30080	VG40 ﾘﾔ	05/1992 - 01/1997	1
86720-30090	VG40 ﾌﾛﾝﾄ	05/1992 - 01/1997	1
86720-30080	VG40;VG45..4FC	05/1992 - 01/1997	1
86723 - WIRE, MOBILEPHONE
86723-40010	VG40 ﾌﾛﾝﾄ	09/1990 - 05/1992	1
86723-30030	VG40;VG45..4FC	05/1992 - 12/1992	1
86723-30010	VG40;VG45..4FC RR,L=395	09/1990 - 05/1992	1
86723-30030	VG40;VG45..4FC RR,L=825	09/1990 - 05/1992	1
86723-30080	VG40 RR,L=825	12/1992 - 01/1997	1
86723-30080	VG40;VG45..4FC	12/1992 - 01/1997	1
86723-30030	VG40 RR,L=825	05/1992 - 12/1992	1
86723-30090	VG40 ﾌﾛﾝﾄ	12/1992 - 01/1997	1
86723-40030	VG40 ﾌﾛﾝﾄ	05/1992 - 12/1992	1
86723 - WIRE, MOBILEPHONE
86723-40010	VG40 ﾌﾛﾝﾄ	09/1990 - 05/1992	1
86723-30030	VG40;VG45..4FC	05/1992 - 12/1992	1
86723-30010	VG40;VG45..4FC RR,L=395	09/1990 - 05/1992	1
86723-30030	VG40;VG45..4FC RR,L=825	09/1990 - 05/1992	1
86723-30080	VG40 RR,L=825	12/1992 - 01/1997	1
86723-30080	VG40;VG45..4FC	12/1992 - 01/1997	1
86723-30030	VG40 RR,L=825	05/1992 - 12/1992	1
86723-30090	VG40 ﾌﾛﾝﾄ	12/1992 - 01/1997	1
86723-40030	VG40 ﾌﾛﾝﾄ	05/1992 - 12/1992	1
86723 - WIRE, MOBILEPHONE
86723-40010	VG40 ﾌﾛﾝﾄ	09/1990 - 05/1992	1
86723-30030	VG40;VG45..4FC	05/1992 - 12/1992	1
86723-30010	VG40;VG45..4FC RR,L=395	09/1990 - 05/1992	1
86723-30030	VG40;VG45..4FC RR,L=825	09/1990 - 05/1992	1
86723-30080	VG40 RR,L=825	12/1992 - 01/1997	1
86723-30080	VG40;VG45..4FC	12/1992 - 01/1997	1
86723-30030	VG40 RR,L=825	05/1992 - 12/1992	1
86723-30090	VG40 ﾌﾛﾝﾄ	12/1992 - 01/1997	1
86723-40030	VG40 ﾌﾛﾝﾄ	05/1992 - 12/1992	1
86723 - WIRE, MOBILEPHONE
86723-40010	VG40 ﾌﾛﾝﾄ	09/1990 - 05/1992	1
86723-30030	VG40;VG45..4FC	05/1992 - 12/1992	1
86723-30010	VG40;VG45..4FC RR,L=395	09/1990 - 05/1992	1
86723-30030	VG40;VG45..4FC RR,L=825	09/1990 - 05/1992	1
86723-30080	VG40 RR,L=825	12/1992 - 01/1997	1
86723-30080	VG40;VG45..4FC	12/1992 - 01/1997	1
86723-30030	VG40 RR,L=825	05/1992 - 12/1992	1
86723-30090	VG40 ﾌﾛﾝﾄ	12/1992 - 01/1997	1
86723-40030	VG40 ﾌﾛﾝﾄ	05/1992 - 12/1992	1

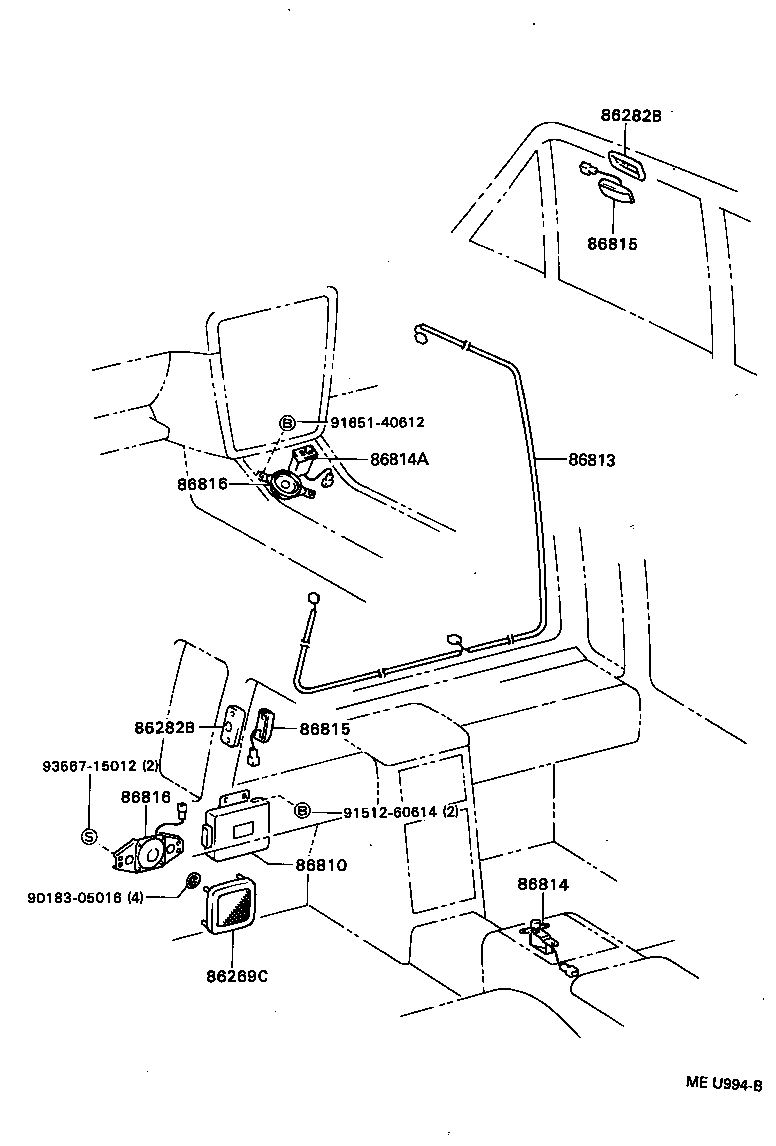

ILLUST NO. 3 OF 3(9212- )

Click highlighted areas on diagram

ｲﾝﾀ-ﾎﾝ

Part #	Description	Period	Qty
86282B - BRACKET, MICROPHONE
86282-50010	VG40;VG45..4FC	12/1992 - 01/1997	1
86282B - BRACKET, MICROPHONE
86282-50010	VG40;VG45..4FC	12/1992 - 01/1997	1
Common parts
90183-05016
91512-60614
91651-40612
93567-15012

ILLUST NO. 2 OF 3(9412- )

Click highlighted areas on diagram

ﾃﾚﾎﾝｱﾝﾃﾅｺ-ﾄﾞ

Part #	Description	Period	Qty
86705 - CORD SUB-ASSY, TELEPHONE ANTENNA
86705-40020	VG4# NO.1	12/1994 - 01/1997	1
86705-40030	VG4# NO.2	12/1994 - 01/1997	1
86705 - CORD SUB-ASSY, TELEPHONE ANTENNA
86705-40020	VG4# NO.1	12/1994 - 01/1997	1
86705-40030	VG4# NO.2	12/1994 - 01/1997	1
Common parts
82711-30180
90119-06005

VG40-GEPGE (1987)

ILLUST NO. 1 OF 3(8709- )

ILLUST NO. 3 OF 3(8910- )

ILLUST NO. 1 OF 3(8709- )

ILLUST NO. 3 OF 3(9212- )

ILLUST NO. 2 OF 3(9412- )

Part Price Details
