VG40-GEPGE (1987)
Toyota Century

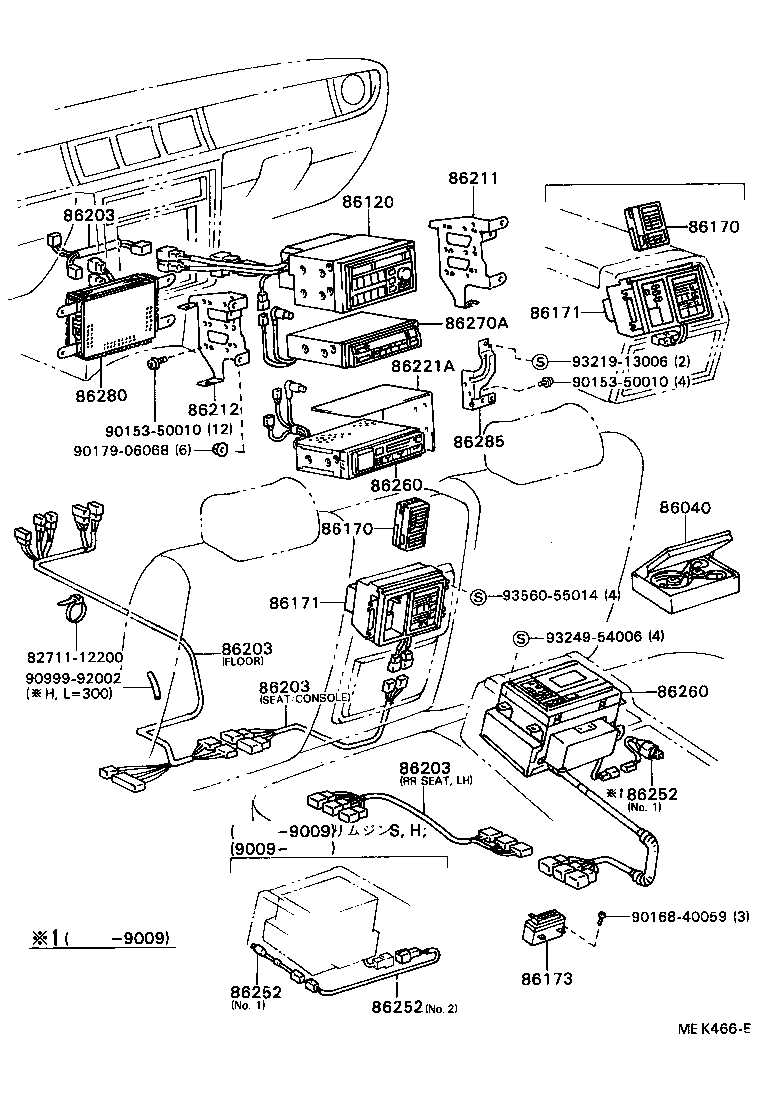

ILLUST NO. 1 OF 3(8709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86040 - HEADPHONE ASSY, STEREO | ||||
| 86040-40010 |
VG4#..E,L |
1 | ||
| 86040-30030 |
VG4#..E,L |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-40100 |
VG40..D PANASONIC |
1 | ||
| 86120-40110 |
VG40..E PANASONIC |
1 | ||
| 86120-40110 |
VG4# PANASONIC |
1 | ||
| 86120-40111 |
VG4# PANASONIC |
1 | ||
| 86170 - SWITCH AND VOLUME ASSY, RADIO | ||||
| 86170-40080 |
VG40..E;VG45..4FC ｱﾘ(ﾌﾛﾝﾄ CD ｵ-ﾄﾁｴﾝｼﾞﾔ) |
1 | ||
| 86170-40040 |
VG4#..E,L |
1 | ||
| 86170-40070 |
VG4#..E,L |
1 | ||
| 86170 - SWITCH AND VOLUME ASSY, RADIO | ||||
| 86170-40080 |
VG40..E;VG45..4FC ｱﾘ(ﾌﾛﾝﾄ CD ｵ-ﾄﾁｴﾝｼﾞﾔ) |
1 | ||
| 86170-40040 |
VG4#..E,L |
1 | ||
| 86170-40070 |
VG4#..E,L |
1 | ||
| 86171 - BASE, RADIO REMOTE CONTROL | ||||
| 86171-40020 |
VG4#..E,L |
1 | ||
| 86171 - BASE, RADIO REMOTE CONTROL | ||||
| 86171-40020 |
VG4#..E,L |
1 | ||
| 86173 - DISPLAY, RADIO REMOTE CONTROLER | ||||
| 86173-40010 |
VG4#..E,L |
1 | ||
| 86203 - WIRE, RADIO | ||||
| 86203-91404 |
VG40..4FC..E FLOOR |
1 | ||
| 86203-40210 |
VG40 |
1 | ||
| 86203-91405 |
VG40..4FC..E CONSOLE |
1 | ||
| 86203-40280 |
VG4#..4FC..(E,L) CONSOLE |
1 | ||
| 86203-40310 |
VG4#..E,L |
1 | ||
| 86203-40330 |
VG40..4FC..D |
1 | ||
| 86203-40340 |
VG40 |
1 | ||
| 86203-40270 |
VG4#..4FC..(E,L) FLOOR |
1 | ||
| 86203 - WIRE, RADIO | ||||
| 86203-91404 |
VG40..4FC..E FLOOR |
1 | ||
| 86203-40210 |
VG40 |
1 | ||
| 86203-91405 |
VG40..4FC..E CONSOLE |
1 | ||
| 86203-40280 |
VG4#..4FC..(E,L) CONSOLE |
1 | ||
| 86203-40310 |
VG4#..E,L |
1 | ||
| 86203-40330 |
VG40..4FC..D |
1 | ||
| 86203-40340 |
VG40 |
1 | ||
| 86203-40270 |
VG4#..4FC..(E,L) FLOOR |
1 | ||
| 86203 - WIRE, RADIO | ||||
| 86203-91404 |
VG40..4FC..E FLOOR |
1 | ||
| 86203-40210 |
VG40 |
1 | ||
| 86203-91405 |
VG40..4FC..E CONSOLE |
1 | ||
| 86203-40280 |
VG4#..4FC..(E,L) CONSOLE |
1 | ||
| 86203-40310 |
VG4#..E,L |
1 | ||
| 86203-40330 |
VG40..4FC..D |
1 | ||
| 86203-40340 |
VG40 |
1 | ||
| 86203-40270 |
VG4#..4FC..(E,L) FLOOR |
1 | ||
| 86203 - WIRE, RADIO | ||||
| 86203-91404 |
VG40..4FC..E FLOOR |
1 | ||
| 86203-40210 |
VG40 |
1 | ||
| 86203-91405 |
VG40..4FC..E CONSOLE |
1 | ||
| 86203-40280 |
VG4#..4FC..(E,L) CONSOLE |
1 | ||
| 86203-40310 |
VG4#..E,L |
1 | ||
| 86203-40330 |
VG40..4FC..D |
1 | ||
| 86203-40340 |
VG40 |
1 | ||
| 86203-40270 |
VG4#..4FC..(E,L) FLOOR |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-40040 |
VG4# |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-40040 |
VG4# |
1 | ||
| 86252 - CODE, MICROPHONE, NO.1 | ||||
| 86252-40010 |
VG4#..E,L NO.1 |
1 | ||
| 86252-40020 |
VG4#..E,L |
1 | ||
| 86252 - CODE, MICROPHONE, NO.1 | ||||
| 86252-40010 |
VG4#..E,L NO.1 |
1 | ||
| 86252-40020 |
VG4#..E,L |
1 | ||
| 86252 - CODE, MICROPHONE, NO.1 | ||||
| 86252-40010 |
VG4#..E,L NO.1 |
1 | ||
| 86252-40020 |
VG4#..E,L |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-40040 |
VG40..E;VG45..4FC ｱﾘ(ﾌﾛﾝﾄ DAT) |
1 | ||
| 86260-40070 |
VG4#..E,L |
1 | ||
| 86260-40030 |
VG40..E |
1 | ||
| 86260-40040 |
VG40..D |
1 | ||
| 86260-40050 |
VG4#..E,L |
1 | ||
| 86260-40060 |
VG40..D |
1 | ||
| 86260-40060 |
VG4#..E,L ｱﾘ(ﾌﾛﾝﾄ DAT) |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-40040 |
VG40..E;VG45..4FC ｱﾘ(ﾌﾛﾝﾄ DAT) |
1 | ||
| 86260-40070 |
VG4#..E,L |
1 | ||
| 86260-40030 |
VG40..E |
1 | ||
| 86260-40040 |
VG40..D |
1 | ||
| 86260-40050 |
VG4#..E,L |
1 | ||
| 86260-40060 |
VG40..D |
1 | ||
| 86260-40060 |
VG4#..E,L ｱﾘ(ﾌﾛﾝﾄ DAT) |
1 | ||
| 86270A - DISC PLAYER ASSY | ||||
| 86270-40010 |
VG40..E |
1 | ||
| 86270-40010 |
VG40..4FC..E |
1 | ||
| 86270-40012 |
VG40;VG45..4FC |
1 | ||
| 86270-40011 |
VG40;VG45..4FC |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-40020 |
VG40..E |
1 | ||
| 86280-40051 |
VG4# REAR |
1 | ||
| 86280-40031 |
VG4# FRONT |
1 | ||
| 86280-40060 |
VG4# |
1 | ||
| 86280-40070 |
VG4# FRONT |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-40010 |
VG4# |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90153-50010 | ||||
| 90168-40059 | ||||
| 90179-06068 | ||||
| 90999-92002 | ||||
| 93219-13006 | ||||
| 93249-54006 | ||||
| 93560-55014 | ||||

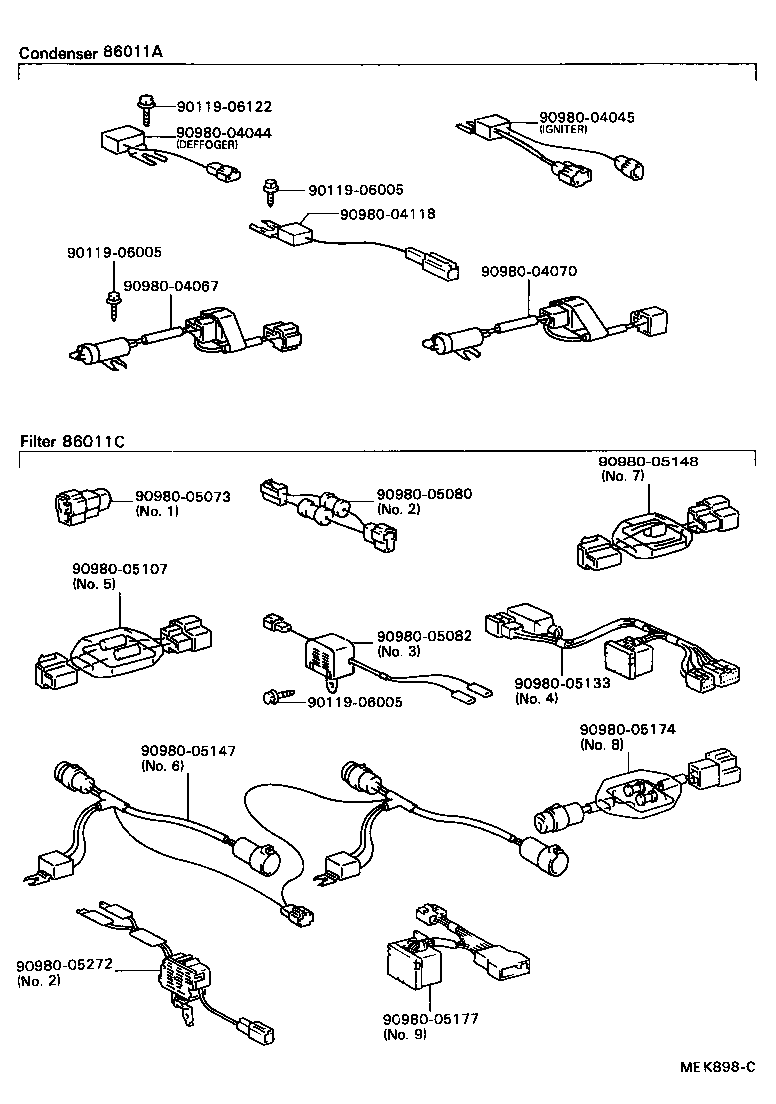

ILLUST NO. 3 OF 3(8709- )
ｺﾝﾃﾞﾝｻ & ﾉｲｽﾞﾌｲﾙﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04045 |
VG4# IGNITER |
1 | ||
| 90980-04067 |
VG4#..E,L SEAT CUSHION FRAME |
4 | ||
| 90980-04070 |
VG4# |
3 | ||
| 90980-04044 |
VG4# DEFFOGER |
3 | ||
| 90980-04044 |
VG4# DEFFOGER |
1 | ||
| 90980-04067 |
VG40..D |
1 | ||
| 90980-04067 |
VG4#..E,L |
2 | ||
| 90980-04118 |
VG4# RADIO |
1 | ||
| 90980-04067 |
VG40..D SEAT CUSHION FRAME |
3 | ||
| 86011C - FILTER, NOISE | ||||
| 90980-05147 |
VG4# NO.6 |
1 | ||
| 90980-05080 |
VG4# NO.2 |
2 | ||
| 90980-05148 |
VG4# NO.7 |
1 | ||
| 90980-05133 |
VG4# NO.4 |
1 | ||
| 90980-05082 |
VG4# NO.3 |
1 | ||
| 90980-05107 |
VG4# NO.5 |
1 | ||
| 90980-05272 |
VG4# NO.2 |
1 | ||
| 90980-05073 |
VG4# NO.1 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06122 | ||||
| 90980-04044 | ||||
| 90980-04045 | ||||
| 90980-04067 | ||||
| 90980-04070 | ||||
| 90980-04118 | ||||
| 90980-05073 | ||||
| 90980-05080 | ||||
| 90980-05082 | ||||
| 90980-05107 | ||||
| 90980-05133 | ||||
| 90980-05147 | ||||
| 90980-05148 | ||||
| 90980-05174 | ||||
| 90980-05177 | ||||
| 90980-05272 | ||||
ILLUST NO. 2 OF 3(8910- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55786D - CAP, COWL PANEL, OUTER | ||||
| 55786-20020 |
VG40;VG45..4FC |
2 | ||
| 55786-20020 |
VG4# |
2 | ||
| 86170 - SWITCH AND VOLUME ASSY, RADIO | ||||
| 86170-40080 |
VG40..E;VG45..4FC ｱﾘ(ﾌﾛﾝﾄ CD ｵ-ﾄﾁｴﾝｼﾞﾔ) |
1 | ||
| 86170-40040 |
VG4#..E,L |
1 | ||
| 86170-40070 |
VG4#..E,L |
1 | ||
| 86171 - BASE, RADIO REMOTE CONTROL | ||||
| 86171-40020 |
VG4#..E,L |
1 | ||
| 86203 - WIRE, RADIO | ||||
| 86203-91404 |
VG40..4FC..E FLOOR |
1 | ||
| 86203-40210 |
VG40 |
1 | ||
| 86203-91405 |
VG40..4FC..E CONSOLE |
1 | ||
| 86203-40280 |
VG4#..4FC..(E,L) CONSOLE |
1 | ||
| 86203-40310 |
VG4#..E,L |
1 | ||
| 86203-40330 |
VG40..4FC..D |
1 | ||
| 86203-40340 |
VG40 |
1 | ||
| 86203-40270 |
VG4#..4FC..(E,L) FLOOR |
1 | ||
| 86260 - TAPE PLAYER ASSY | ||||
| 86260-40040 |
VG40..E;VG45..4FC ｱﾘ(ﾌﾛﾝﾄ DAT) |
1 | ||
| 86260-40070 |
VG4#..E,L |
1 | ||
| 86260-40030 |
VG40..E |
1 | ||
| 86260-40040 |
VG40..D |
1 | ||
| 86260-40050 |
VG4#..E,L |
1 | ||
| 86260-40060 |
VG40..D |
1 | ||
| 86260-40060 |
VG4#..E,L ｱﾘ(ﾌﾛﾝﾄ DAT) |
1 | ||
| 86270A - DISC PLAYER ASSY | ||||
| 86270-40010 |
VG40..E |
1 | ||
| 86270-40010 |
VG40..4FC..E |
1 | ||
| 86270-40012 |
VG40;VG45..4FC |
1 | ||
| 86270-40011 |
VG40;VG45..4FC |
1 | ||
| 86272 - CONTROLLER, DISC PLAYER | ||||
| 86272-40020 |
VG40;VG45..4FC |
1 | ||
| 86272-40021 |
VG40;VG45..4FC |
1 | ||
| 86273 - MAGAZINE, DISC PLAYER | ||||
| 86273-24020 |
VG40;VG45..4FC |
1 | ||
| 86274A - BRACKET, DISC PLAYER | ||||
| 86274-40030 |
VG40;VG45..4FC |
2 | ||
| 86274A - BRACKET, DISC PLAYER | ||||
| 86274-40030 |
VG40;VG45..4FC |
2 | ||
| 86275A - CHANGER, DISC PLAYER | ||||
| 86270-4003003 |
VG40..D SHADOW GRAY,TRIM1#,8# |
1 | ||
| 86270-40031P5 |
VG40..D SHADOW GRAY,TRIM1#,8# |
1 | ||
| 86270-4003003 |
VG40..E;VG45..4FC SHADOW GRAY,TRIM1#,2#,3#,8# |
1 | ||
| 86270-40031P5 |
VG40..E;VG45..4FC SHADOW GRAY,TRIM1#,4#,8# |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-40020 |
VG40..E |
1 | ||
| 86280-40051 |
VG4# REAR |
1 | ||
| 86280-40031 |
VG4# FRONT |
1 | ||
| 86280-40060 |
VG4# |
1 | ||
| 86280-40070 |
VG4# FRONT |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-40020 |
VG40..E |
1 | ||
| 86280-40051 |
VG4# REAR |
1 | ||
| 86280-40031 |
VG4# FRONT |
1 | ||
| 86280-40060 |
VG4# |
1 | ||
| 86280-40070 |
VG4# FRONT |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90153-50010 | ||||
| 90159-50151 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 93382-16016 | ||||
| C9912-82113 | ||||
